Nowshahr commercial building in Mazandaran Province

16 November 2021

Nowshahr commercial building in Mazandaran Province, Iran

Design: MADO Architects, Tehran

Location: near Gardkol river – Shariati Street, Nowshahr County, Mazandaran Province, Iran, western Asia

Nowshahr building in Mazandaran Province

Nowshahr commercial building, Mazandaran Province, Iran

Nowshahr commercial project is located in the city of Nowshahr, near the Gardkol river. Due to the challenges that exist in the project site and its nature, the design was done based on the site situation in the field, and its shape and conditions.

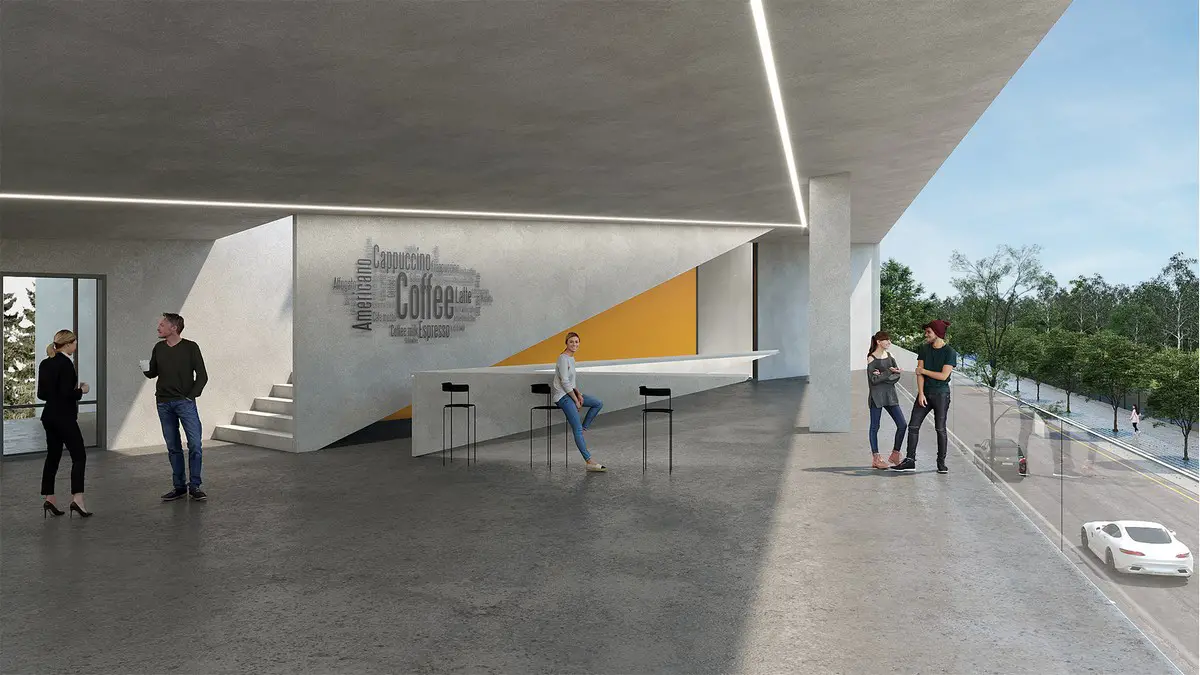

Nowshahr building interior in Mazandaran Iran

The only access to the site is from the Shariati Street. The surrounding land uses are mostly residential and the only important land use in the vicinity, in the eastern part of the land, is the Nowshahr Botanical Garden and the Gerdkol River route is located in the western part of the land and along Shariati Street. The initial programming was investigated in order to determine the construction area in the section, which was determined according to the land laws and the setbacks determined by the municipality.

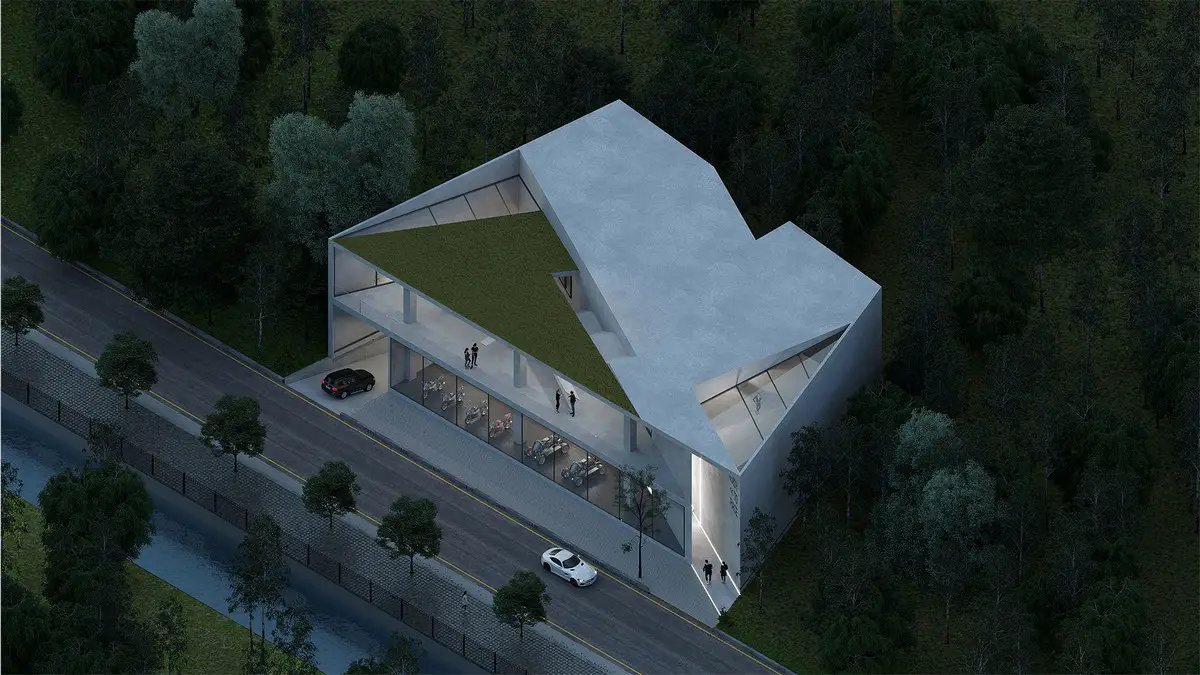

Nowshahr building design in Mazandaran Province Iran

The concept of the project was formed according to the ground conditions in its field. This project, like an island, plays a different role in its predominant use (the commercial building was seen as an island in its context).

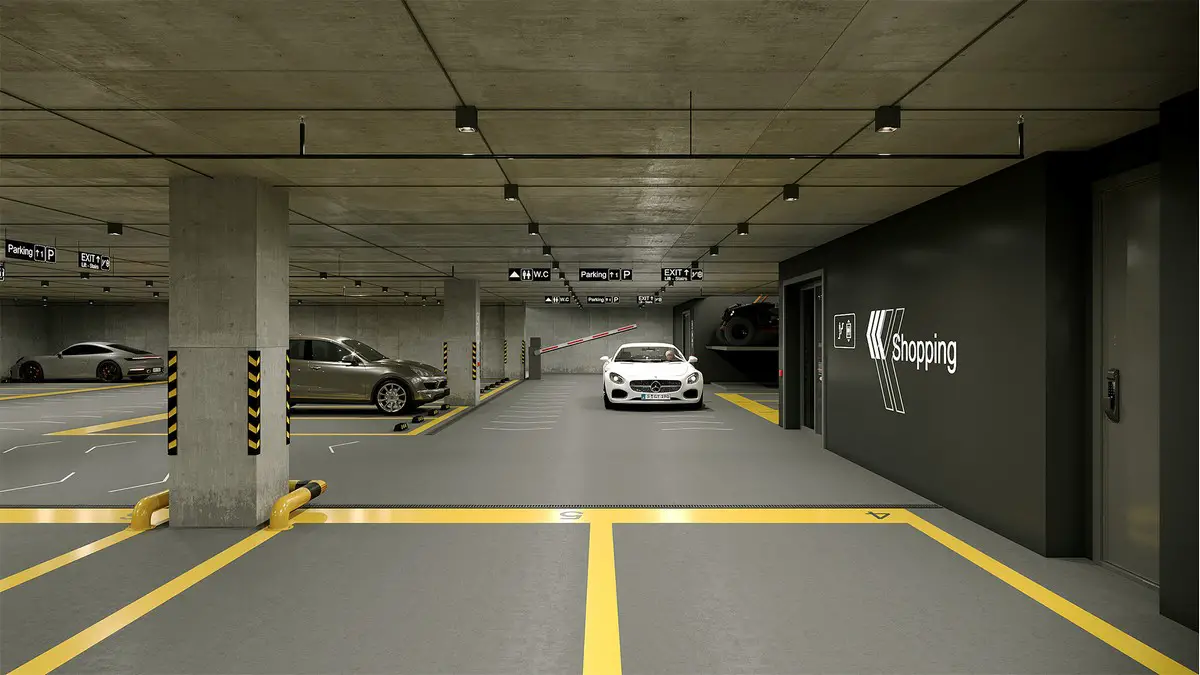

Nowshahr commercial building, Mazandaran Province basement parking

In determining the programming, in order to increase the efficiency of the building, even during the off-business hours, the recreational- commercial use on the first floor is used to help generate revenue for the complex by creating diversity in the audience and the project to live longer.

Nowshahr commercial building, Mazandaran Province

Then, taking into account the challenges related to the basement dedicated to parking and observing firefighting criteria, the proposed structure, which is a combination of concrete frame and shear wall, was determined with maximum openings (10.10 m) and The cores were placed in order to cause the least visual disturbance to the shop windows, in accordance with the criteria mentioned above.

Nowshahr commercial building in Mazandaran Province

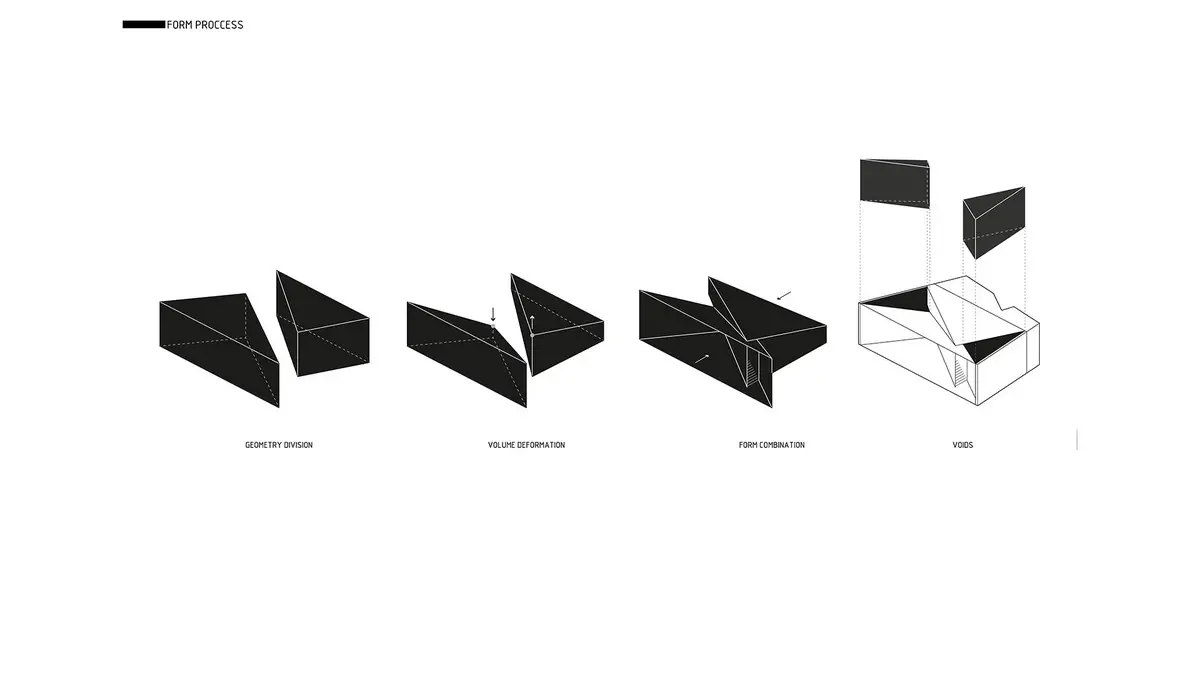

After completing the basement, the commercial part is divided into two parts according to the geometry of the ground and the cores in the project, and in line with the desired concept, according to the way the island is formed in its bed, it deforms the two created parts. And in order to create the main access, by overlapping these two volumes, the access axis is created.

Mazandaran Iran building design

This access organizes the project geometry. Then, according to the specific geometry of the site, we created two voids in the northern and southern parts of the project, which, using ceiling light, help the readability of the project and bring the desired light that was blocked by the neighbors into the project. The language of the project is preserved in sections and elevations.

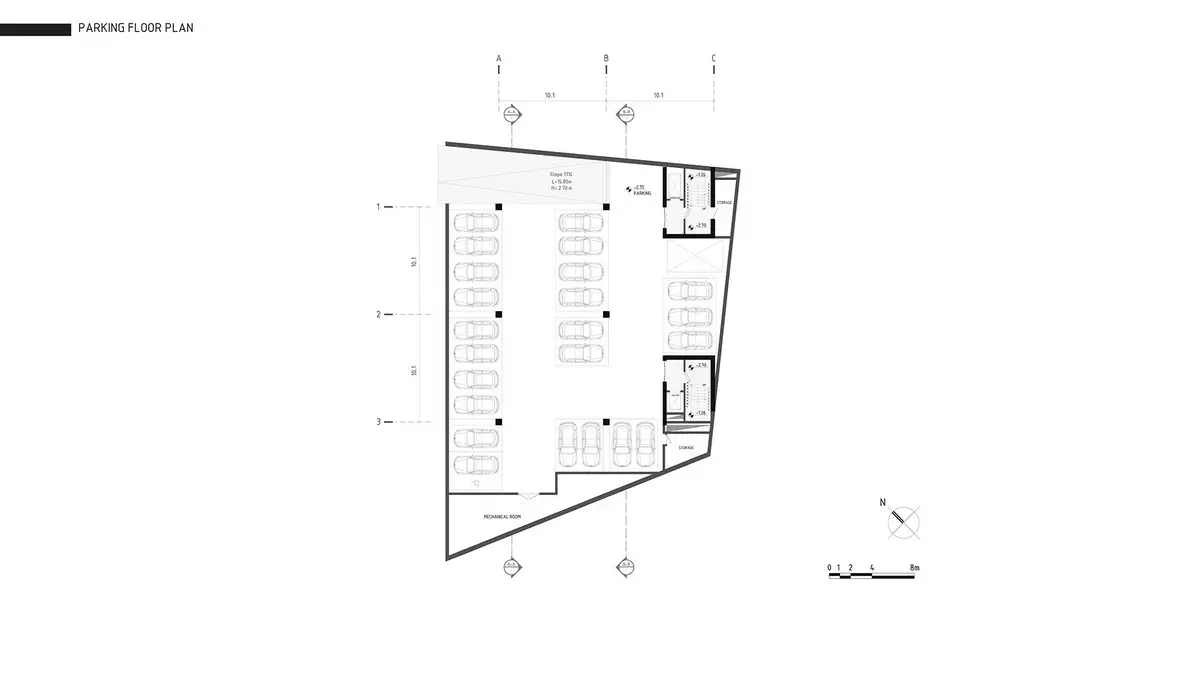

Basement plan layout:
Nowshahr building basement plan layout

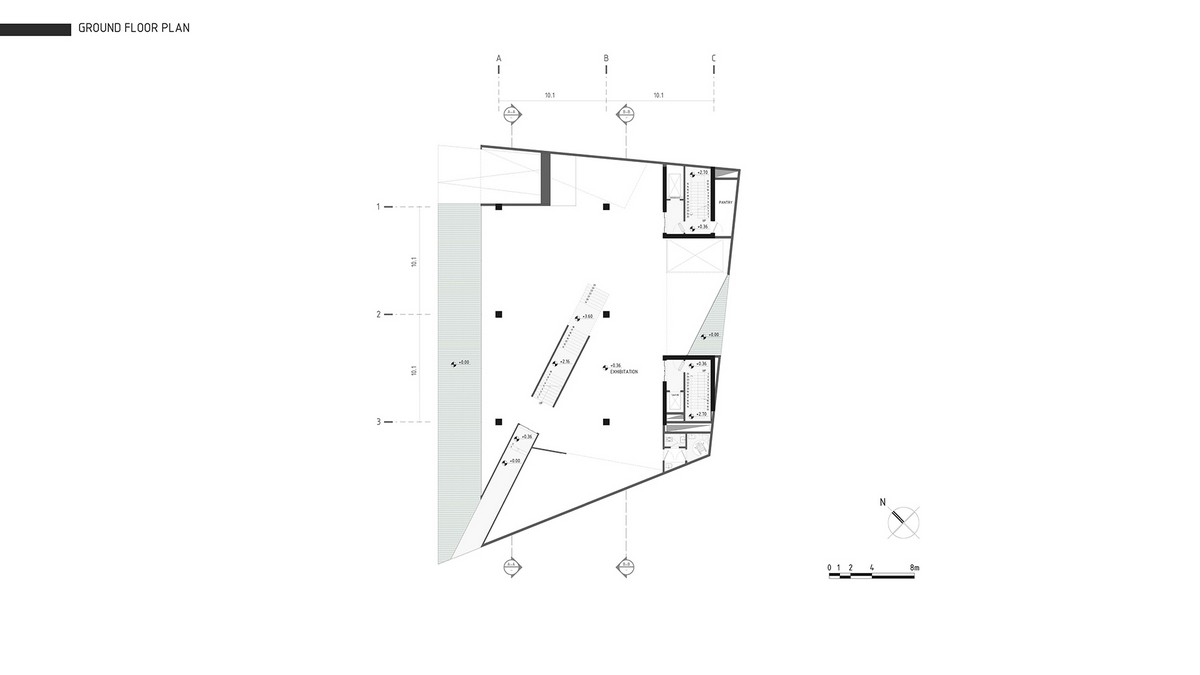

Ground floor plan layout
Mazandaran Province, Iran building plan layout

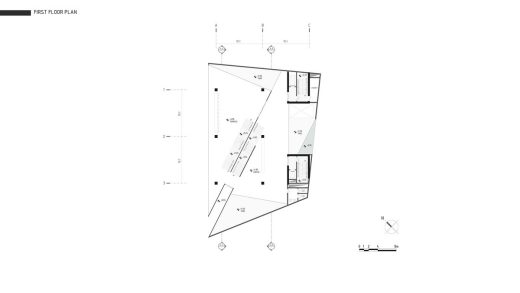

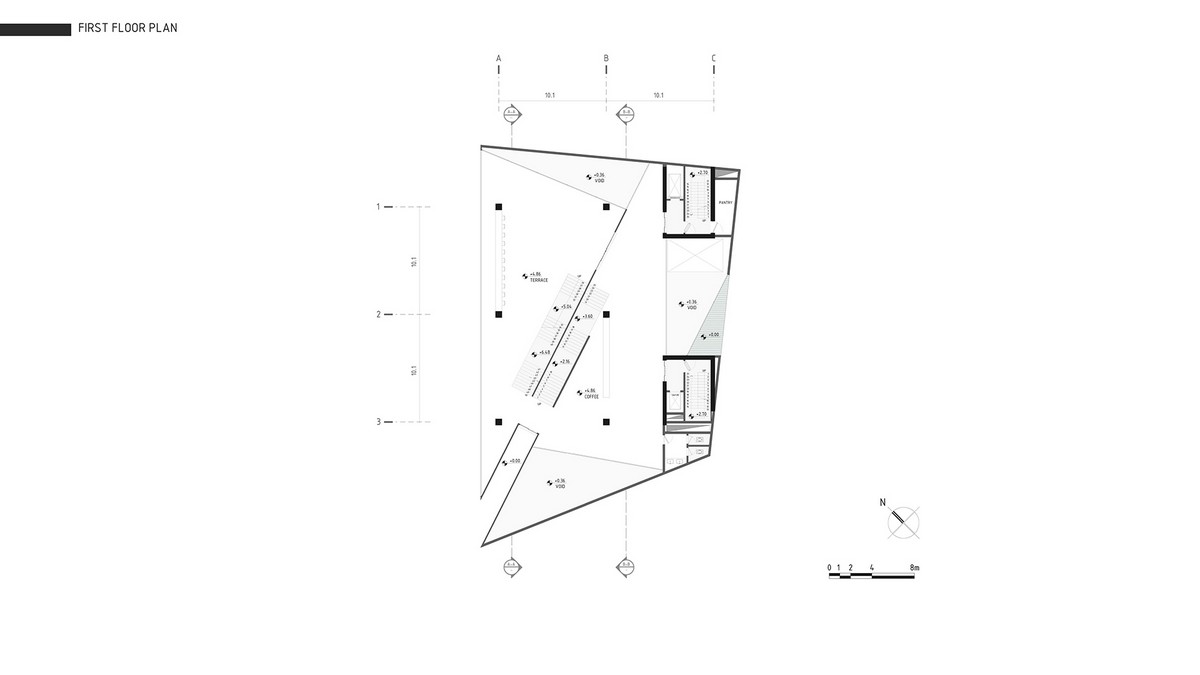

First floor plan layout
Mazandaran Iran building plan layout

Nowshahr commercial building, Mazandaran Province, Iran – Building Information

Head Architect: Maziar Dolatabadi
Lead Architect: Deniz Ebrahimi Azar
Architect in Charge: Yasaman Foroutan
3D Design & Rendering: Donya Yousefi
Drawing: Hadiis Karimi

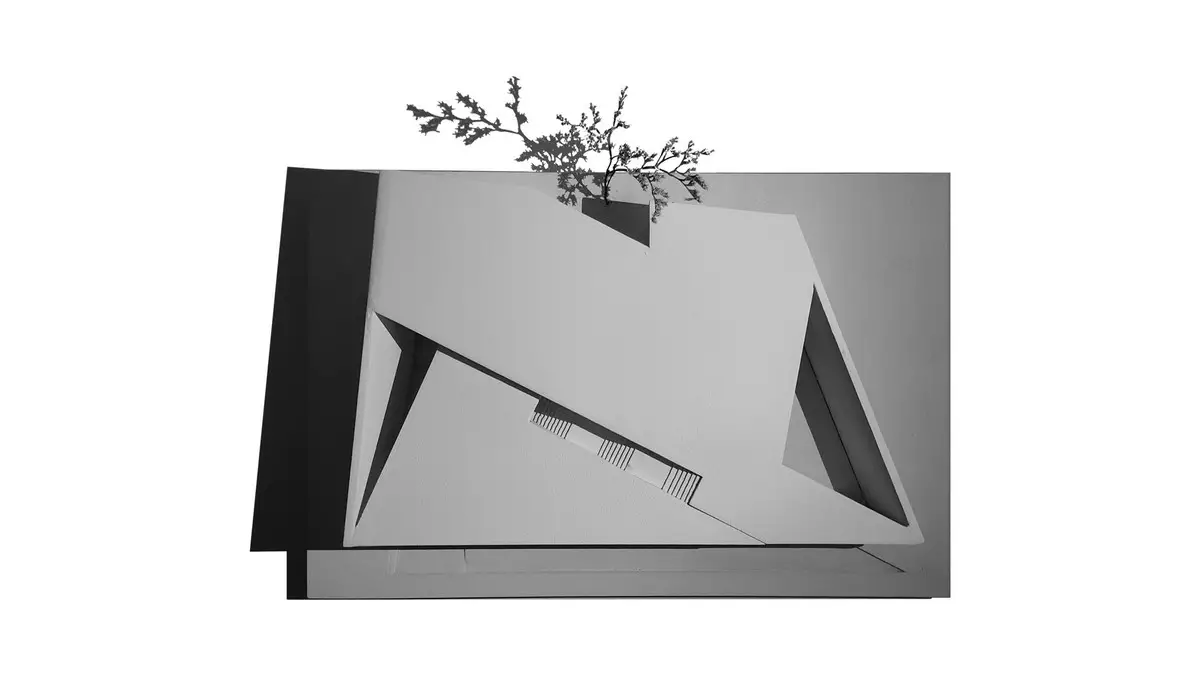

Model: Fatemeh Miri

Nowshahr commercial building, Mazandaran Province, Iran images / information received 161121 from MADO Architects
