Dutch Gambrel, Bussum Attic Extension, Netherlands Residential Project, Holland Architecture

Dutch Gambrel, The Netherlands

Bussum Residential Attic Extension – design by Serge Schoemaker Architects

21 Mar 2013

Bussum Attic Transformation

Design: Serge Schoemaker Architects

Location: Bussum, The Netherlands

Serge Schoemaker Architects has transformed and extended the attic of this charming Dutch house of the twenties in a radical way. The upper part of the roof construction was completely dismantled and the original rafters were replaced by laminated wood portal frames. The result is a bright, high and spacious attic.

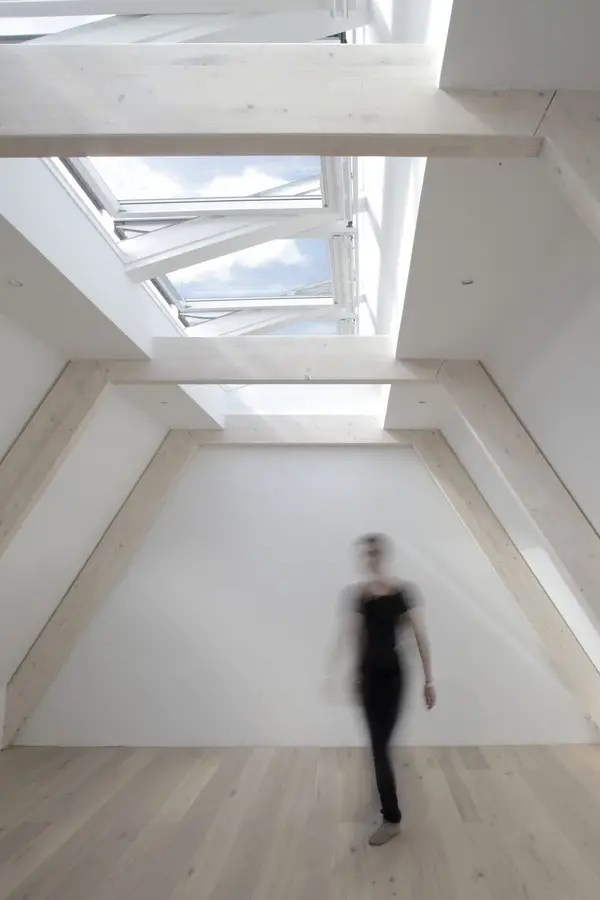

Dutch Gambrel Holland house roofspace interior design
photograph : Raoul Kramer

Dating from the early twentieth century this semi-detached house is located in a picturesque street in the center of Bussum in the Netherlands. The house has a gambrel roof; a two-sided roof with two slopes on each side. The ‘Dutch Gambrel’ was often used on Dutch colonial houses.

Dutch Gambrel Holland
photo : Irene Kievit

The roof construction usually provides the disadvantage of a low attic, which makes the attic impossible to use for anything other than storage. The owners of this house in Bussum wished to improve and extend the roof construction in order to create more space for their growing family.

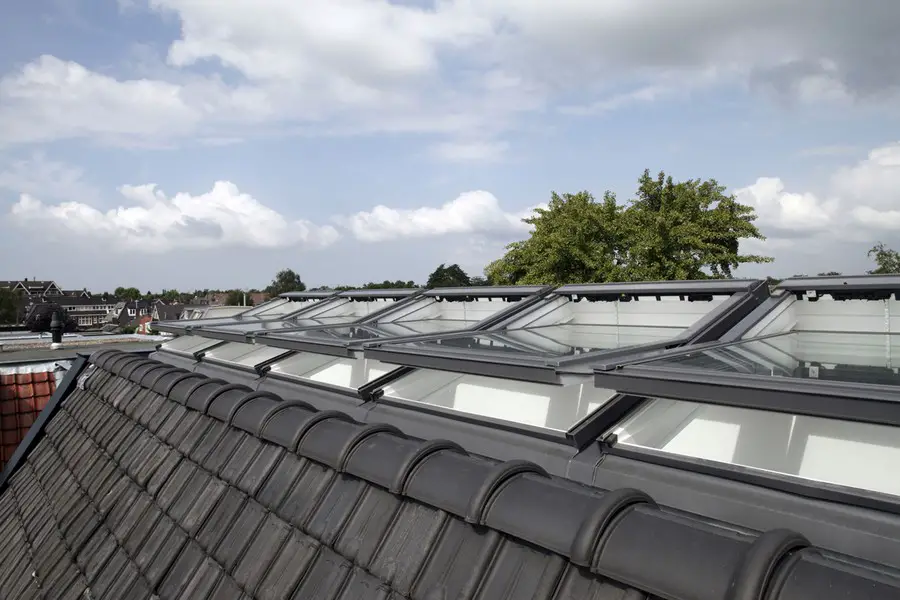

Dutch Gambrel Bussum: Holland House Extension roof tiling
photo : Raoul Kramer

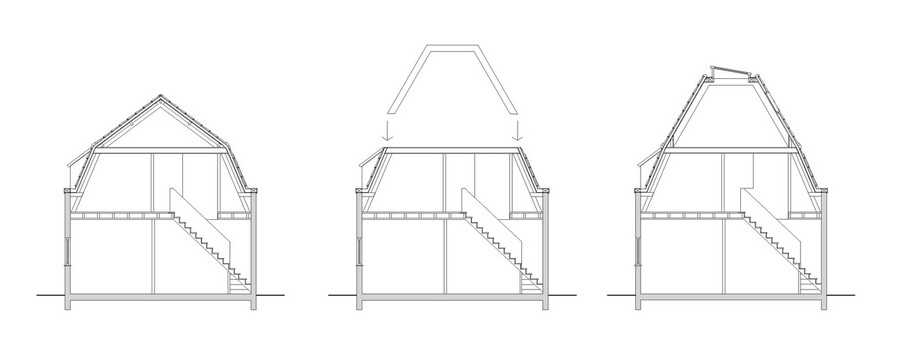

Confronted with strict local building regulations, the practice proposed to extend the roof without changing the outside appearance of the house: the upper slope, positioned at a shallow angle, was replaced by a steeper one with more height.

Dutch Gambrel Holland Dutch Gambrel Holland
images from architect

The ridge was raised by one metre and rebuilt with two ridge beams and a full length rooflight in between. All windows in the six and a half meter long rooflight can be opened to ventilate. During summer days the open roof windows will create a pleasant inner climate and allow hot air to escape the house.

With the conversion the attic has become the largest and brightest space in the house, at the same time offering a lot of privacy, The attic floor will now function as master bedroom. During clear nights the stars will be visible through the rooflight, in the course of the day a continuous change of light will evolve by the incoming daylight.

Dutch Gambrel Holland Dutch Gambrel Holland Dutch Gambrel Holland
images from architect

Dutch Gambrel – Building Information

Location: Bussum, Netherlands
Program: Residential
Area: 120 m2
Year: 2011-2012
Consultant: Jaap Aalberts (construction)

Photographs: Raoul Kramer, Irene Kievit

Dutch Gambrel images / information from Serge Schoemaker Architects
