German Football Museum in Dortmund

Location: Dortmund, North Rhine-Westphalia, Germany

Design: HPP Architects

The German Football Museum in Dortmund opened following 3 years of construction. The façades and form of the structure reflect the dynamism and emotion of the game.

German Football Museum

The new premises of the German Football Museum were officially opened on October 25h with a 3-day celebration. Four years after winning the Europe-wide competition to design the museum, HPP have created a new and permanent home for the 140 years of German Football history. HG Esch has now photographed the building.

German Football Museum

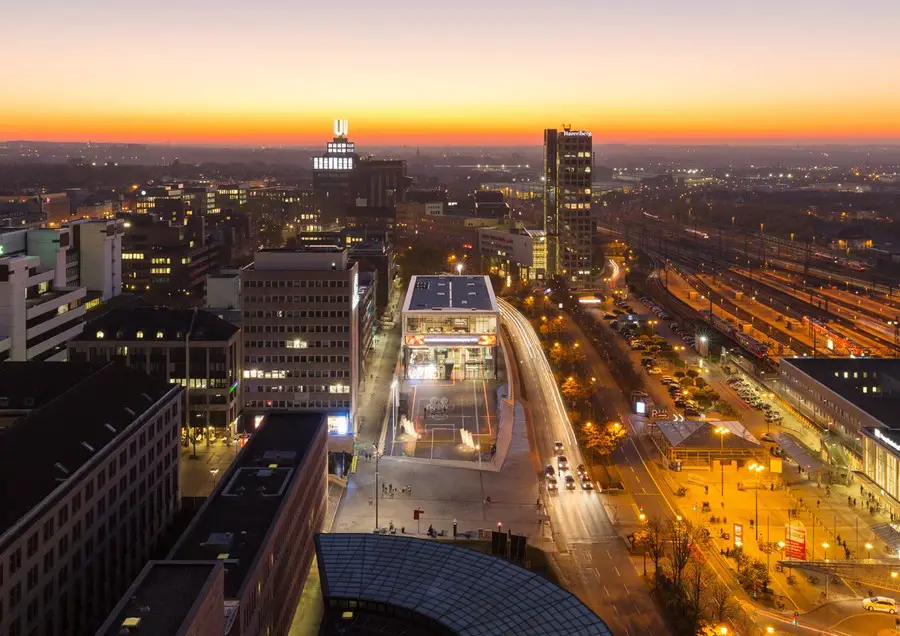

Situated in a prominent location opposite Dortmund’s central station, and complementing the existing artistic and cultural context, footballing history can be experienced for the first time on 7,700 sqm of GFA in a context outside of the usual realms of the sport.

German Football Museum

The form of the elevated structure with its wedge-shaped incisions is drawn both from the urban context on Königswall and from the exhibition concept, developed and executed by scenographers TRIAD Berlin.

German Football Museum design by HPP Architects

The architectural appearance is mainly influenced by three elements: the free-floating body, the continuous public space and the podium. The latter is a key element, particularly in terms of the surroundings, and functions as a welcoming gesture. The plateau serves to even out the varying site levels, allowing access free of thresholds and steps.

North Rhine-Westphalia architecture design by HPP Architects

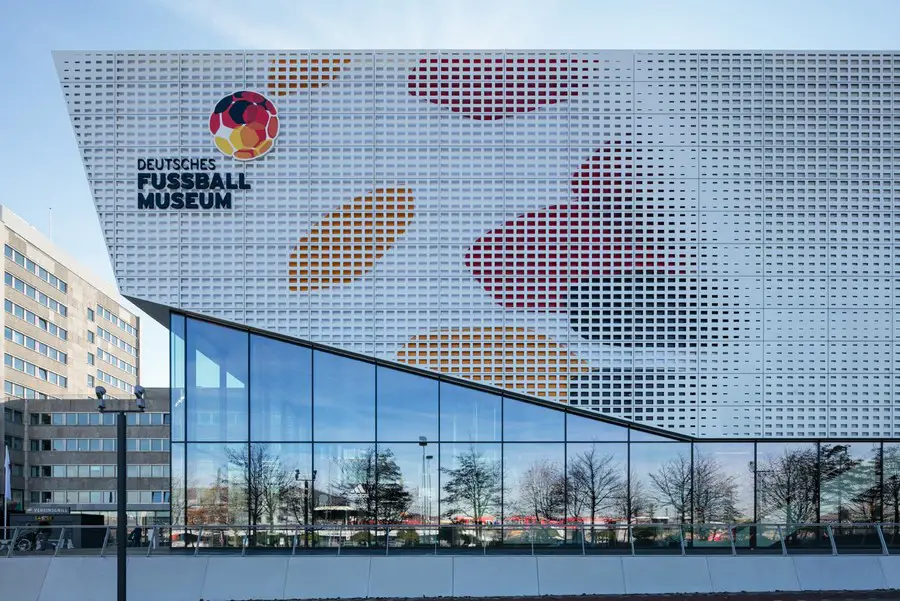

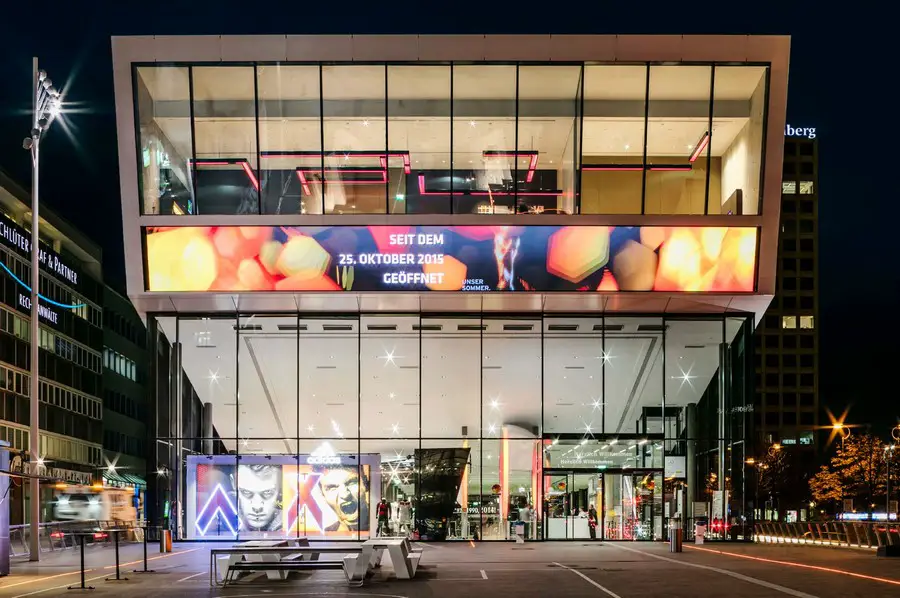

The façade carries the clear message that this is the place of Germany’s most well-loved sport. The football motif is represented by a perforated aluminium façade, back-lit with LEDs.

North Rhine-Westphalia building design by HPP Architects

New Dortmund building design by HPP Architects

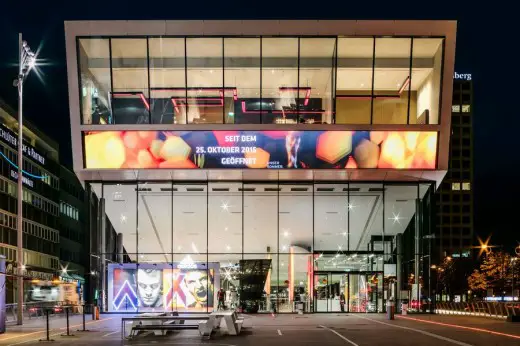

The pattern of the square perforations coalesce to form an image of a traditional football. The space between the skins of the façade can be spanned with interchangeable graphics. An LED media façade completes the exterior of the experience-orientated building.

German Football Museum Building

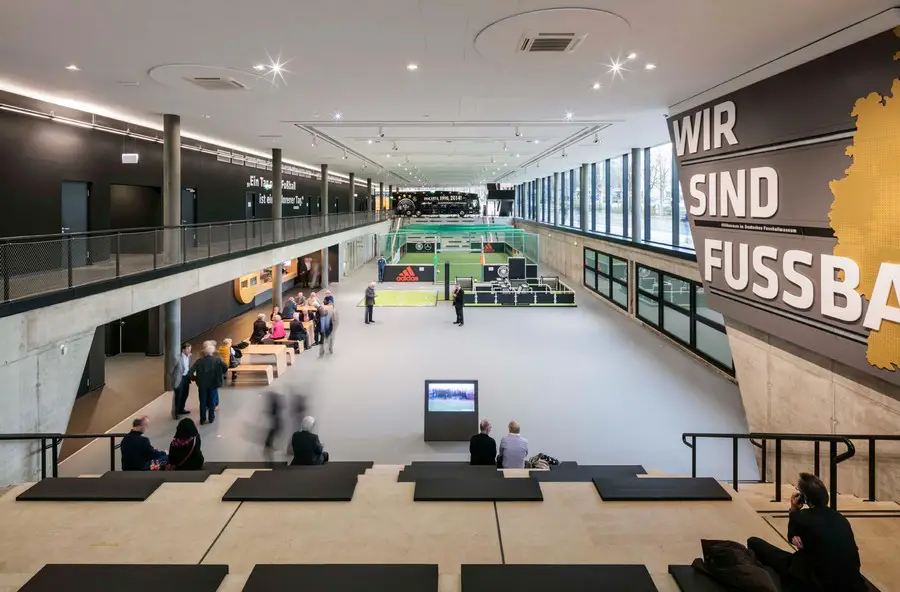

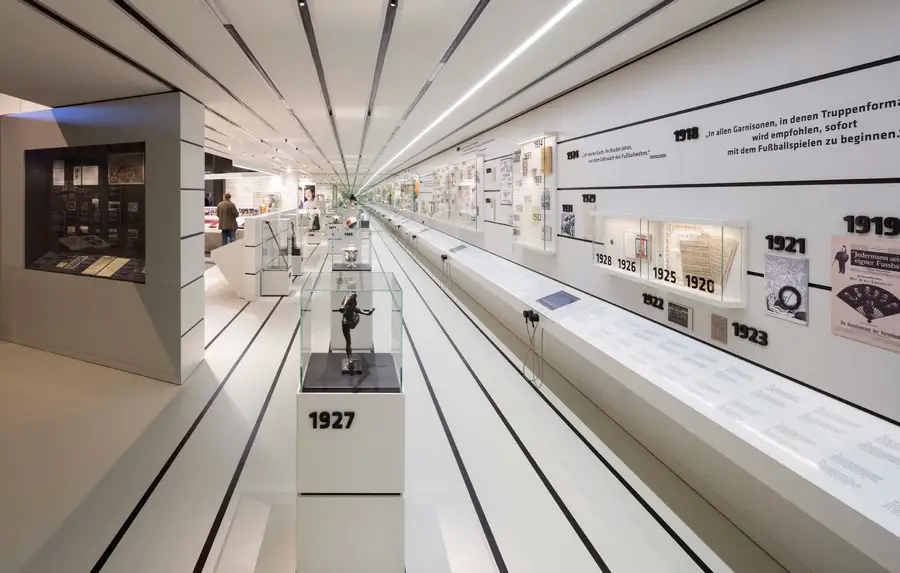

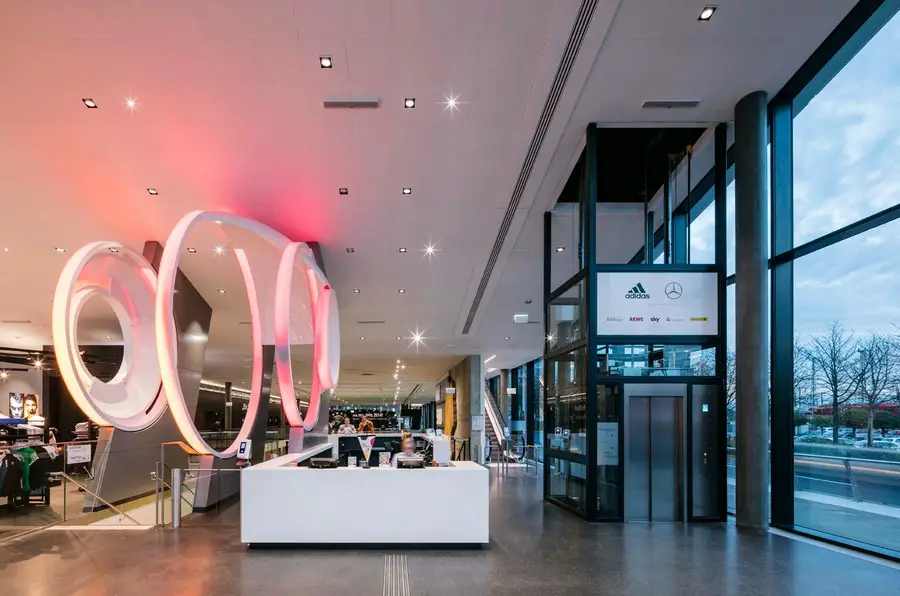

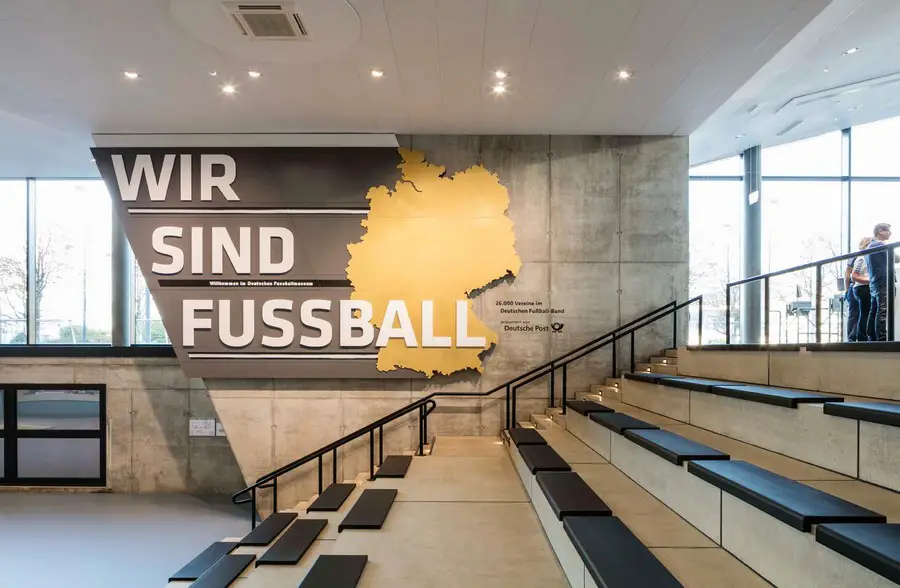

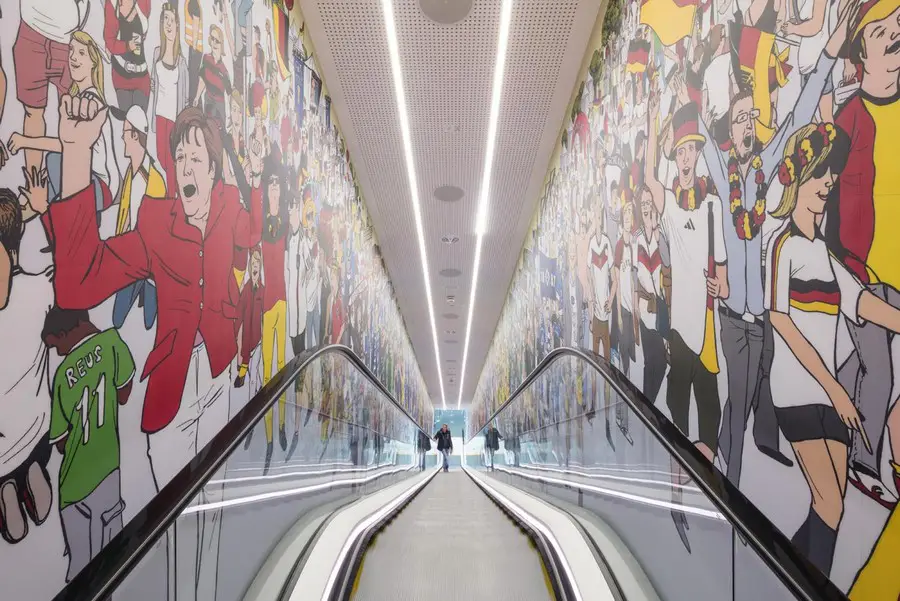

Visitors access the building via a forecourt leading to the entrance foyer, which has been designed as a free-floating space that acts as a continuation of the city. Past the ticket desk and fan shop, an escalator takes one up into the twin levels that house the permanent exhibition. The “Arena” on the lower ground floor is reserved for temporary exhibitions and events and catering facilities.

German Football Museum

“Dynamism and emotion, that is what football stands for and it is what our design for the German Football Museum stands for”, explains HPP’s Partner-in-Charge and Managing Director, Gerhard G. Feldmeyer. “Football inspires and connects us. It is for exactly this reason that the Football Museum building is open and inviting!”

German Football Museum

German Football Museum – Building Information

Project: German Football Museum
Client: DFB-Stiftung Deutsches Fussballmuseum gGmbH
Location: Dortmund
Competition: 1st Prize 2011
GFA: 7,700 sqm

Architects/Execution: HPP Architects, Düsseldorf
Partners: Gerhard G. Feldmeyer, Werner Sübai
Project Manager: Antonino Vultaggio
Construction Manager,
Deputy Project Manager: Björn Hennemann
Team: Barbara Gries and Guido Kürten together with Melanie Behnke, Tobias Fröhlich, Raimund Holubek, Kun-San Moon, Sebastian Seibold, Raphael Strohmeier, Roland Grube, Yvonne Migura

German Football Museum Dortmund

HOAI Phases: 1-8
Ground-Breaking: 20 September 2012
Foundation Stone laid: 29 April 2013
Topping-Out: 04 April 2014
Completion: 23 October 2015

Supporting Structure: Steel-reinforced concrete/steel construction
No. of Storeys: 4
External Dimensions: L 88.50 x B 25.40 x H 19.50 m
Exhibition Area: 3,400 sqm
Exhibition Designers: TRIAD Berlin Projektgesellschaft mbH
Landscaping: Club L94 Landschaftsarchitekten

German Football Museum

Photography: HG-Esch

German Football Museum in Dortmund images / information from HPP Architects
