Vincent van Gogh Foundation Rehabilitation Extension

Renovation of Mansion in Arles, France – design by Fluor Architecture

22 Oct 2016

Vincent van Gogh Foundation Rehabilitation Extension in Arles

Design: Fluor Architecture

Location: Arles, south of France

Vincent van Gogh Foundation Arles

The complete renovation of a former private mansion in Arles exactly responded to the Foundation’s desire to bring a contemporary perspective on the work of Vincent van Gogh to life.

Vincent van Gogh Foundation Arles

A completely original artistic project – to summon the genius of Van Gogh through the works of twentieth and twenty-first century artists. A historic place – in the heart of an area painted by the master and listed as a UNESCO World Heritage Site: the 2,400 m2 of the Léautaud de Donines mansion, built in the fifteenth century and held since 1924 by the Bank of France.

Vincent van Gogh Foundation Arles

Vincent van Gogh Foundation Arles

And finally, the technical specifications demanded by the most prestigious museums. Faced with these requirements, this renovation and extension was organized around another major character: the particular light of Arles, so dear to Van Gogh.

Vincent van Gogh Foundation Arles Vincent van Gogh Foundation Arles

Exchanges

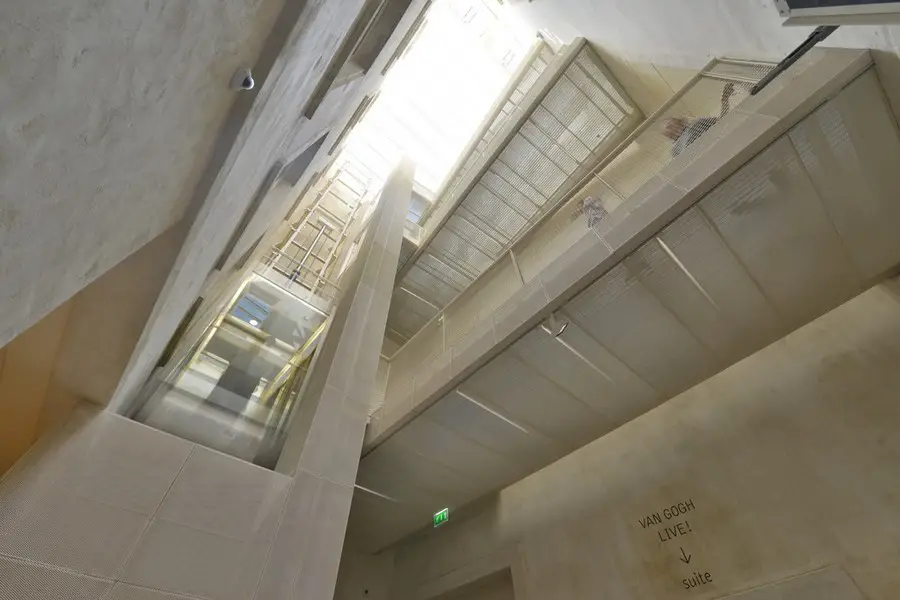

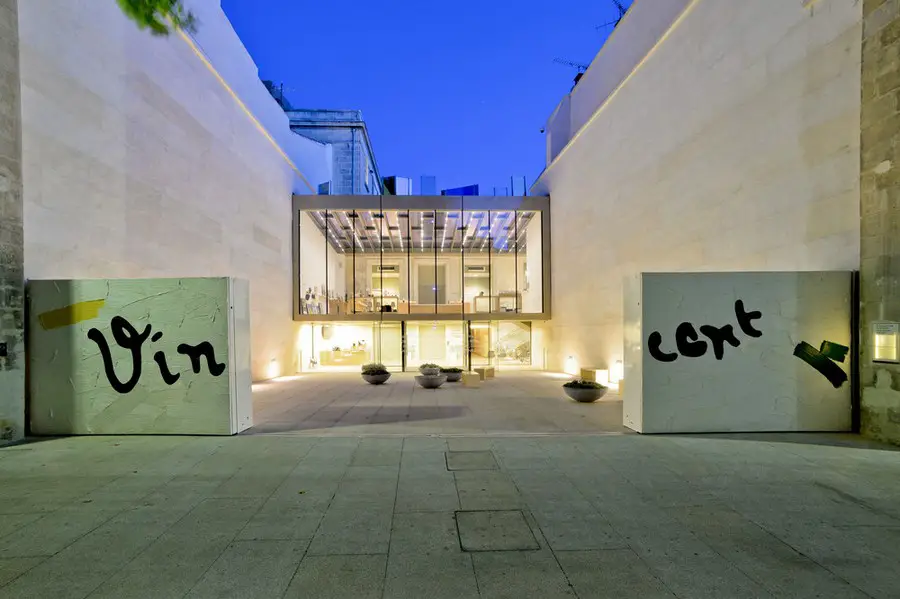

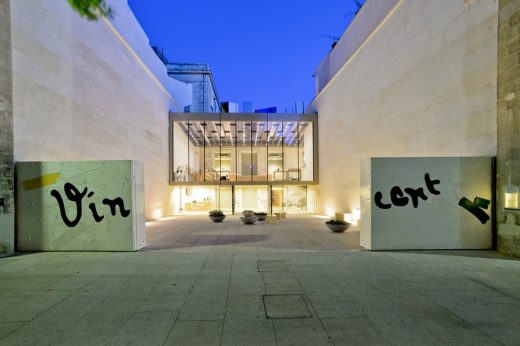

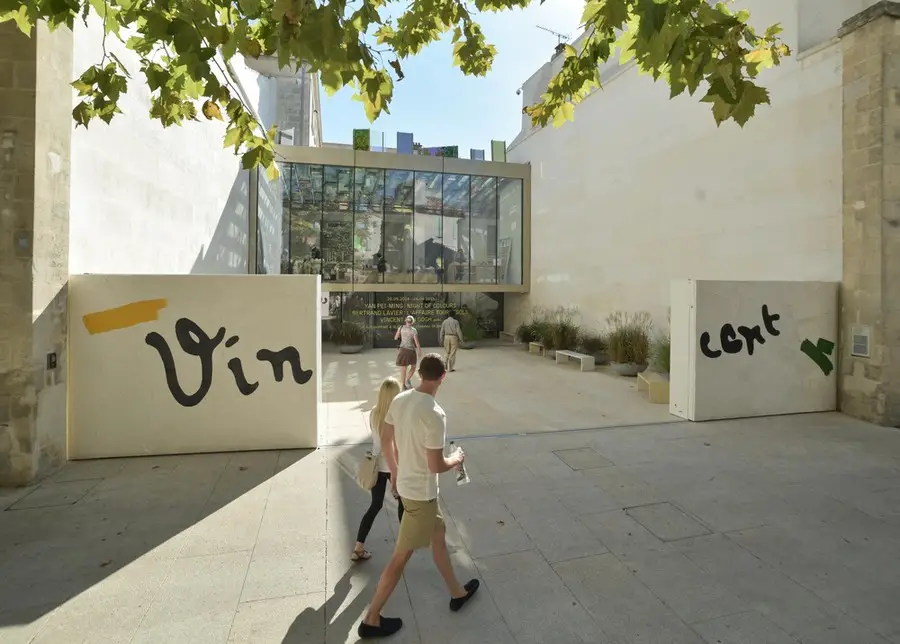

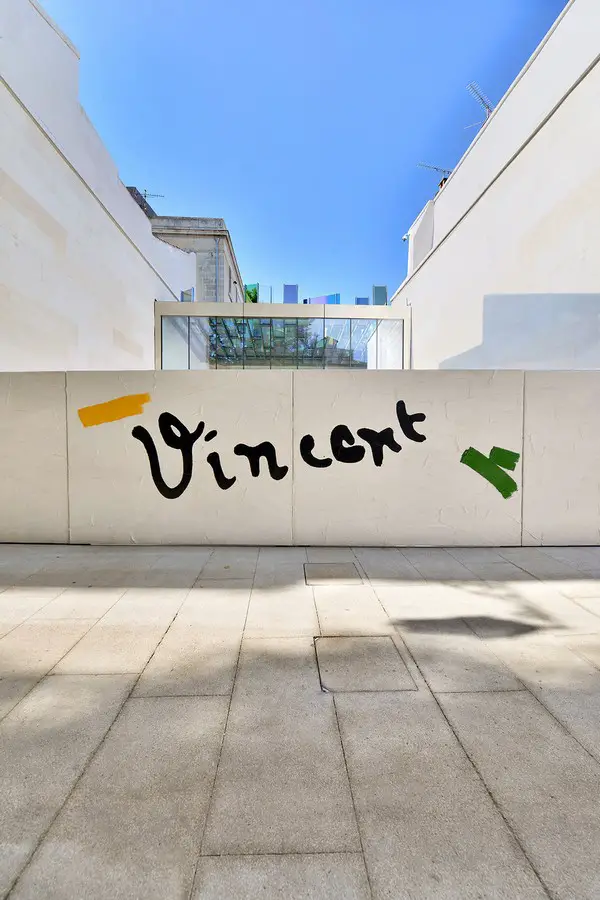

The architectural project tapped into the core of the Foundation’s artistic mission: to create exchanges. Starting with the conversations between Van Gogh – (absent from the collection but the light and the site of Arles make him the vector) – and the artists: those of the collection, those invited to expose, and those artists who created works in harmony with the building: Bertrand Lavier with his sliding entrance wall, Raphael Hefti, with his coloured glass sculpture on the roof of the bookshop, and Fritz Hauser, who created the stairwell.

Vincent van Gogh Foundation Arles

Vincent van Gogh Foundation Arles

Topographies

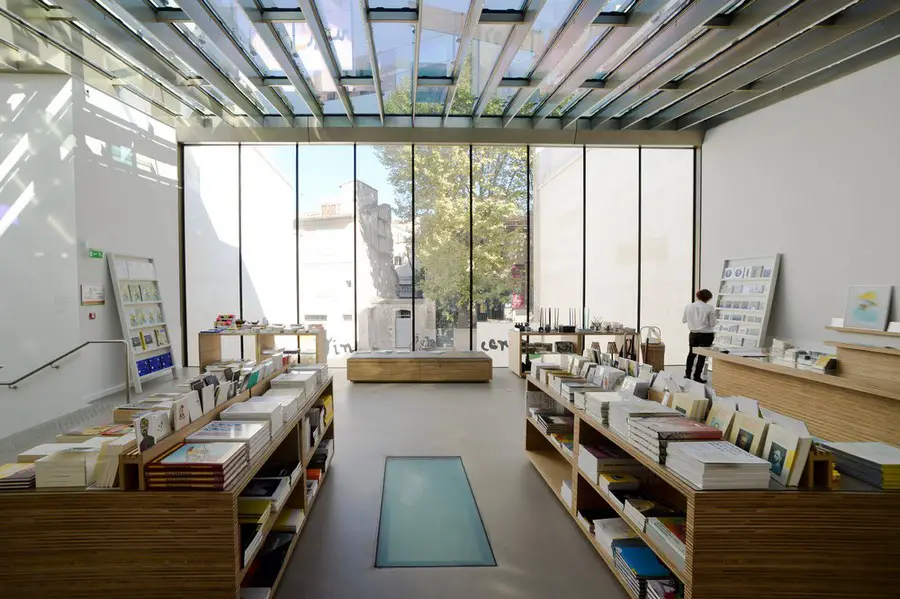

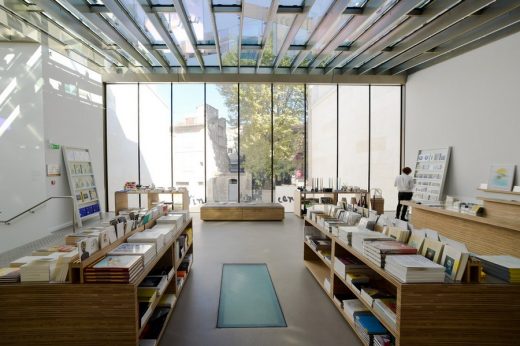

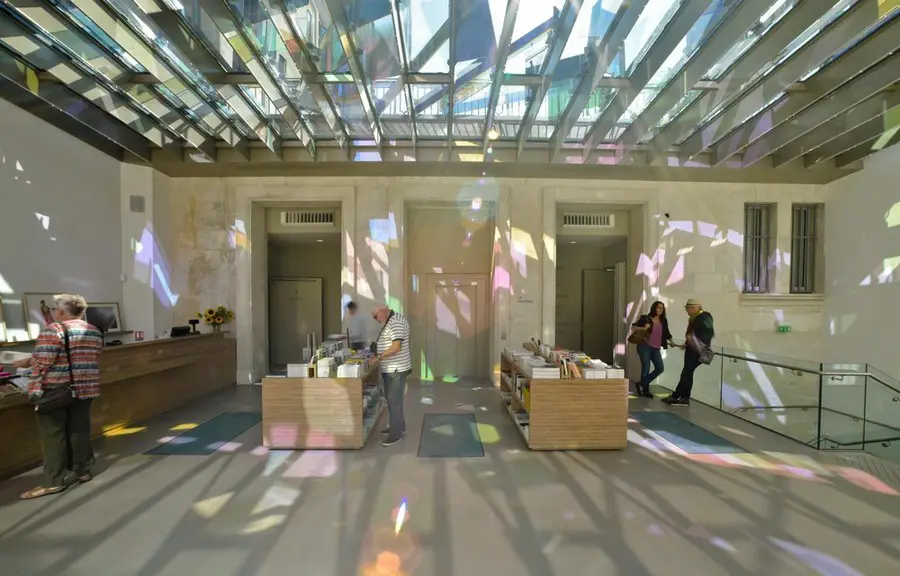

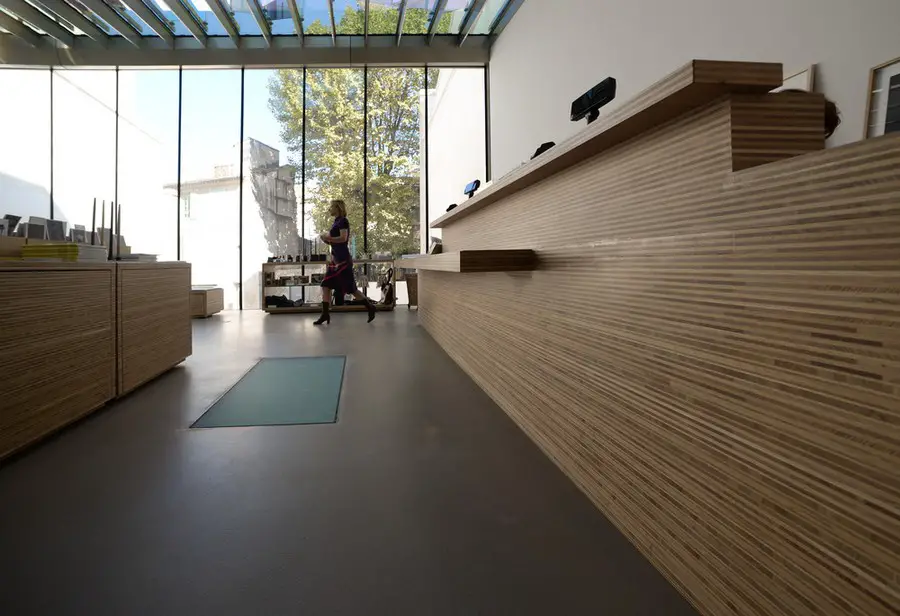

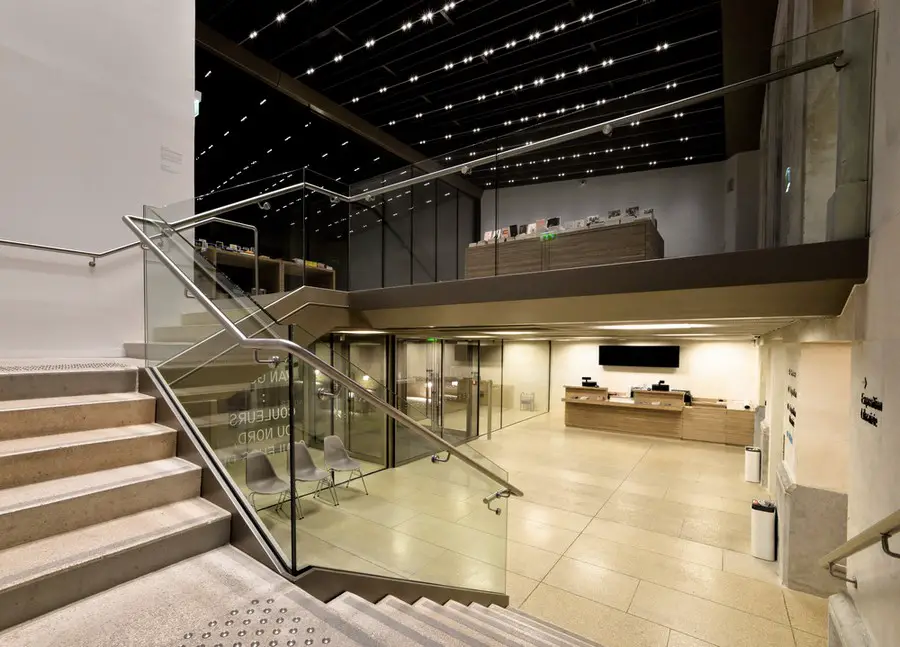

Natural daylight, the famous light of Arles, guides the reorganization of exhibition volumes and space (1000 m2), designed with exceptional modularity to best serve the works of art, and in rigorous relationship with conservation requirements. Throughout the visitor’s experience, there are colourful projections on the immaculate walls of the reception area and gift shop, an extension of the glass above the entrance in the courtyard.

Vincent van Gogh Foundation Arles

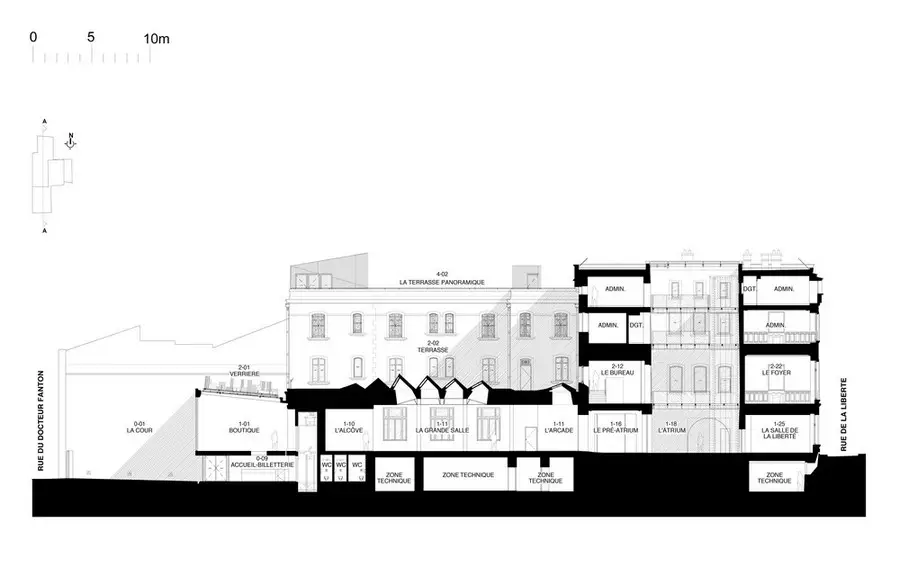

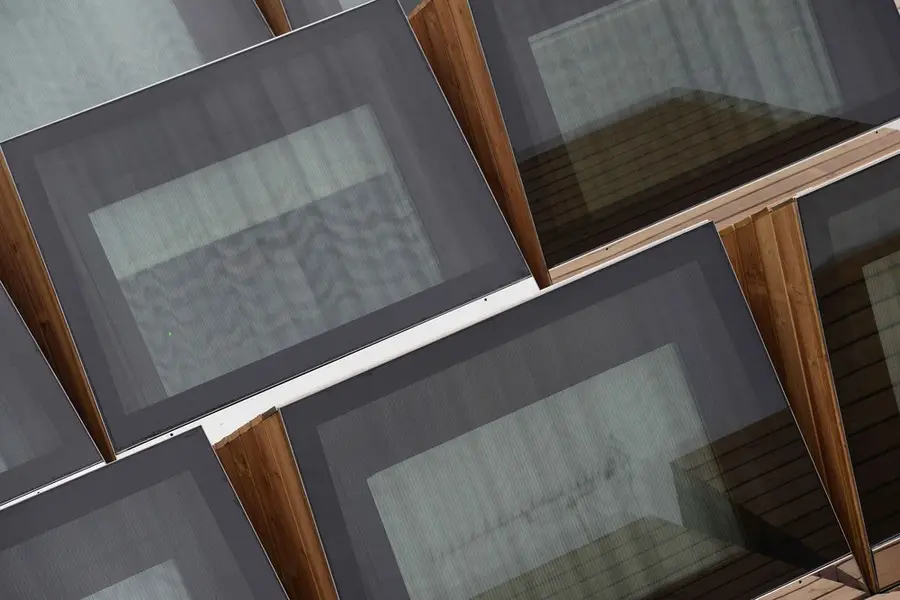

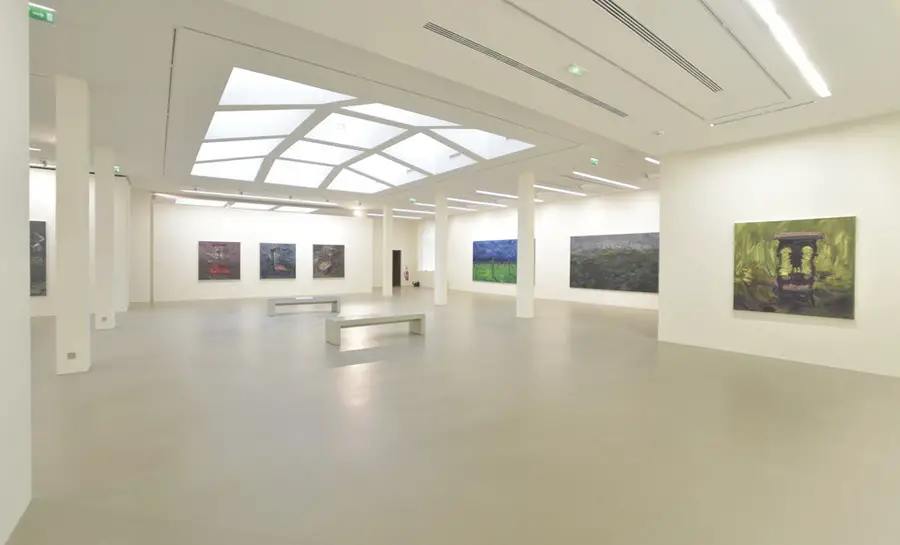

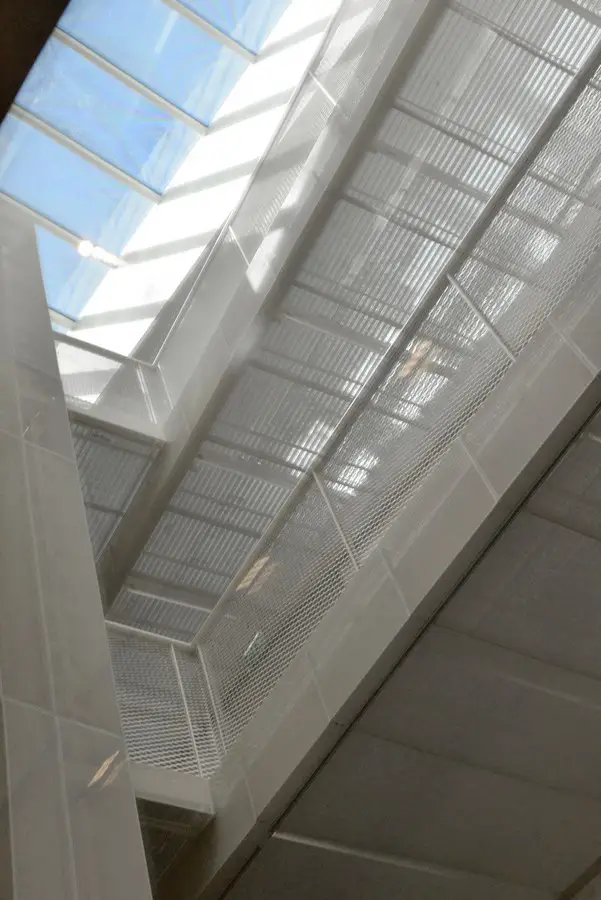

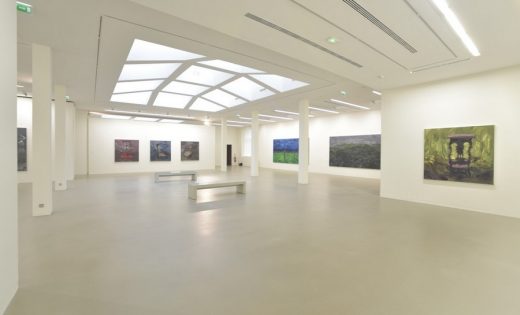

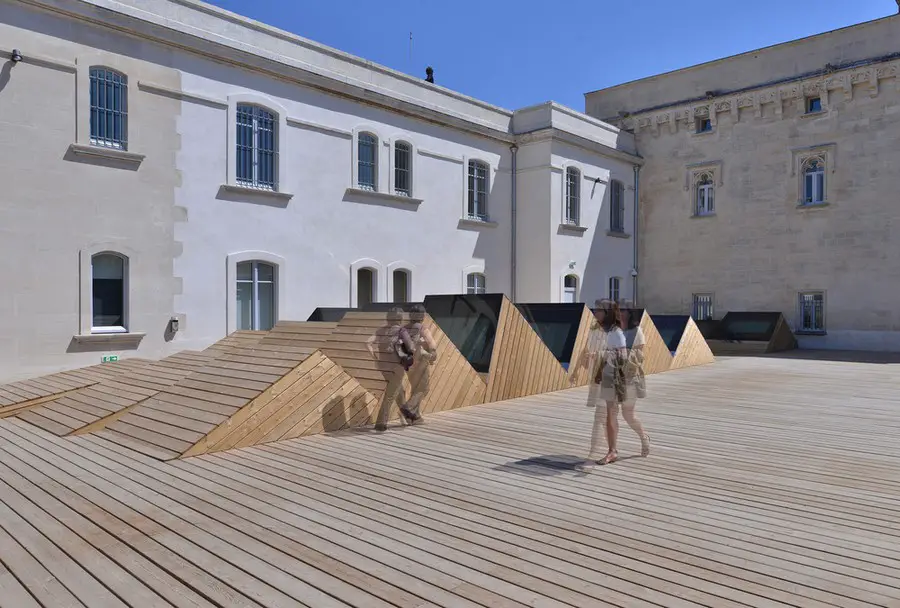

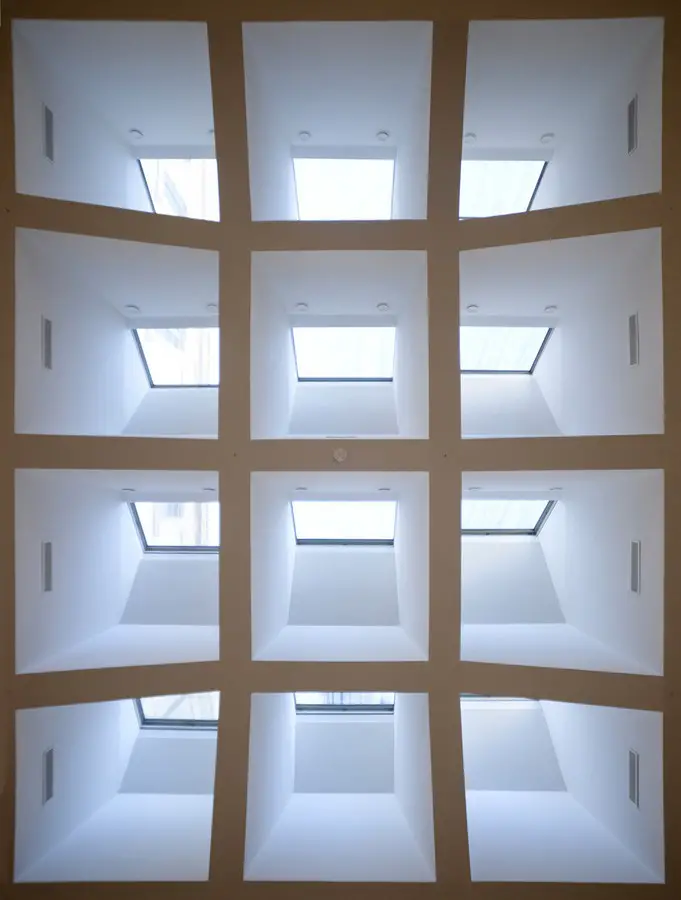

Skylight openings in the large exhibit hall transmit a structure created on the rooftop terrace: 20 sheds arranged in five rows of three, each oriented according to the path of the sun. The other rooms and offices are lit by a pre-existing tubular daylight and the whiteness of the limestone that has rediscovered its centrality.

Vincent van Gogh Foundation Arles Vincent van Gogh Foundation Arles

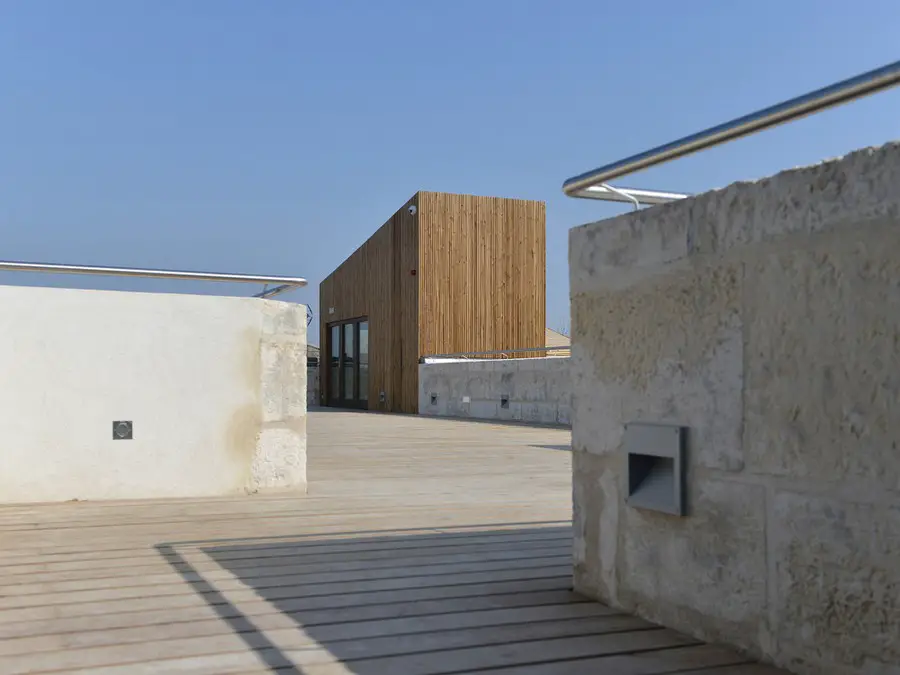

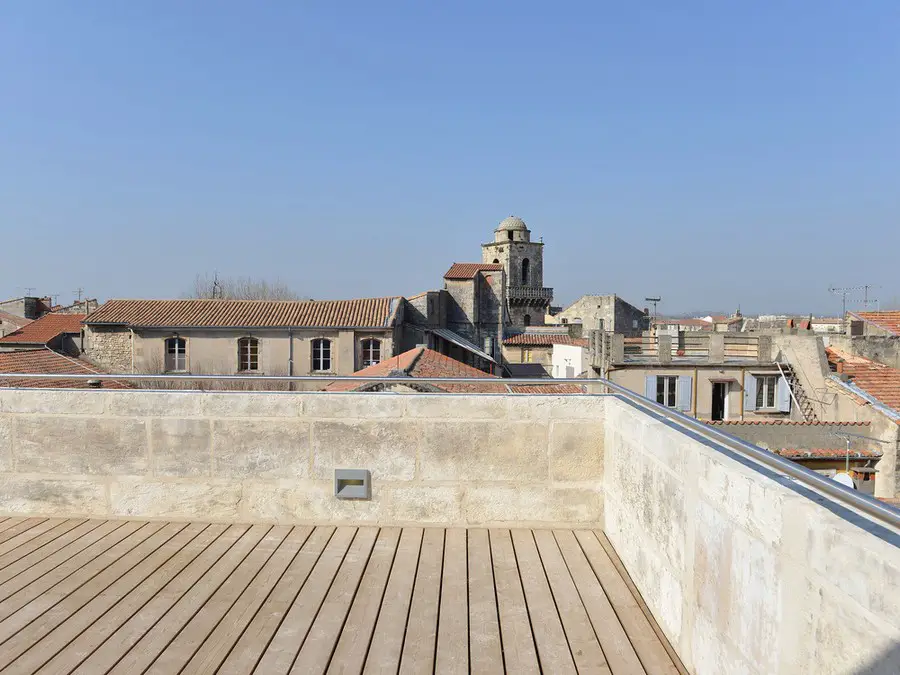

Finally, there is the direct daylight from the open sky on the cascading terraces arranged to sketch out a variety of landscapes: from the intimacy of the first floor to the roof, where the panoramic view is revealed, this view that marks the building in its relationship to the city and its surroundings, and in doing so, as Guillaume Mansart states, its relationship to the history of art.

Vincent van Gogh Foundation Arles

Vincent van Gogh Foundation Arles

Jewel-box

To attract, house, protect, and promote the most coveted works of art: the ambition of the Van Gogh Foundation describes the technical stakes of the project. With the support of the Van Gogh Museum in Amsterdam, which consulted and assisted the general contractor on issues of security, safety and conservation, this renovation incorporated international museum standards to create a jewelled display case able to convince the most demanding and prestigious art lenders.

Vincent van Gogh Foundation Arles

Connections / Raphaël Hefti, To Reflect or Not to Reflect

“The violet, blue, green, yellow, orange, red house” by Raphaël Hefti . . .

. . . mediates the light of Arles, projected onto the roof of the gift shop and lobby of the Vincent van Gogh Foundation, like a disassembled kaleidoscope.

Vincent van Gogh Foundation Arles

Invited by the Foundation’s Artistic Director, Bice Curiger, the Swiss artist delivered a new instalment in his continued work on the reflection/non-reflection of glass. Weaving a close dialogue not only with Fluor’s architecture but also with new technologies, he put dichroic glass in the spotlight, one of his preferred mediums for playing with opacity and transparency offered by the different layers of oxides.

Vincent van Gogh Foundation Arles

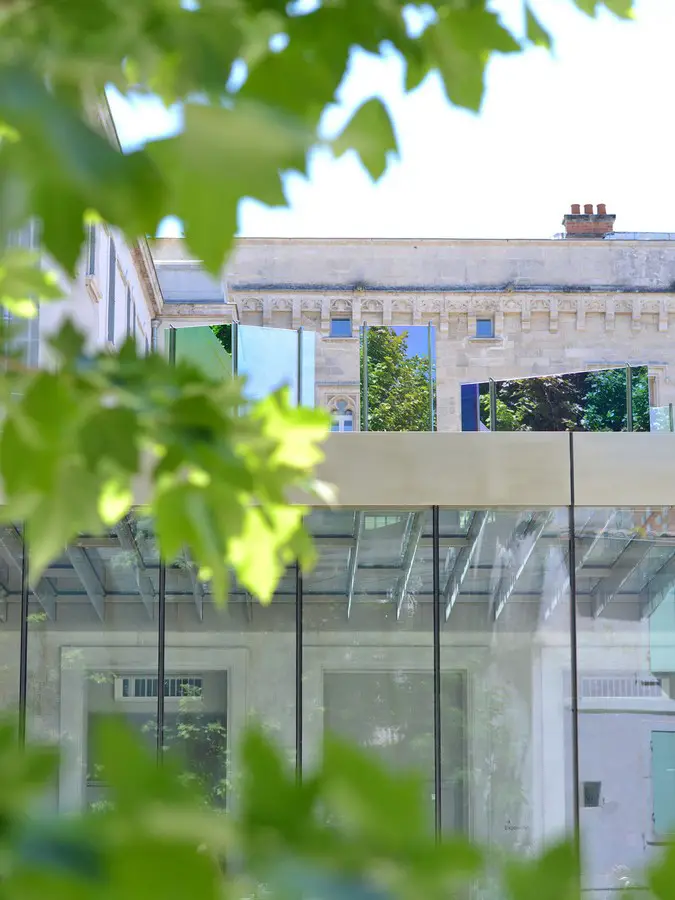

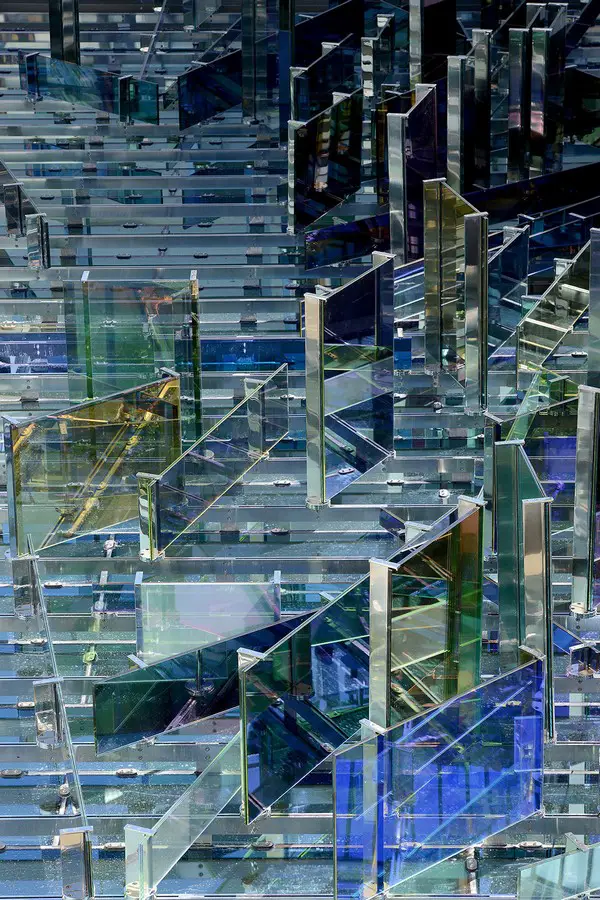

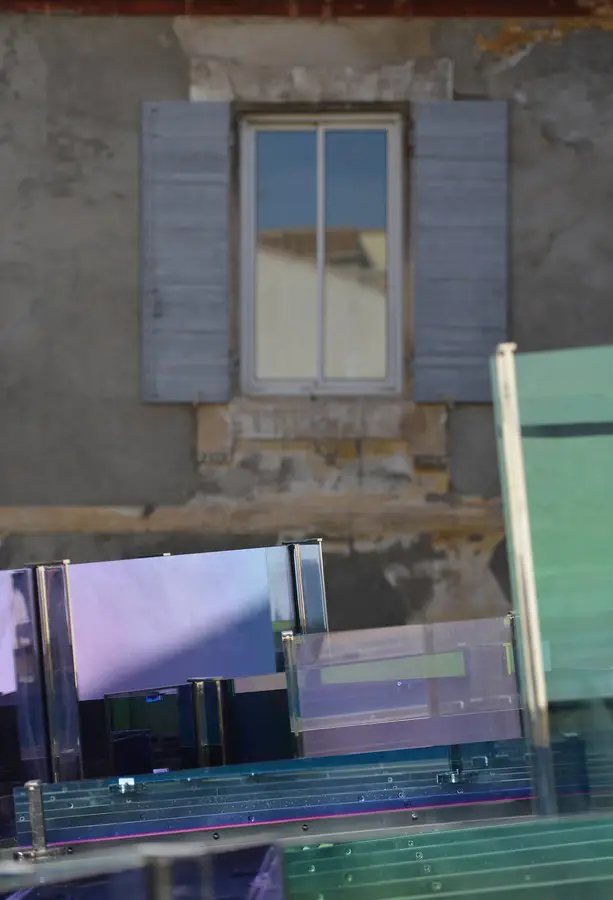

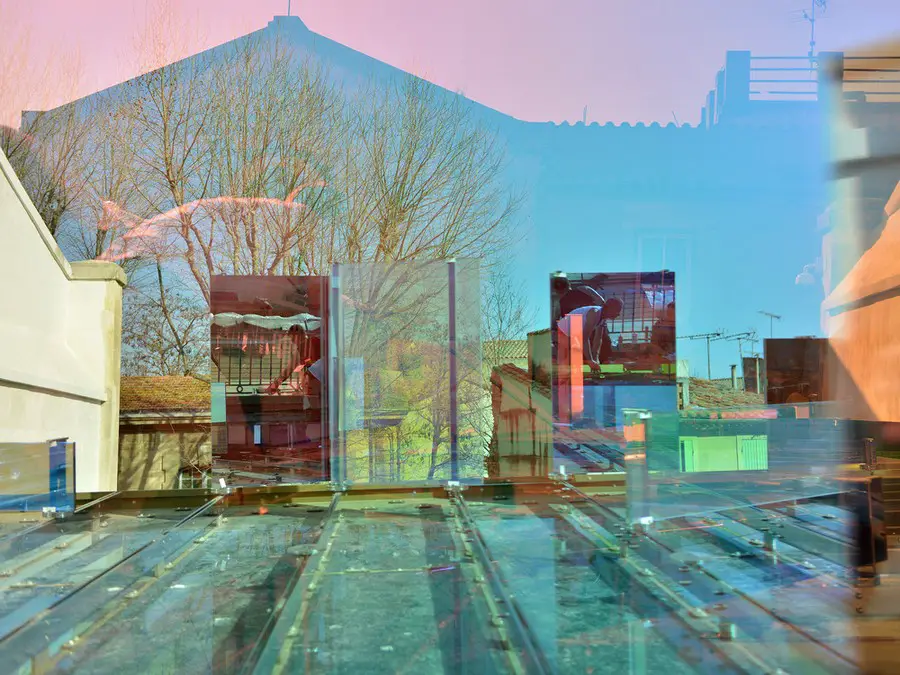

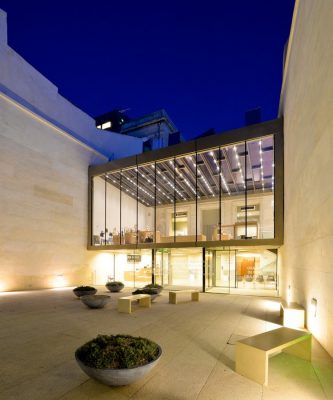

Arranged in a conscious disorder on the roof of the gift shop and lobby, itself made of glass, the 78 glass plates are suspended above the entry with varying degrees of opacity and reflectiveness. Of all different sizes and colours, they make the light dance on the walls and into the courtyard following the passage of the sun.

By absorbing ultraviolet rays, they also help maintain a temperate climate inside the space.

Sustainability Meets Conservation

Sustainable Design / The ambitions of the Vincent van Gogh Foundation called for excellence in energy performance.

Vincent van Gogh Foundation Arles

In fact, the proper conservation of works of art requires sophisticated heating, air conditioning, and air filtering systems and controlled humidity and lighting that traditionally consume a lot of energy.

Vincent van Gogh Foundation Arles

Air tightness tests revealed the need to reinforce the insulation in the existing structure (walls, roof)* and the windows and doors, to install a maximum-efficiency VRV system, and to opt for very low-emissivity glazing, in particular on the glass roof. Another critical system, lighting, uses energy-efficient LEDs (Erco).

Vincent van Gogh Foundation Arles

Because the precision and coordination of these systems are as important as their intrinsic performance, they are all controlled by a building management system (BMS) and a KNX system (over 500 sensors).
* Other than those of the 15th century mansion.

Vincent van Gogh Foundation Arles Vincent van Gogh Foundation Arles

Review / A style forged from combination

“Born from a complex web of desires, the architectural design of the Vincent van Gogh Foundation . . .

. . . invents a style forged from combination. Organizing heterogeneous spaces, interweaving contemporary works of art and the museographic requirements of conservation, recomposing historical elements and inventing new forms, the architecture multiplies ways of reflecting. The architecture catalyzes intuition and expertise, experimentation and skill. In so doing, it creates a generous space open to all forms of influences and exchanges that consciously take part in a form of timelessness.”

Vincent van Gogh Foundation Arles

Guillaume Mansart, excerpt from Le bâtiment de la Fondation van Gogh, February 2014

G. Mansart is an art critic, and co-editor of theDocuments d’artistes project

Vincent van Gogh Foundation Arles

Vincent van Gogh Foundation Rehabilitation Extension in Arles – Building Information

Location: Arles (13, France)
Mission: Base + EXE + OPC + MOB
Budget: 9 M€ HT
Area: 2 500sqm SHON
Livraison: mars 2014
Maîtrise d’ouvrage: Fondation Vincent van Gogh d’Arles
Assistant Maîtrise d’ouvrage: MYAMO
Économiste: R2M
BET Fluide: G2i Ingénieurie
BET Structure: Beccamel
Concepteur lumière: Wonderfulight
BET Lumière naturelle: Ingelux Consultants

Vincent van Gogh Foundation Arles Vincent van Gogh Foundation Arles

Photography: ©Hervé Hôte and Fluor Architecture
