Bedales School Art and Design Building in Petersfield

English Art and Design Building in South Downs, Hampshire – design by Feilden Clegg Bradley Studios

31 Oct + 7 Sep 2017
Bedales School in Hampshire wins 2017 RIBA Client of the Year

Shortlisted for RIBA Client of the Year 2017

3 Aug 2017

Bedales School Art and Design Building

Architects: Feilden Clegg Bradley Studios

Location: Steep, Petersfield, Hampshire, Southern England

Bedales School

Photos: Hufton + Crow

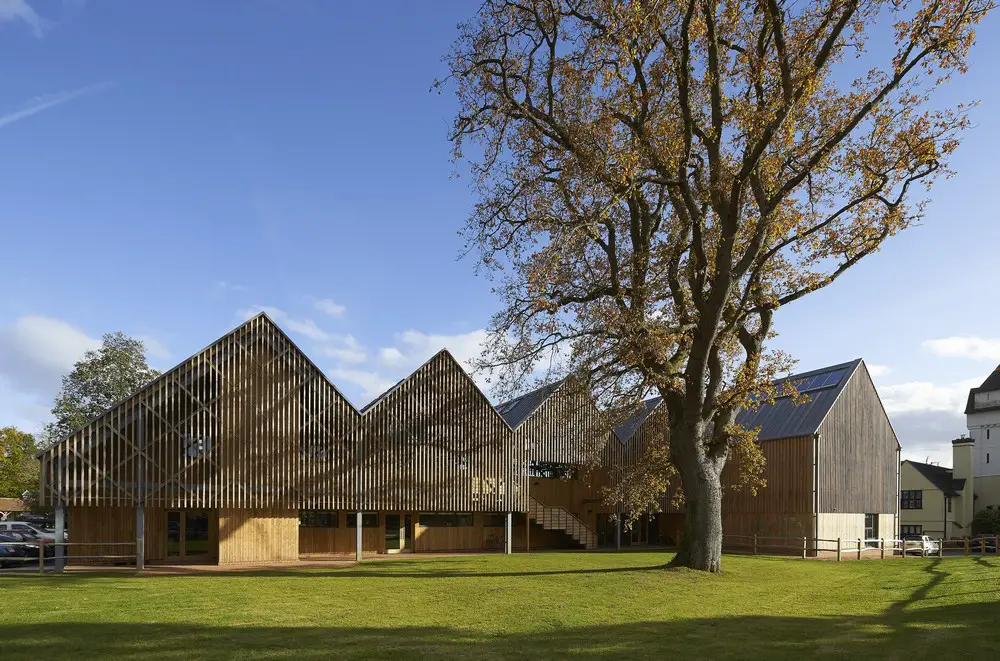

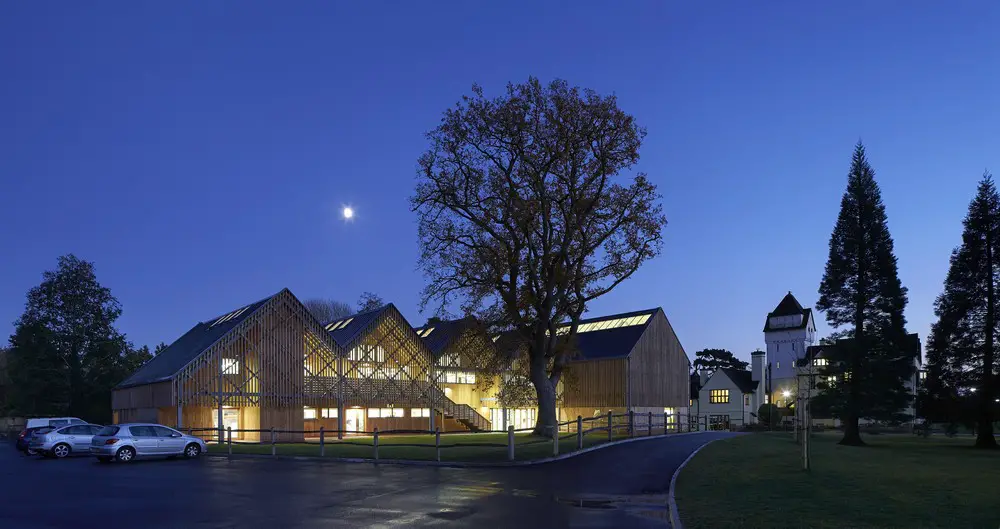

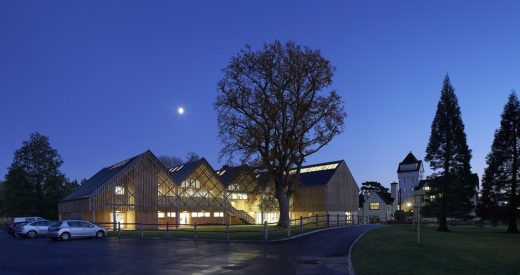

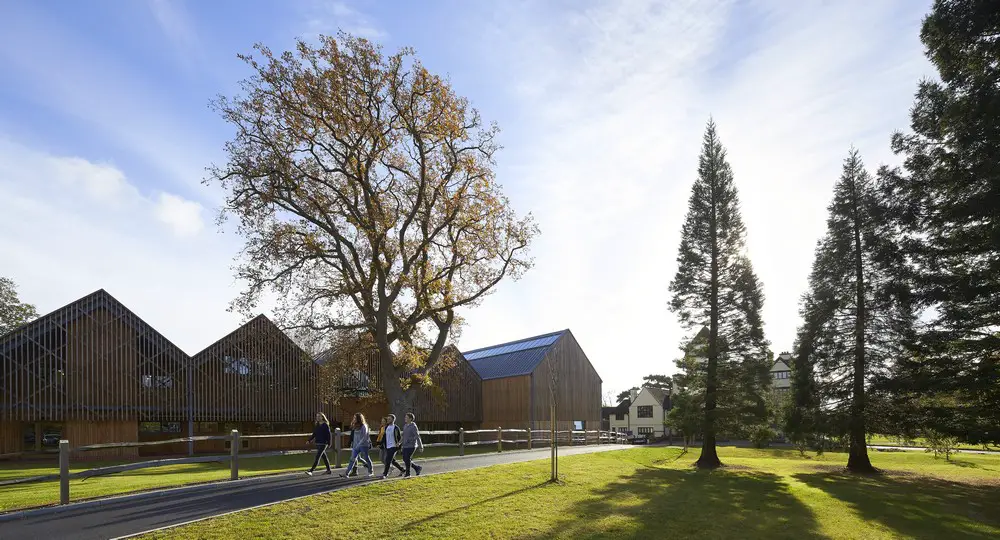

Bedales School is set in an area of outstanding natural beauty on the edge of the South Downs National Park in the village of Steep near Petersfield. Constructed around a substantial and beautiful oak tree within a new court and central lawn the new Art and Design building has a strong sense of place.

Bedales School

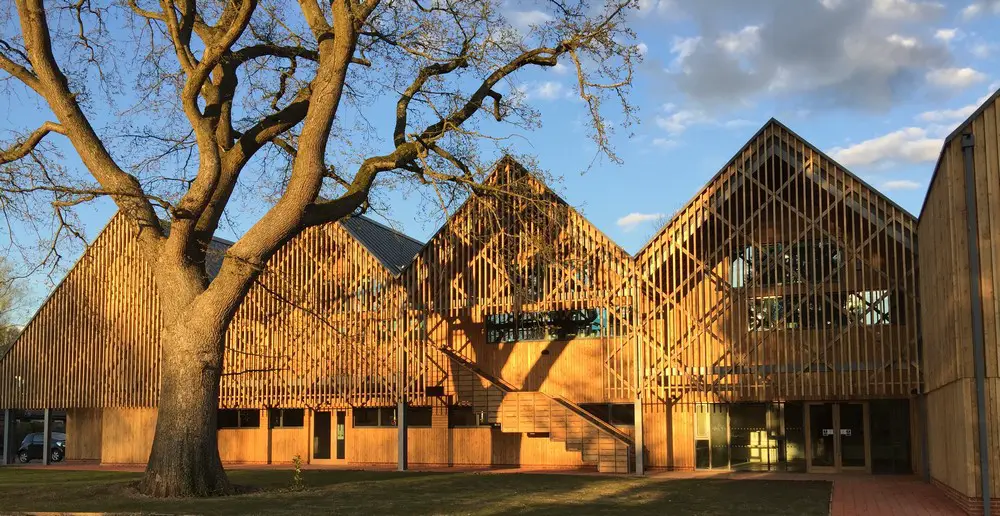

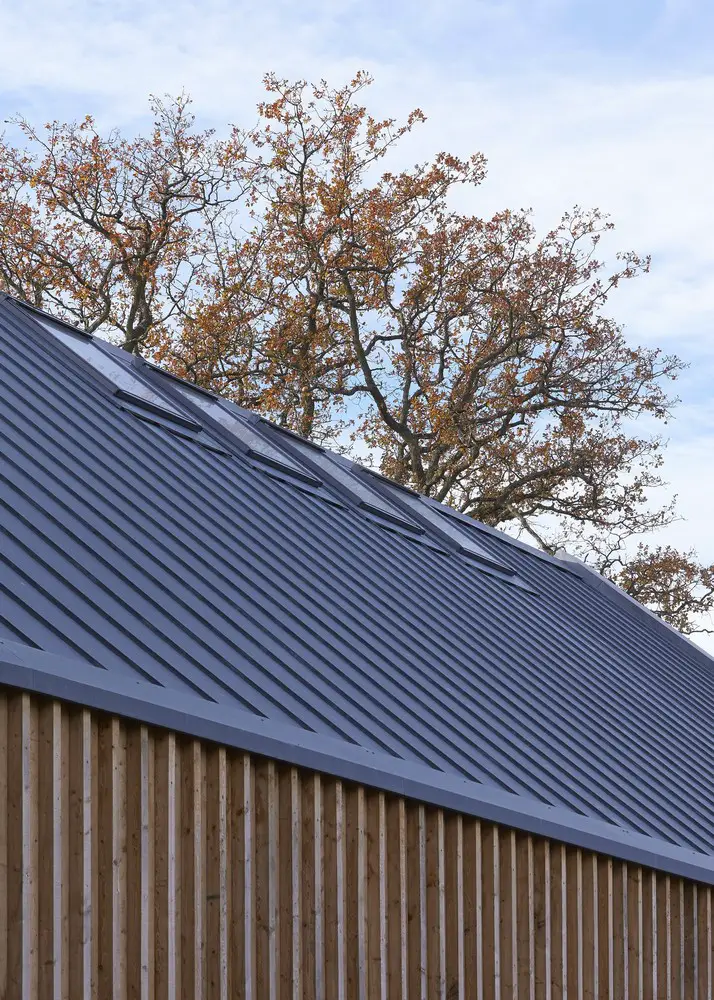

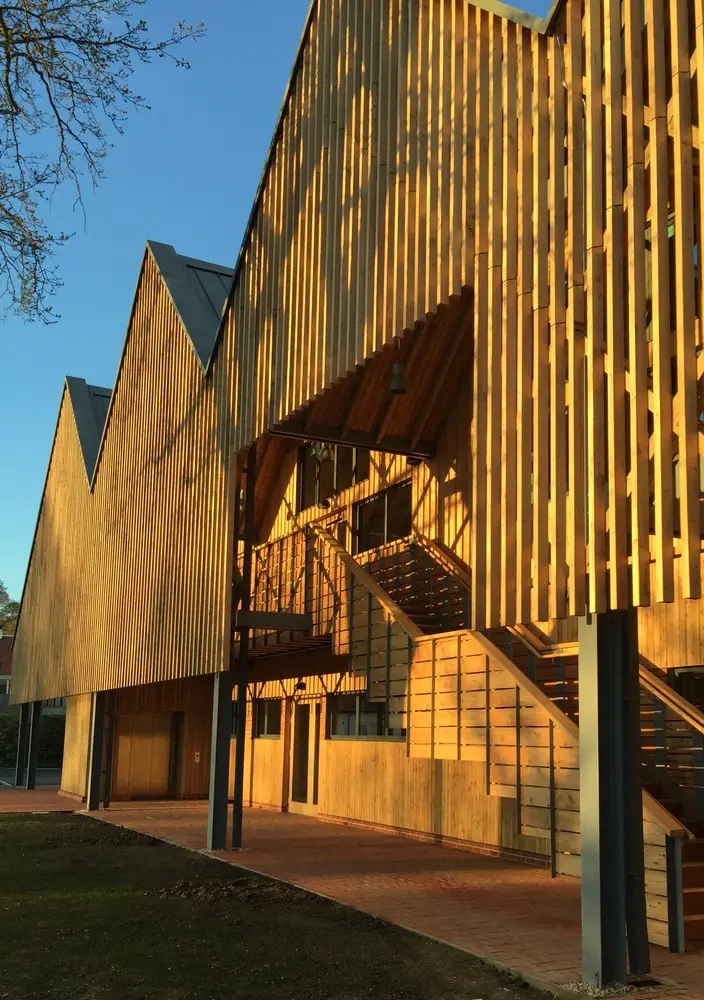

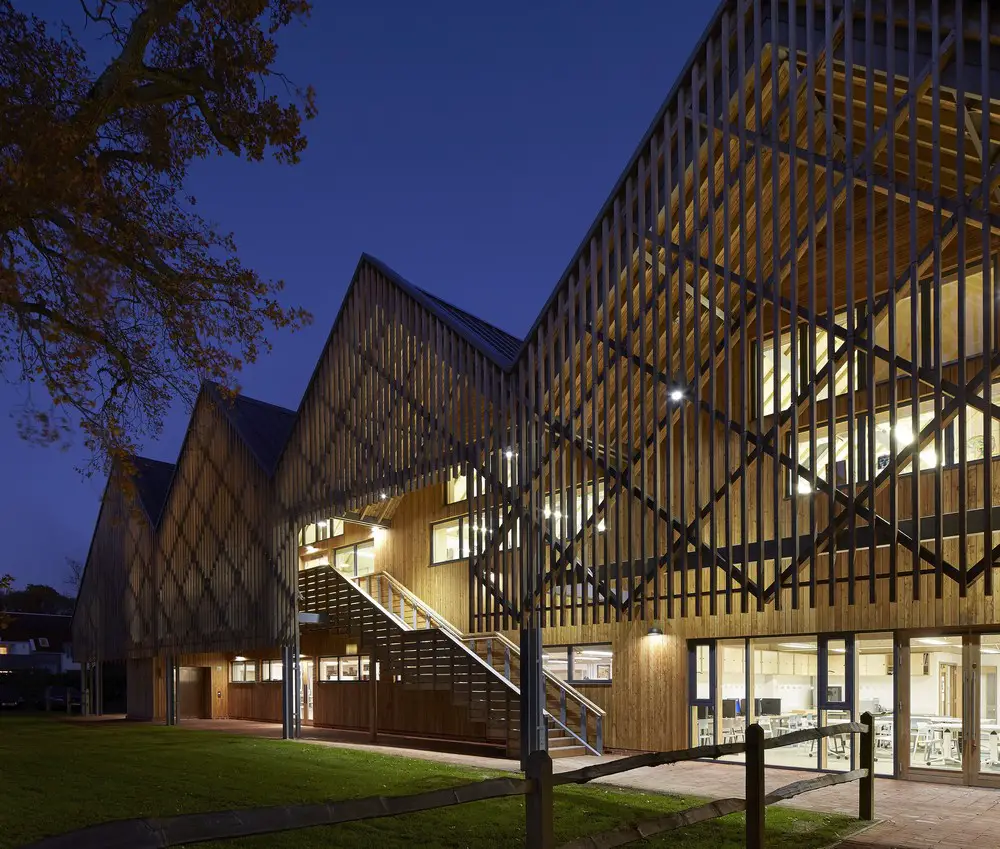

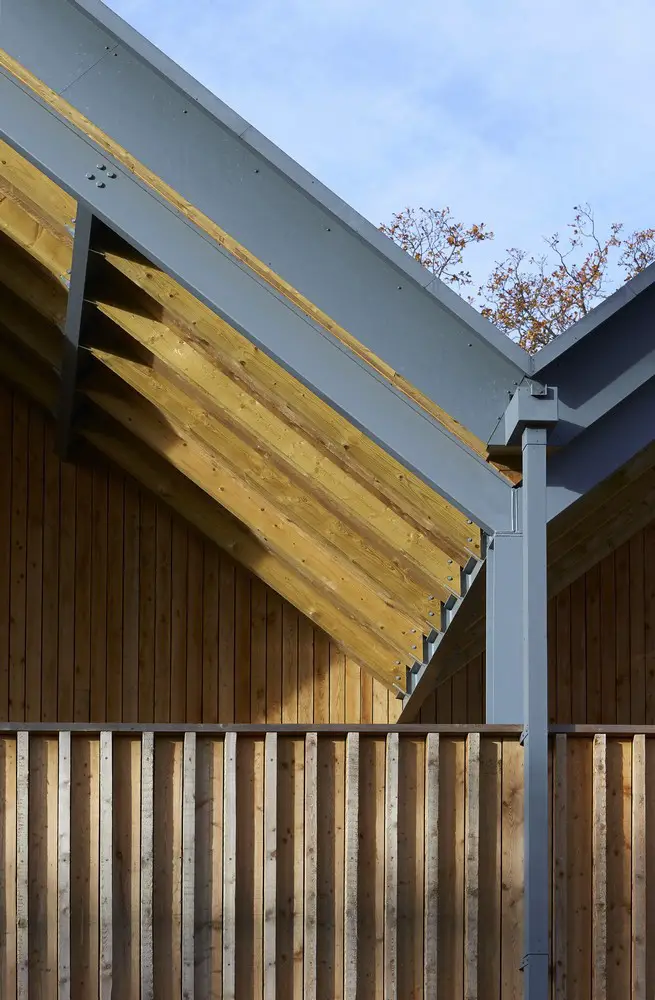

The design of the building draws references from traditional agricultural buildings with clipped gables and simple standing-seam metal roofs, defining a series of connected barn forms. Materials were used in their natural state throughout: a lattice timber screen shelters the entrance canopy and external walkway creating a welcoming gesture on approach to the building.

Bedales School Bedales School

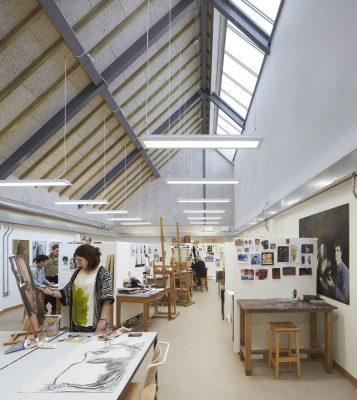

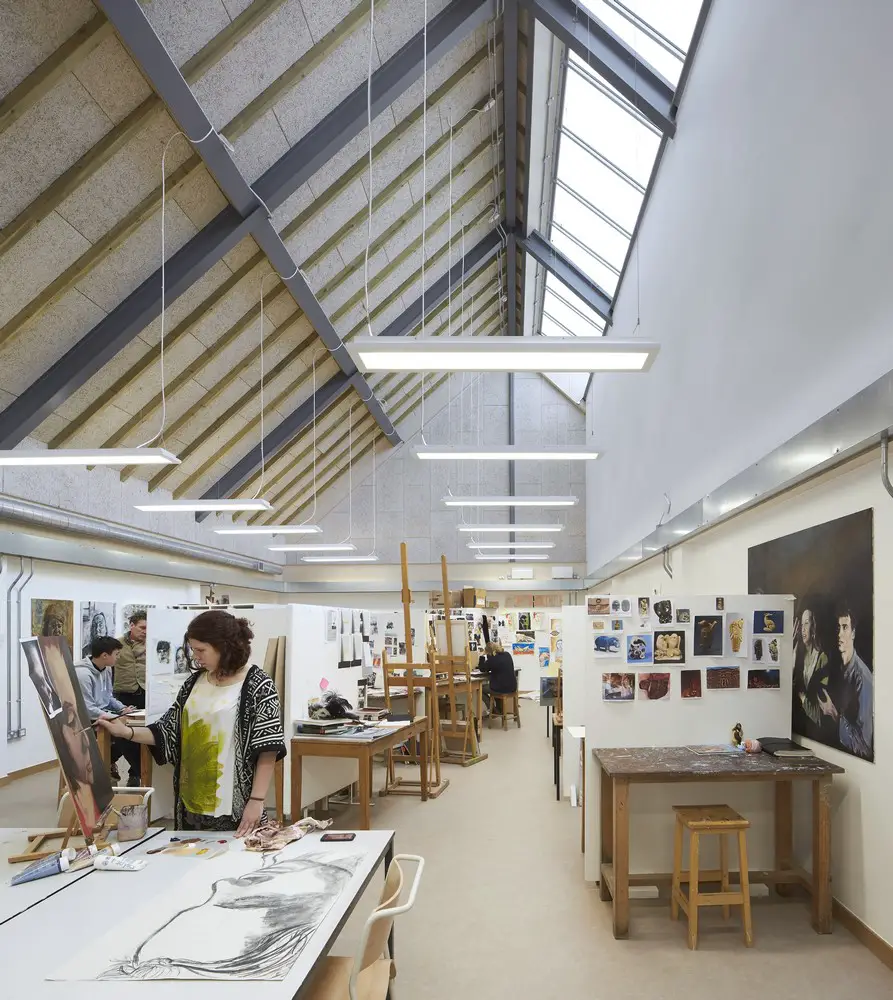

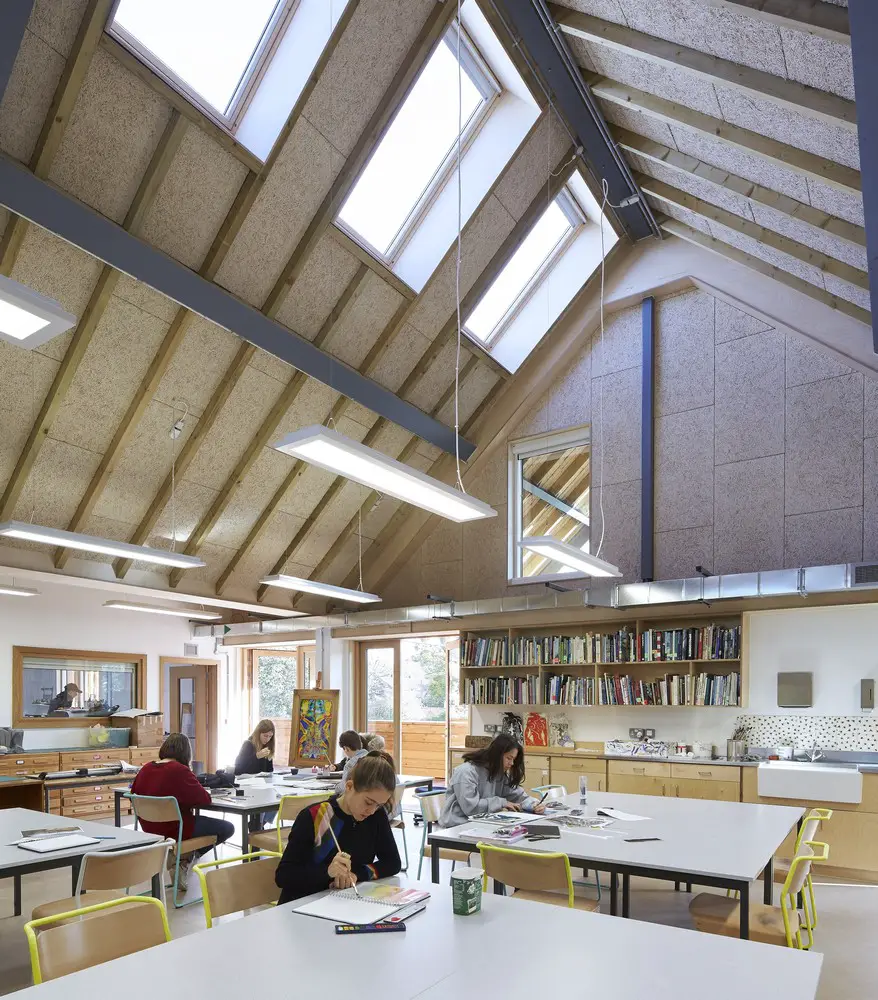

The layout on the upper floor is a series of carefully scaled open and interconnected north-lit art studios that enable teaching and independent study for a wide range of group sizes and activities. On the ground floor heavier duty craft-based design subjects are taught alongside jewellery and fashion design.

Bedales School

Bedales School

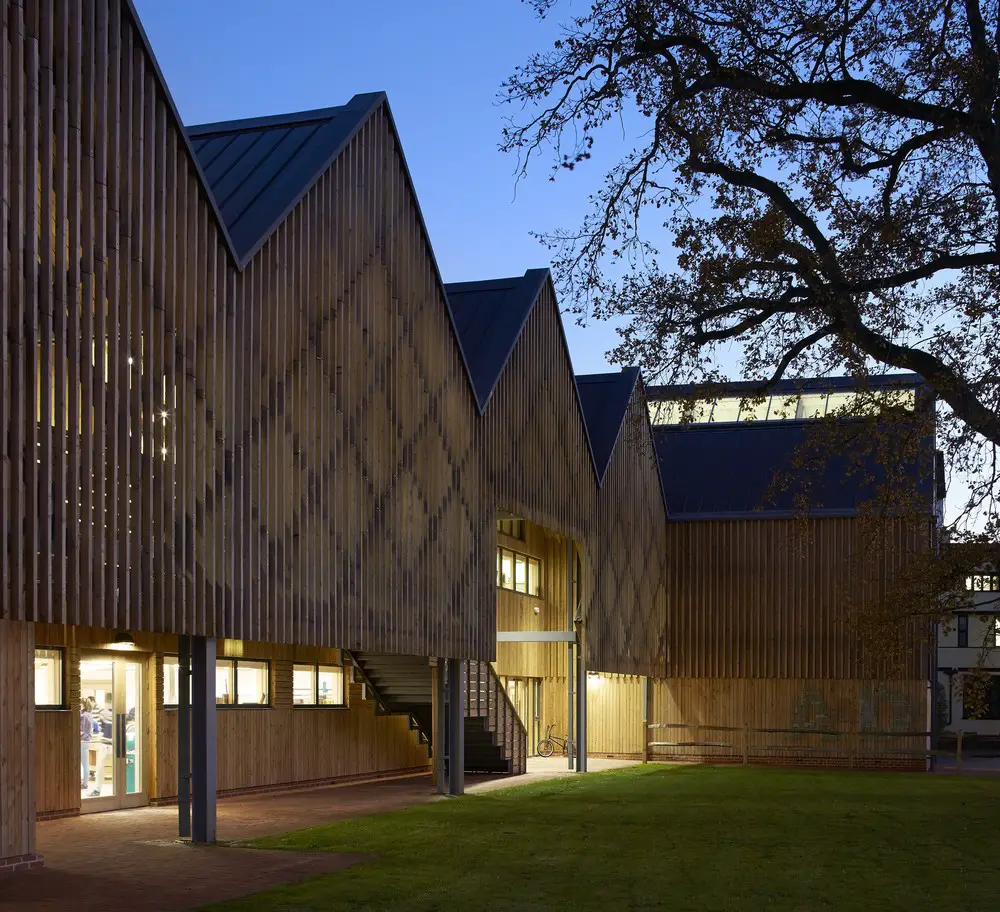

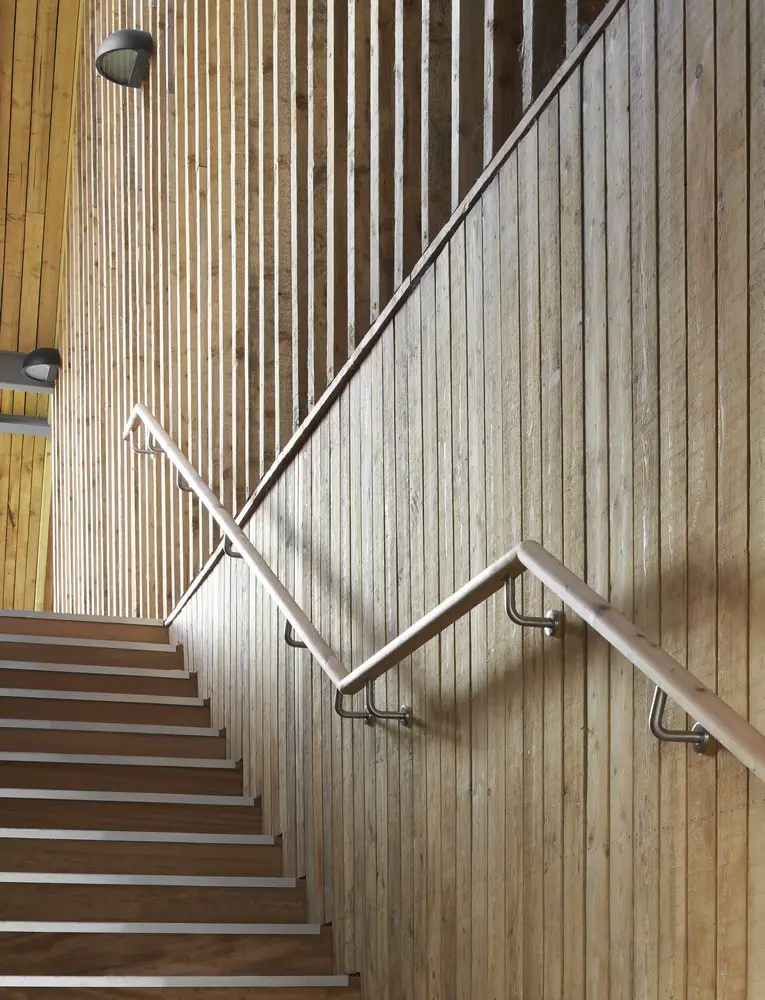

A connection to the outdoors characterises much of Bedales life, and consequently all circulation is external, across covered decks on both sides of the building that double as places to draw, paint, sculpt or just relax and contemplate the environment.

Bedales School

Through passive building principles, the new Art and Design building retains the school’s long and close connection to the countryside.

Bedales School

“This scheme creates a new Art and Design building, in a key location on the Bedales School site to replace the existing facility. The client purposely restricted the budget (to avoid the buildings-arms-race), acknowledging that an economy of means is a lesson in itself. FCBS were able to apply lessons from Manchester School of Art, to deliver something of value in a smaller building, with a constrained budget.”

Bedales School

RIBA Judges comments

Bedales School

Context
Since its foundation by John Badley in 1893, creative arts education has been at the heart of this liberal and alternative independent school, within the South Downs National Park, in Hampshire.

Bedales School Bedales School

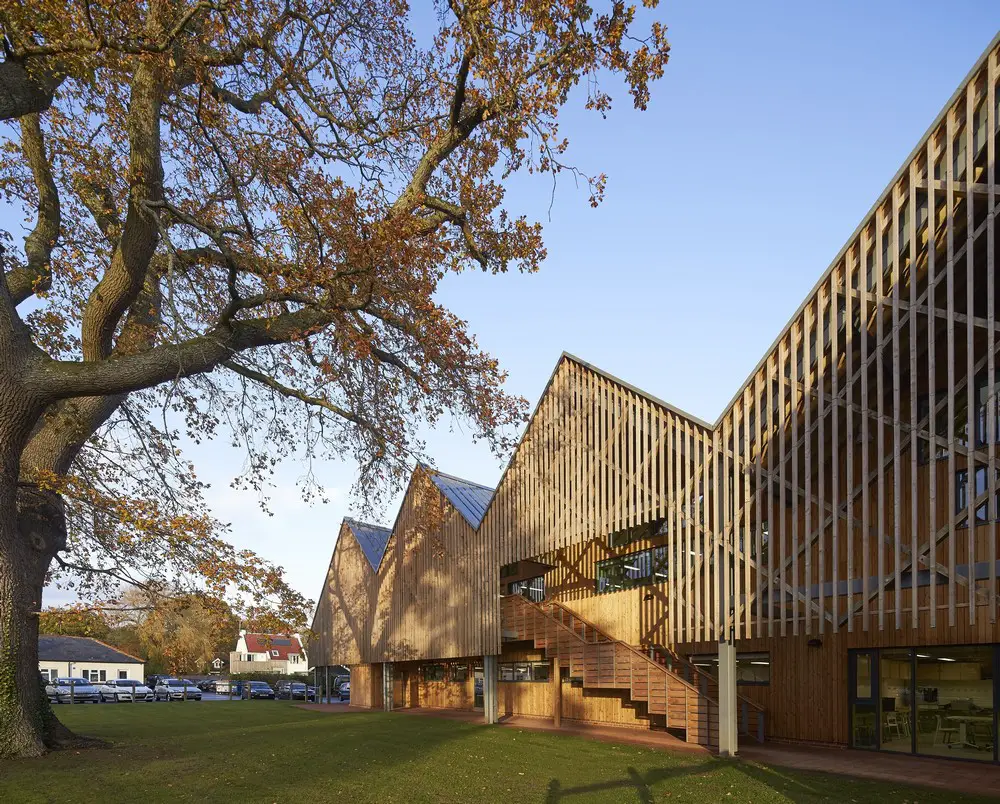

The new Art & Design building sits in the shadow of a 300 year old oak tree, alongside a range of old barns in which ‘outdoor work’ is taught and students bake bread each week.

Bedales School

Sustainability

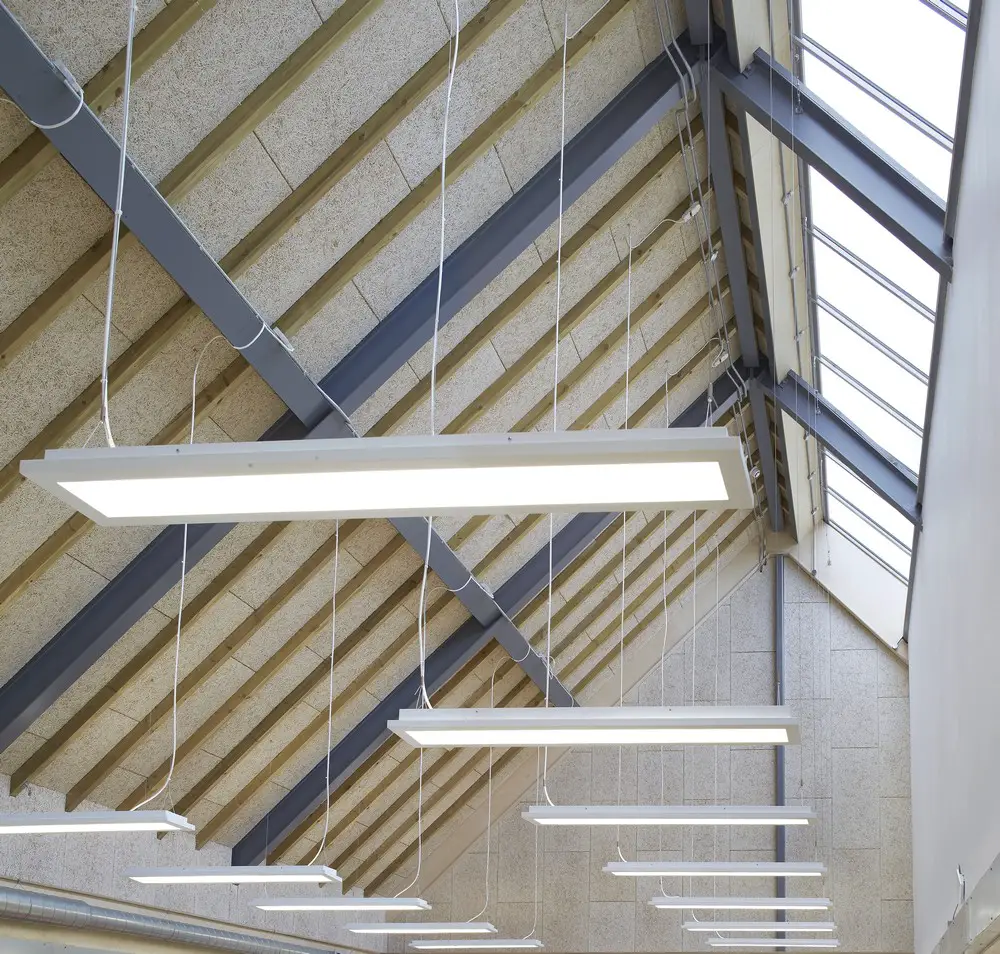

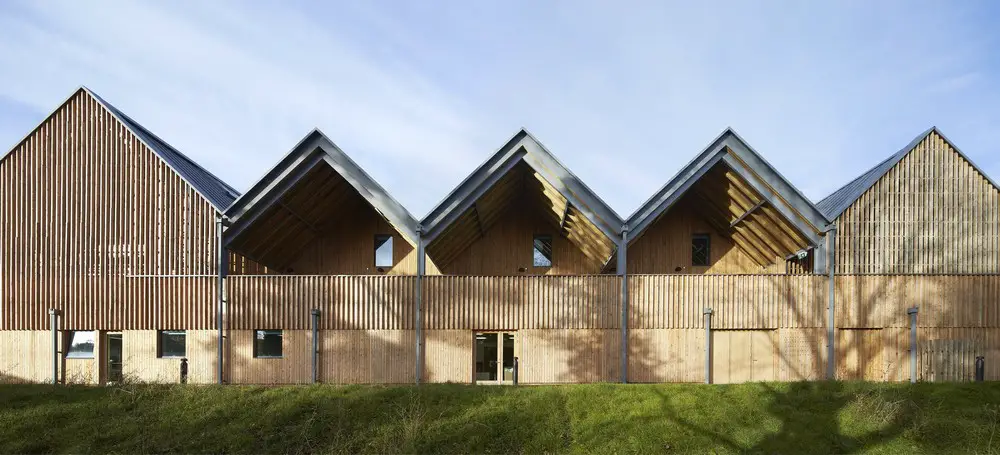

The form and east-west orientation of the five pitched roofs of the new Art and Design building define a series of carefully scaled, north-lit studio spaces. Natural light is maximised and the need for artificial lighting reduced.

Bedales School

Bedales School

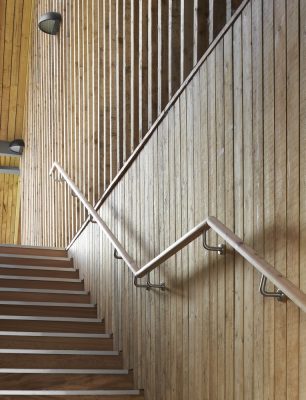

In what is otherwise a lightweight building, the thermal mass of exposed concrete surfaces contributes to a stable internal temperature. Timber-slatted screens and the retained large oak tree both provide solar shading in the summer months. Renewable natural materials, including sustainably sourced timber for cladding and wood fibre acoustic panels, reduce the embodied carbon in the construction.

Bedales School

Bedales School – Building Information

Architects: Feilden Clegg Bradley Studios
Client: Bedales School
Location: Steep, Petersfield, South Downs, Hampshire, England, UK
Construction value: £4,000,000
Completion: Autumn 2016

Bedales School

Arboricultural Consultant: Arbortech Consulting
CDM Consultant: Stace LLP
Cost Consultant: Stace LLP
M&E Services Engineer: Silcock Dawson
Planning Consultants: Quod
Project Manager: Big Yellow Group
Structural Engineer: Andrews Newby Partnership
Ecology Consultant: RPS
Acoustics Consultant: Arup
Building Control: Mark Seeley, JM Partnership

Bedales School

Photography: Hufton + Crow

Bedales School Art and Design Building in Petersfield images / information received 030817
