Masdar Institute Campus, Abu Dhabi

Architecture in UAE: New Building – design Foster + Partners, architects

24 Nov 2010

Masdar Institute Campus

Masdar City, UAE

Design: Foster + Partners

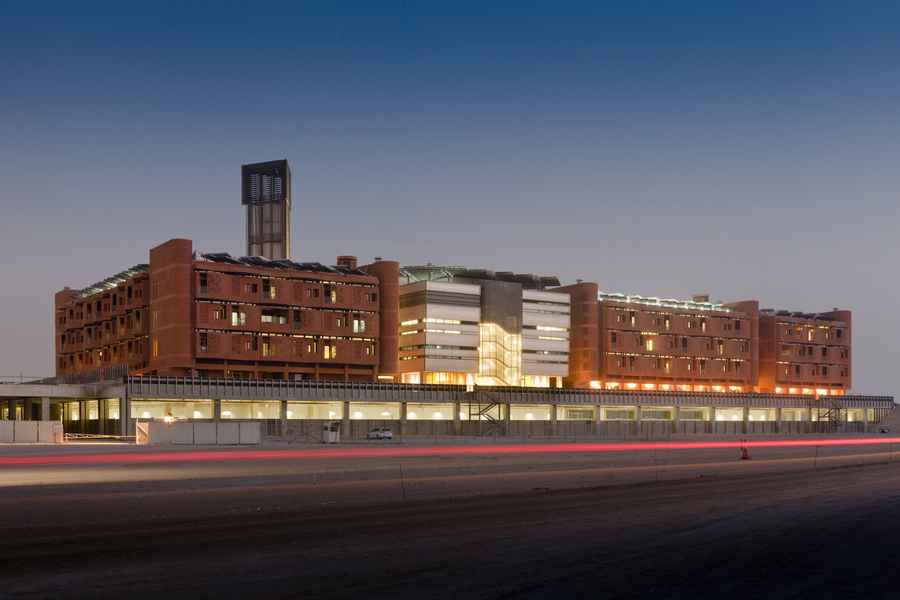

Masdar Institute campus Abu Dhabi Masdar Institute campus Abu Dhabi Masdar Institute campus Abu Dhabi Masdar Institute campus Abu Dhabi

Official opening of the Masdar Institute campus, first solar powered building at Masdar City

Under the patronage of His Highness Sheikh Mohammed bin Zayed Al Nahyan, Crown Prince of Abu Dhabi and Deputy Supreme Commander of the UAE Armed Forces, His Highness Sheikh Mansour bin Zayed Al Nahyan, Deputy Prime Minister and Minister of Presidential Affairs officially inaugurated the Masdar Institute today, at which the architect Lord Foster was present.

The Masdar Institute, devoted to researching sustainability, is the first building to be fully operational within Masdar City. The masterplan, by Foster + Partners, incorporates lessons which have evolved over centuries of traditional Arabian architecture.

The Masdar Institute is the first building of its kind to be powered entirely by renewable solar energy. It will be used as a pilot test bed for the sustainable technologies that will be explored for implementation in future Masdar City buildings. The post graduate students are Masdar City’s first resident community.

Masdar Institute campus Abu Dhabi Masdar Institute campus Abu Dhabi Masdar Institute campus Abu Dhabi

A 10 megawatt solar field within the masterplan site provides 60% more energy than is consumed by the Masdar Institute, the remaining energy is fed back to the Abu Dhabi grid. The campus, which consists of a main building, a knowledge centre and students’ quarters, will use significantly less energy and water than average buildings in the UAE.

In particular, the Institute and its facilities use 54 percent less potable water, 51 percent less electricity and are fully powered by solar energy. These reductions are based on comparisons to UAE standard baselines for buildings of similar size and specifications. Around 30 percent of the campus’s energy will be covered by solar panels on the roof, with 75 percent of hot water also being heated by the sun.

Masdar Institute campus Abu Dhabi Masdar Institute campus Abu Dhabi Masdar Institute campus Abu Dhabi

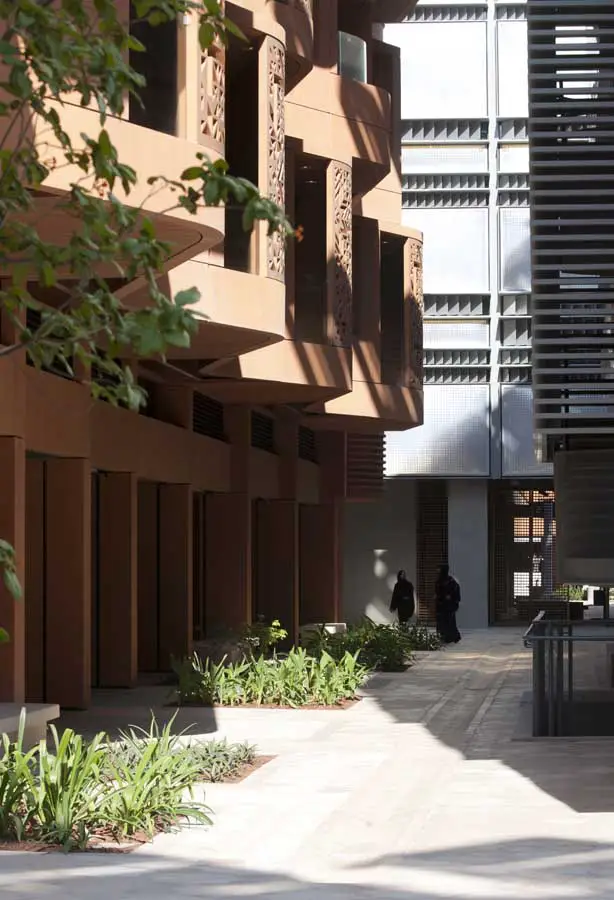

The Institute demonstrates the sustainable principles underpinning the overall masterplan. The buildings have self-shading facades and are orientated to provide maximum shade as well as sheltering adjacent buildings and the pedestrian streets below.

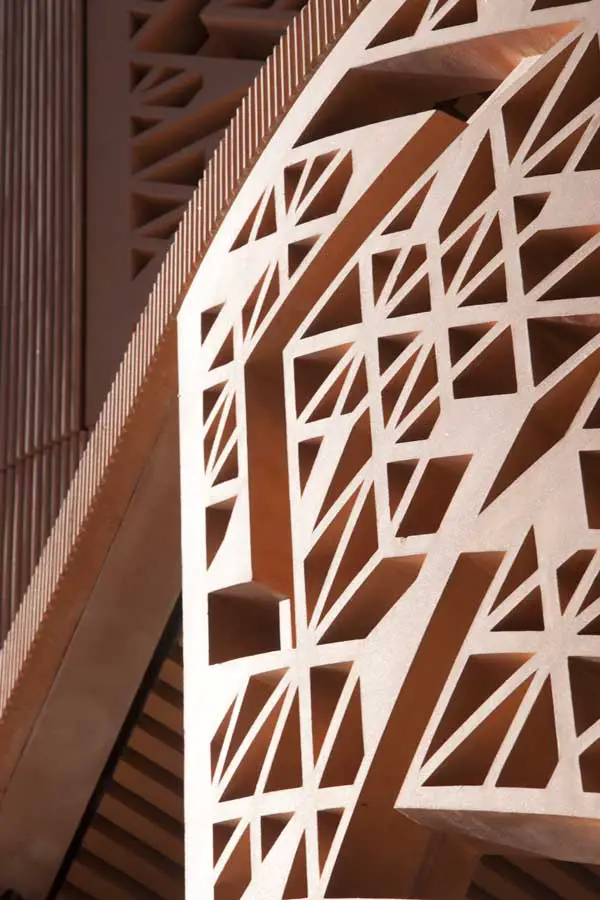

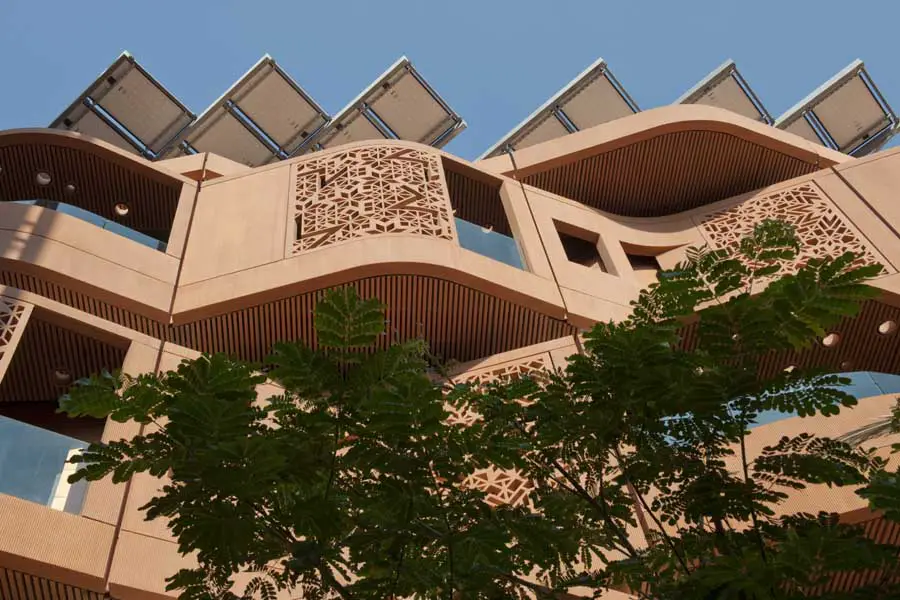

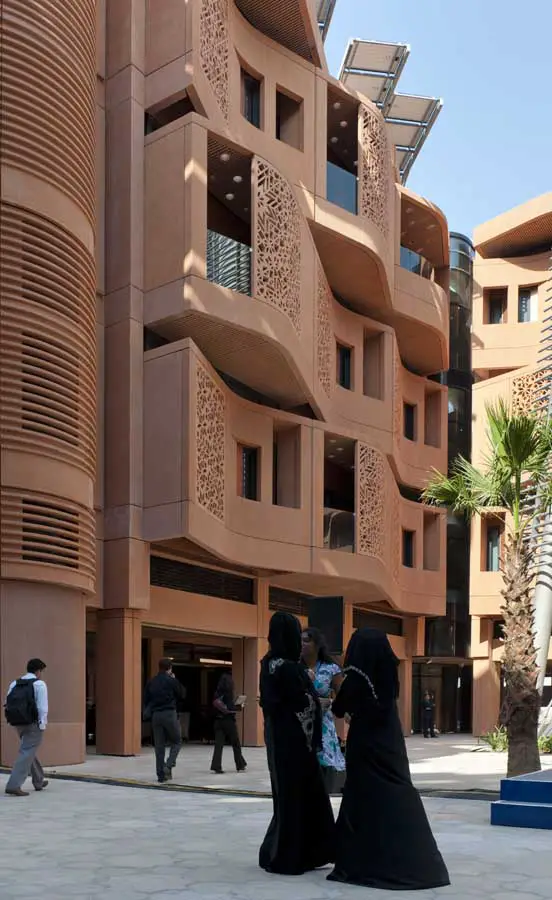

Over 5,000 square metres of roof mounted photovoltaic installations provide power and additional shading at street level. Windows in the residential buildings are protected by a contemporary reinterpretation of mashrabiya, a type of latticed projecting oriel window, constructed with sustainably developed, glass-reinforced concrete, coloured with local sand to integrate with its desert context and to minimise maintenance.

The perforations for light and shade are based on the patterns found in the traditional architecture of Islam.

Masdar Institute campus Abu Dhabi Masdar Institute campus Abu Dhabi Masdar Institute campus Abu Dhabi

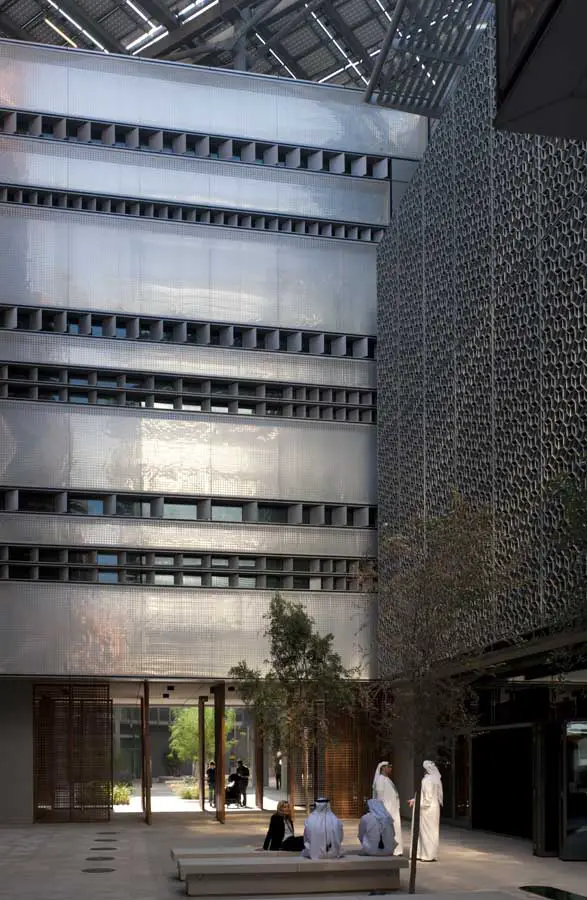

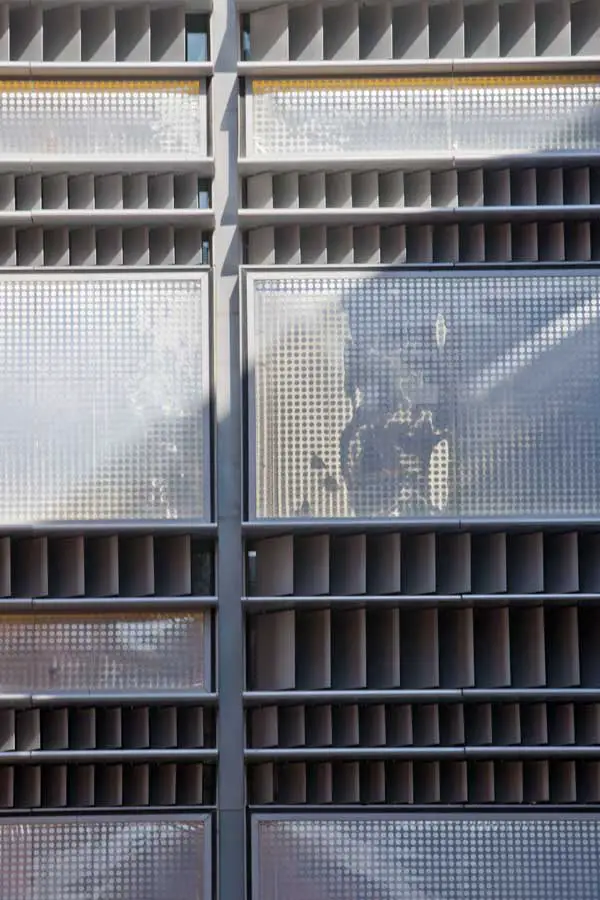

The laboratories are unusually flexible for change with ‘plug and play’ services to encourage interdisciplinary research. Horizontal and vertical fins and brise soleil shade the laboratories. These are highly insulated by facades of inflatable cushions, which remain cool to the touch under the most intense desert sun.

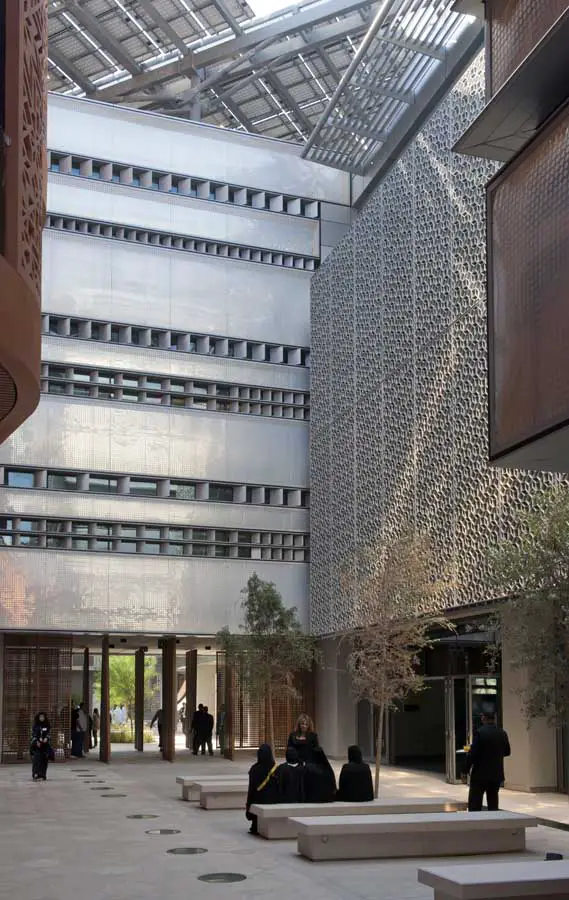

Cooling air currents are channelled through the public spaces using a contemporary interpretation of the region’s traditional windtowers. The public spaces are further cooled by green landscaping and water to provide evaporative cooling. Thermal camera tests on-site by Fosters’ research team have already confirmed substantial drops in radiant or ‘felt’ temperatures on campus compared with current practice in central Abu Dhabi.

The laboratories and residential accommodation are supported by a variety of social spaces, including a gymnasium, canteen, café, knowledge centre, majlis – or meeting place – and landscaped areas that extend the civic realm and help to create a new destination within the city. One, two and three-bedroom apartments are housed in low-rise, high-density blocks, which act as a social counterpoint to the educational laboratory environment.

Masdar Institute campus Abu Dhabi Masdar Institute campus Abu Dhabi Masdar Institute campus Abu Dhabi

This building is the first of four planned phases that will bring the eventual student population to 600-800. Four residential blocks surround a central laboratory and the Knowledge Centre, the first in a series of additional campus buildings, which will include a mosque, conference hall and sports complex.

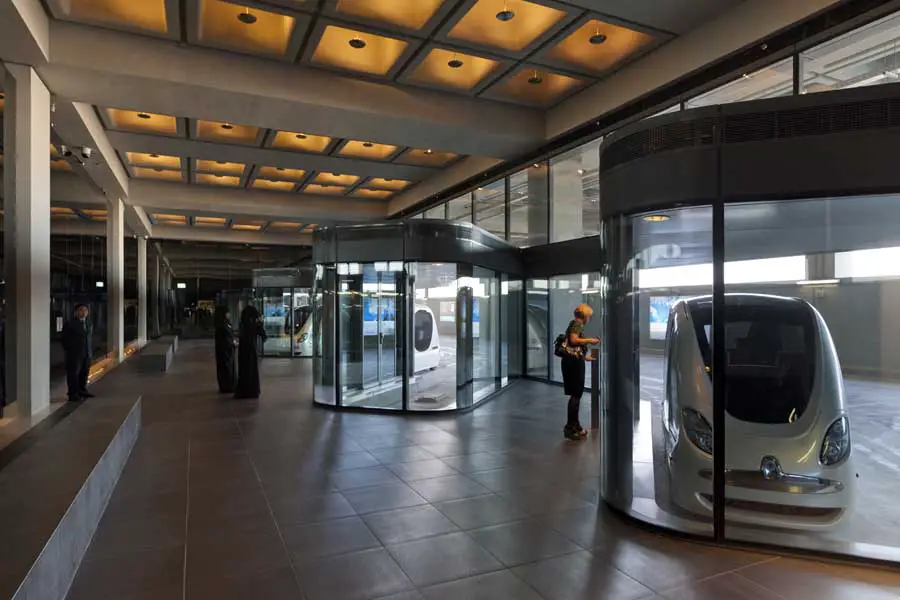

The second phase is due to start on site by the end of the year to include further laboratories and apartments. The Masdar Institute is accessed by 10 personal rapid transit (PRT) cars that are being run as a pilot project from the City perimeter to the undercroft below the building.

This project signals Abu Dhabi’s commitment to creating an international centre to pioneer sustainable technologies within an environment which is itself carbon neutral.

Lord Foster, said: “Many have dreamed of a utopian project that would be solar powered. Today’s official opening of the initial stage of the Masdar Institute campus at Masdar City is a first realisation of that quest. Its student community is already active, living and working in their quarters.

This community, independent of any power grid, develops a surplus of 60 percent of its own energy needs, processes its waste water on-site which is recycled and pioneers many energy saving concepts. It is a bold experiment which will change and evolve over time – already it houses twelve separate research projects with potential world-wide applications.”

Masdar Institute campus images : Nigel Young / Foster + Partners

Masdar Abu Dhabi design : Foster + Partners
Masdar City Abu Dhabi
image © Foster + Partners

About Masdar
Masdar is Abu Dhabi’s multi-faceted, multi-billion dollar investment in the development and commercialization of advanced and innovative technologies in renewable, alternative and sustainable energies as well as green design. By applying scale and leveraging Abu Dhabi’s low-cost, tax-free manufacturing base, businesses will enjoy significant competitive advantages, allowing them to compete internationally and provide significant diversification to the Abu Dhabi economy. On February 9, 2008, Masdar broke ground for Masdar City, the world’s first zero-carbon, zero-waste, car-free city.

Location: Abu Dhabi, UAE

Masdar Headquarters Abu Dhabi

Masdar Design Competition : won by LAVA in Aug 2009

Masdar Headquarters design by AGi architects
MASDAR HQ design
image from architect

Masdar Institute of Science and Technology – MIST:
Masdar Institute of Science and Technology
image © Foster + Partners

UAE Buildings by Foster + Partners, architects

Abu Dhabi World Trade Centre

Abu Dhabi market building

Masdar headquarters building designer : Adrian Smith + Gordon Gill Architecture

Abu Dhabi Architecture Tours

Capital Gate Abu Dhabi

Dubai Buildings

Abu Dhabi Investment Council Headquarters

Dubai Palm Island

Abu Dhabi Mosque

Abu Dhabi Architects

The Masdar Institute’s graduate-level programmes were established and accredited in collaboration with the Massachusetts Institute of Technology (MIT) in Boston and focus on scientific engineering and research in the core energy and sustainable technologies of the Masdar Initiative.

The buildings are oriented to provide optimum shade and reduce cooling loads and shaded colonnades at podium level bring benefits through high insulation and exposed thermal mass. Transitional thermal spaces are also integrated – these mediate between internal and external zones and are conditioned primarily by buoyancy-driven natural ventilation and the effects of thermal mass.
