Al Mas Tower : Dubai Skyscraper

High-Rise Architecture in UAE – design by Atkins, Architects

19 Nov 2008

Al Mas Tower Dubai


Architects: Atkins

Al Mas Tower

Atkins was commissioned to provide conceptual design, detailed architectural, structural, landscape and electromechanical design services as well as full site supervision for this 360m high commercial tower. The building is the centrepiece of the Jumeirah Lakes development, 20km south of Dubai, and is host to the diamond exchange facility.

Al Mas Tower Dubai Al Mas Tower
Dubai tower images © from Atkins

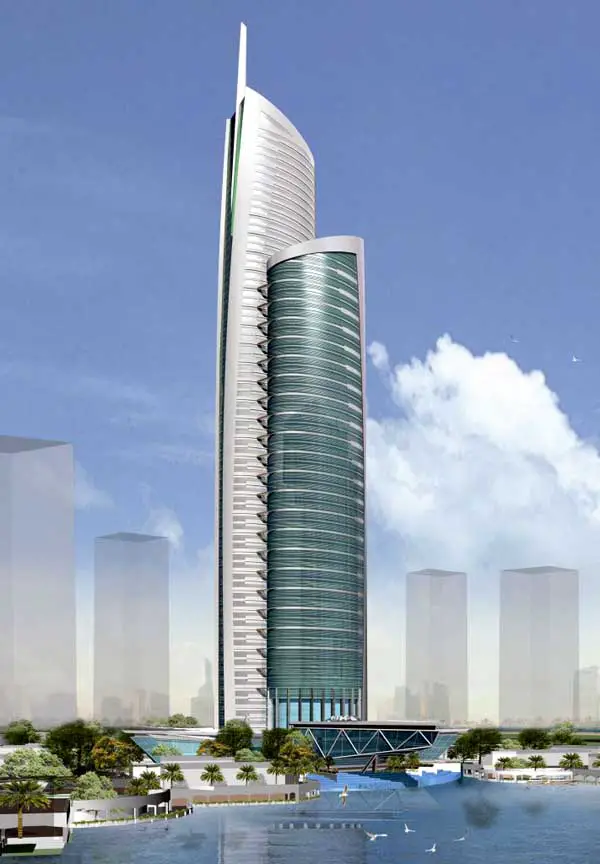

The Al Mas Tower building is essentially two towers in one – a lower north facing tower and a longer south facing tower – that overlap along their east-west axis. The north tower has a semi-transparent elevation, thereby maximising the cool, ambient northern light; whereas the exterior of the south facing tower has a high performance finish to afford it maximum protection from the heat. Hollowcore pre cast slabs were used throughout for speedy construction.

33 lifts service the Al Mas Tower building, with superfast vertical transportation of up to 7 metres per second. A state-of-the-art security system has also been integrated, essential for this commodity centre.

The distinctive projecting facets of the two-storey steel podium at the base of the tower were inspired by the cut of a diamond. The largest of the eight diamond facets houses the actual diamond exchange, the largest of its kind in the Middle East. Stones can be viewed in the private rooms, with the podium glass being of a specification such that the diamond inspection process will not be influenced by the light.

A glass floor of over 15m covers the tip of the exchange, allowing clients to walk on the glass with the lake beneath them.

The tower comprises 60 commercial office floors with facilities including:
Diamond exchange centre
Retail mall
Health spa & pool
Parking spaces for 1,800 vehicles

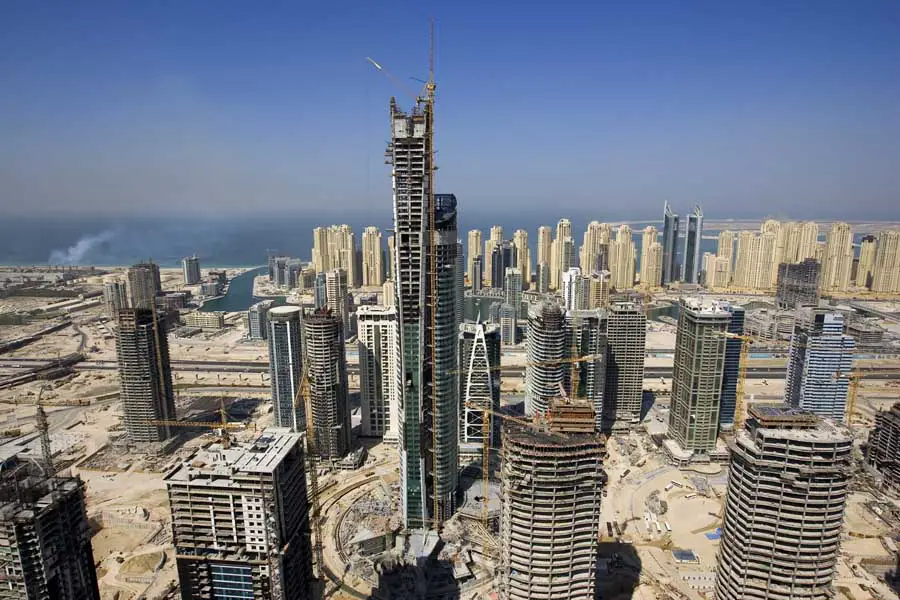

The now complete Al Mas tower features as the centrepiece of the Jumeirah Lakes area. The whole project was Atkins run with construction management undertaken by Faithful & Gould, an Atkins subsidiary. With Atkins supervising other builds in the area, and deepening the relationship with the DMCC, future collaborations are already being discussed.

Al Mas Tower – Building Information

Client DMCC (Dubai Multi Commodities Centre)
Facility Commercial, retail and a diamond exchange centre
Features A 360m high, 60-storey tower comprising of five levels of basement, four service floors, and a two level podium which accommodates a retail area, a ballroom and a health spa.
Size 183,000 sq m total built up area
Status Complete Sept 08

Al Mas Tower Dubai images / information from Atkins
