Glass Bridge, Huangchuan Three Gorges Scenic Area, China

16 Oct 2020

Glass Bridge, Huangchuan Three Gorges Scenic Area News

Design: UAD

Location: Jiubei Town, Lianzhou, Qingyuan City, Guangdong Province, China

Glass Bridge at Huangchuan Three Gorges Scenic Area – a “transparent corridor” in the air

Glass Bridge Huangchuan

Bridge is a kind of structure built based on the terrain, and also a sort of art that symbolizes connection and communication. Located in Lianzhou, Guangdong Province, the Glass Bridge in Huangchuan Three Gorges Scenic Area created by Architectural Design & Research Institute of Zhejiang University Co., Ltd. (UAD) becomes a local landmark, which seems to “grow” from the natural environment. Through blending the structure into the natural surroundings and deploying innovative construction methods, the design team realized the seamless integration of nature and the artificial.

Glass Bridge Huangchuan

Combination of the solid and void

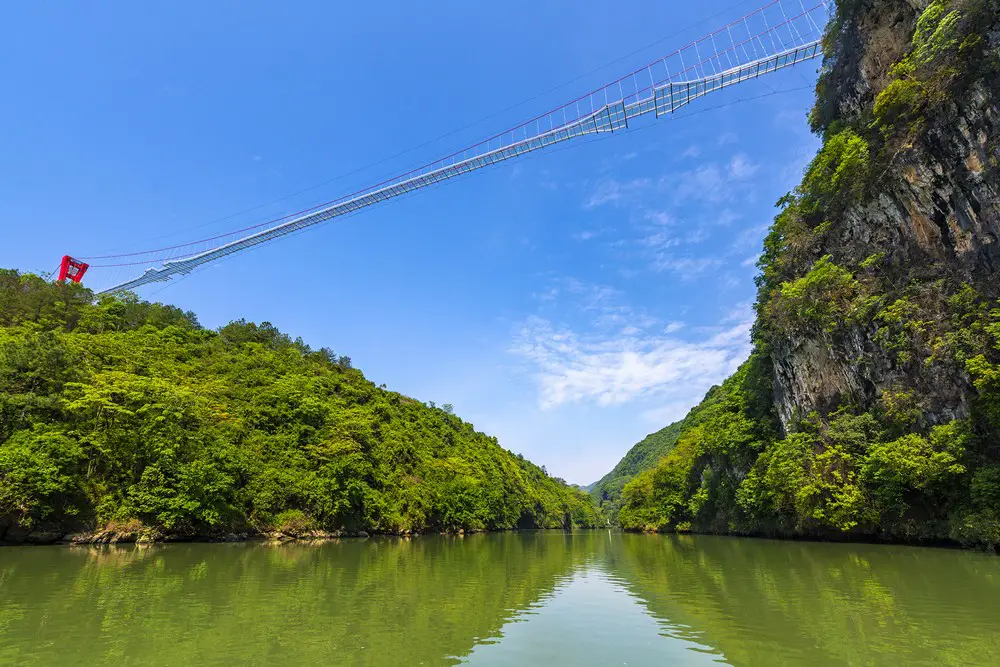

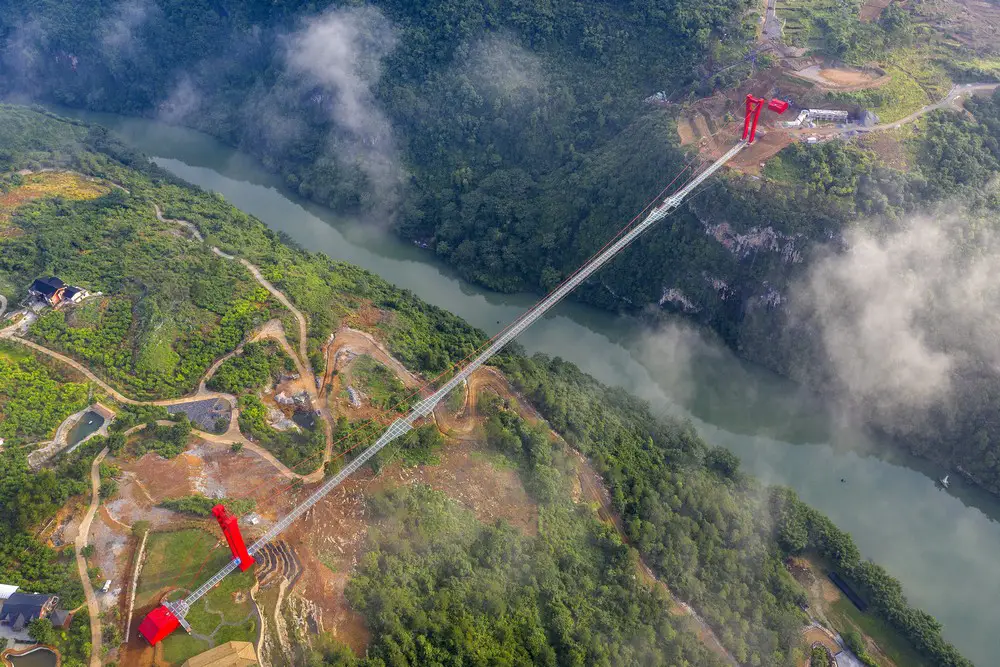

Known as the “picturesque corridor in Lingnan region”, Huangchuan Three Gorges is the main tributary of the Beijiang River system in the Pearl River Basin and the end of Qianghan Ancient Path. Han Yu, a famous poet in Tang Dynasty, once wrote a poem to depict its magnificent scenery. The suspended glass bridge spans the cliffs, and overlooks the largest cluster of waterfalls in Northern Guangdong. Like a dragon that soars into the sky, it harmoniously coexists with nature.

Glass Bridge Huangchuan

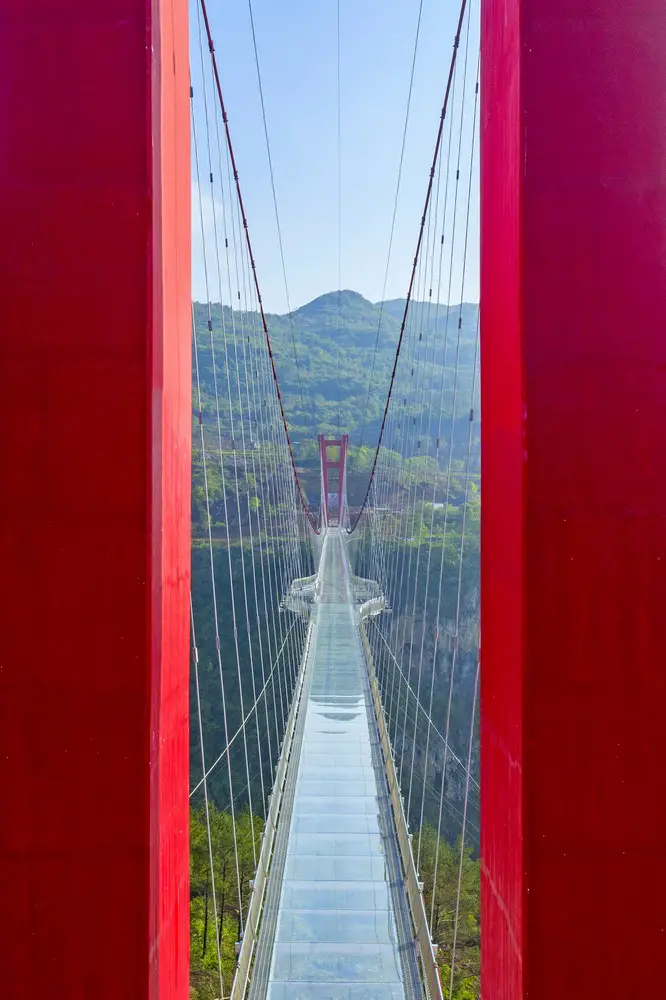

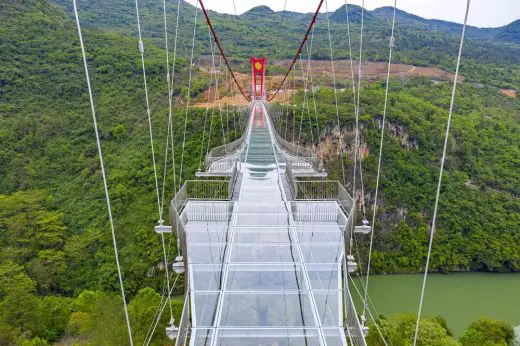

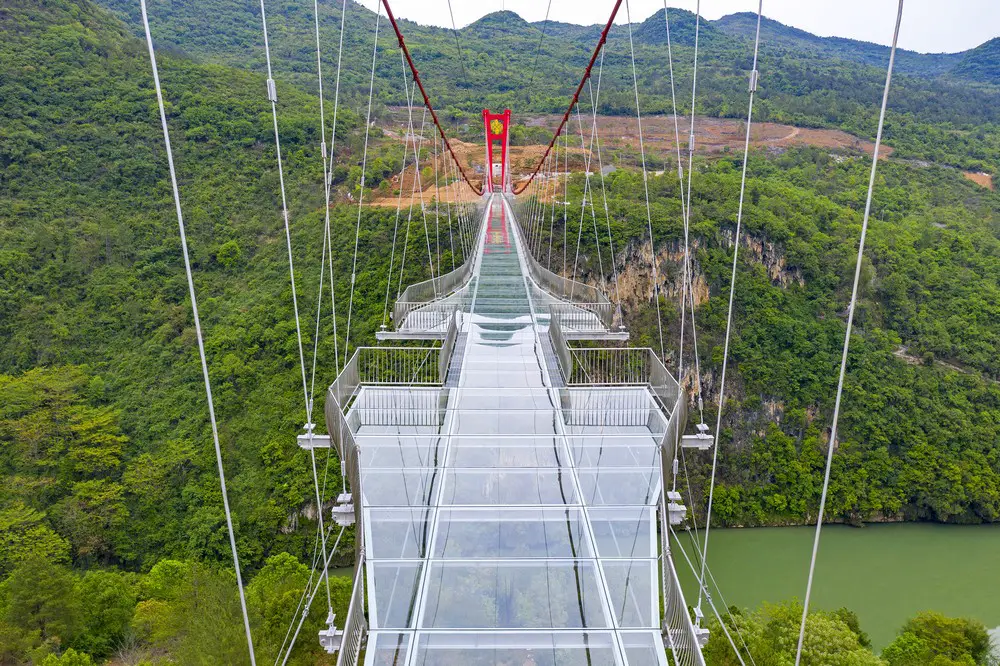

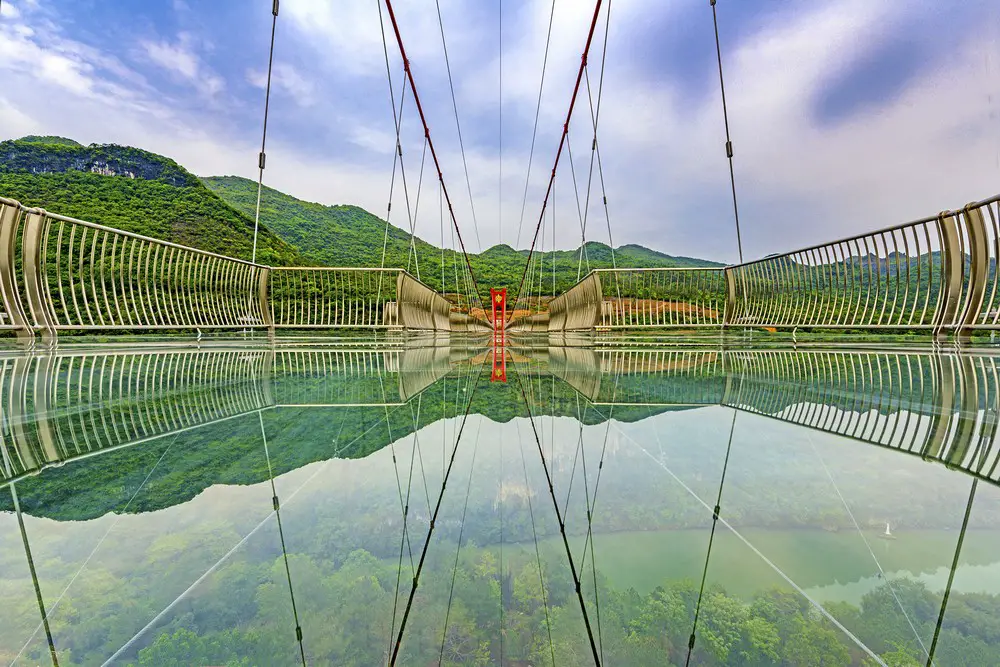

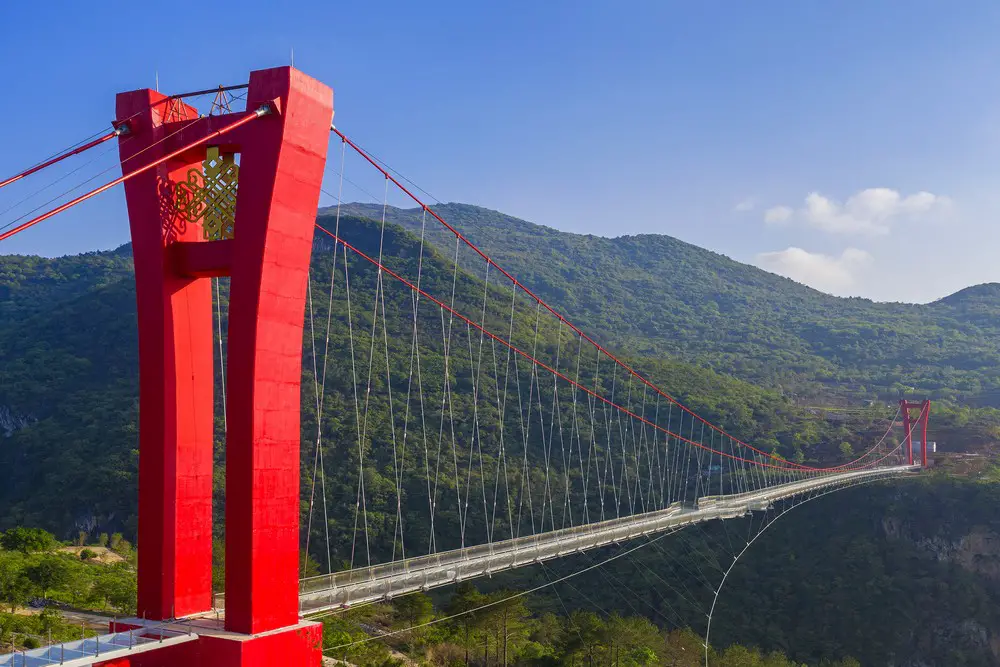

The bridge is paved with three layers of 4.5-centimerter-thick ultra-clear tempered laminated glass, the visible transmittance of which is 99.15%. The glazing endows the bridge deck with crystal-like luster, high transparency and refractive index. The glass, the guardrails composed of curved stainless steel bars, the bridge tower and red main cables, together form a built landscape that combines the solid and void, the modern and the classical.

Glass Bridge Huangchuan

Responding to site conditions
Located in the southeast of China, Guangdong is affected by frequent typhoons in summer. Besides, due to the large span and flexible structural system, this suspension bridge requires excellent wind resistance performance. Based on those considerations, the design team carried out wind tunnel testing and finite elements simulation, analyzed the main frequency and modes of vibration, and identified design parameters such as critical flutter velocity and the reasonable degree of enclosedness of guardrails, which provided strong support for optimizing the design and the maintenance of the bridge in the future.

Glass Bridge Huangchuan

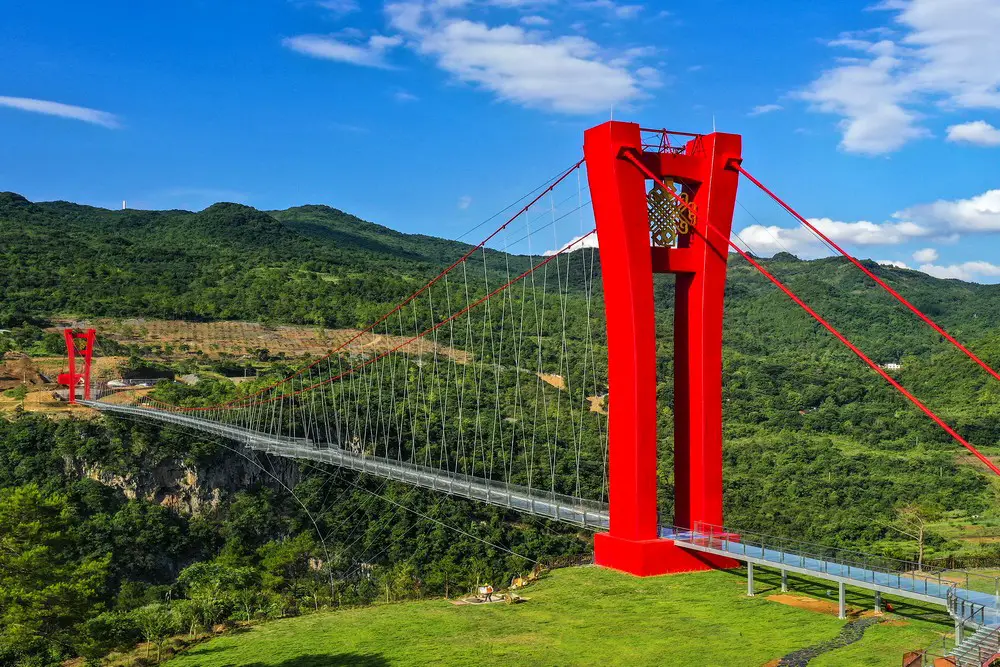

Meanwhile, in order to enhance lateral sustainability and wind resistance performance of the bridge, the designers adopted an oblique wind-resistant cable system, which is fixed to concrete anchors. Moreover, considering the adverse influences that karstification and special residual silty clay exerted on the site, they tried the best to ensure the safety performance of the bridge during design and construction phases.

Glass Bridge Huangchuan

An innovative built landscape

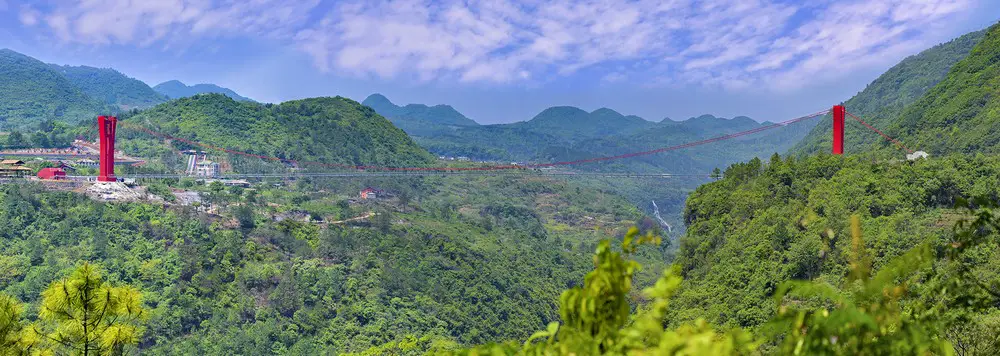

This glass bridge is suspended at a height of 201 meters, with a width of 8.8 meters. Spanning a length of 526.14 meters, it has broken the Guinness World Records as the world’s longest suspension glass bridge. Its completion is a miracle. So far, it has become a new local landmark, and has been attracting a large number of tourists and helping inject vitality into local tourism industry.

Glass Bridge Huangchuan

Based on respect to the land and nature, clear planning and positioning, creativity, and the courage to push the limits, UAD team reactivated the natural environment and produced an innovative built landscape that contributes to economic development. Creating built landscapes that integrate nature, city and culture has always been a focus of UAD’s design researches and practices.

Glass Bridge Huangchuan Glass Bridge Huangchuan

Glass Bridge, Huangchuan Three Gorges Scenic Area in Guangdong, China – Building Information

Design:The Architectural Design & Research Institute of Zhejiang University Co., Ltd. UAD

Location: Jiubei Town, Lianzhou, Qingyuan City, Guangdong Province, China
Design team: Xie Xu, Sun Liangfeng, Wang Weilong, Dong Weiwei, Wu Pu
Completion time: January 2020

Glass Bridge Huangchuan

Photography: Lianzhou Qingtian Tourism Development Co., Ltd.

Glass Bridge, Huangchuan Three Gorges Scenic Area images / information received 161020

Location: Jiubei Town, Lianzhou, Qingyuan City, Guangdong Province, China
