Chongqing Gaoke Group Ltd Office Project

New Commercial Development in China design by Aedas Architects

24 Aug 2022
Twisting Tower, Chongqing, southwestern China
Design: Aedas
Chongqing Gaoke Group Ltd Office Building

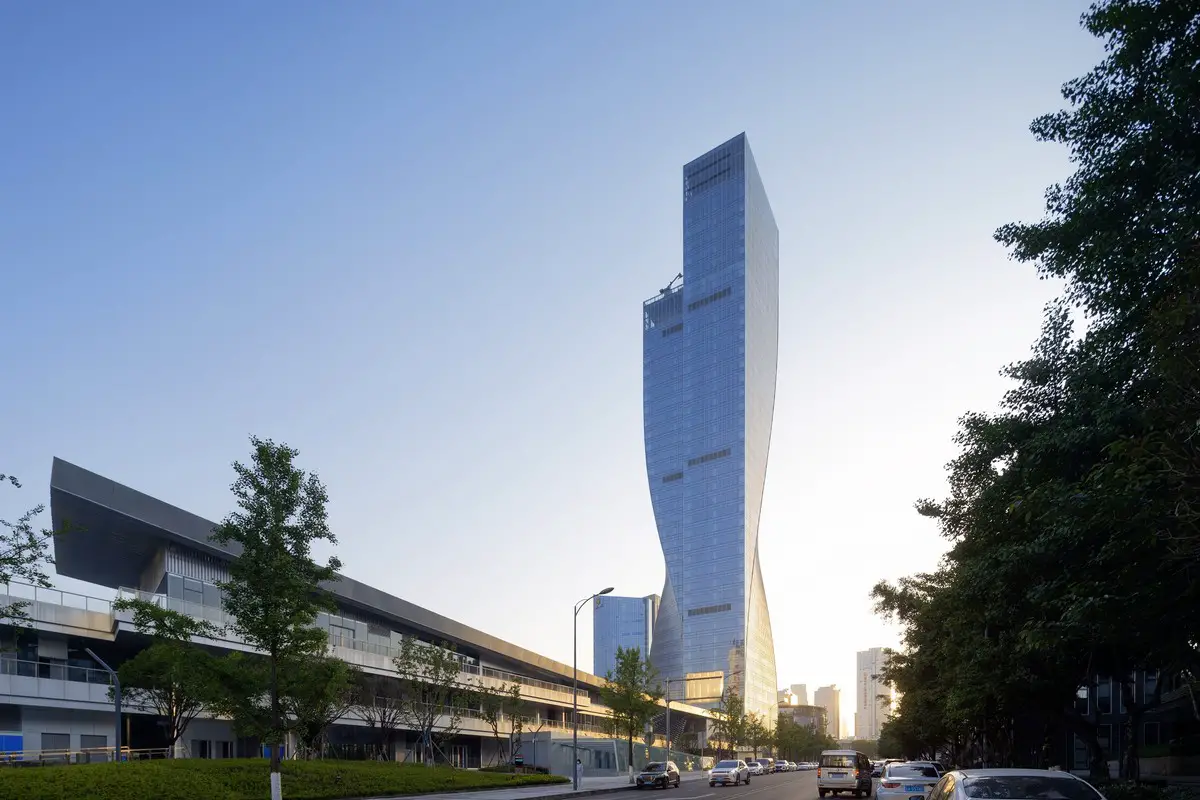

photo : Arch-Exist
Chongqing Gaoke Group Ltd Office Building

26 Aug 2019

Ballet of Light

Design: Aedas, Architects

Location: Chongqing City, southwest China

Chongqing Gaoke Group Ltd Office Project

Chongqing Gaoke Group Ltd Office Project in China

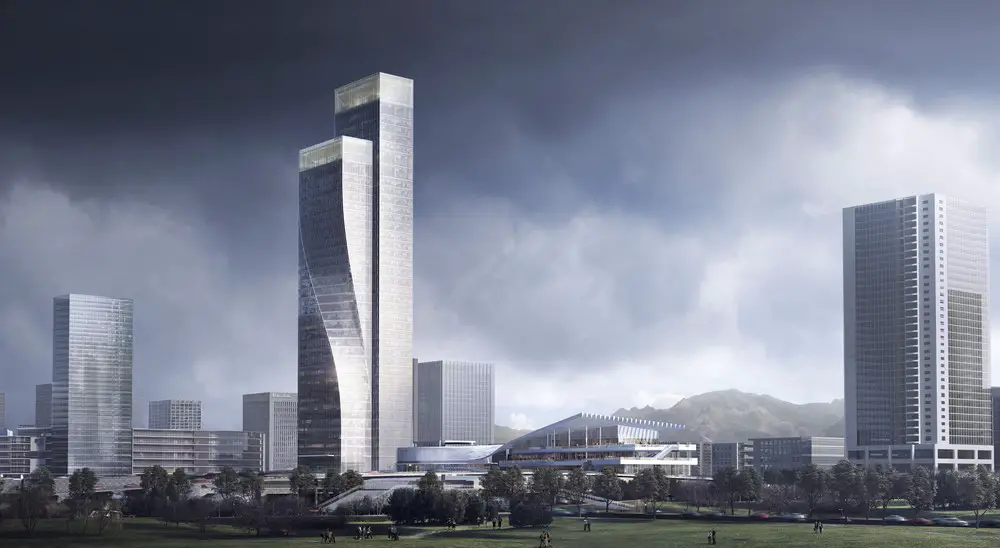

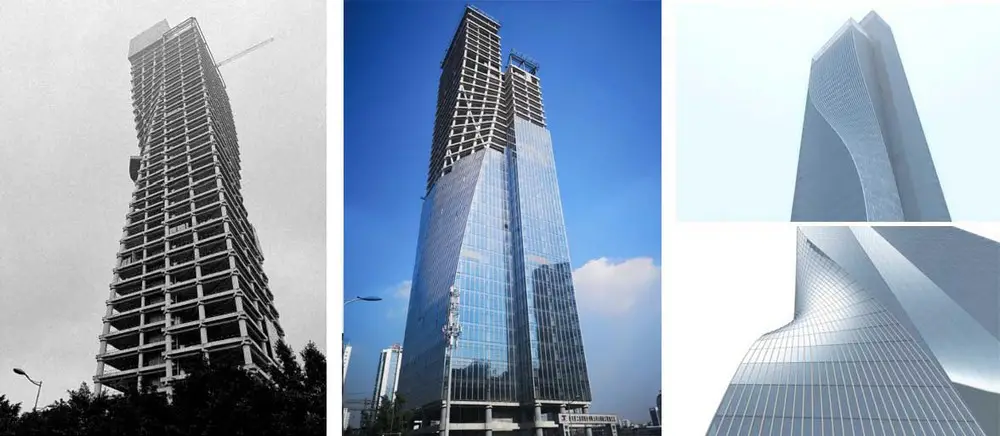

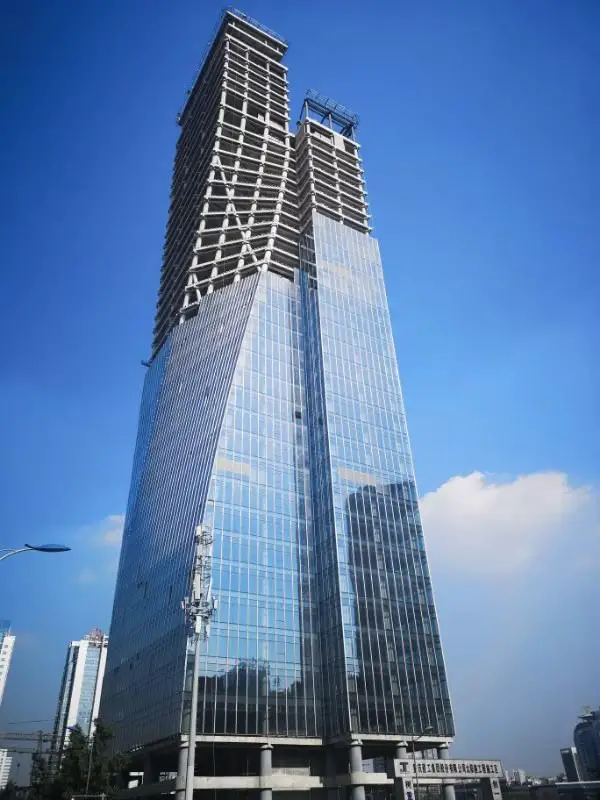

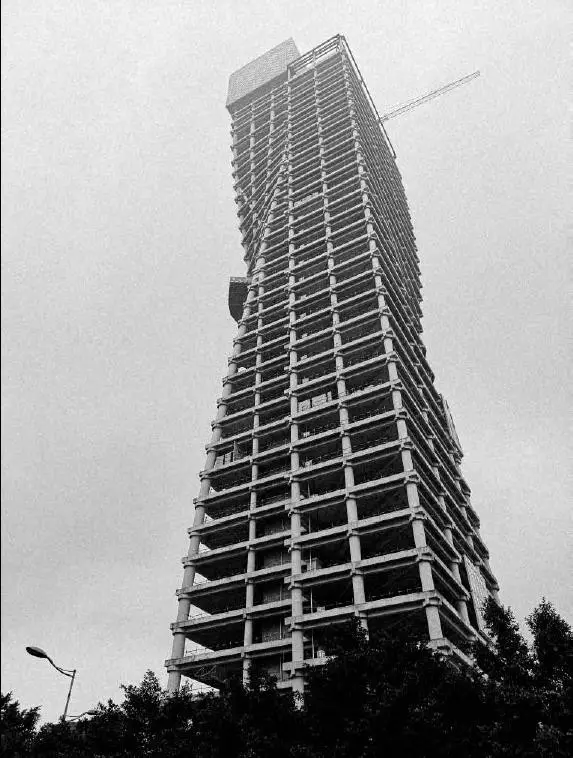

Aedas-designed Chongqing Gaoke Group Ltd Office Project stands at the north of Xingfu Plaza, Jiangbei District of Chongqing. As the construction progresses, the project has started to reveal its grand gesture in the city center. The vertical façade expression interweave with linear curves, to compose a fluid visual rhythm of the design. This project is expected to be completed in 2022, positioning itself as one of the “Most Twisting Towers in the world”.

Chongqing Gaoke Group Ltd Office Project

The surrounding environment has already been developed, and one big challenge for the designer is to interpret planning concept of “solar”, into an iconic landmark well-integrated in the existing community context.

Chongqing Gaoke Group Ltd Office Project Chongqing Gaoke Group Ltd Office Project

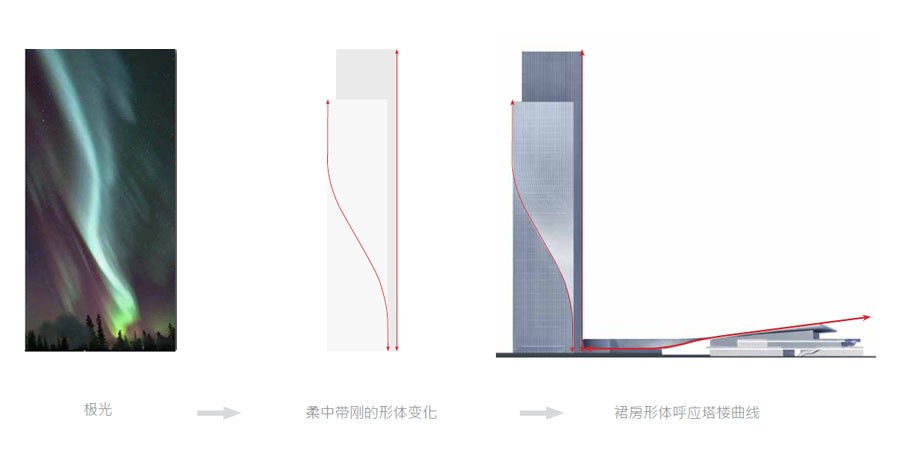

“As an open public space, the tower has all the credits to be a city icon. The significant twisting of the facade will catch everyone’s eyeballs.” Inspired by the dancing aurora, Global Design Principal Ken Wai and his team, has introduced an impressive façade design through bottom-to-top connections between northern and eastern sides.

Chongqing Gaoke Group Ltd Office Project

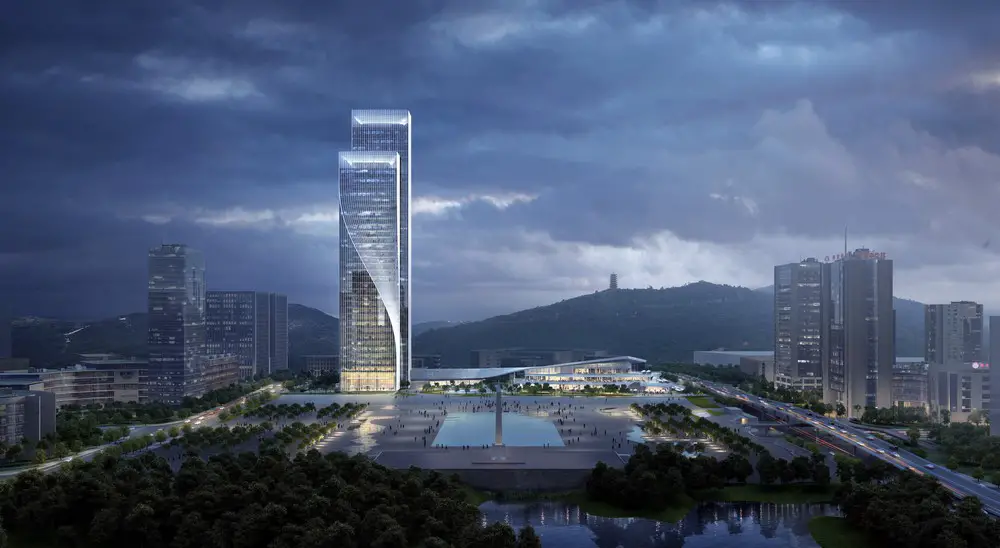

The ‘ballet of light’ is characterised by the juxtaposition of rectilinear forms and tower facades with double curves. Such curvaceous façade expression offers ever-changing perspectives around the development. When the sun rises, the curved facade shines, and the tower becomes the building of light.

Chongqing Gaoke Group Ltd Office Project

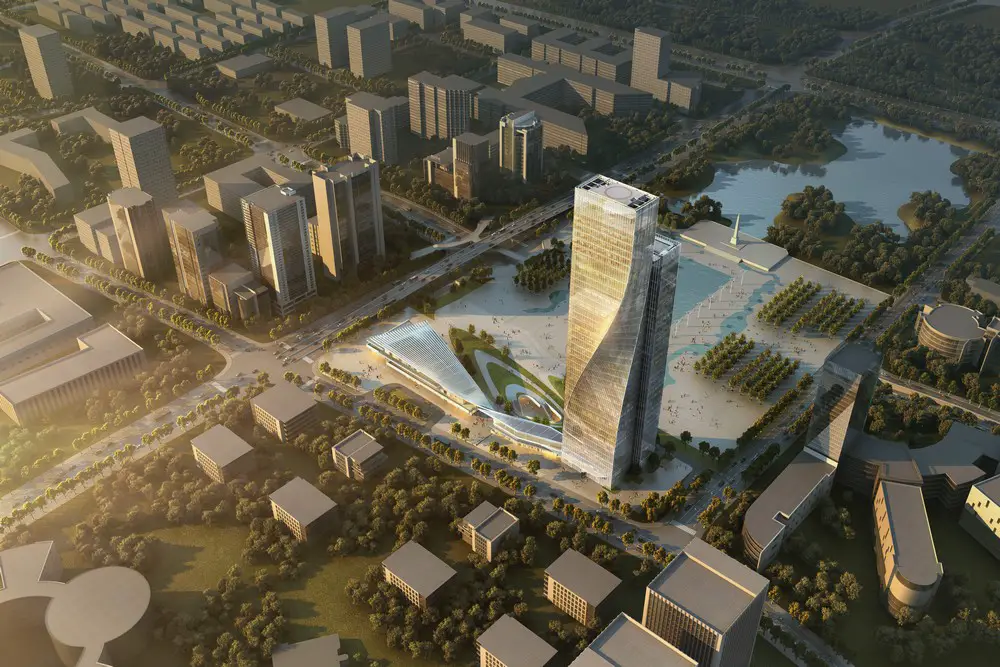

When night falls, the curved facade showcases reflections that allude to the dancing figure of a ballerina. The podium roof extends a coherent statement of sliding twist from top to bottom, echoing with the geometry of the tower and maintaining a consistent architectural style.

Chongqing Gaoke Group Ltd Office Project

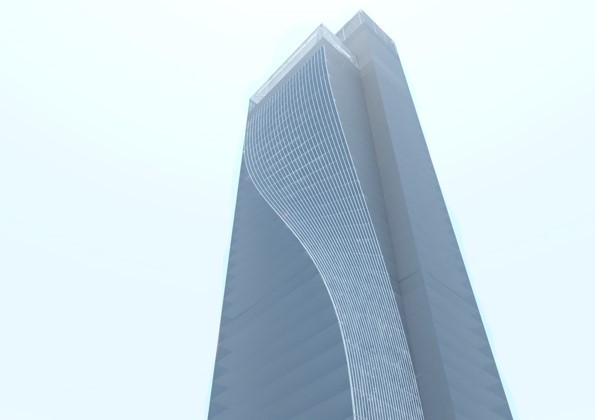

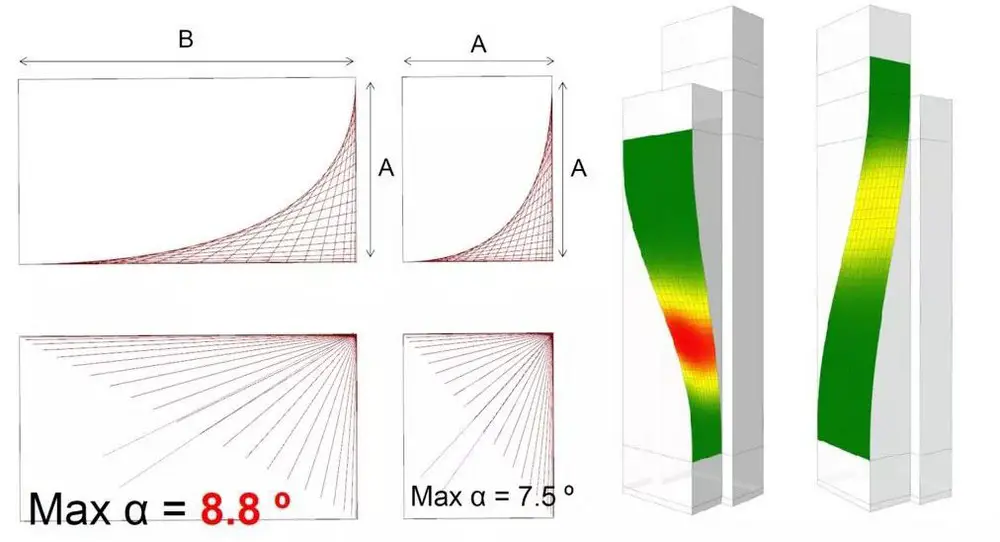

The magnificent twisting sculpts an impressive torsional shape for the tower. The maximum twisting angle is up to 8.8 degrees per floor, noticeably surpassing existing super high-rise tower in the world by nearly 1.5 times (CTBUH Journal, 2016 Issue 3). After completion, it is expected to be one of “The Most Twisting Towers in the world”. Innovative façade technology from RFR empowers precise execution of such challenging design.

Chongqing Gaoke Group Ltd Office Project

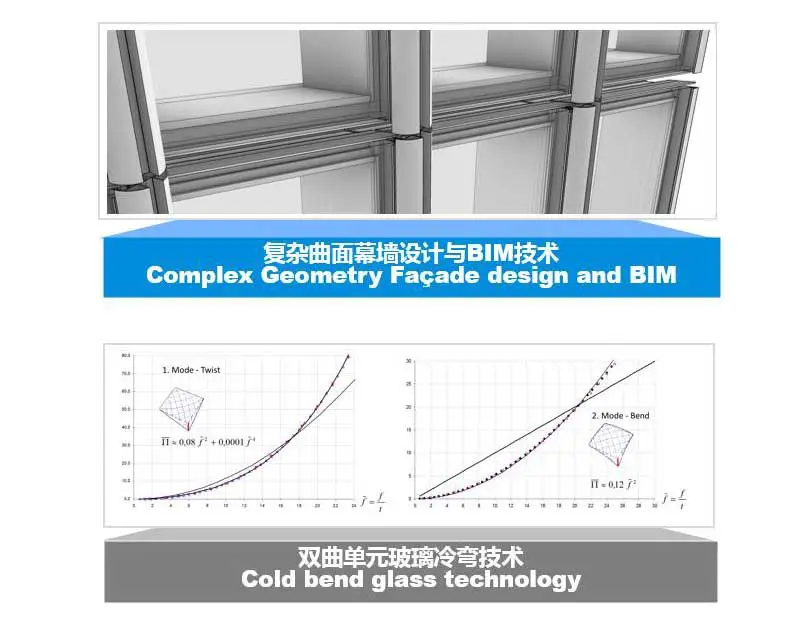

The unique twisting results in a high double-curvature ratio, which poses a major challenge for the overall façade system. Ken Wai and RFR joint hands to leverage on the cold bend glass technique and BIM on complex geometry façade for a magic solution. Such innovation is to adapt to the changing geometric parameters and dimensions, while fulfilling requirements on safety, waterproof and thermal performance. It also ensures a consistent façade construction in line with BIM simulations.

Chongqing Gaoke Group Ltd Office Project by Aedas

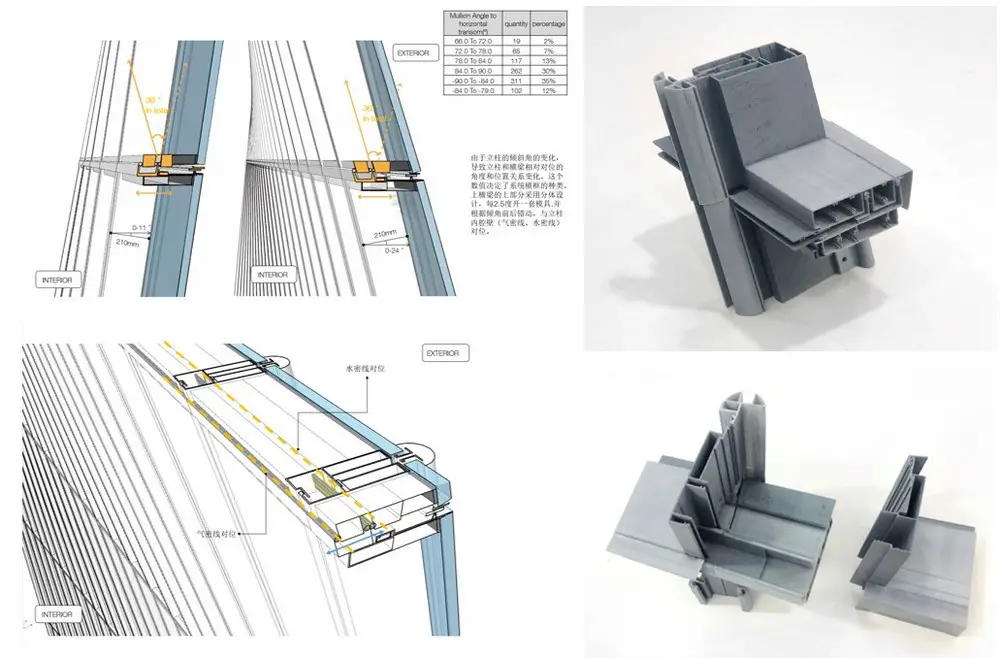

The system of cold bend glass on 3D frame façade component enables a maximum of 86mm in glass deviation, realizing a record-breaking design in China. From overall geometry analysis, façade component modeling & clash-checking, LOD400 detail component modeling, automotive data exporting and auditing, 3D BIM has been utilised throughout the façade design process.

Chongqing Gaoke Group Ltd Office Project

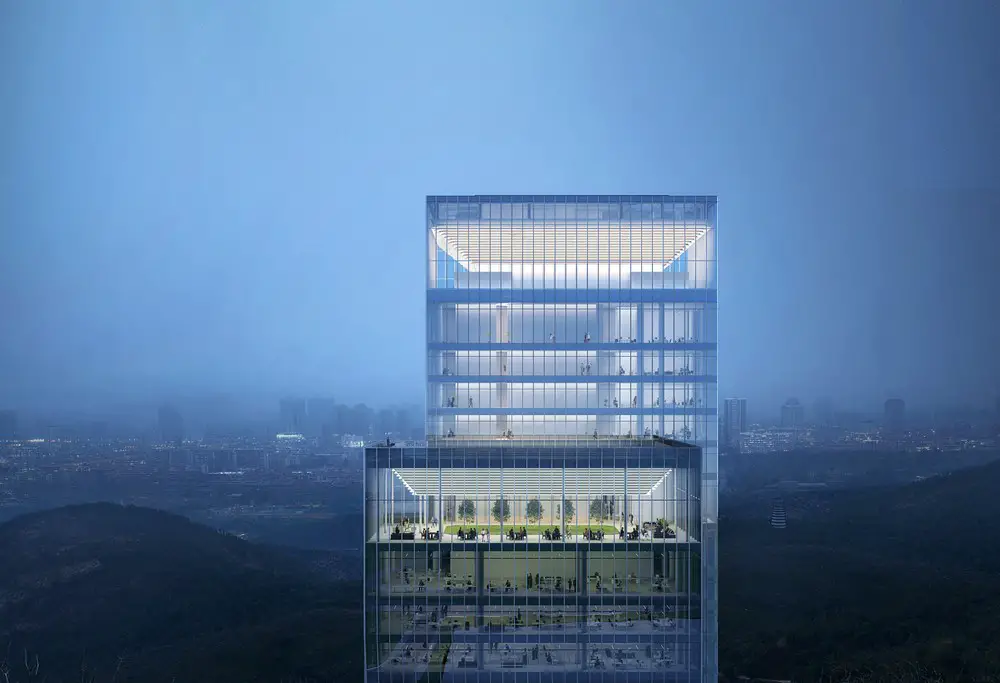

“The façade is not only an outlook expression, but also a way of protection that sculpts interior spaces.” Ken explained. His delicate design has been articulated for the top of the tower, by conveying the conceptual “Valley of Light” through the transparent glass façade and lightings, to make a coherent statement.

Chongqing Gaoke Group Ltd Office Project

Such concept differentiates the crown of this tower from other office spaces. The plant room, BMU and other facilities are centralize inside the “Valley” on the top of the building, achieving functional unity without undermining the visual aesthetics.

Chongqing Gaoke Group Ltd Office Project

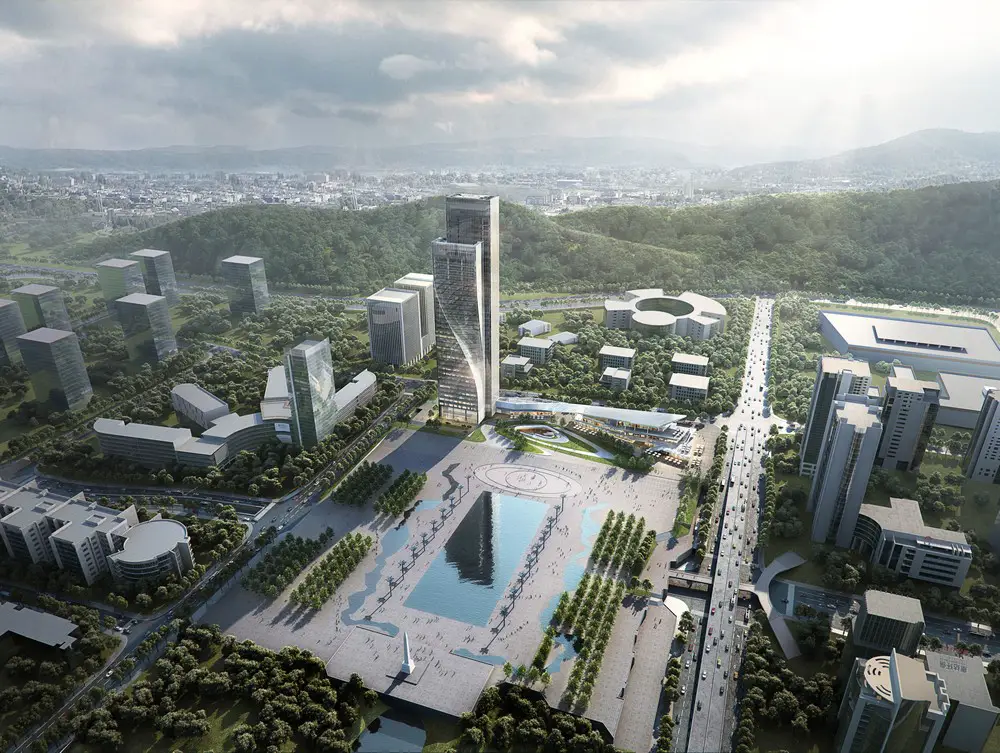

As for the master layout, Ken has put thorough consideration to the surrounding environment and the building volume. The tower is located of the left side of the mall, minimizing the towering effect on the adjacent parts of the development, and establishing interactive connections in between.

Chongqing Gaoke Group Ltd Office Project

The tower sets back northwards, to connect podium and the mall at the south. A variety of public space for civic leisure has thus been created. The underpass to its west leads easy access to the existing shopping center, as a sensible approach to improve commercial value of underground space.

Chongqing Gaoke Group Ltd Office Project

Chongqing Gaoke Group Ltd Offices – Building Information

Title: World-class Twisting Tower Glows in Ballet of Light
Project: Chongqing Gaoke Group Ltd Office Project
Location: Chongqing, PRC
Scope of Work: Design Architect
Façade Consultant: RFR Shanghai Co. Ltd.
Client: Chongqing Gaoke Group Co., Ltd.

Gross Area: 61,368 sqm
Completion Year: 2022
Director: Ken Wai

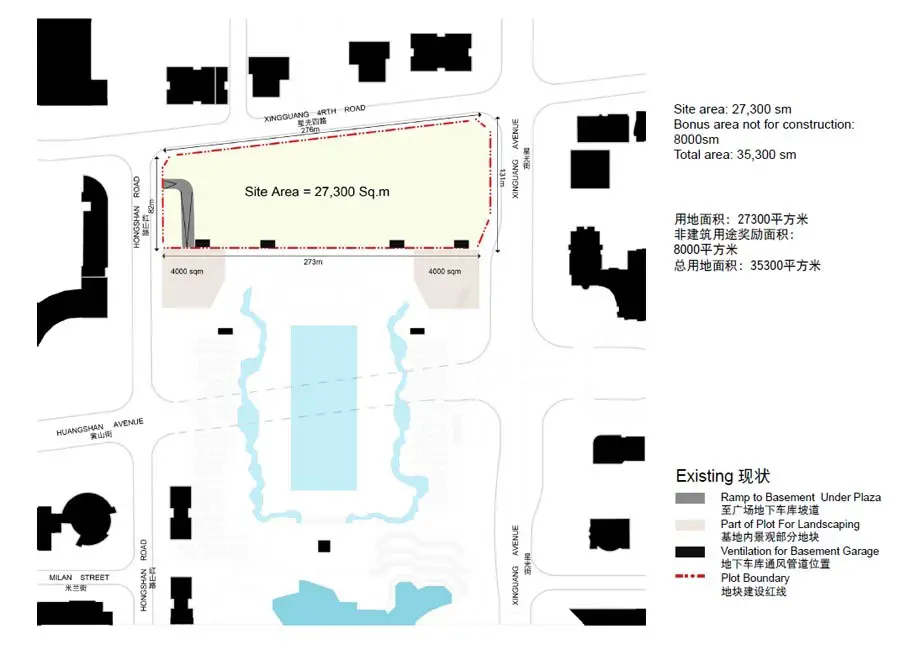

Chongqing Gaoke Group Ltd Office Project location plan

Chongqing Gaoke Group Ltd Offices by Aedas images / information received 260819
