860-880 Lake Shore Drive

Design: Mies van der Rohe architect
Renewal Architects: Krueck & Sexton

860-880 Lake Shore Drive redefined highrise living for post-war generation

Architects Krueck & Sexton restored one of legendary Modernist Ludwig Mies van der Rohe’s most celebrated commissions back in 2010: 860-880 Lake Shore Drive in downtown Chicago.

Photos : William Zbaren

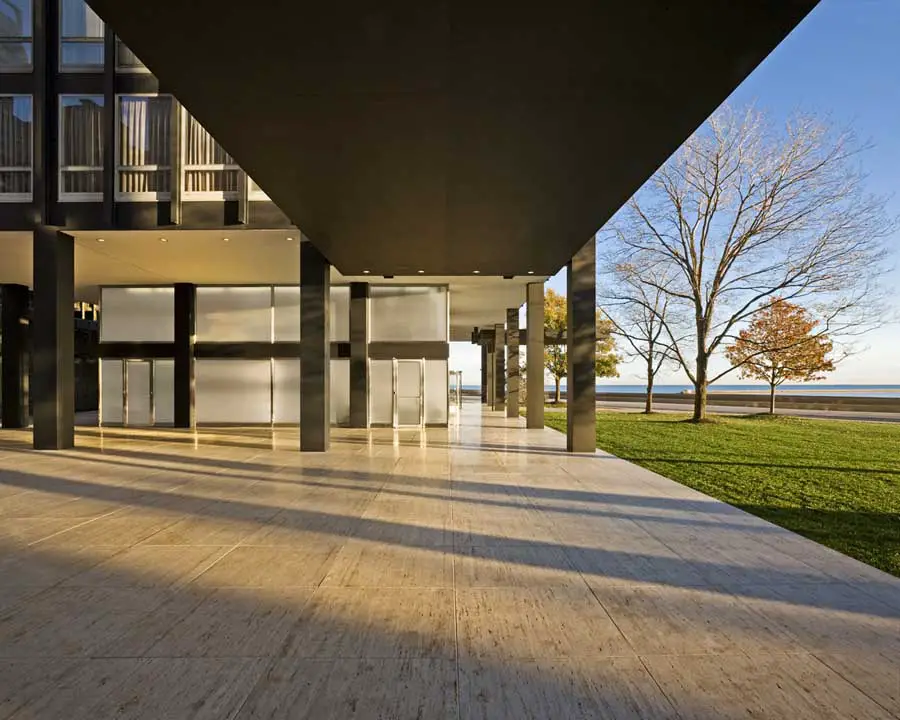

860-880 Lake Shore Drive Towers

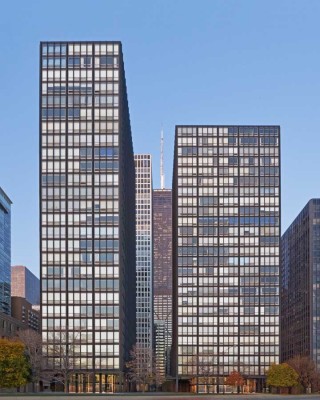

860-880, which was built between 1949 and 1951, consists of two 26-story, exposed steel and glass apartment towers set at right angles on an irregular travertine plaza.

Based on ideas and theories Mies had been perfecting since his earliest days as an independent architect in 1920s Berlin, the Lake Shore Drive buildings redefined highrise living for the post-war generation.

“They were the most radical buildings of their time,” said Ron Krueck. “They’re light and delicate and surprisingly sexy. They also prove that – contrary to what many people believe — it’s not so easy to design a glass box.”

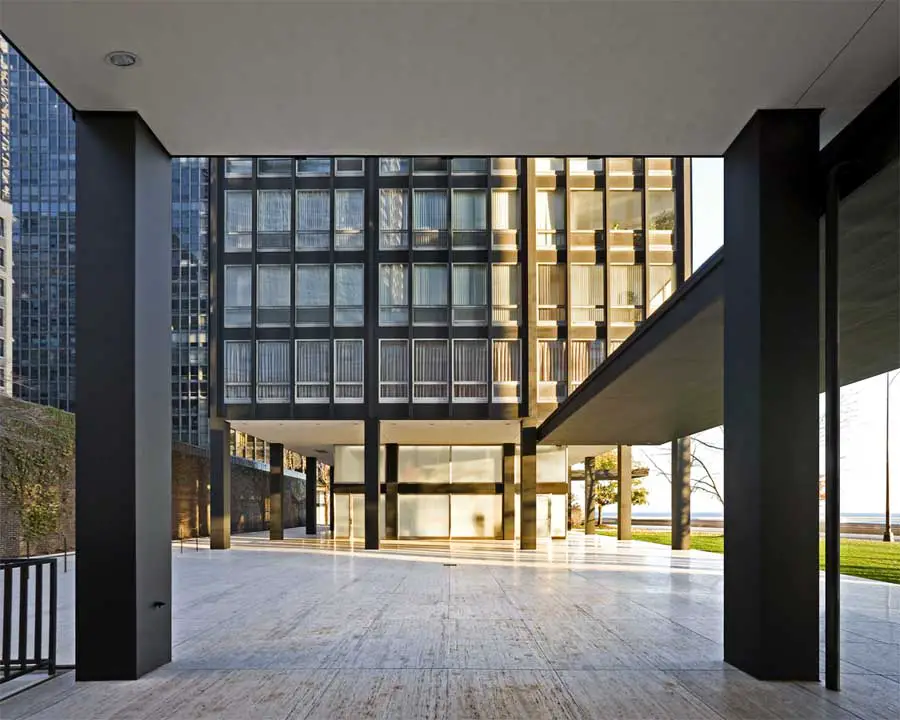

860-880 Lake Shore Drive Towers Chicago

This local and national landmark, is located just north of Chicago’s Loop central business district and steps away from Lake Michigan.

Many architects and critics believe the towers development is the closest Mies ever came to achieving his goal of less is more “skin and bones” architecture.

According to the American Institute of Architects’ “Guide to Chicago,” “No other building(s) by Mies had as immediate or strong an impact on his American contemporaries, and the influence of these structures was to pervade much of modern architecture.”

“There’s not a lot to them,” said Mark Sexton. “They’re mainly just steel and glass used in the most efficient way possible. By contrast, buildings today often have layer upon layer of materials.”

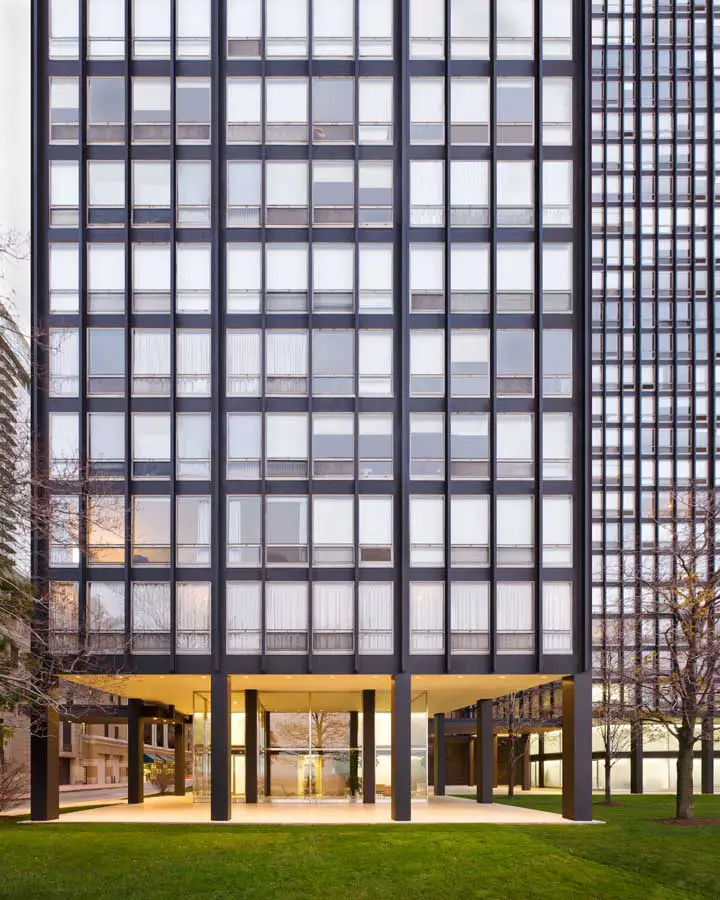

Lake Shore Drive Towers

In addition to more than half a century of normal wear and tear, the 860-880 Lake Shore Drive buildings had endured several restoration attempts over the years. The problems included corrosion of the buildings’ exposed steel frame, failure of the lobby glazing system and extensive cracking and discoloration of the travertine plaza.

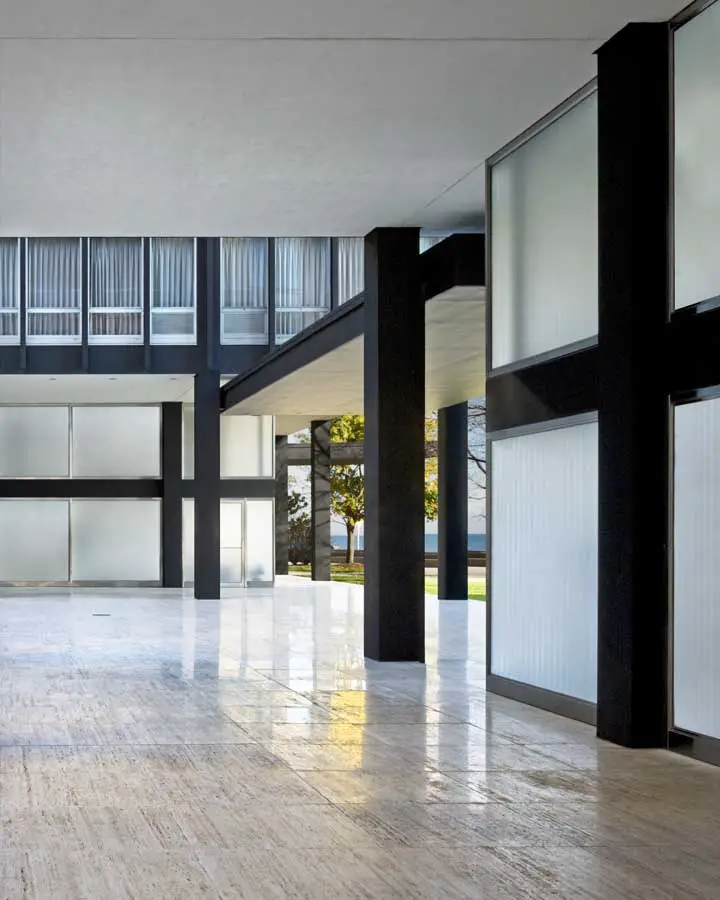

There were also aesthetic issues. The original frosted glass in the lobby had been replaced in the early 1980s by a laminate system with a translucent interlayer that created an historically inaccurate aquamarine tint.

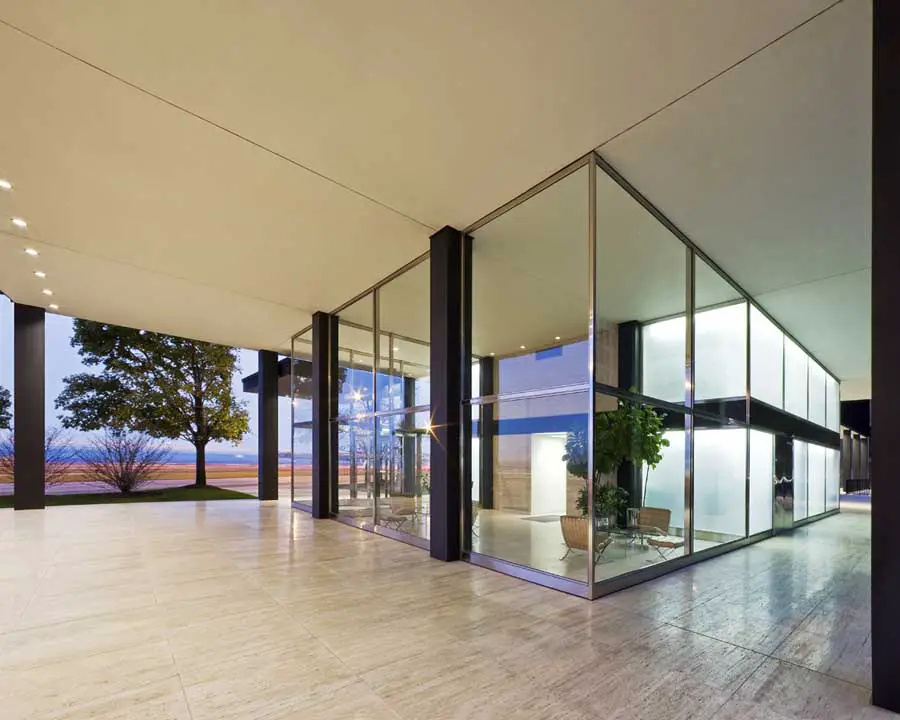

The 860-880 Lake Shore Drive restoration included recoating the steel frame facade and cleaning the original aluminum windows. In addition, new sandblasted glass in the lobby recreated the soft, velvety glow of the original.

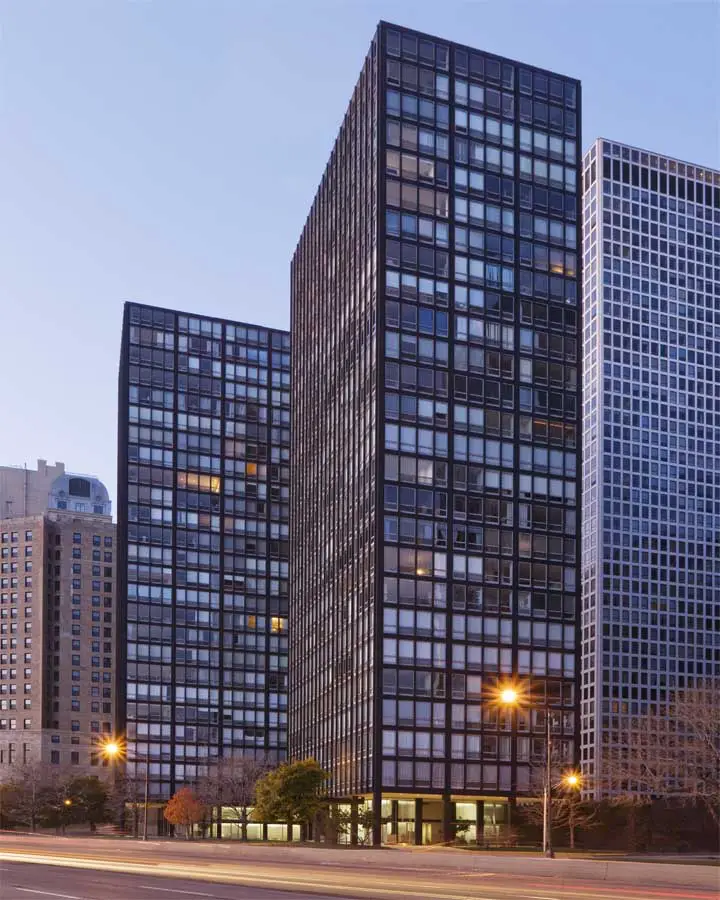

Chicago Apartment Tower Building design by Mies van der Rohe architect

Finally, the plaza was rebuilt, a process that included replacing the original travertine slabs, designing a new drainage system and recreating the original plaza lighting scheme.

Designed to take advantage of a 2008 tax credit, the building renovation project began in the summer of 2007 and was completed in December. The cost was $9 million.

Krueck & Sexton began work on the towers in the summer of 2007 and finished in December of 2009. The preservation architect was Harboe Architects, also in Chicago. The total cost of the 860-880 Lake Shore Drive project was $9 million.

The problems included corrosion of the building’s exposed steel frame, failure of the lobby glazing system and extensive cracking and discoloration of the travertine plaza.

This Modern property complex is the third and largest Mies commission Krueck & Sexton, an architecture firm more noted for its original work, has completed in recent years.

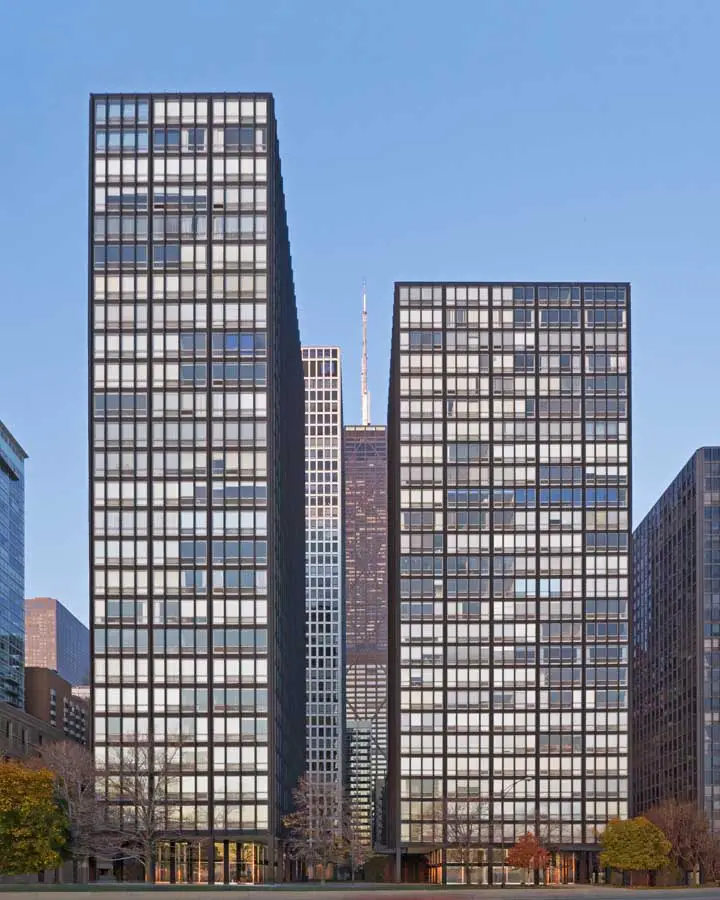

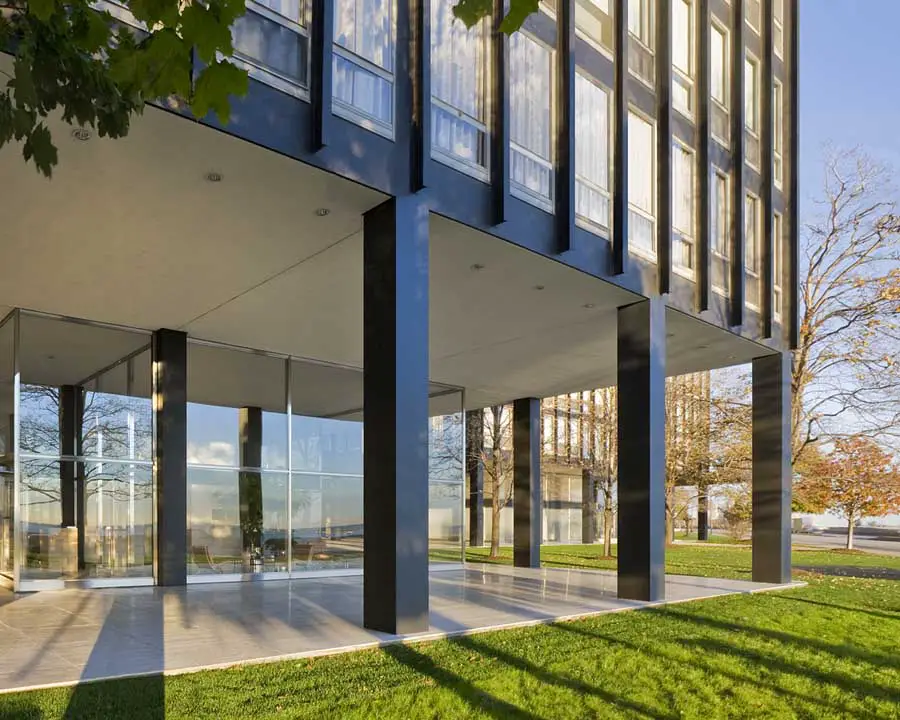

860-880 Lake Shore Drive Chicago 860-880 Lake Shore Drive 860-880 Lake Shore Drive Towers Lake Shore Drive Towers Modern Apartment Towers in Chicago

The other two – all are in Chicago – are Crown Hall on the campus of the Illinois Institute of Technology and the School of Social Service Administration at the University of Chicago.

“One of the things I’ve learned from restoring these buildings is that, for Mies, there was never a final answer,” said Krueck. “He was always interested in what else could happen, what the other design possibilities might be. What’s fascinating is to watch his thinking evolve over the course of a project.

At this Modern high-rise property, for example, the early sketches show a scalloped exterior with large bay windows. This eventually changes to what is there today. There’s also a continual process of refinement in terms of the massing, the enclosures at the bottom and the way the plazas are laid out.”

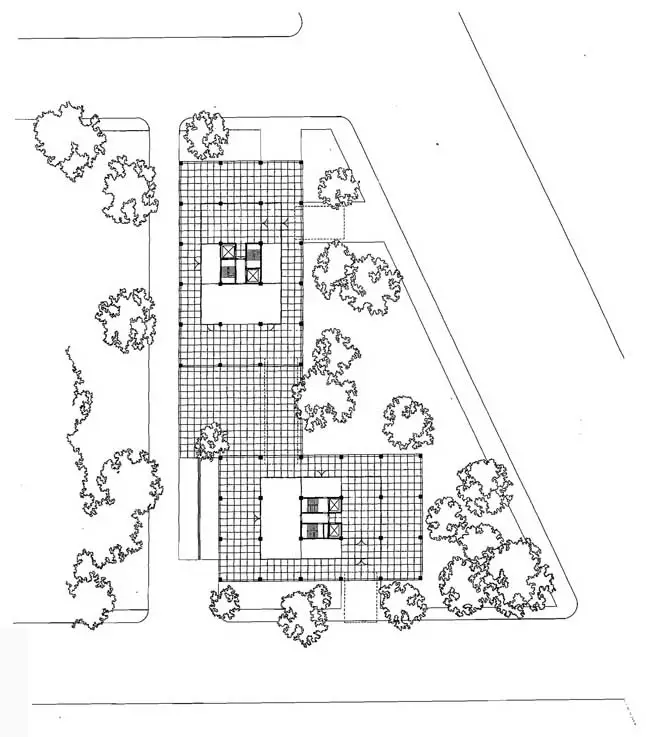

Lake Shore Drive Apartments plan

Krueck & Sexton Architects was founded by architects Ronald Krueck and Mark Sexton in 1991 and is a multi-disciplinary firm with a varied portfolio. In addition to its innovative Mid-Century restoration and renovation practice, it has completed numerous award-winning civic, commercial and residential projects.

The architecture firm’s Spertus Institute Building on Michigan Avenue in Chicago received three AIA awards in 2008, including a Distinguished Building Award. The firm currently is working on a 25 acre expansion of Grant Park in downtown Chicago, the highlight of which will be a new home – also designed by Krueck & Sexton – for the Chicago Children’s Museum.

Original Completion Date: 1951
Restoration Completion Date: 2009
Client: 860-880 Condominium Association
Location: Chicago, Illinois, USA

Lake Shore Drive towers – video on YouTube:

860-880 Lake Shore Drive Renovation

Widely recognized as one of the 20th Century’s most iconic residential projects, this high-rise residential complex consists of two 26-story rectangular condominium buildings surrounded by an irregular travertine plaza. The steel and glass towers are connected by a covered walkway.

860-880 Lake Shore Drive Renovation – Building Information

Client / Owner: 860 Lake Shore Drive Trust, 880 North Lake Shore Drive, Chicago
Building Management 860 Lake Shore Drive Trust, 880 North Lake Shore Drive, Chicago
Owner’s Representative: Cotter Consulting, Inc., Chicago
Architect & Prime Consultant: Krueck & Sexton, Chicago

Photos: William Zbaren

860-880 Lake Shore Drive Renovation images / information from Krueck & Sexton

860-880 Lake Shore Drive Chicago architect : Mies van der Rohe

Location: 860-880 Lake Shore Drive, Chicago, Illinois, USA
