Cambridge University Department of Architecture

Contemporary British Building – design by Mole Architects

11 Mar 2008

Cambridge University Department of Architecture Extension

Address: Scroope Terrace
Date built: 2007
Design: Mole Architects

Photographs: David Butler

Cambridge School of Architecture Cambridge University Department of Architecture Cambridge University Department of Architecture Extension

Images received 110308:
University of Cambridge: Department of Architecture
New Studio Building, Cambridge, RIBA East

Cambridge School of Architecture

Project Description

Client Brief
The new studio building forms part of a £3 million refurbishment and expansion of the Department of Architecture, responding to a brief uniting teaching and research functions. The Georgian Terrace has been refurbished by Freeland Rees Roberts Architects, creating offices for the Martin Centre for Architectural and Urban Studies. The new studio building sits to the rear of the terrace adjacent to Colin St John Wilson’s seminal 1950’s extension. The Client, Head of Department Marcial Echenique, required a single teaching space clear of columns to house the undergraduate design studio and a building made of timber that retained the existing on-site car parking. A contemporary version of Victorian warehouse buildings was pictured, with cast iron replaced by timber and simply designed details.

Cambridge School of Architecture – Programme
Appointment August 2005
Planning permission April 2006
Commencement on site August 2006
Completion October 2007
Budget £1.5 million

Planning and Social Constraints
Space for the new building was limited; planning constraints meant that existing listed trees needed to be preserved and sufficient space given to the rear of the listed Georgian terrace to preserve its integrity. The placement of the building responds to these constraints. It creates a central cloistered garden space between the new building and the existing extension, providing a physical link between the group of buildings that make up the School of Architecture. The garden is enclosed by the existing historic garden wall to the rear, and a new brick wall on the line of the original one to the south, separating the car park beyond.

Cambridge University Department of Architecture Extension Cambridge University Department of Architecture Extension Cambridge University Department of Architecture Extension Cambridge University Department of Architecture Extension

Materials & Construction
The form of the new building is determined by its function, and a desire to build a naturally cooled timber-frame building that embodies the Department’s commitment to sustainable design. North lights in the saw-tooth roof provide even natural light without solar gain and an innovative cooling strategy has been adopted, comprising good cross-ventilation, high-level windows and an innovative water-based radiant cooling system in the ceiling.

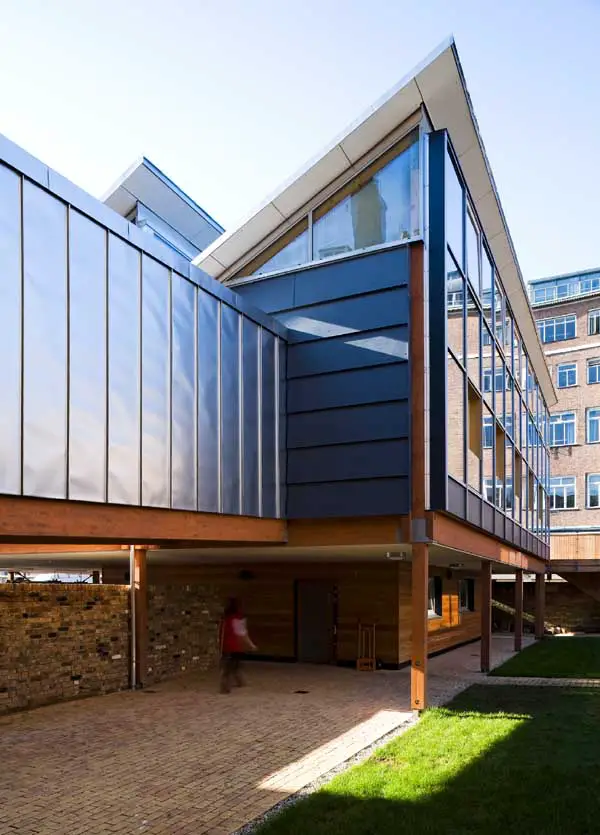

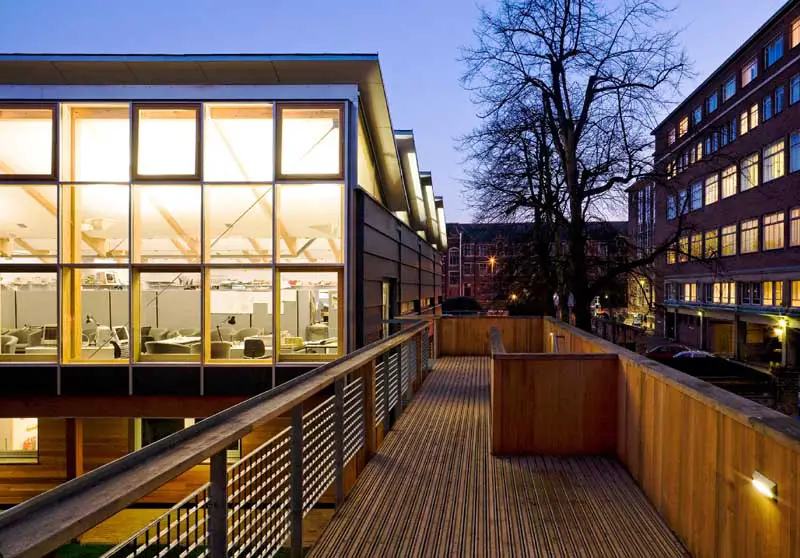

The building comprises a workshop of solid construction at ground level, and a large single studio space built from a timber and glulam structure at first floor. Larger than the ground floor, the studio is built over the existing car park and entry is via two bridges connected to the terrace rear and the Sandy Wilson extension These allow access from the main Department entrance and lecture rooms respectively.

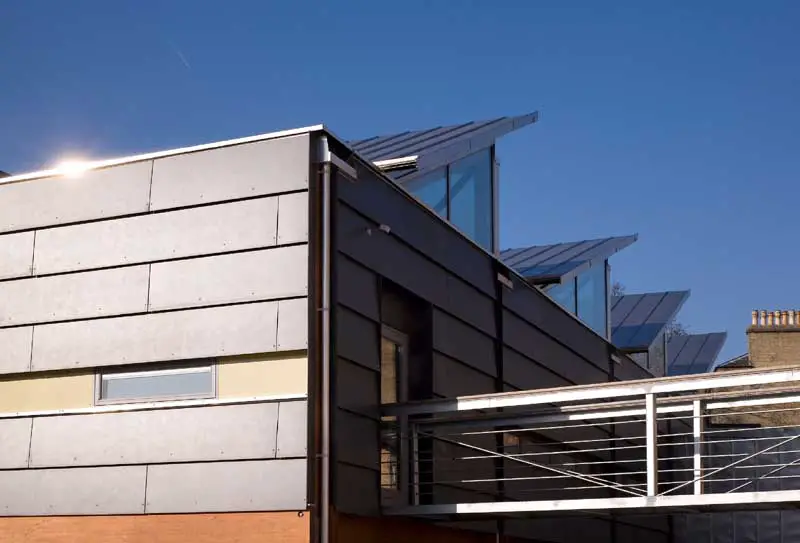

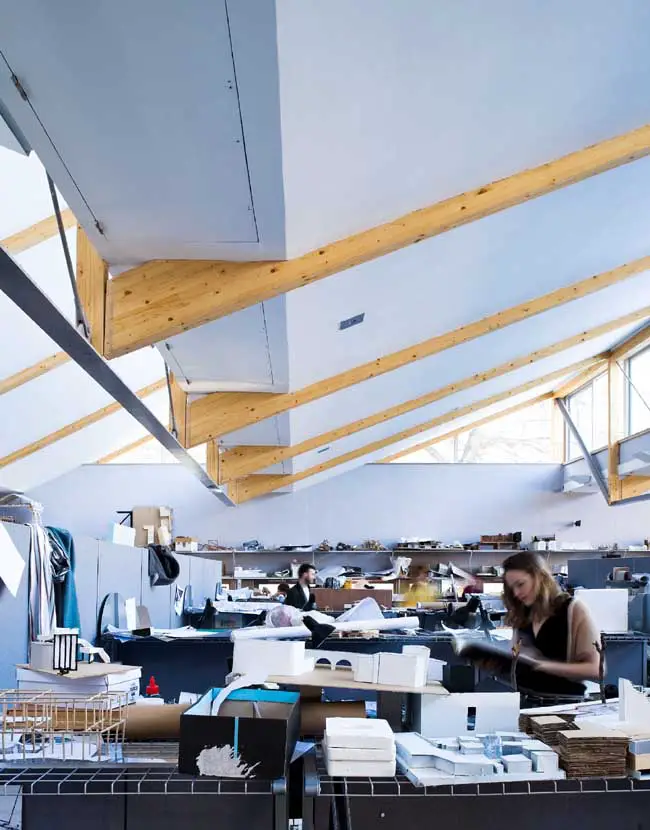

The expressed structural timber frame gives rhythm to the elevations, clad externally in cement fibre panels, a large-scale version of weatherboarding, recessed between the timber columns. Inside, structural principles are made apparent in the timber trusses; the top chord gets slimmer towards the supports, and the struts reduce in size as the forces reduce. A lesson in design: the new studio embodies contemporary structural and sustainable construction methods while creating a light-filled space for studying and making architecture.

Cambridge School of Architecture images / information from Mole Architects 110308

Address: 1-5 Scroope Terrace, Cambridge CB2 1PX

Cambridge University Department of Architecture Extension design : Mole Architects

Location: 1-5 Scroope Terrace, Cambridge CB2 1PX, UK

Cambridge Architecture

Cambridge Architecture Design – chronological list

Cambridge Architecture Walking Tours : city walks by e-architect

Cambridge Architecture

Cambridge Building News

Cambridge Architect Studios

Cambridge University School of Architecture
Department of Architecture, Faculty of Architecture & History of Art,
University of Cambridge, 1-5 Scroope Terr, Cambridge CB2 1PX, UK
+44 (0)1223 332958

Cambridge University Centre
HKPA – Howard, Killick, Partridge & Amis, Architects
Concrete panels with rhythmic expression of tie-back bolts, quite brutal but intriguing.
Civic Trust Commendation in 1968

Cambridge University Library, West Road, Cambridge
Giles Gilbert Scott

Cambridge University Department of Architecture Extension, Scroope Terrace
Design: Colin St John Wilson

Cavendish III Physics Laboratory, Cambridge Science Park
Design: Jestico + Whiles Architects
Cavendish iii Physics Laboratory
image : Forbes Massie
Cavendish III Physics Laboratory Building

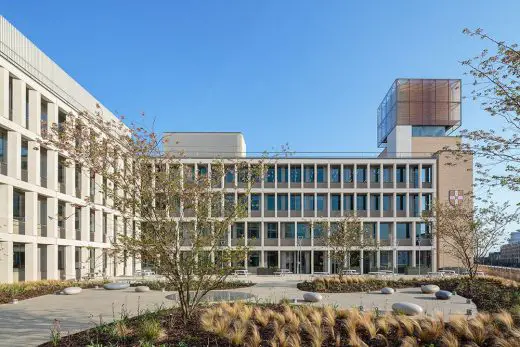

The Triangle Building
