House 16 in Eagle Bay

Location: Eagle Bay, Western Australia

Architects: Dane Design Australia

House 16 in Eagle Bay, Perth

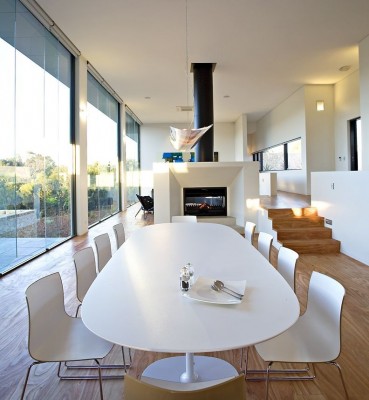

The large open planning of the main living room form the central core of the building; the space was divided into areas with clear functions. The volume of this space was divided by a large fire place and level changes. This achieved a connection with others in the space but enabled the different activities to seem slightly separate which has proved very beneficial when the house is at capacity.

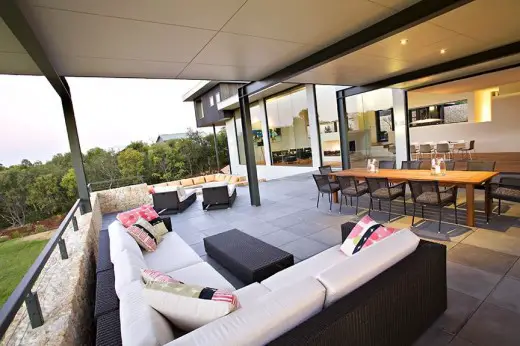

The north facing terrace with its built in “fire box” is the focus of all outside entertaining. The open “fire box” provides a fantastic place to sit and star gaze in the evening.

The planning divides the building into three wings. Children’s bedrooms, guest room, bathroom and games/tv room to the western side. The master bedroom and study to the eastern side and the main living volume & court yard central to these wings.

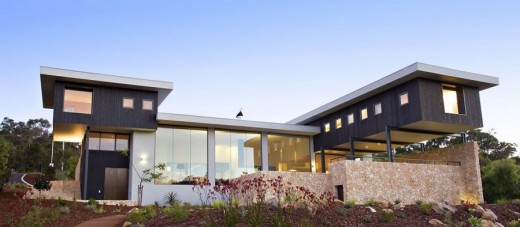

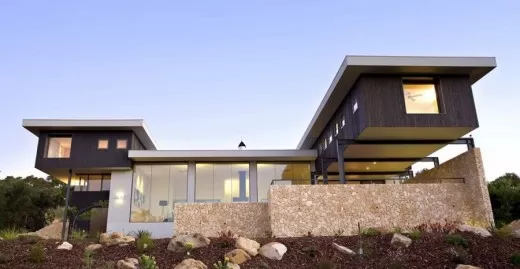

Cantilevers and exposed structural elements feature and further add to the strong lines of the building. Upper levels provide shelter for lower levels.

The entry is screened with high stone walls and a planted court yard; this rustic relaxed threshold must be crossed prior to entering the sharper aesthetic of the building. Stone work is featured in other areas and on the main terrace. The owners shipped a set of old Indian temple doors to the project which were integrated into the stone walls of the entry court, this rustic touch ties in with the coarseness of the stone.

The combination of timber and stone is used to soften and relax the harder geometry of the building. The 4.5m high glazed walls of the main living room open the space to valley views. Sun penetration and heat loss is controlled via electronic window blinds and low emission glass.

The home engages a range low energy use systems and passive solar design principles. It is equipped with a home automation system, collects all potable water, re-uses grey water, utilises low energy & low water use fittings.

House 16 in Eagle Bay images / information from Dane Design Australia

Location: Eagle Bay, Perth, Western Australia
