Stockman Bank Missoula Downtown
post updated March 19, 2024
Architects: Cushing Terrell
Location: Missoula, Montana, USA
Stockman Bank Missoula Downtown Building
Photos by Heidi A. Long (Longview Studios)
June 16, 2020
Stockman Bank in Missoula Building
Recently certified LEED v4 Platinum, this is the most energy-efficient building in Stockman Bank’s portfolio. In addition to featuring high-performance glass and efficient lighting, energy-efficient elevators, and solar arrays, the facility achieves nearly a 70% reduction in water consumption thanks to an innovative on-site rainwater storage system providing 100% of average annual water use for toilet and urinal flushing.

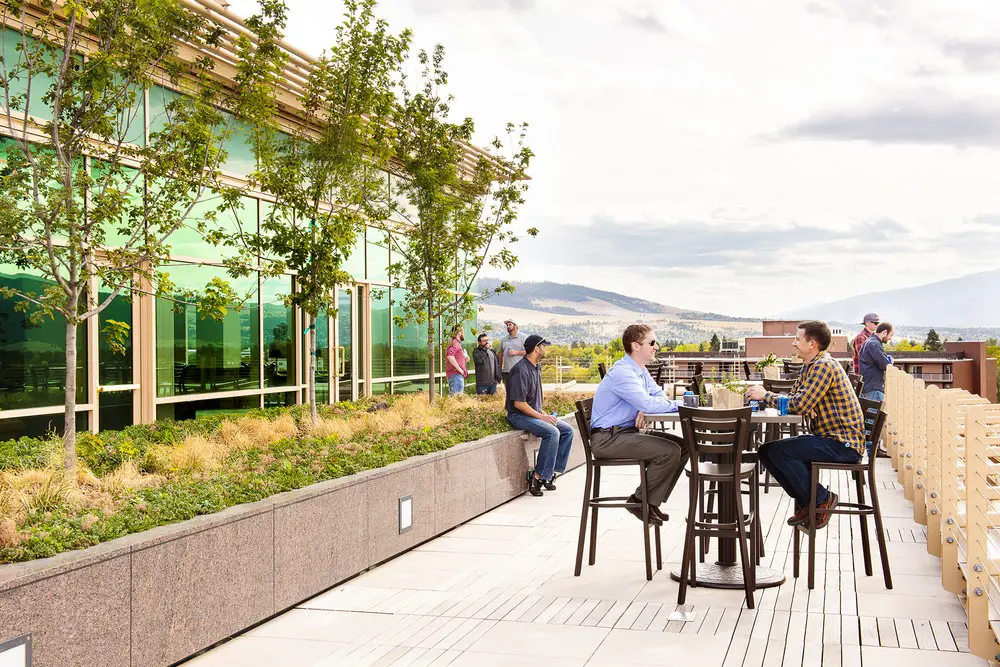

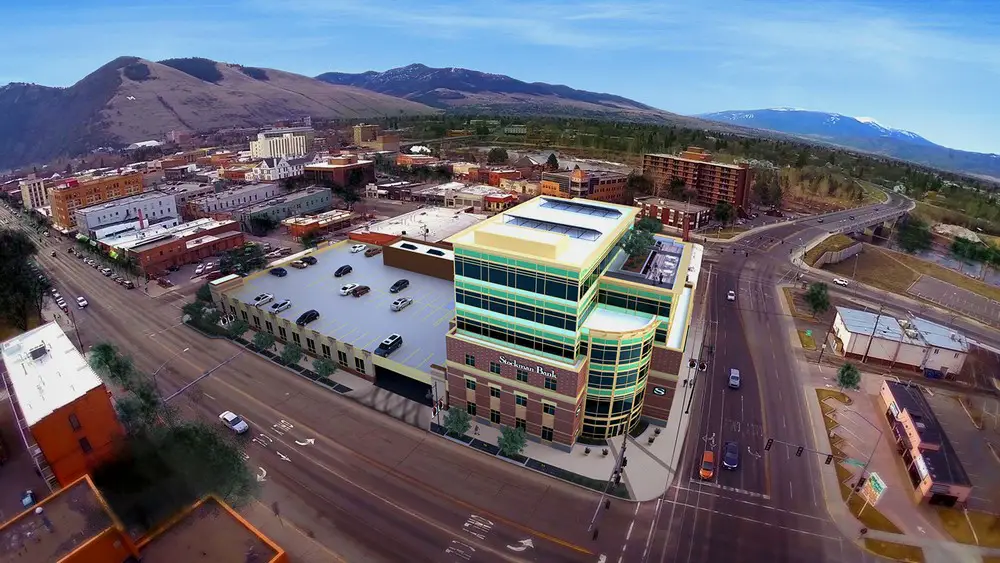

Stockman Bank opened its location in historic downtown Missoula. The project is a 67,753 sq. ft., six-story bank plus adjacent parking structure. The top three building levels include outdoor terraces, topped by a sixth-floor roof garden featuring greenery and trees. The rooftop is used for meetings, entertaining, and community activities, and features expansive views of Missoula and surrounding valleys.

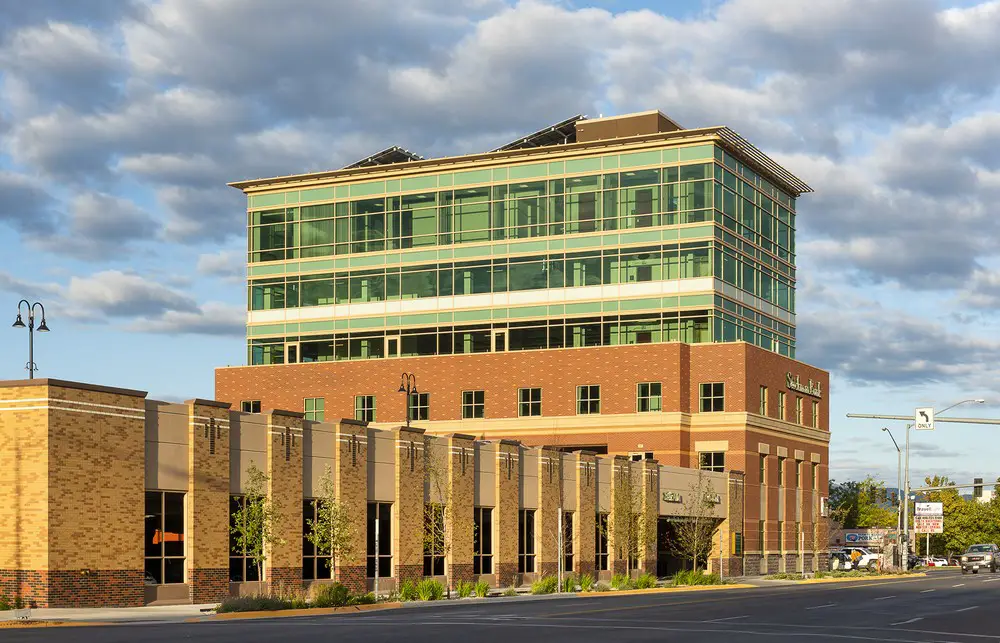

Construction details include a steel moment frame with a masonry exterior that incorporates brick, quarried granite from South Dakota, cast stone detailing, and a high-performance glass curtain wall. The local Historic Preservation Commission approved the design being included in the historic district.
Stockman Bank’s Missoula tower achieved LEED v4 Platinum status. Sustainability measures for the low energy-use per square foot building (modeled with an EUI of 23) include 69% potable water reduction by harvesting rainwater for toilets and stormwater for irrigation, an open-loop ground source heat pump system, chilled beams, and a 48.75 kW photovoltaic array.
To encourage environmentally-friendly commuting, the design also includes covered bicycle parking and electric vehicle charging stations.
Stockman Bank Missoula Downtown, MT – Building Information
Architecture: Cushing Terrell
Cushing Terrell design team:
Principal-in-Charge, Brad Sperry
Project Manager, James Baldwin
Design Lead, Mike Tuss (retired)
Consultant team:
Architecture: Cushing Terrell
Construction Administration: Cushing Terrell
Electrical Engineering: Cushing Terrell
Landscape Architecture: Cushing Terrell
LEED Project Administration: Cushing Terrell
Mechanical Engineering: Cushing Terrell
Structural Engineering: Cushing Terrell
Contractor: Hardy Construction
Civil Engineer: By Owner
Interior Design: By Owner
Geotechnical Engineer: TetraTech
Photography: Heidi A. Long (Longview Studios)
Products
1. Coldsprings Granite
2. Hebron Brick
3. Oldcastle Building Envelope
4. Versico Roofing Systems
5. Hartung Glass Industries
In addition, Cushing Terrell Architect, Tyler Mortenson, AIA, LEED AP BD+C, will be a panelist on an upcoming webinar about the project on Wednesday, July 8th.
Part of the Virtually Green USGBC Mountain Region Webinar Series, the online event will focus on the design process and strategies used to achieve LEED Platinum v4 core and shell in Stockman Bank Missoula Downtown.
Here is the event link: Virtually Green USGBC Mountain Region Webinar Series
Stockman Bank Missoula Downtown, Montana images / information received 160620 from Architects Cushing Terrell
