Slice House Atlanta, Georgia modern home images, GA architecture, Building design America

Georgia House : Atlanta Residence

American Residential Project design by Studio ST Architects, USA

post updated April 18, 2024

Location: Georgia

Date: 2007

Design: Studio ST Architects

Computer Rendering: Andre Tobo

Atlanta Home

Slice House Atlanta home, Georgia residence

picture from architecture studio

Oct 6, 2008

Slice House Atlanta

Slice House

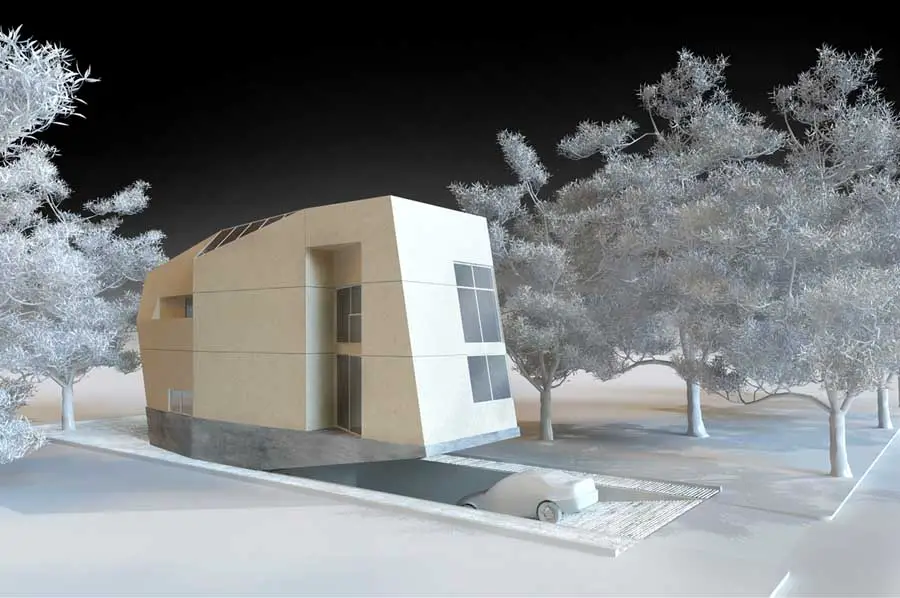

The Slice House is a comfortable family home for a small lot of 25’x 100’ with a footprint of 16’x50’. The total enclosed heated area is 1400 square feet. In addition, there is a covered carport wedged directly under the house with a convenient stair to the entry foyer. A covered deck on the south side extends the great room, creating a seamless indoor-outdoor living area.

Atlanta House Atlanta Residence
picture from architects

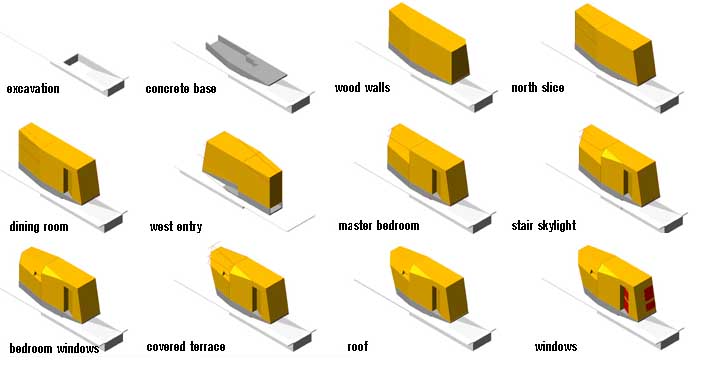

The house an extruded box from which slices were cut to reduce the square footage and create an intelligent and beautiful house. Cuts into the basic form reveal its shape and functions. A slice in the front of the house places the carport on an incline and conceals the parked car from the street. A large opposing slice on the south removes a volume to create a covered sun deck. A number of other slices give form to the entry, dining room, and several windows.

The sum of the slices is a set of spaces simple in their design and materials yet spatially intriguing. Each window was carefully placed to maximize the home’s connection to nature and light.)

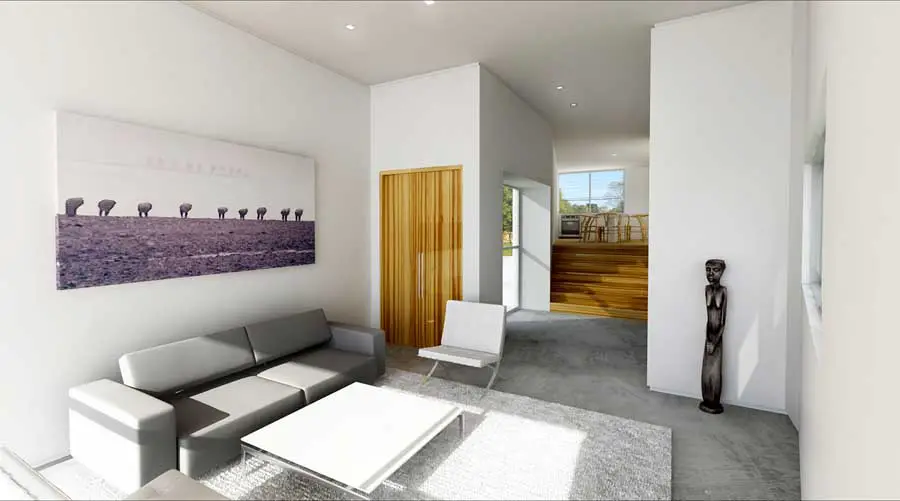

We chose to use simple materials that have inherent beauty. The lower level is a combination of exposed concrete floors, white GWB walls, white kitchen cabinets, large glass windows and a few accents of plyboo wood for the short flight of stairs to the kitchen and the coat closet doors.

Structure and Construction
Concrete Base – The base of the Slice House is a precast concrete foundation and base, enabling the carport cantilever.

SIP Panels – Above the concrete base, the house is constructed of Structural Insulated Panels (SIP). These panels are pre-cut and pre-wired to match builder specifications and include the interior GWB finish wall, allowing the house to be constructed by three people in two days, generating significant savings in construction time and cost. The SIPs are attached to one another and do not require additional stick framing. The structure acts as a shell, is typically 30% stronger than a comparable wood stud home, and allows greater design flexibility.

Sustainability Zero Energy Home (ZEH)
The Slice house is a carefully thought-out sustainable home that will significantly reduce the energy costs of the owners while using readily available technologies. The concrete base acts as a thermal mass. The low winter sunlight (at a 32 degree angle in Atlanta) enters the large south-facing windows of the great room, heating the concrete floor and moderating the temperature changes throughout the day. The high summer sun (79.8 degrees in Atlanta) is blocked by the large roof overhang, allowing the concrete thermal mass to keep the house cool. The exterior SIPs have a high R rating of R-30 for the walls and R-50 for the roof. SIP construction is not only more insulated but also airtight, which enhances energy conservation. Low-E coated double glazed windows also improve the home’s energy efficiency. A PhotoVoltaic (PV) panel system can be added for an additional $6500-$10,000 to further reduce energy consumption.

Slice House – Building Information

Date: Mar 2007
Client: Decatur Modern, Open Competition
Area: 1400 sq.ft.
Cost: $160,000

Slice House Georgia images / information from Studio ST Architects 061008

Atlanta House design : Studio ST

Location: Atlanta, Georgia, USA

America Architecture News – latest building updates

Atlanta Georgia Buildings

Georgia Architecture Designs – major buildings:

Sep 26, 2023

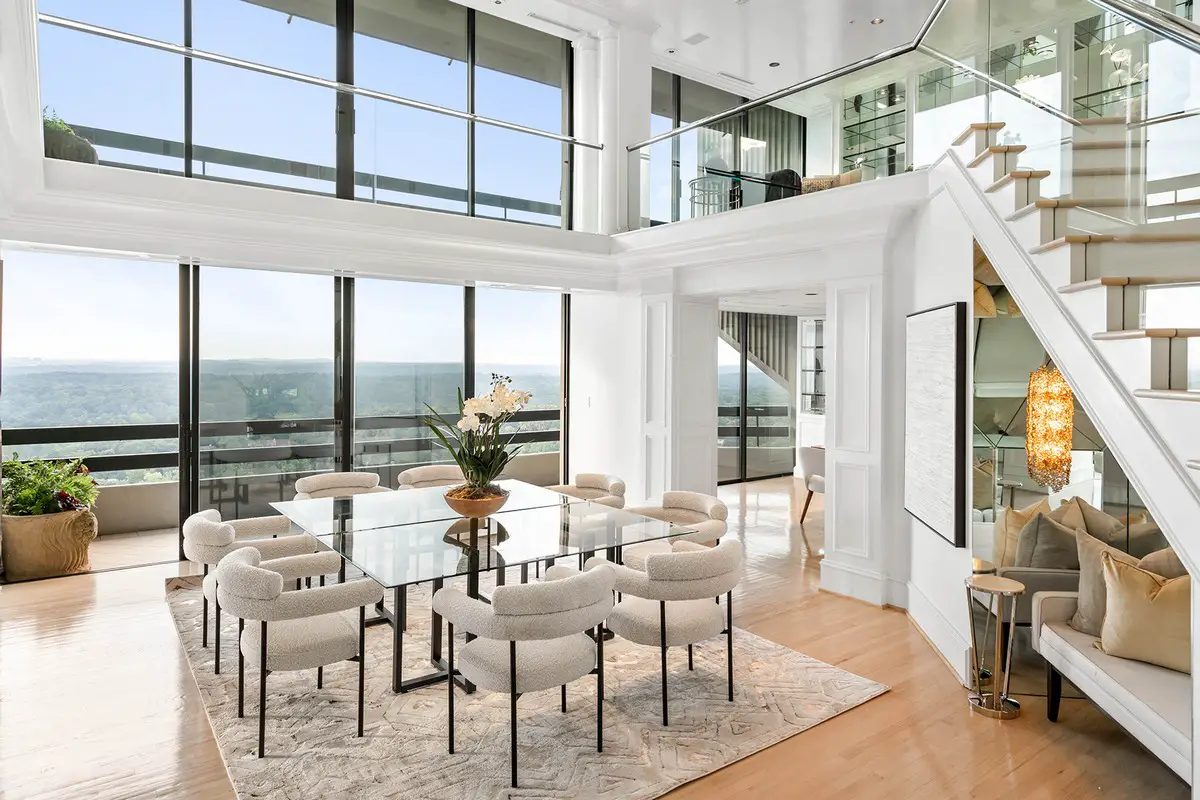

Sir Elton John Atlanta Condo
Sir Elton John Lists Atlanta Georgia Condo
photo courtesy Atlanta Fine Homes
Sir Elton John Atlanta, Georgia condo

Juxtaposition, Druid Hills
Design: Sheila Lee Davies Architecture
Juxtaposition Residence Atlanta Georgia
photos by Jonathan Hillyer, Adam Goldberg Photography and Sheila Lee Davies Architecture
Juxtaposition Residence, Atlanta, Georgia

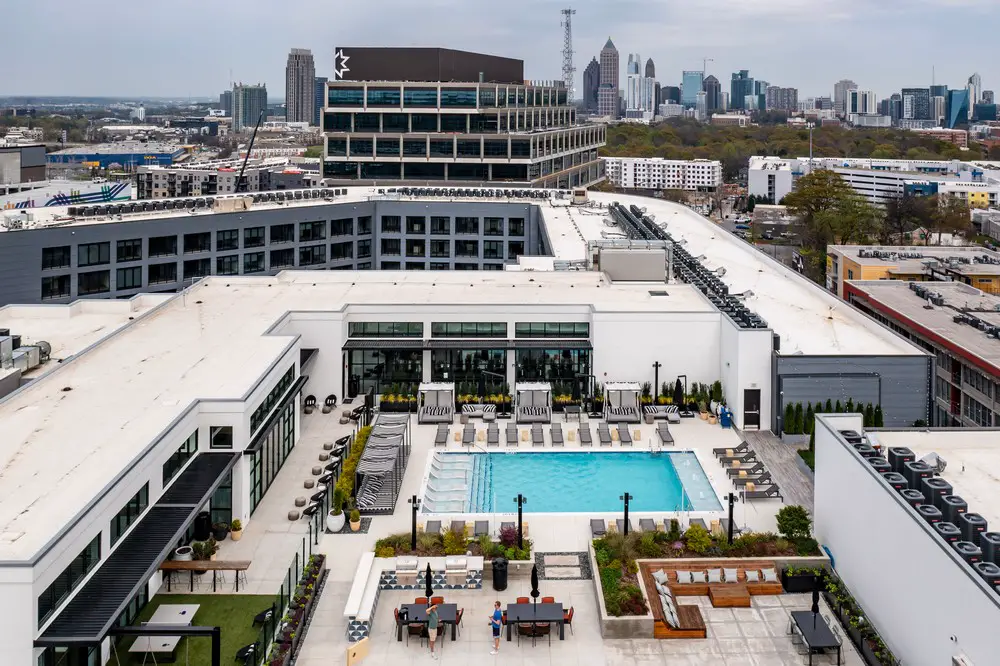

Star Metals Residences
