Porte de Clichy Station Building, Paris Métro and RER C, Line 13 and 14 Hub Photos, New French Architecture
Porte de Clichy Station, Paris Métro and RER C
14 Jan 2022
Northern extension of Paris Metro line 14, toward Saint-Ouen town hall, Paris, district 17 and Saint-Ouen
French transport hub on Line 13 and Line 14, as well as a stop on Île-de-France tramway Line 3b
Design: Atelier Zündel Cristea architecture
Location: under the Avenue de Clichy, 17th arrondissement, Paris, France
Photos © Sergio Grazia
Porte de Clichy Station Paris Building
The northern extension of line 14 is mainly aimed at alleviating the passenger saturation of line 13. Four new stations have been built: Pont Cardinet, Porte de Clichy, Saint- Ouen, Mairie de Saint-Ouen, connected by 5.8 km of tunnel tracks.

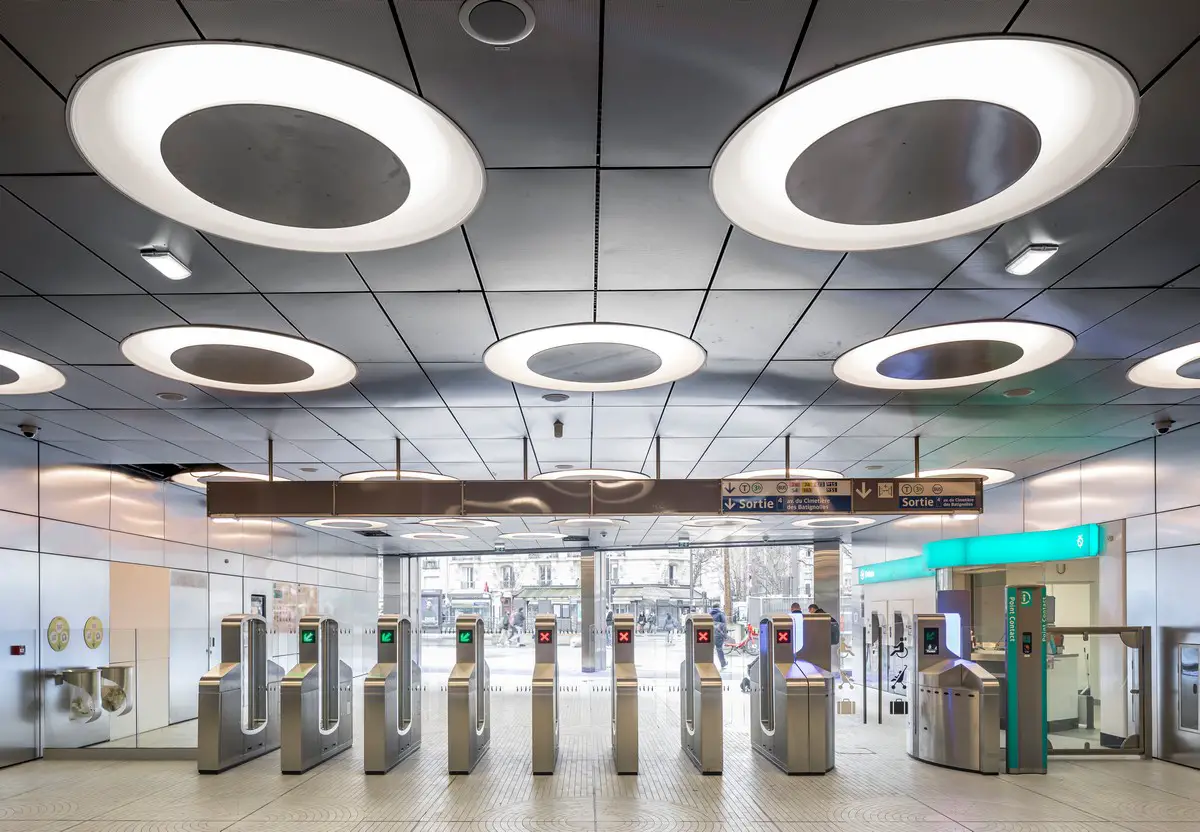

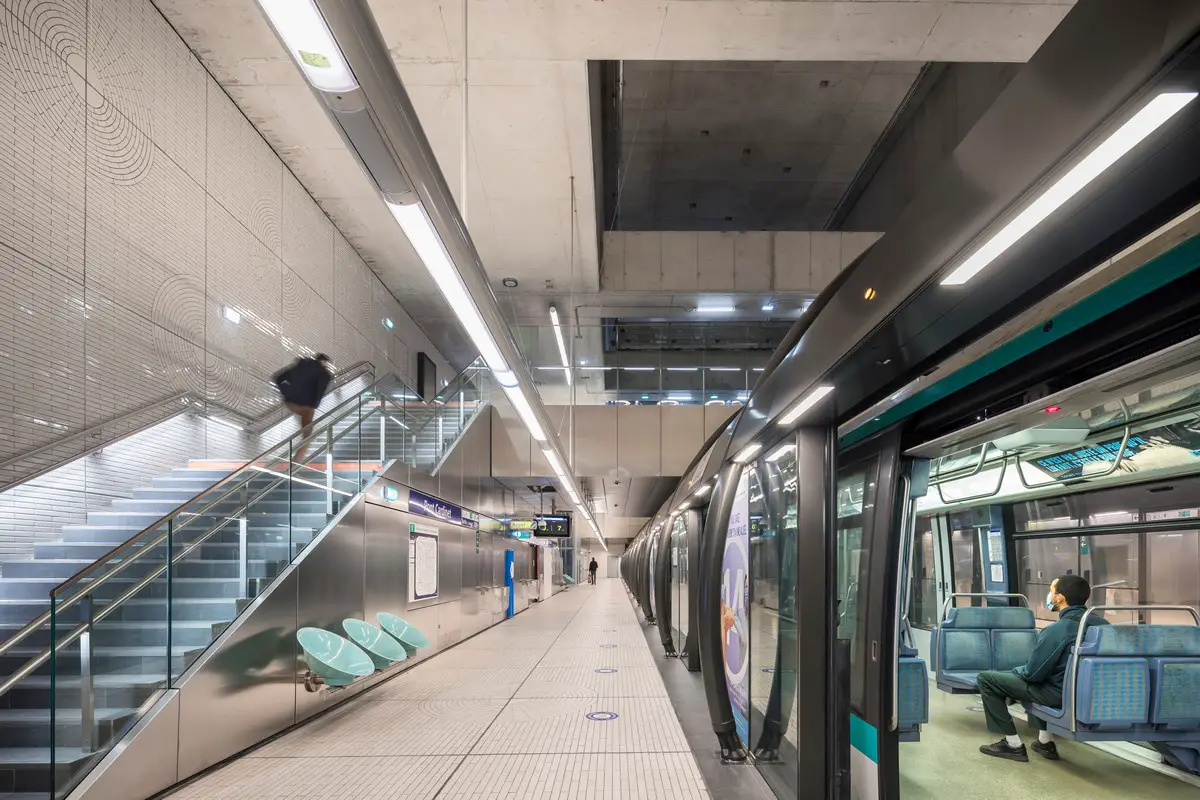

It serves some 96,000 additional inhabitants in the districts of Clichy-Batignolles and the inner suburban towns of Clichy and Saint-Ouen-sur-Seine. The Porte de Clichy station, emblematic of the extension, is located at the base of the new Paris judicial tribunals and serves as the connecting point with metro line 13 and the suburban line of the RER C.
The project developed in the midst of urban density. The presence of other ongoing projects, on the edges and above, required co-conception and joint activity with these construction projects.

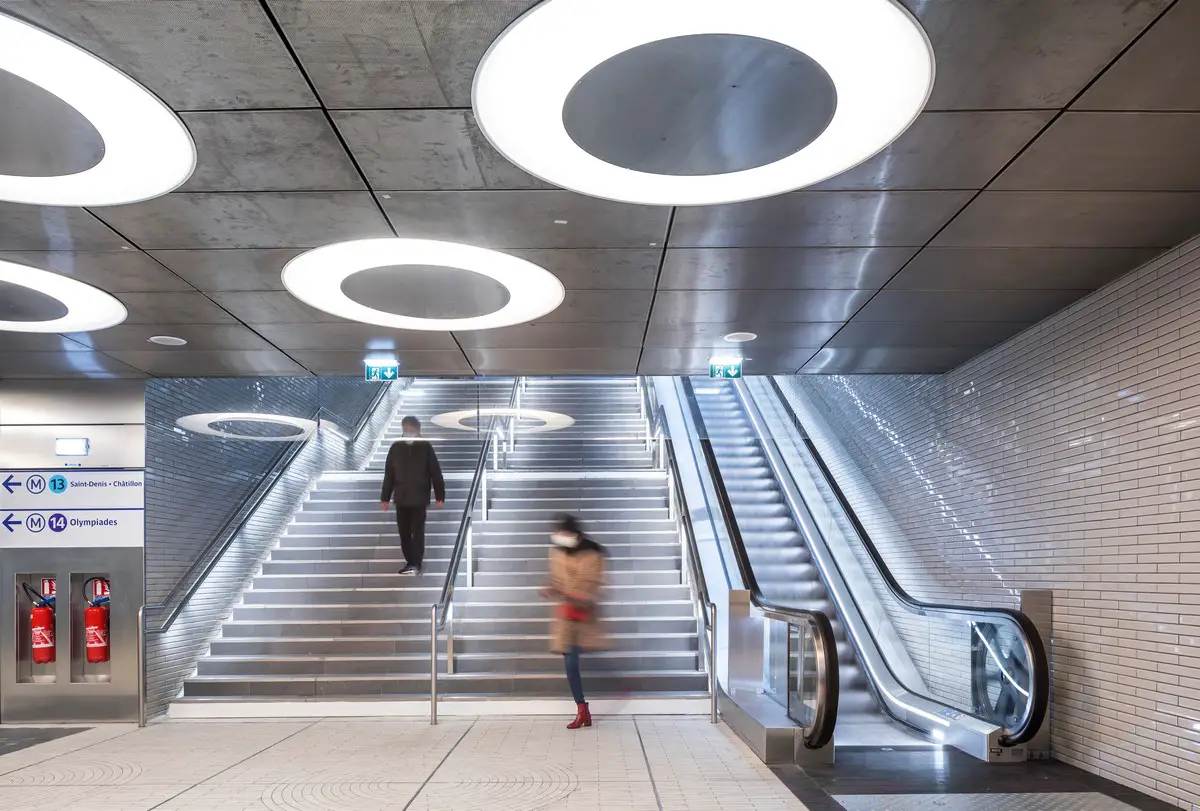

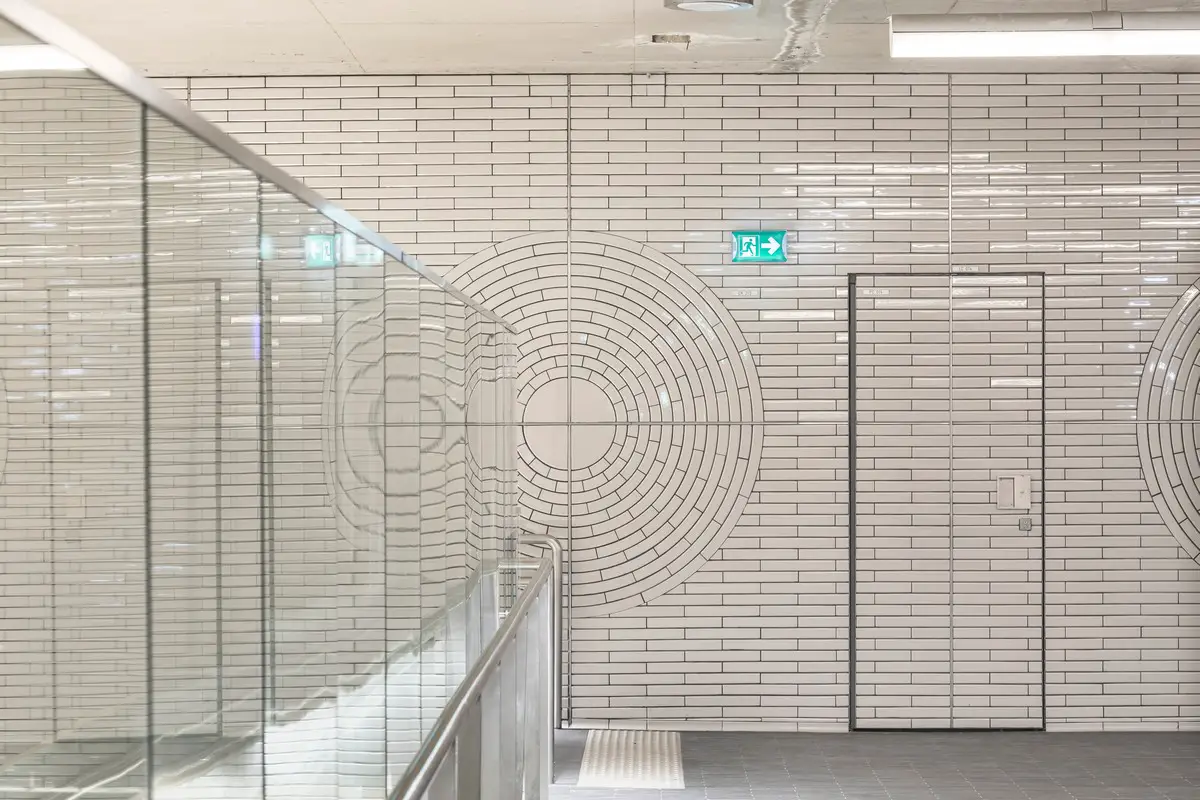

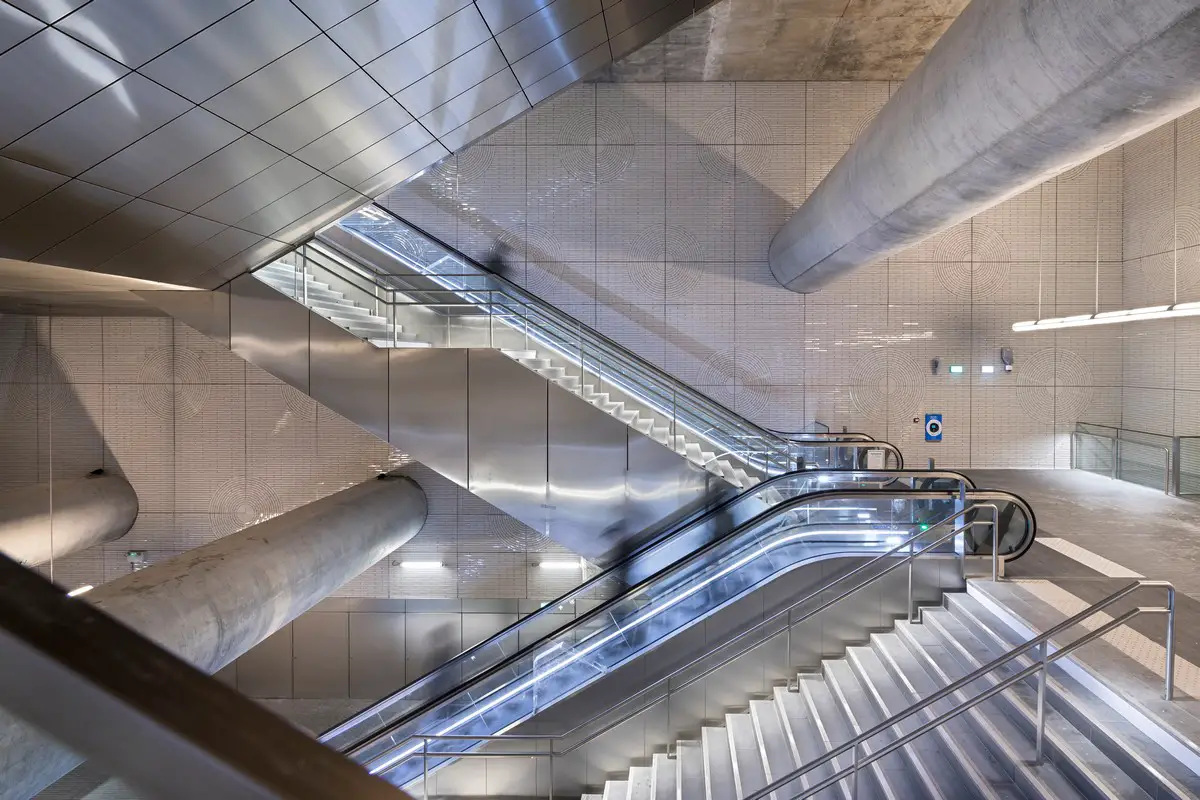

The great depth needed for the platforms required they be very thickly molded (1.5 m) over more than 30 m in height. Supplying the materials to this low depth was difficult, in particular with regard to the escalators. The installation of certain elements, such as laying the tile on the walls, required putting up cathedral-style scaffolding.

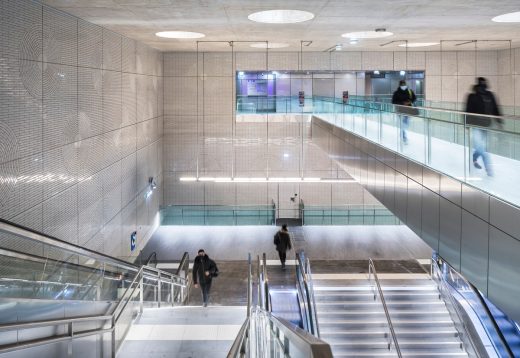

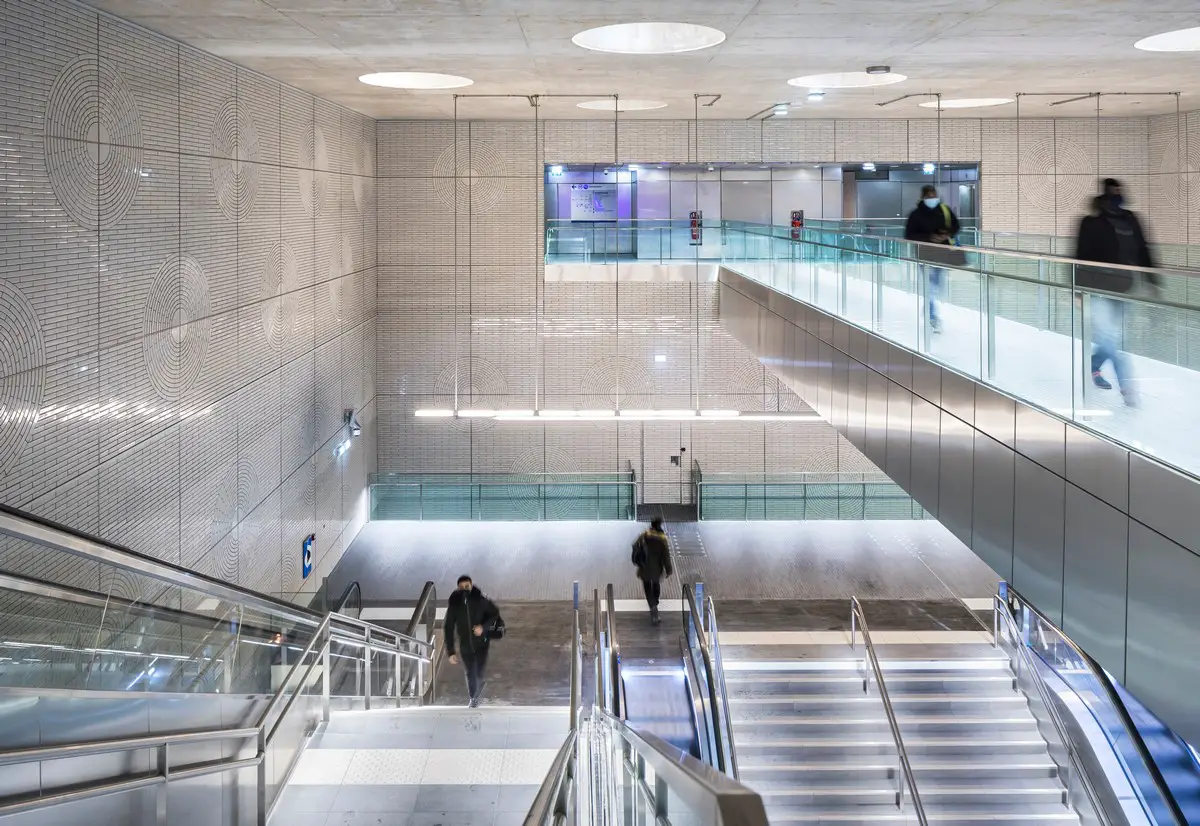

The structural principle relies on vertically molded walls, stabilized by horizontal stays and slabs. The walls were poured first, after which the interior earth was dug out to create a volume 30 meters in height, 130 meters long and 22 meters wide.

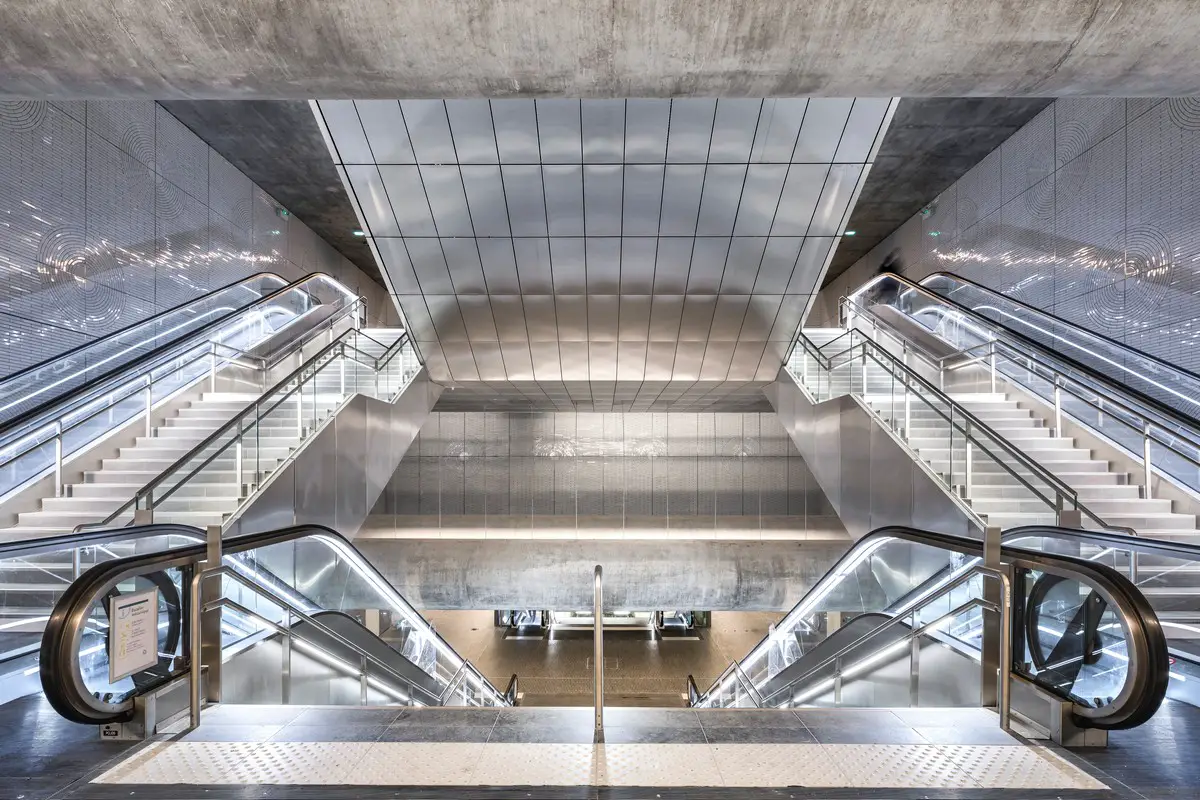

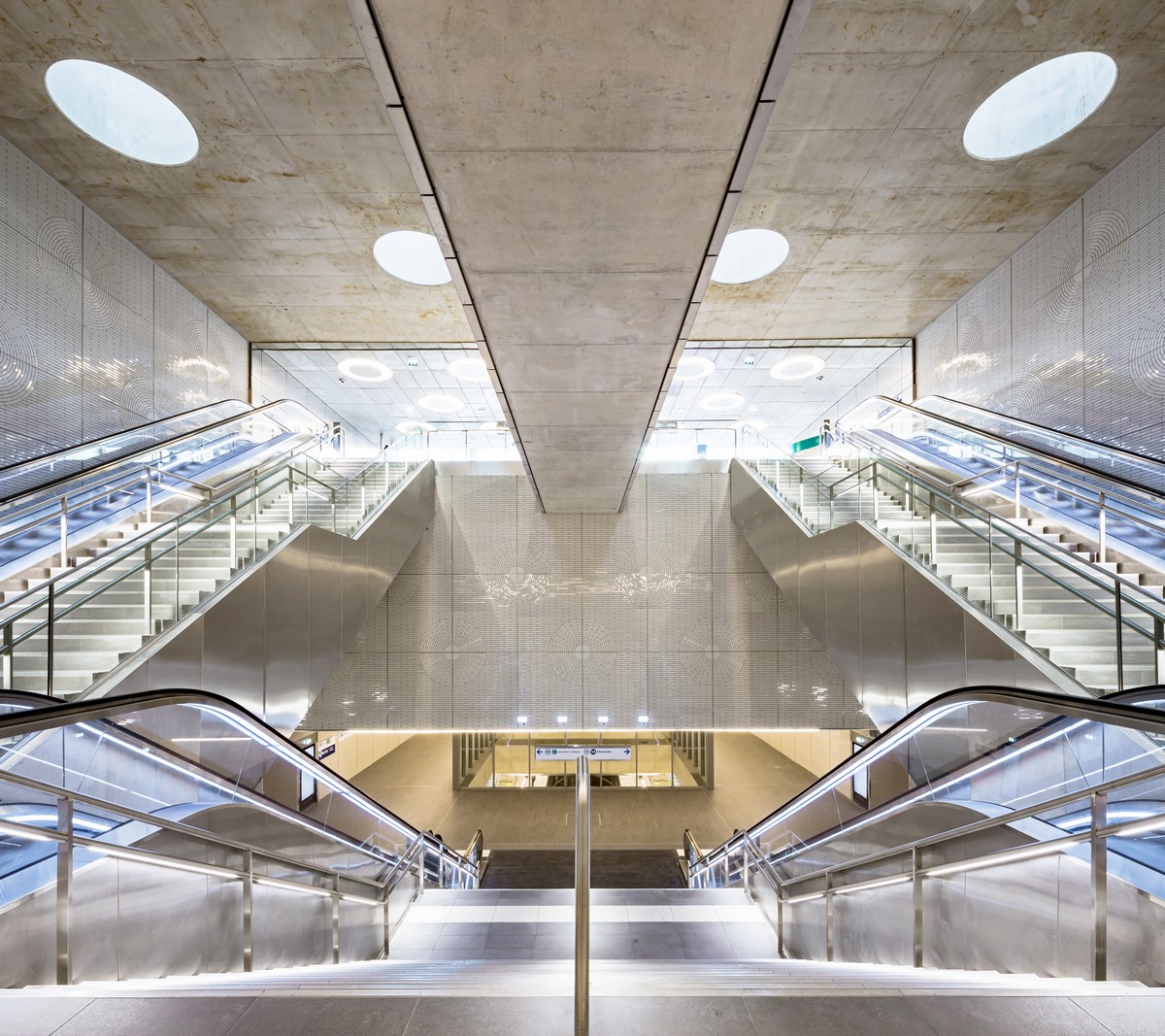

The great depth, the main constraint the project faced, structured the site with regard to the positioning of the stairwells. Relatively bare, the great main spaces were organized and designed based on rational principles of simplicity and robustness.
Porte de Clichy Station Paris – Building Information
Extension of Paris metro line 14, toward the Saint-Ouen town hall
Paris district 17 and Saint-Ouen
Client: RATP
User: RATP
Architects: AZC (leading architect) + Architram (associate architect)
Engneers: SYSTRA, BMF, Aartill, Batiserf
General constructors: Brézillon et Chantiers Modernes Construction
Program: 4 new metro stations for the Paris metro line 14
Calendrar: 2012 – February 2021
Surface: 24,937 m² (total) including 4,300 m² (Pont Cardinet), 9,000 m² (Porte de Clichy), 5,000 m² (Saint-Ouen), 7,000 m² (Mairie de Saint-Ouen)
Cost: €68,500,000 excl. VAT
Environmental approach: geothermal heating, eco-conception and eco-acoustic
Photographer © Sergio Grazia
Metro station building designs
Porte de Clichy Station Paris Métro + RER C images / information received 130122 from Atelier Zündel Cristea architecture office
Atelier Zündel Cristea
Address: 15/17 Rue Vulpian, 75013 Paris, France
Phone: +33 1 55 25 24 94
Location: avenue Denfert-Rochereau, Paris 14, France, western Europe
New Paris Architecture
Contemporary Paris Architecture
Paris Architecture Design – chronological list
Architecture Tours in Paris – Parisian city walks by e-architect
Paris architect office contact details

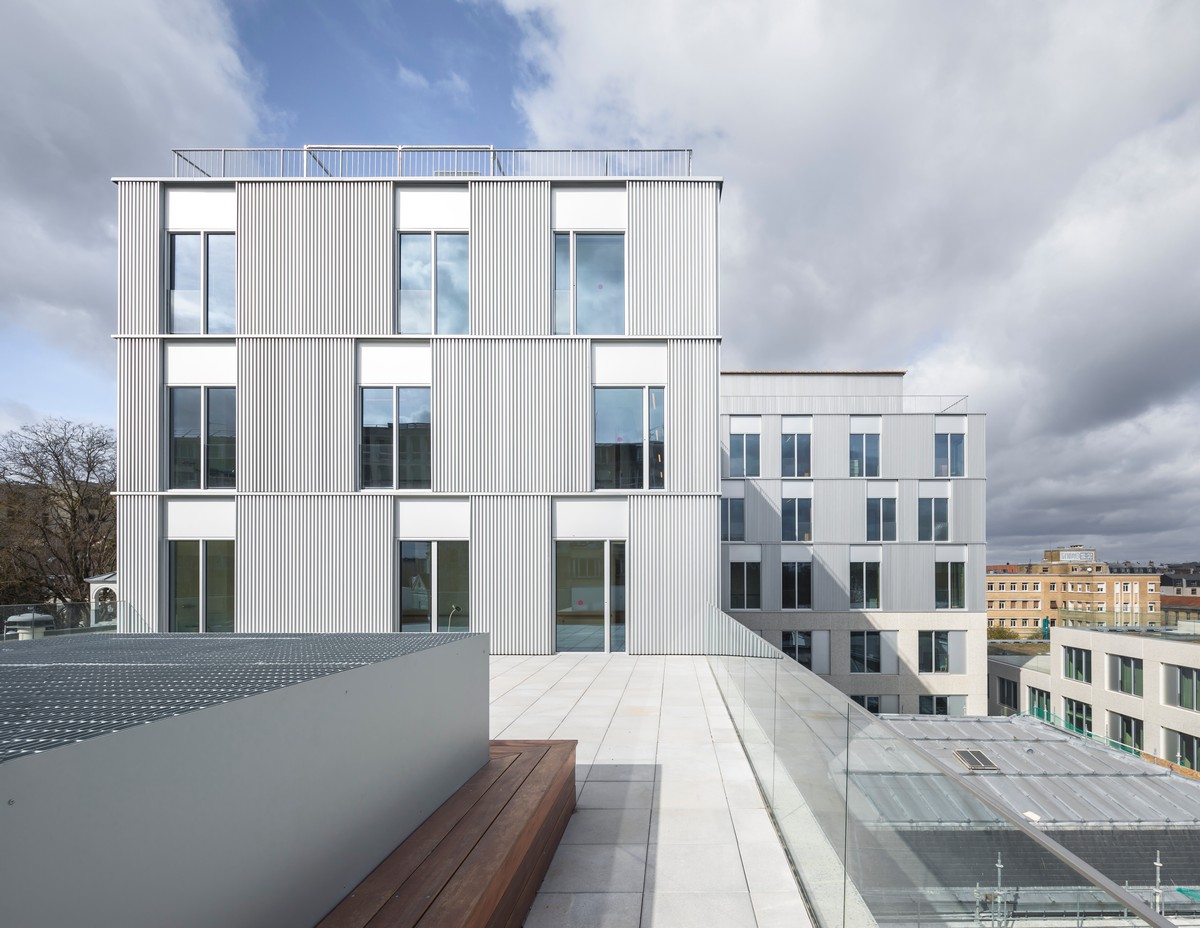

Œuvre des Jeunes Filles Aveugles de Saint-Paul, Denfert Rochereau, Paris, district 14
Design: Atelier Zündel Cristea architecture
photo © Sergio Grazia
Œuvre des Jeunes Filles Aveugles de Saint-Paul

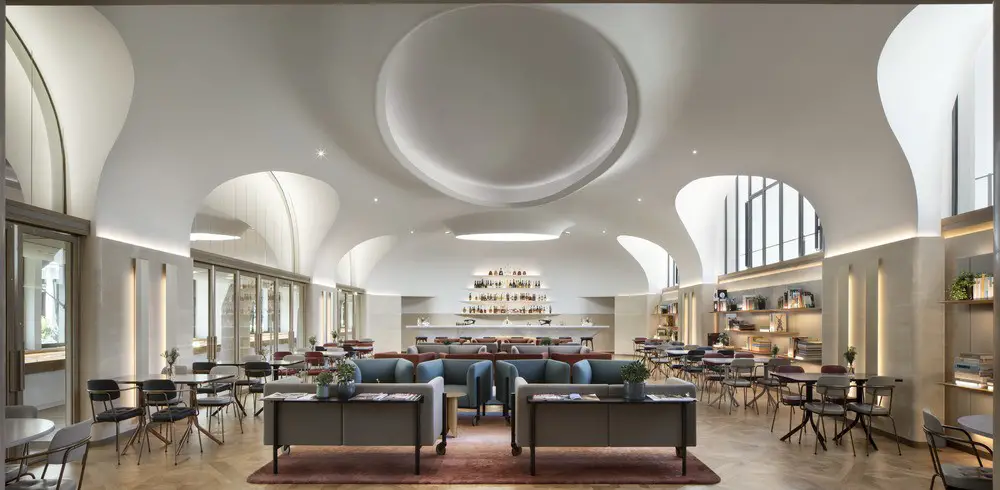

Moët Hennessy, 38 rue de Sèvres, 142 rue du Bac, Paris 7e
Architecture: Barbarito Bancel Architectes
photo : Alessandra Chemollo
Moët Hennessy New Workspaces

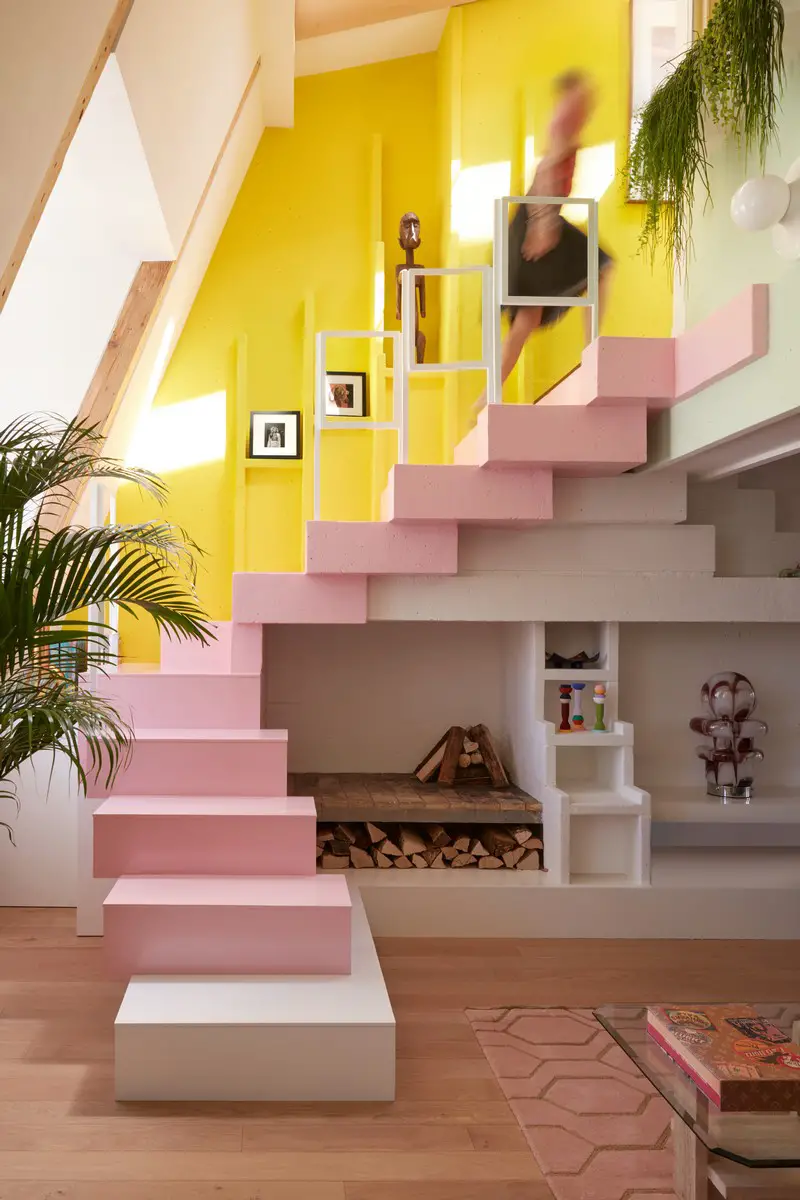

Sun Dial Apartment
