Torre Cube Guadalajara

Mexican Skyscraper Development design by Estudio Carme Pinós, architects

27 Apr 2014 – new larger photos of this building added to this page

Cube Tower

Location: Guadalajara, Mexico
2005
Design: Estudio Carme Pinós

Torre Cube Guadalajara
building photograph : Lourdes Grobet

In this building Estudio Carme Pinós architects wanted to create well-ventilated offices with natural light and taking advantage of the mild weather of Guadalajara, the design even makes air-conditioning unnecessary.

The client wished for a singular structure because the site is located in a dense office district.

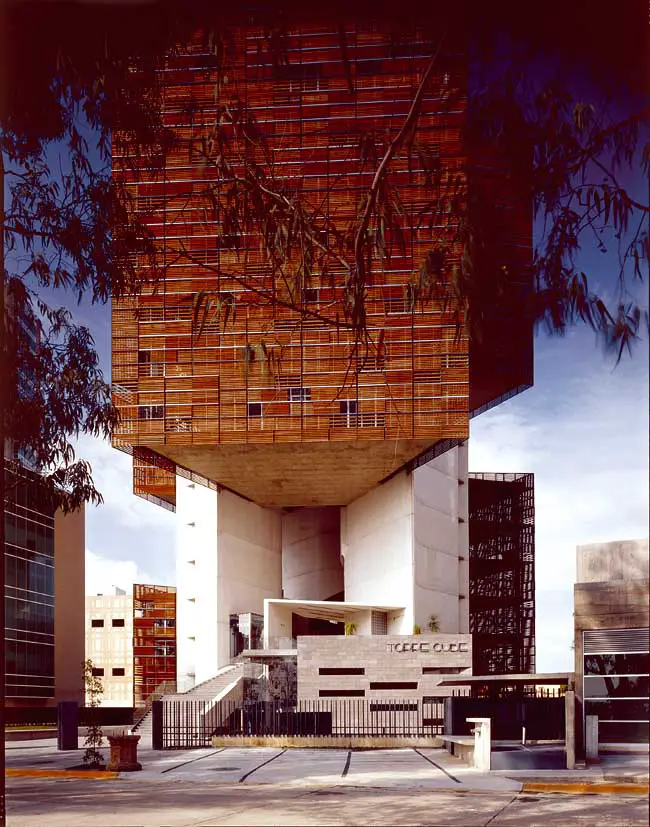

Torre Cube Guadalajara
building photograph : Lourdes Grobet

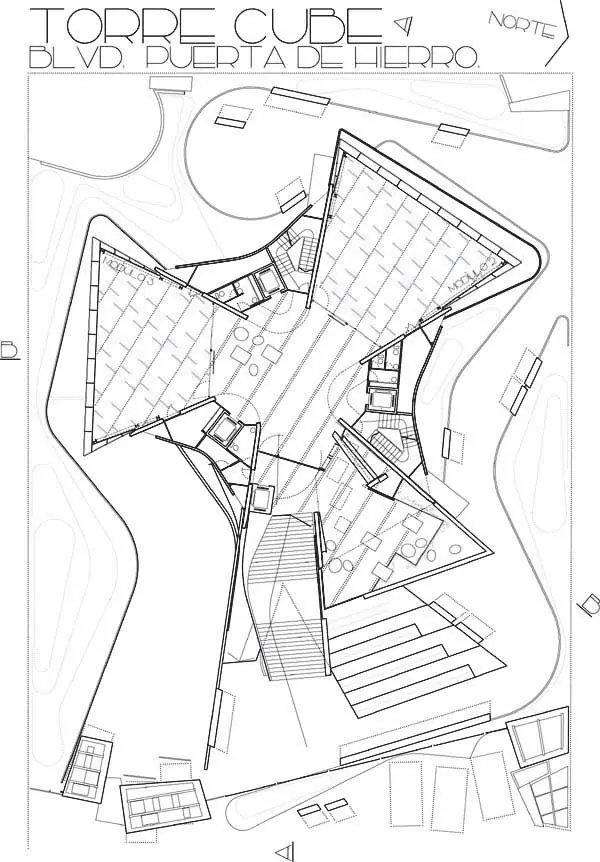

The area was fixed at 4,800 square meters, but the height of the building was left to us. Estudio Carme Pinós decided on a high-rise building developed from three central concrete cores, which contain all the facilities and vertical circulation.

These cores work as columns and are the only structural support for the building. Great cantilevered beams of various dimensions support post-stressed, column-free slabs. Thus both, office modules and the parking area, are free from obstacles.

Torre Cube Guadalajara
building photograph : Lourdes Grobet

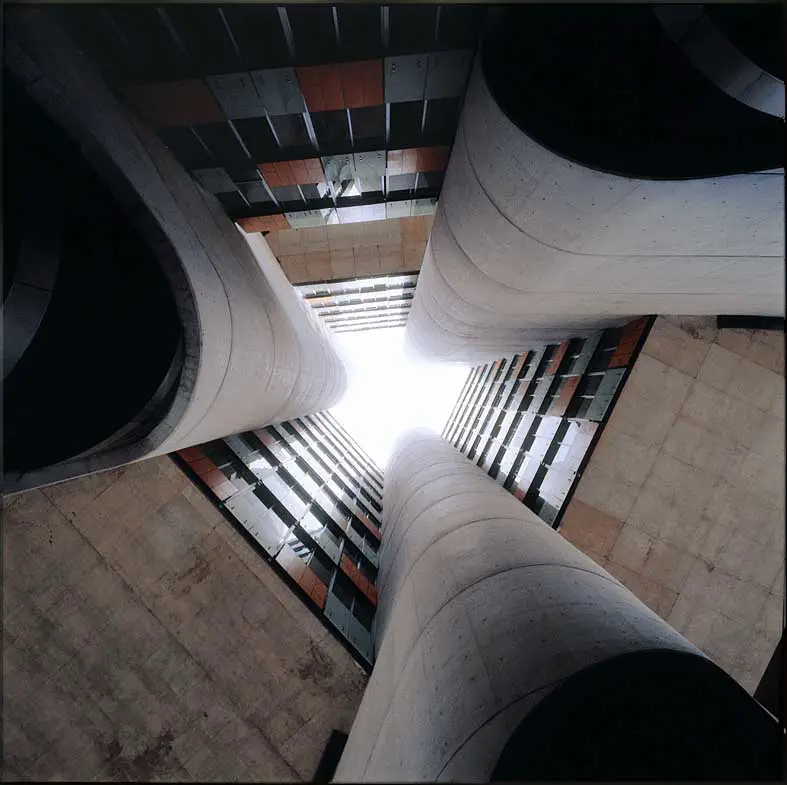

The center of the building – the area between the three cores – is an open space illuminated laterally by eliminating three floors of the office modules on each side. These large gaps become “windows” for the central space and allow the free circulation of air.

Guadalajara Tower Guadalajara Skyscraper

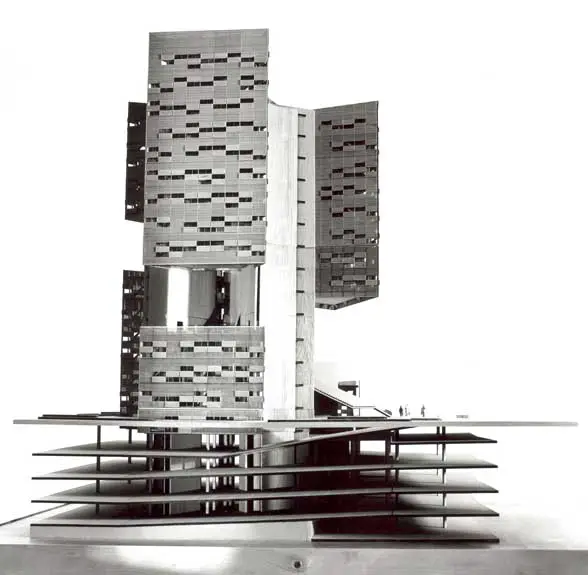

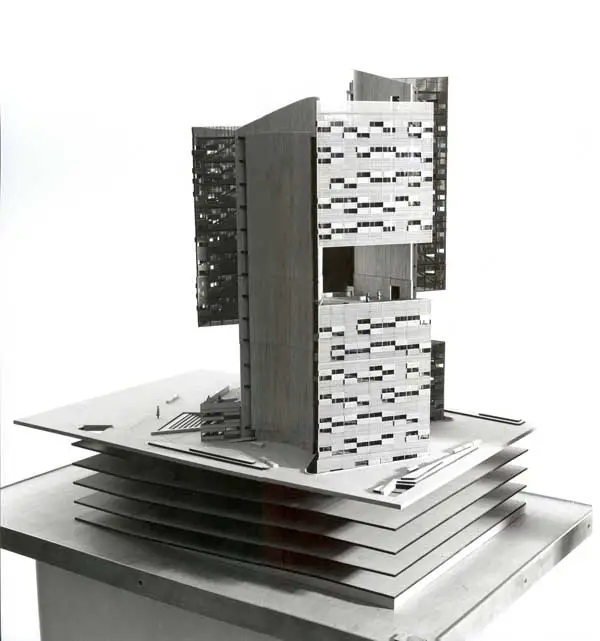

Model photographs by Hugo Martinez

Externally, a skin of lattices with sliding panels becomes a sort of screen.

Cube Tower Guadalajara Cube Tower Cube Tower Mexico Guadalajara Tower

Cube Tower Guadalajara – Building Information

Project’s name: Torre Cube, Puerta de Hierro

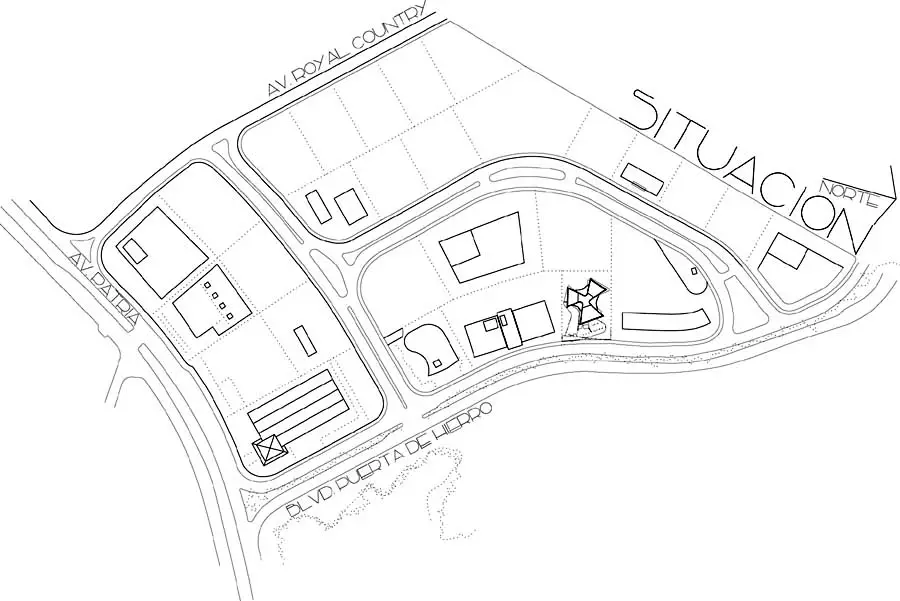

Location: Av. Puerta de Hierro s/n, Guadalajara, México

Client: Cube Internacional

Dates:
Basic Design Project: 2002
Detail Design Project: 2003
Start of Construction: 2003
End of Construction: 2005

Area:
Building: 7.000 m2
Parking: 10.000 m2

Budget:
Final Cost: 10.000.000 $

Collaborators:
Main Architect: Carme Pinós Desplat
Collaborator architects: Juan Antonio Andreu, Samuel Arriola, Frederic Jordan, Cesar Vergés, Agustín Pérez Torres, Holger Hennefarth, Caroline Lambrech

Structure: Luis Bozzo
Quantity Surveyor: Anteus
Construction Company: Anteus

Photographs: Duccio Malagamba, Lourdes Grobet, Estudio Carme Pinós

Cube Tower Guadalajara imgaes / information from Estudio Carme Pinós, 15 Jun 2005
