The Cube, Sha Tin Bio-Informatics Centre Development, Hong Kong Architecture
The Cube Hong Kong Building
Asian Bio-Informatics Centre – design by TheeAe LTD.
5 Sep 2013
Cube Bio-Informatics Building
Design: TheeAe Ltd
Location: Sha Tin, Hong Kong
image from architect

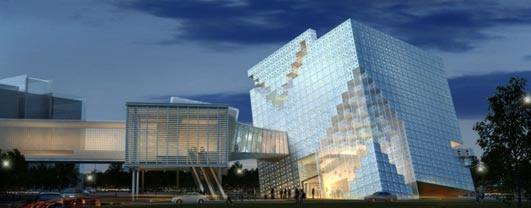

The Cube Bio-Informatics Centre Hong Kong
As per design requirements of the Phase 3D design ideas competition which are to create an innovative iconic architecture, generate ingenious and sustainable low carbon design, and design the building which unifies the Park’s development in harmony with other buildings in the Park, a big challenge is to reveal the gateway of Hong Kong Science Park. The Park is the place where the science and its technology has been studied and developed in Hong Kong.
The Ideal symbolism of the Park is required to have its new introduction among other building design forms. For this creation of the new icon, our initiation to design is crossed over to the idea of math, geometry, or even comprehensive symbols to create a physical mass. Then, our design idea has been narrowed down into a form that will mingle those symbols as well as the design requirements. So, we introduce the ‘CUBE’, as the new icon.
image from architect

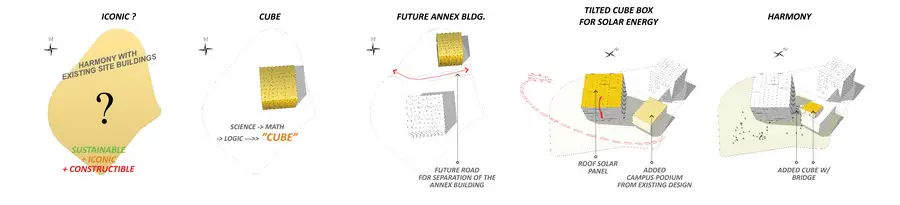

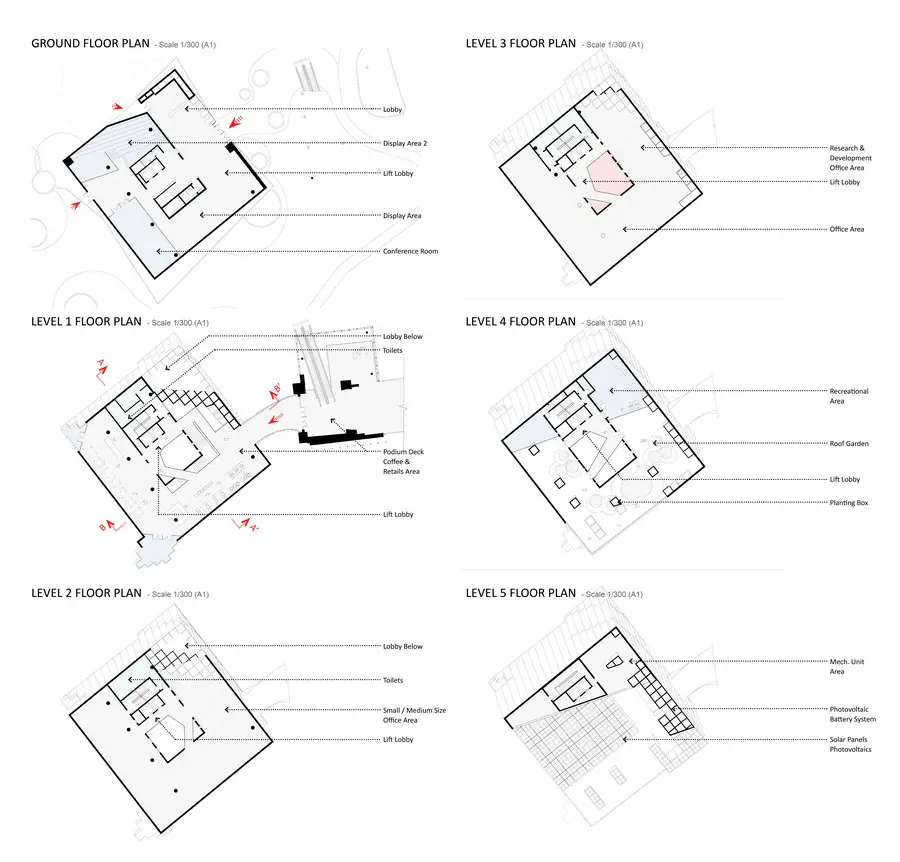

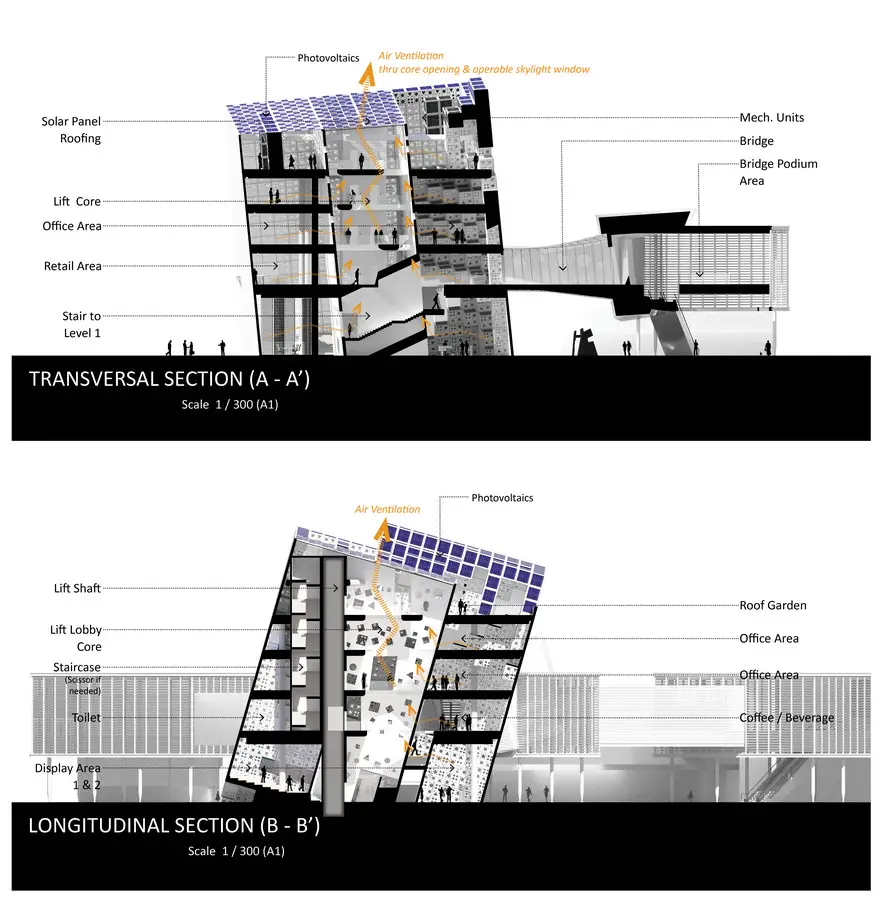

The “Cube” has been evolved in design process. It is transformed from its own form to another. In order to follow one of the required design elements, the form is oriented toward sun angles to maximize the absorption of the solar energy. The Sun will be utilized to generate electric power through the installed photovoltaic panels on tilted roof area. So, the entire electric consumption of the building will be covered through this system except retail and coffee area at level 1. The energy will be gathered to the battery installed at level 4 and level 5, and it will be closely connected to the Photovoltaic Panels installed on the same levels.

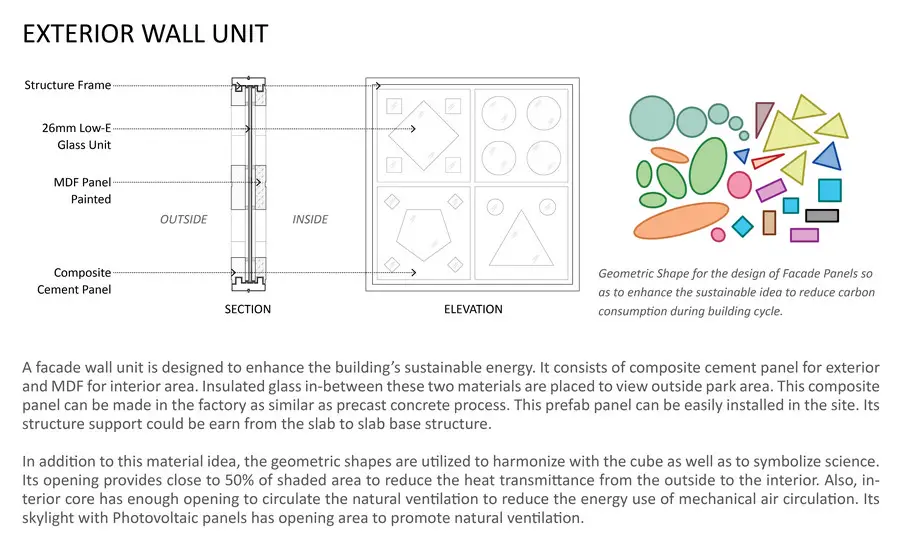

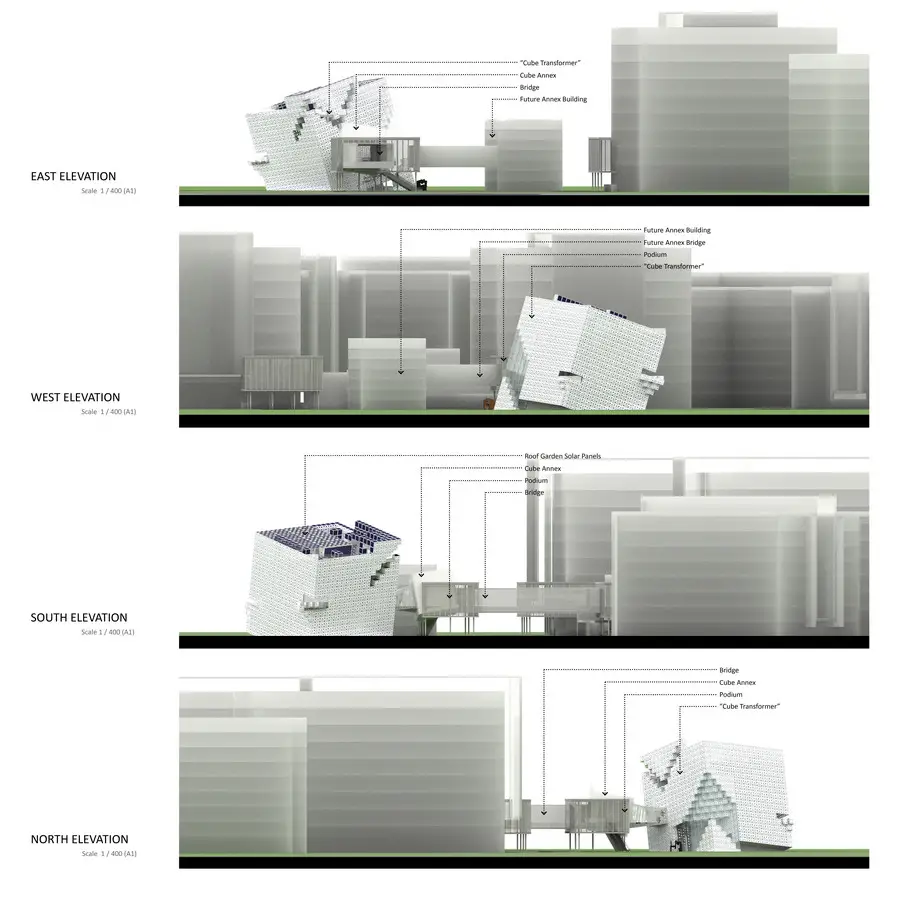

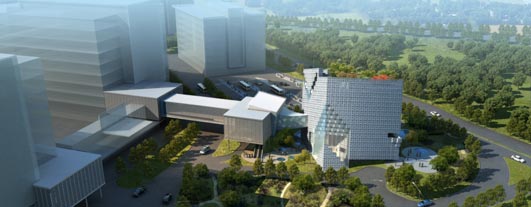

In addition, inclined facade walls represent sustainable ideas of the material uses. It uses dual layered composite panels. The wall unit is combined with light weight precast composite panel at exterior, MDF panels at interior, and low-E dual glass in-between. It will limit the sun lights during day time and minimize heat transmittance to the interior space. Furthermore, exterior walls are transformed by its functional requirement for the use of rooms providing balconies and glass openings, and air ventilation openings at building core. Thus, the “Cube” is connected to another cube (Cube Annex). This is a transitional form to link the bridge podium (existing building design form) to the main ‘Cube’. This linkage not only amplifies the dynamic form of the Cube, but maintains the existing building design in harmony with the new icon as well.
image from architect
We believe not in a dramatic way but practical that the simple form of the cube will represent the Science Park to be the new icon especially for it transforms into the developed shape to function as mixed-use office tower so as for the ideas of iconic and sustainable building for Hong Kong Science Park.
image from architect
The Cube Bio-Informatics Centre – Building Information

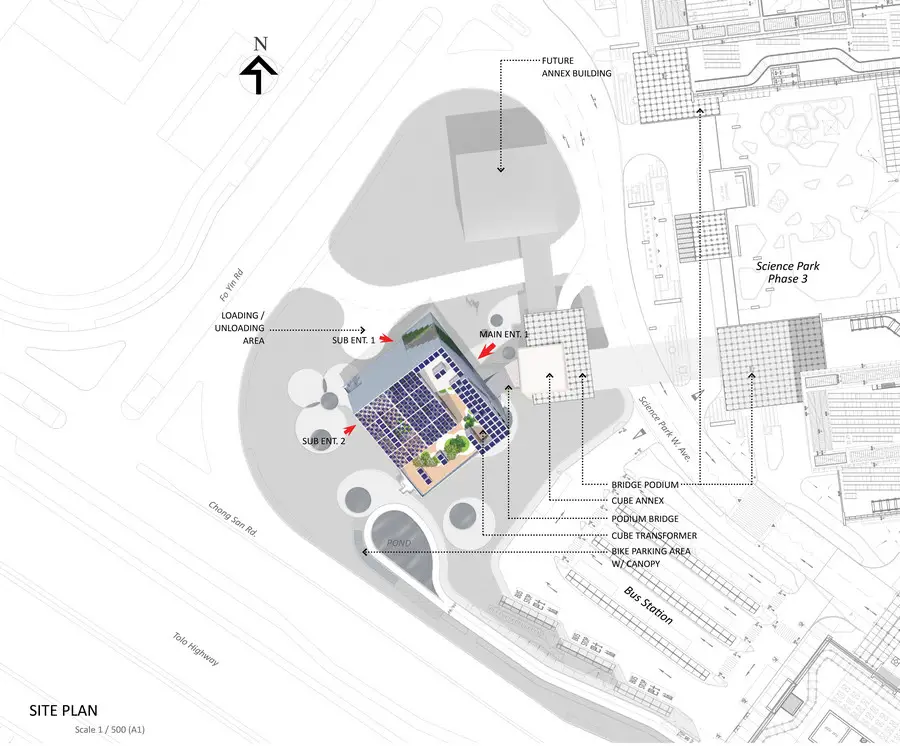

Location: 8/F, Bio-Informatics Centre, No. 2 Science Park West Avenue, Hong Kong Science Park, Shatin, New Territories, Hong Kong
Site Area: 6823 sm
Total floor area 3,140 sm
Floors : 6 floors above-ground
Height : 31m. from Ground Floor Level
images from architect
images from architect
The Cube Bio-Informatics Centre images / information from TheeAe LTD.
Location:8/F, Bio-Informatics Centre, No. 2 Science Park West Avenue, Hong Kong Science Park, Shatin, New Territories, Hong Kong
