Ballyroan Library Dublin

Design: Box Architecture

Rathfarnham, Dublin 14

Design: Box Architecture – Director: Gary Mongey, Dublin, Ireland

Ballyroan Library Dublin, Rathfarnham Building
photograph : Paul Tierney

Ballyroan Library Building facades
photo : Paul Tierney

Ballyroan Library

The library was built in the 1980’s and served the community well over the past decades. However the library became outdated, in need of upgrading and became too small to deal with the collection of resources available to the community for reference or borrowing.

Ballyroan Library Dublin Ballyroan Library Building
photos : Paul Tierney

After much consideration the existing building was demolished and rebuilt, doubling the size of the original library. A complete rebuild was deemed quicker, less disruptive, economic and a better environmentally sustainable solution.

Ballyroan Library Ballyroan Library Building Dublin Ballyroan Library Building Dublin Ballyroan Library Dublin
photos : Paul Tierney

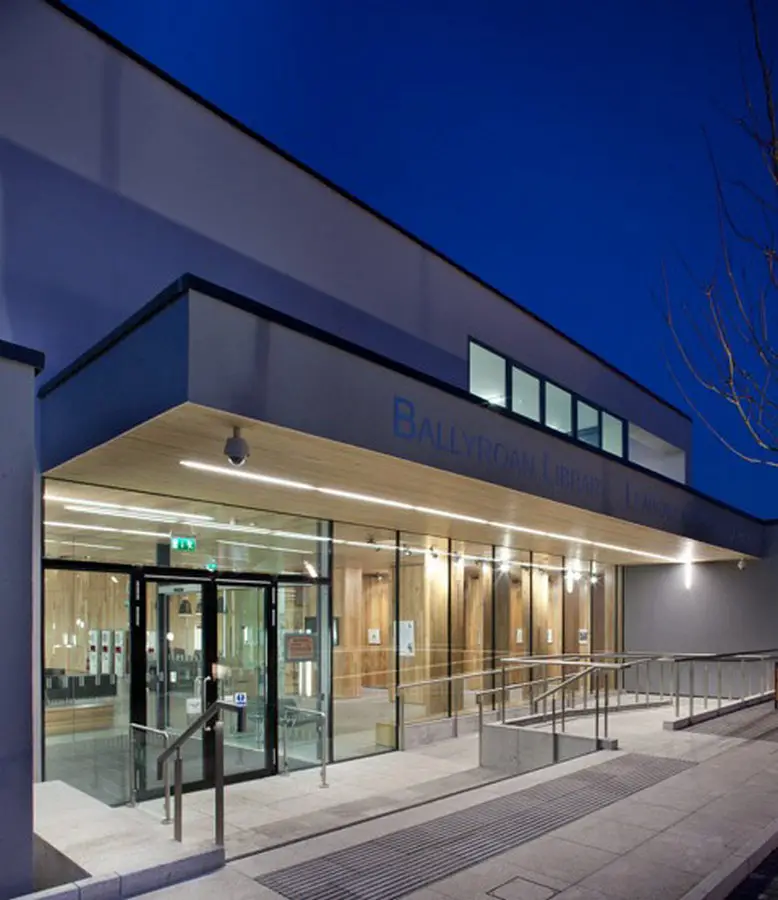

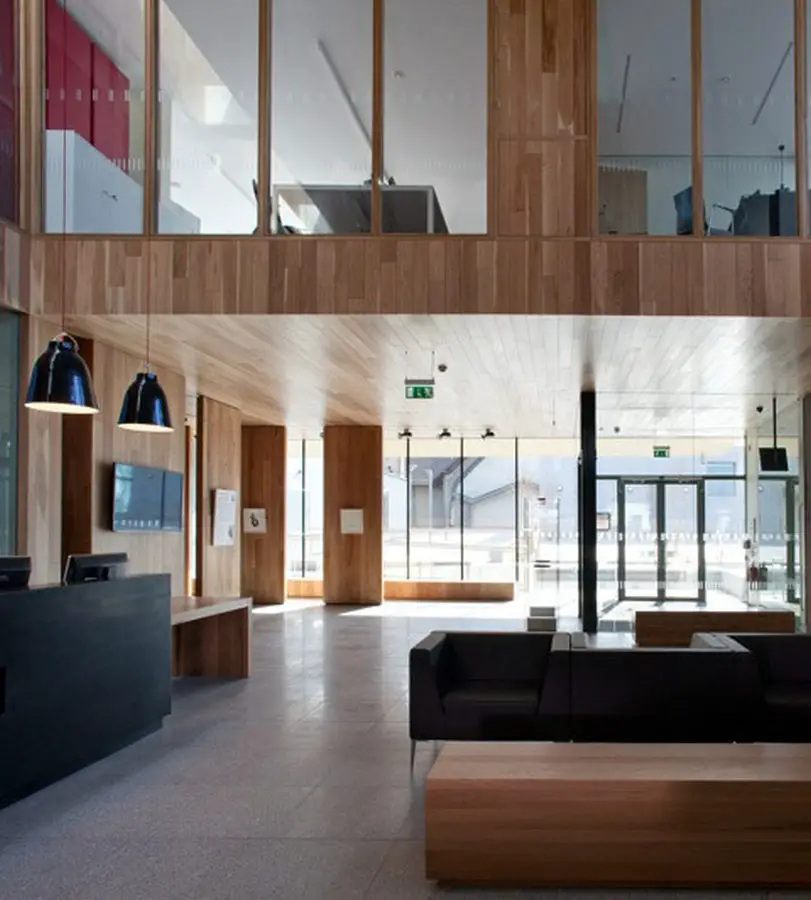

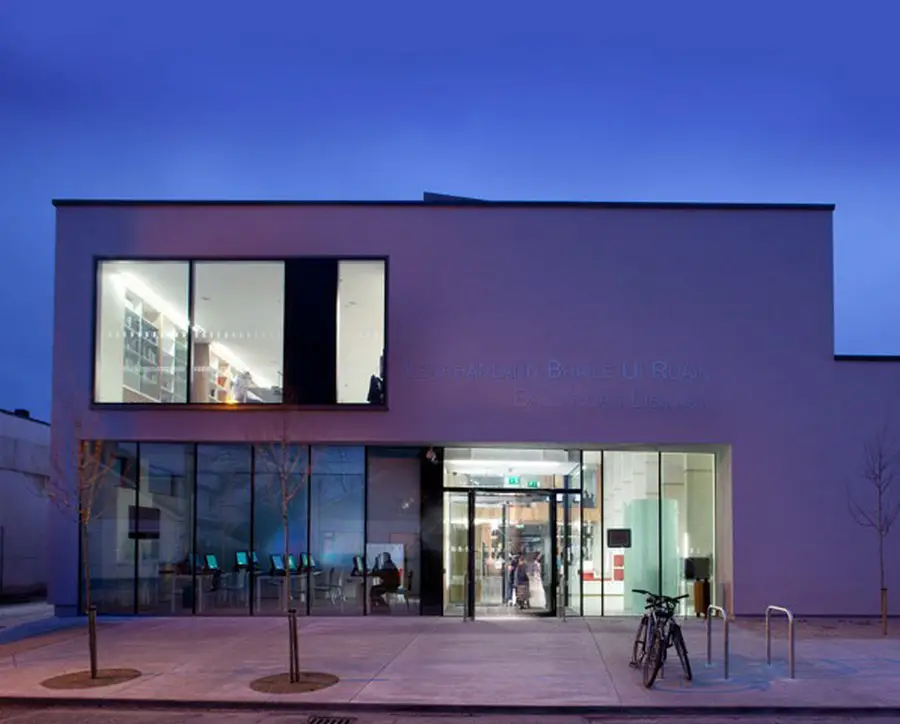

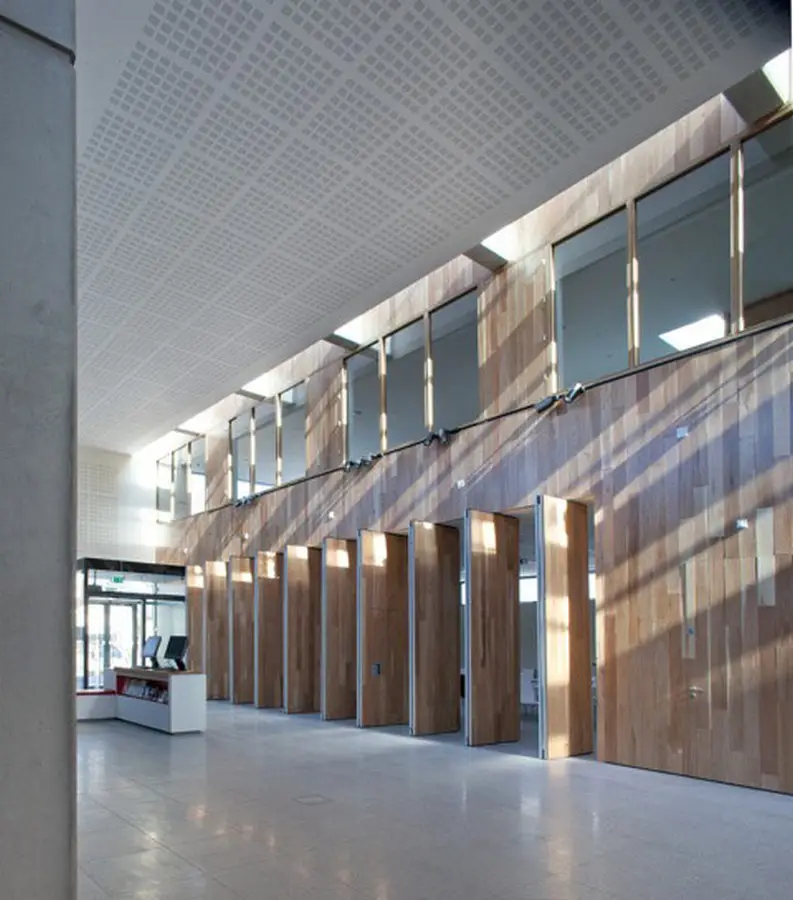

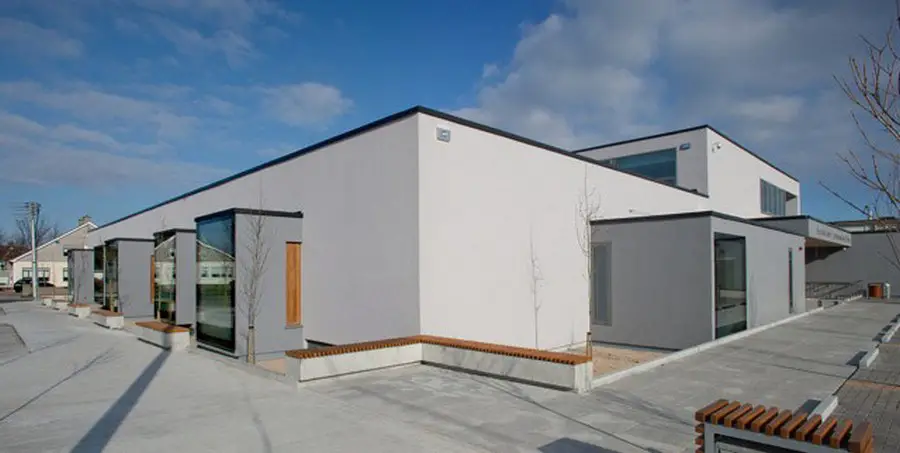

The new building is part single and part two storey, two new entrances are provided, one to the north, accessed from Orchardstown Avenue, and one to the south, accessed via Orchardstown Villas, giving access into a new double height internal street. This new internal street will be used for large exhibitions, book borrowing and returns, readings, gatherings and to allow unrestricted access to information in a range formats, sources.

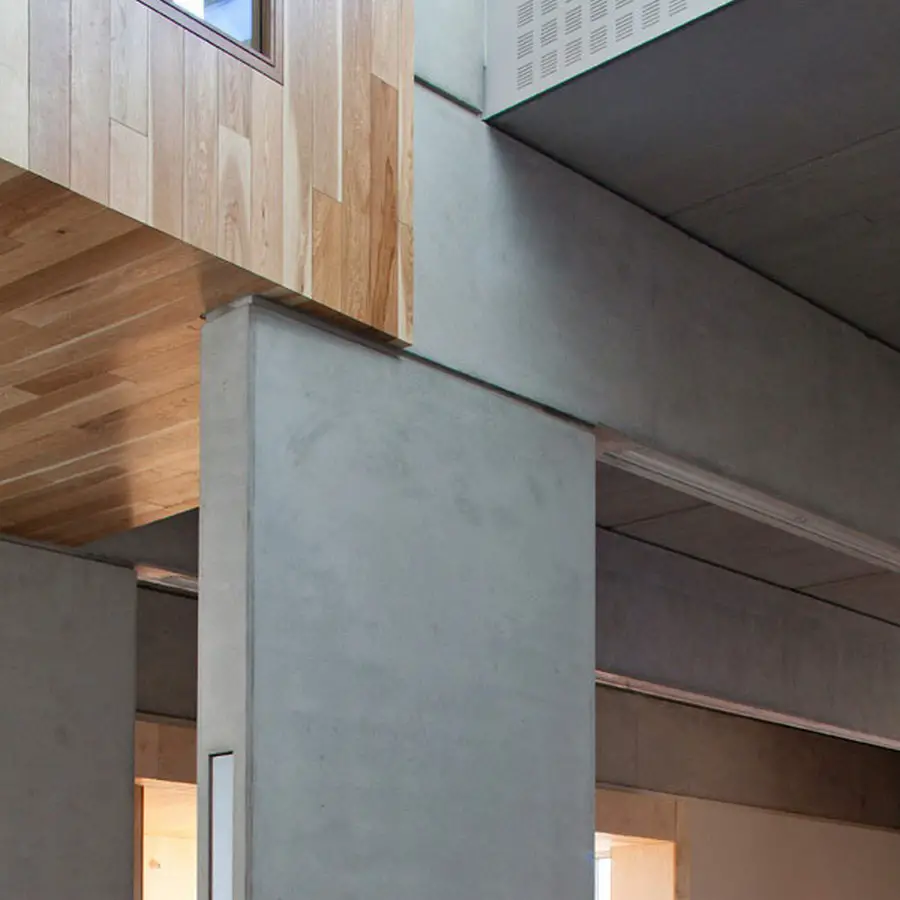

The lower section of the northern two storey element houses the main book and reading facilities for adults and children. A timber lining denotes the public elements and snakes in and out of these areas clearly defining public and private areas. The timber elements, within the exhibition area in particular, can be opened and closed to adapt to the user’s needs.

A staff office is provided at ground floor for ease of access and monitoring. Two seminar rooms can be divided into separate entities of varying sizes allowing for flexibility but also allows for internet access for either singular use or in a class arrangement to maximize computer usage. Toilet facilities and other associated services elements are located in this area.

Ballyroan Library Ballyroan Library Dublin Ballyroan Library Building Ballyroan Library Building Dublin
photos : Paul Tierney

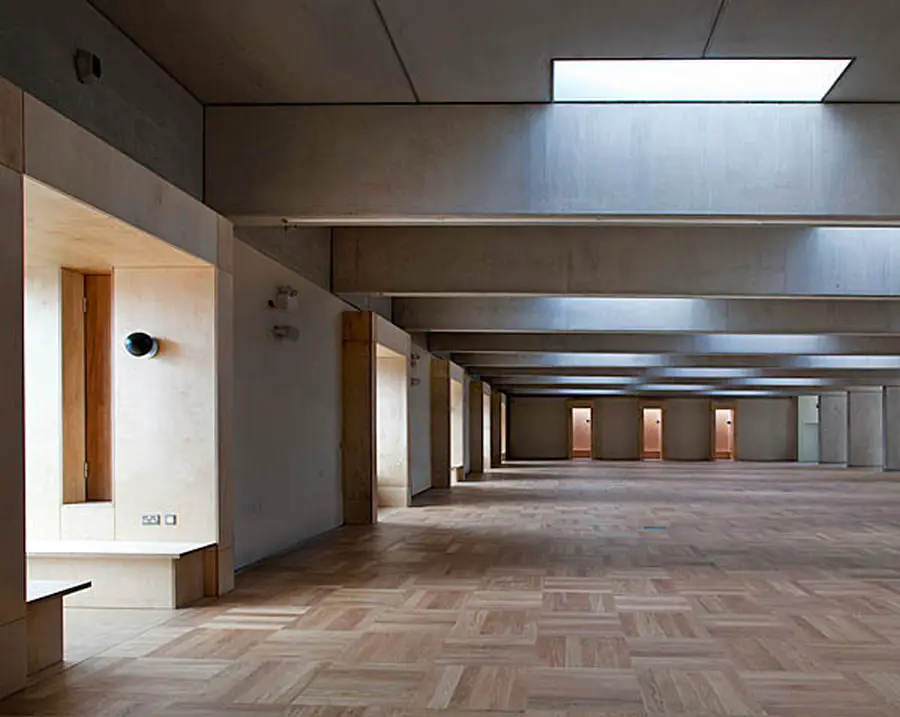

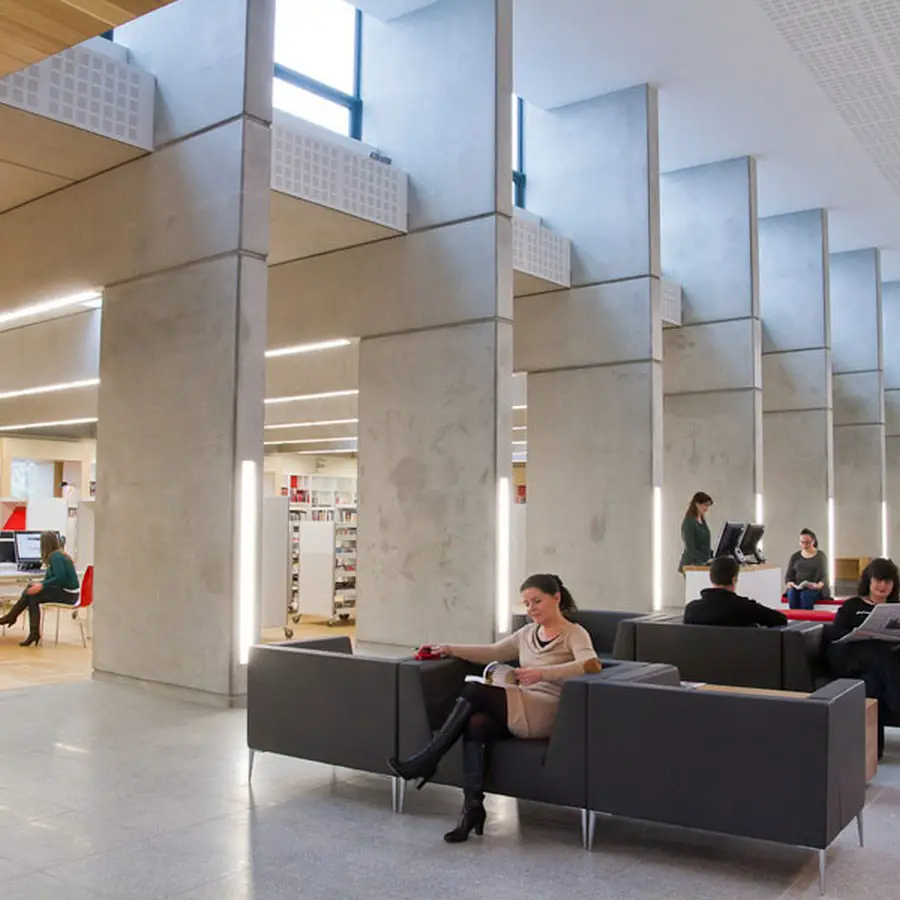

On the other side of the internal street a large reading room is accessed through a series of concrete fins and a change in the ceiling heights denotes a quieter area. The layout of furniture can be arranged to suit the demographics of the users with loose furniture on casters positioned in varying layouts to suit varying needs.

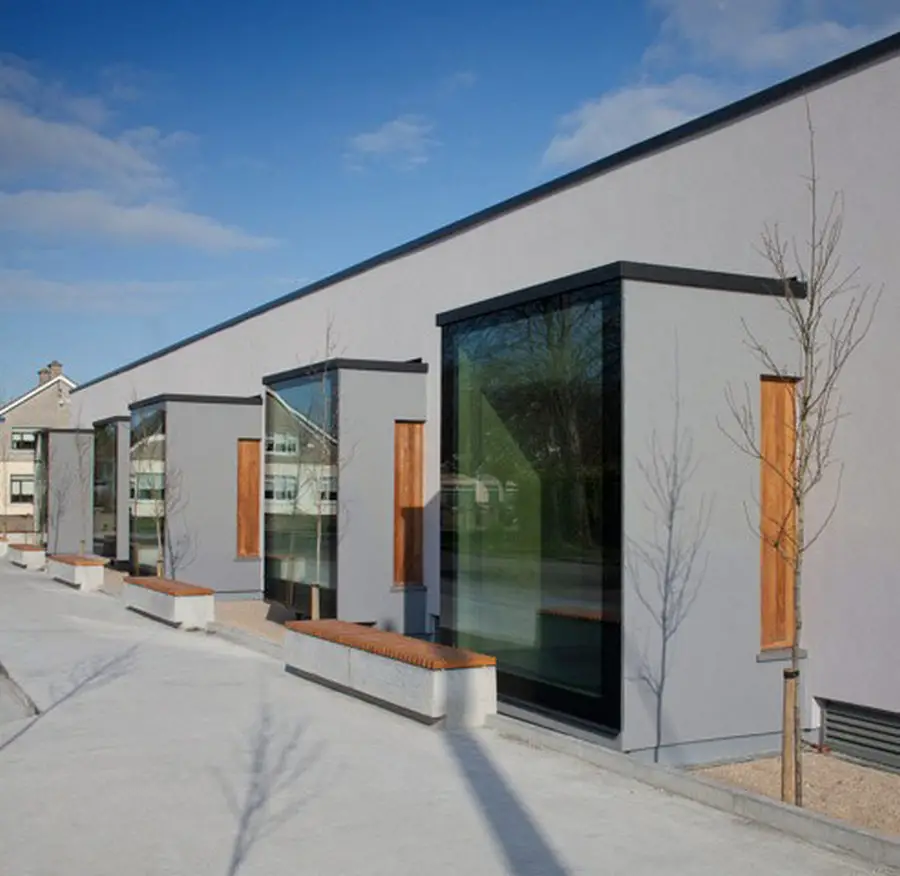

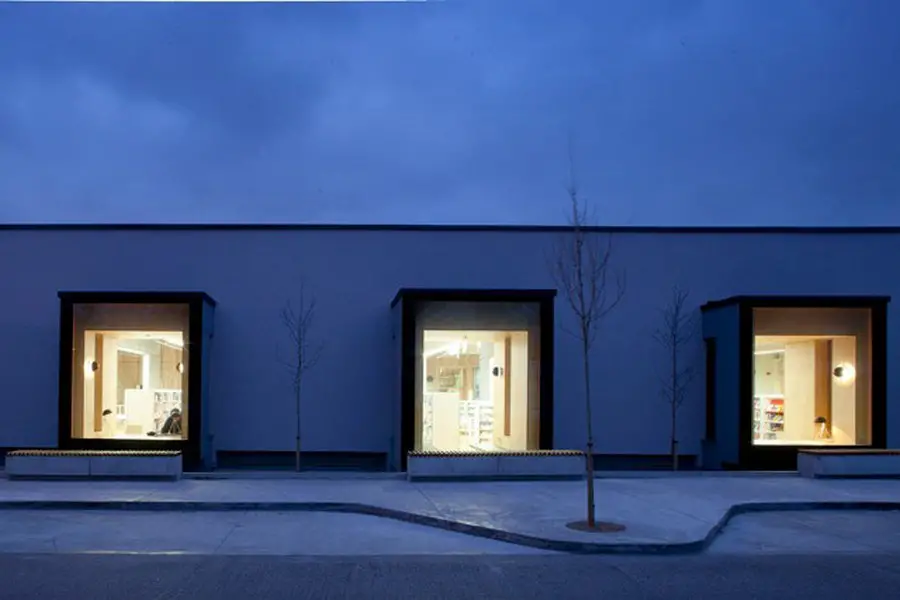

The reading room is open plan, lit from above by means of roof lights with more intimate reading areas off the main space in the form of oriel windows – some singular and others larger overlooking the adjoining context, these can be used as places to study, sit or read. A children’s area is located to the south of the ground floor with children’s furniture, books and computers as well as a storytelling area, this space can be closed off completely if required. The entire building is Wi-Fi enabled and study areas are spread throughout the main reading room.

Ballyroan Library Ballyroan Library Dublin
photos : Paul Tierney

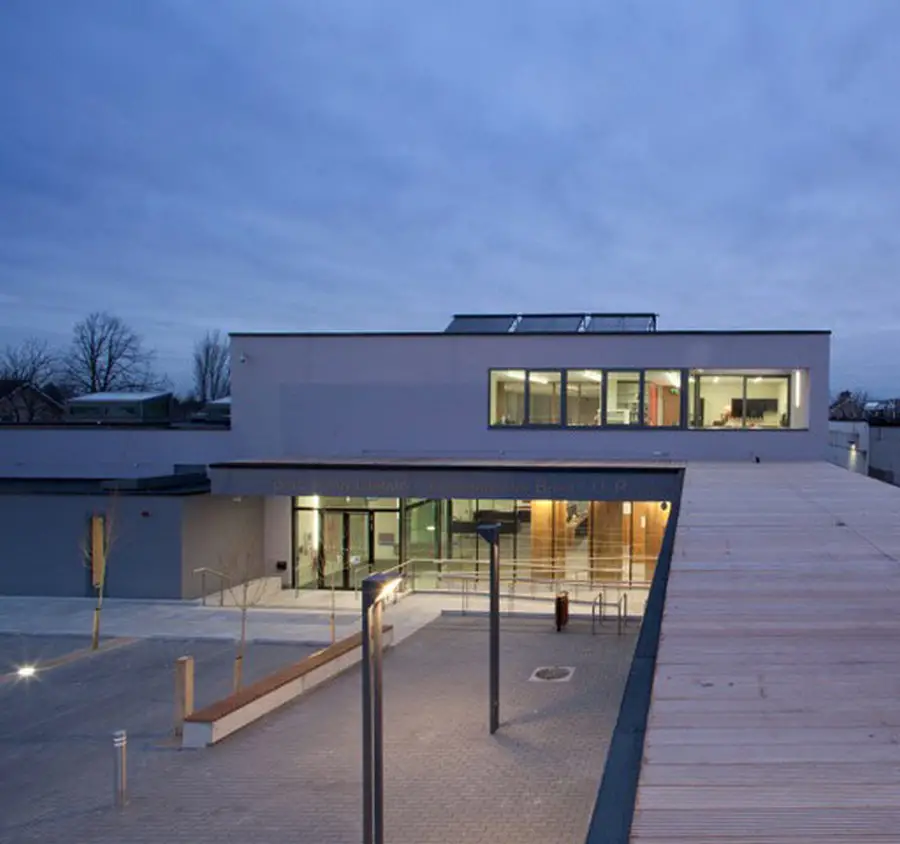

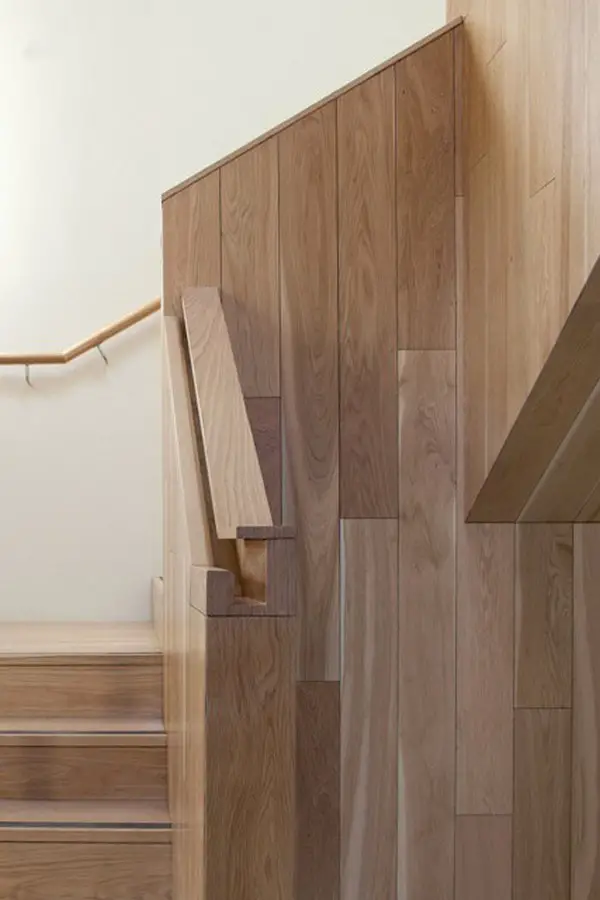

Access to the first floor is by a public staircase or by lift. Upstairs is a ‘Memory Room’ holding heritage and local studies resources, which will serve as a research space for all. The main staff facilities and book storage are located on this level. The car park to the south was remodeled to become a shared surface.

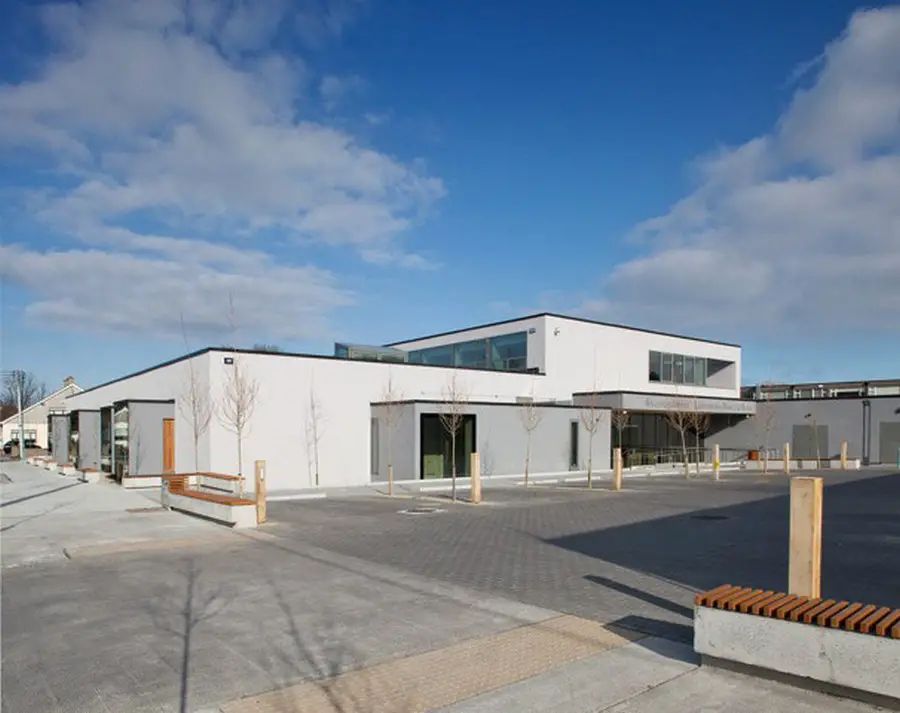

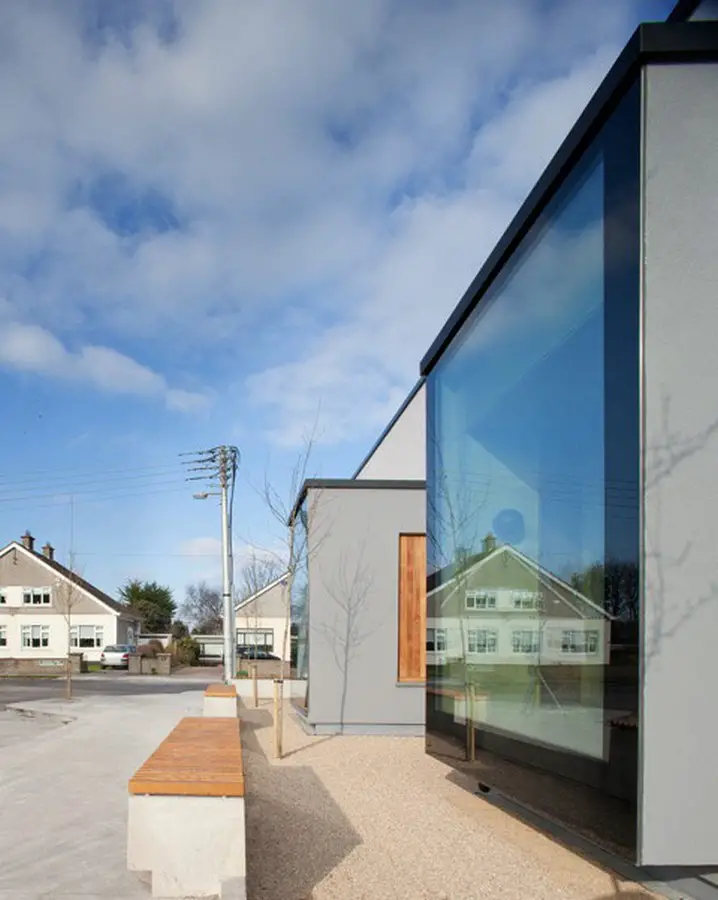

This area with planted trees and benches, allows one to sit and read. The area between the road and the oriel windows is landscaped to provide a buffer zone between the building and road. The new Library is provides a rich spatial experience to users from all parts of the local community, broadening the scope of the library beyond the provision of book lending to that of a community learning and information resource suitable for the 21st century citizen.

Ballyroan Library Rathfarnham
picture : Rob O’Connor rocshot.com

Ballyroan Library Rathfarnham – Building Information

– Client: South County Council
– Location of site: Rathfarham, Dublin 14
– Program: Ballyroan Library
– Project by: Box Architecture Ltd
– Principal designer: Gary Mongey
– Design team: Gary Mongey (Project architect), Ross Millaney [assistant] Terry Murphy & Archdox
– Contractor: MDY Ltd
– Quantity Surveyor: Burton O’Connor
– Structural Engineer: Lohan & Donnelly
– M&E: Ramsay Cox & associates
– Fire consultants: ORS
– Health & Safety: ORS
– DAC: ORS
– Lighting design: Wink Lighting
– Window specialists: BDA – Billings Design associates
– Acoustic: Allegro Acoustics

– Site area: 1,510m2
– Built-up area: 1,450m2
– Cost of construction: €2.6
– Year of completion: 2013
– Text credits: Box Architecture Ltd
– Photo credits: Paul Tierney & Rob O’Connor rocshot.com

Ballyroan Library images / information from Box Architecture

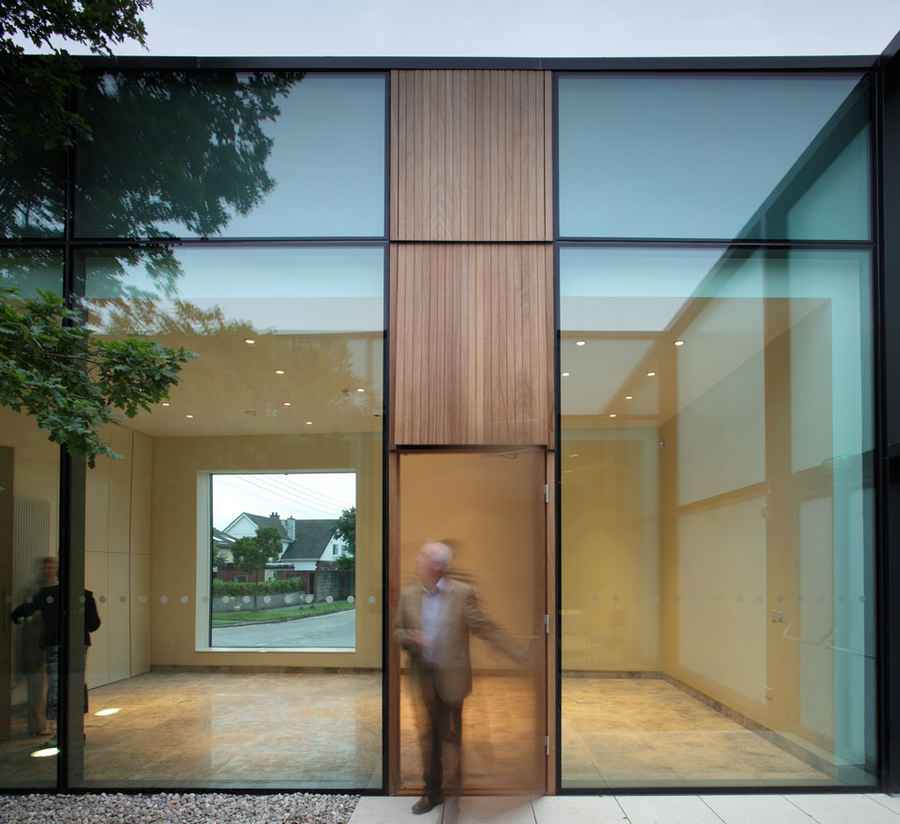

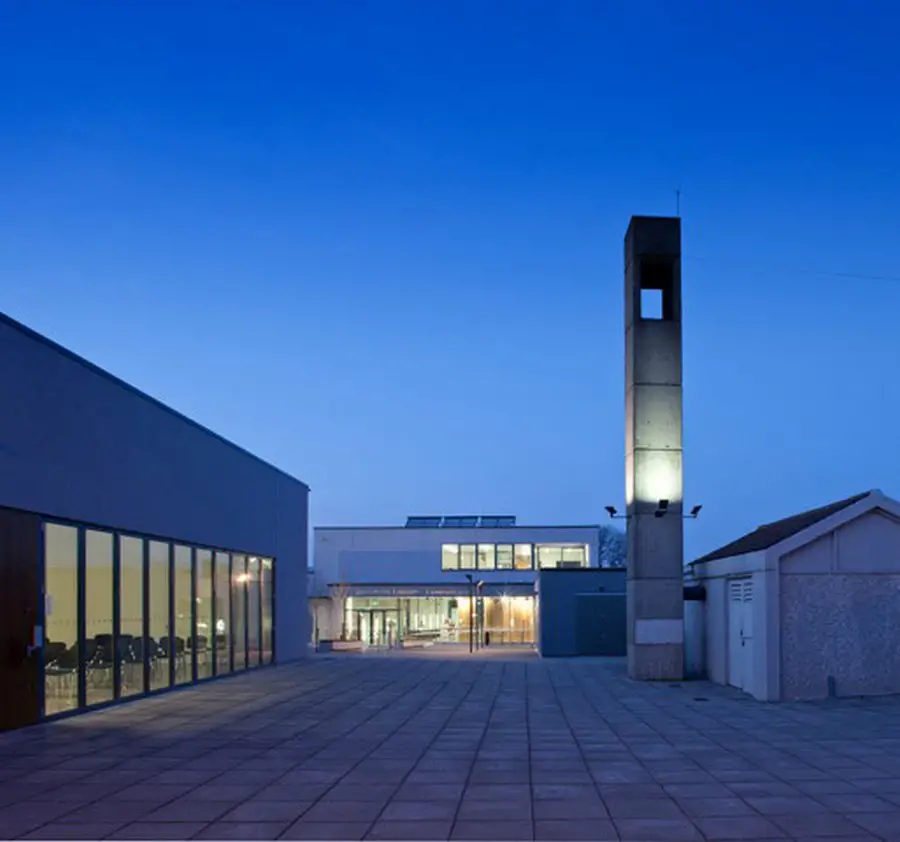

Ballyroan Parish Centre – also by Box Architecture
Ballyroan Library
photograph : Paul Tierney

Location: Rathfarnham, Dublin 14, Ireland, north western Europe
