Lin’an Sports and Culture Center Hangzhou Building, Zhejiang Province Architecture

Lin’an Sports and Culture Center

Contemporary Building China – design by The Architectural Design & Research Institute Of ZheJiang University Co,Ltd

25 May 2018

Lin’an Sports and Culture Center Building

Architects: The Architectural Design & Research Institute Of ZheJiang University Co,Ltd

Location: Crossroad Jiuzhou Street and Jiquan Road, Linan District, Hangzhou City, Northwest Zhejiang Province, China

Lin’an Sports and Culture Center in Hangzhou

Landscape temperament; Balance and integration

Lin'an Sports and Culture Center Hangzhou building

A sports center that belongs to the landscape

Landscape is the name card of Lin’an city. The idea of this project originated from the landscape of Lin’an. Using the freehand brushwork method, it outlines the landscape of the mountains and rivers, which is consistent with the profound cultural heritage of the city of Lin’an.

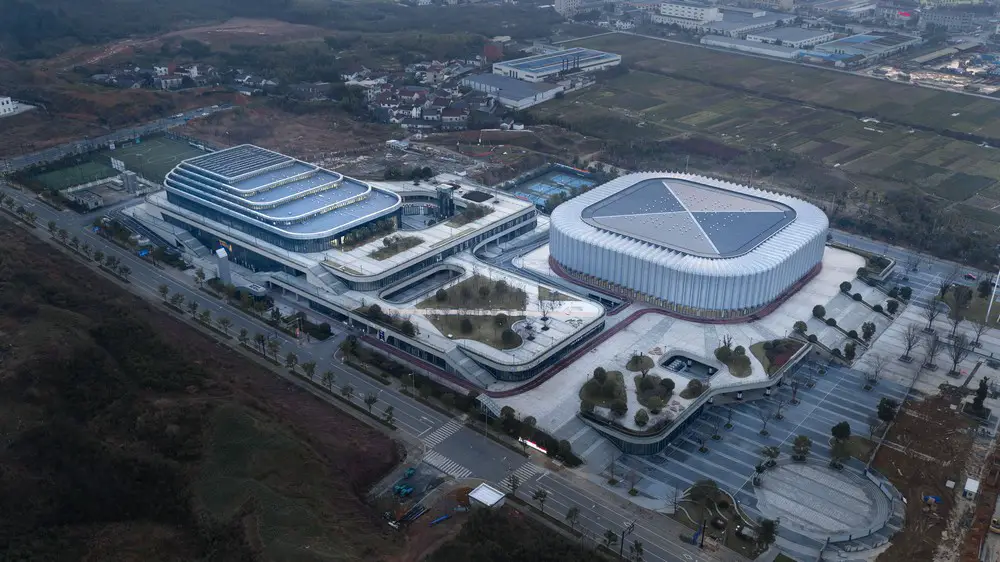

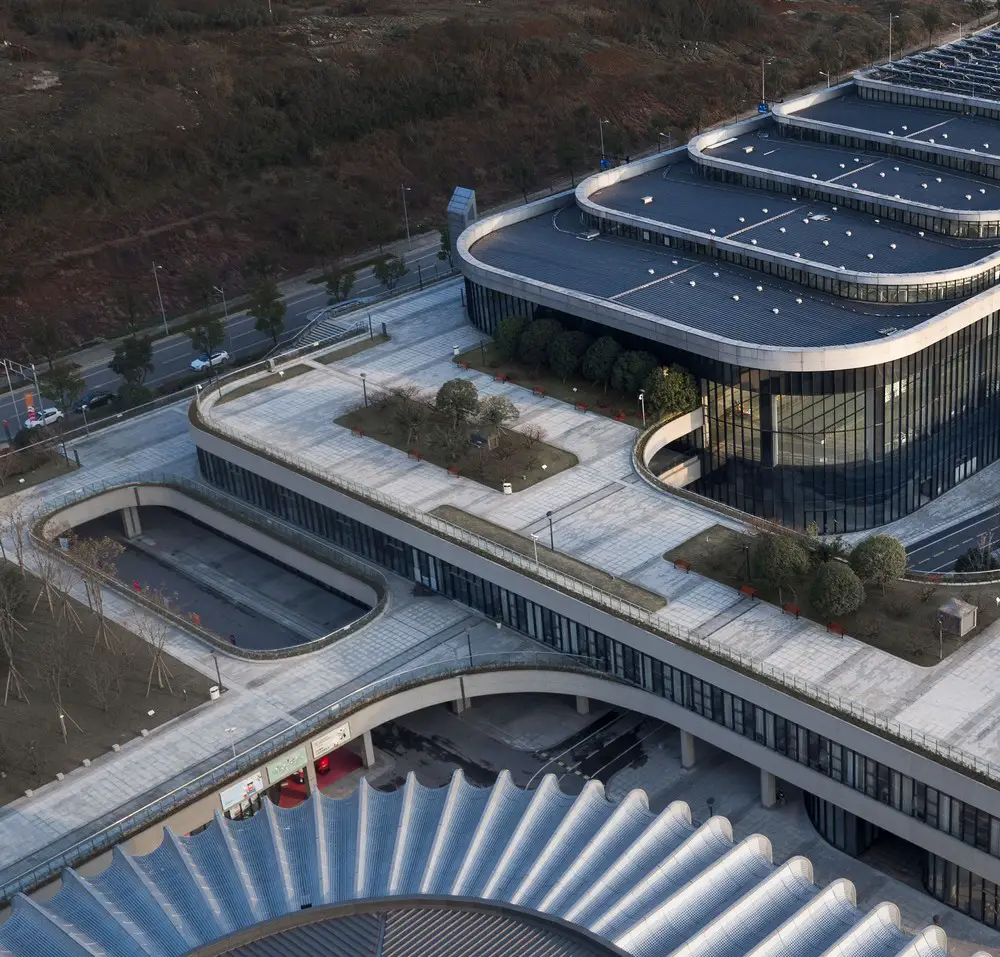

Bird’s eye view from North:
Lin'an Sports and Culture Center in Hangzhou
photo : Huang-Hai

A sports center that belongs to the city

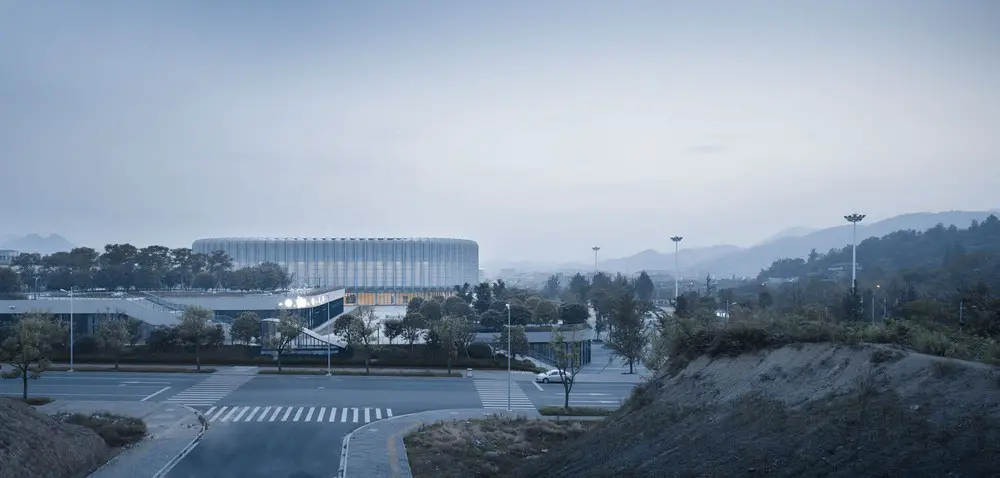

In combination with the geomorphic features of the low hill and gentle slope in the site, the architects have designed the sports center as a unique form with the elevation of the contour lines, responding to the surrounding mountains on the overall urban level, like a green vein, closely linking to the natural mountains in the north and the south.

Lin'an Sports and Culture Center building

By combining the layers with the geomorphology, the architecture can connect with the urban nature and create a number of high level activity platforms, which greatly improves the accessibility and participation of the site.

Lin'an Sports and Culture Center building

A sports center that makes full use of land

The project covers an area of 161 mu (107,333sqm / 1,155,326sqft), and we need to arrange various functions such as gymnasium, training hall, natatorium, outdoor stadium and business support, and the land is scarce.

Lin'an Sports and Culture Center Hangzhou building

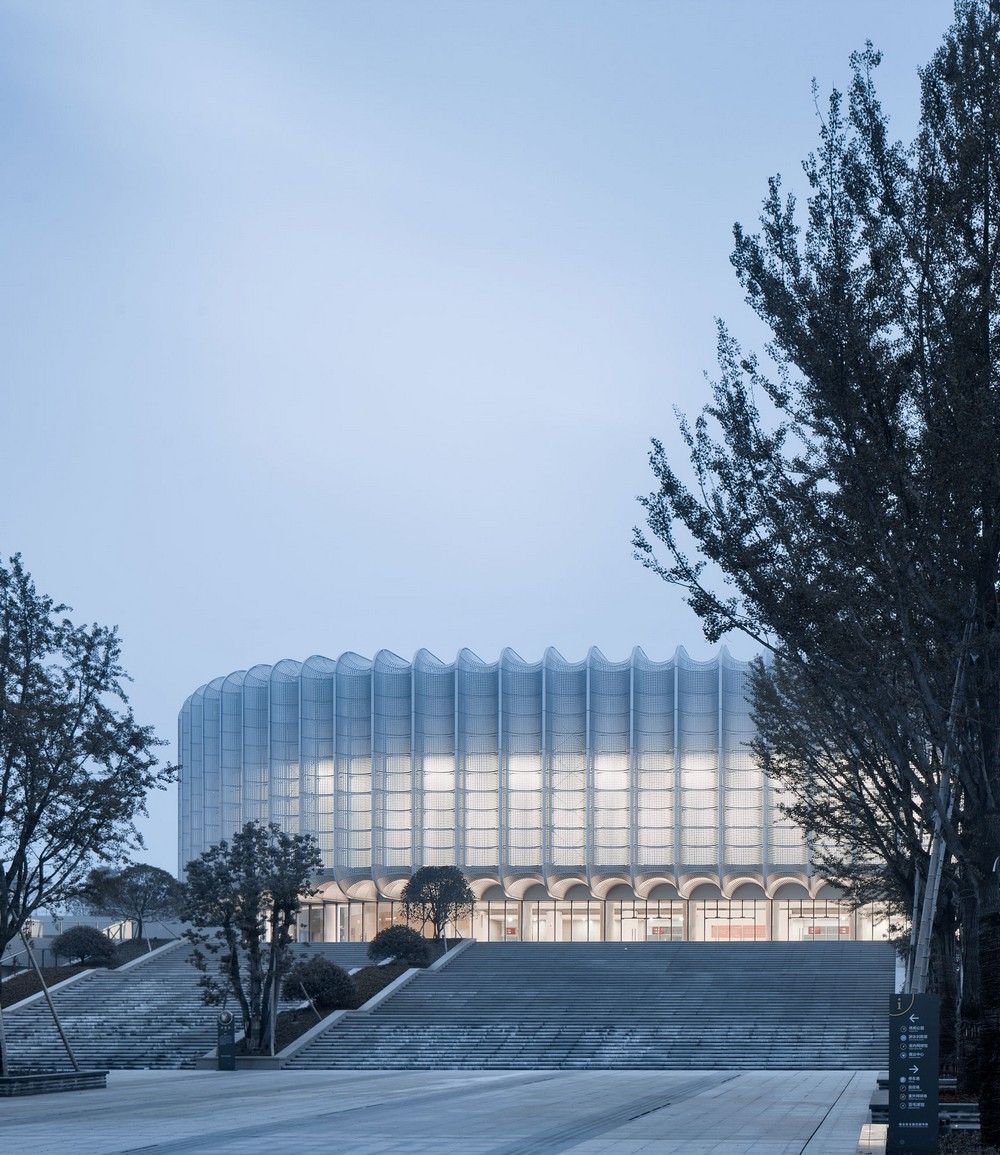

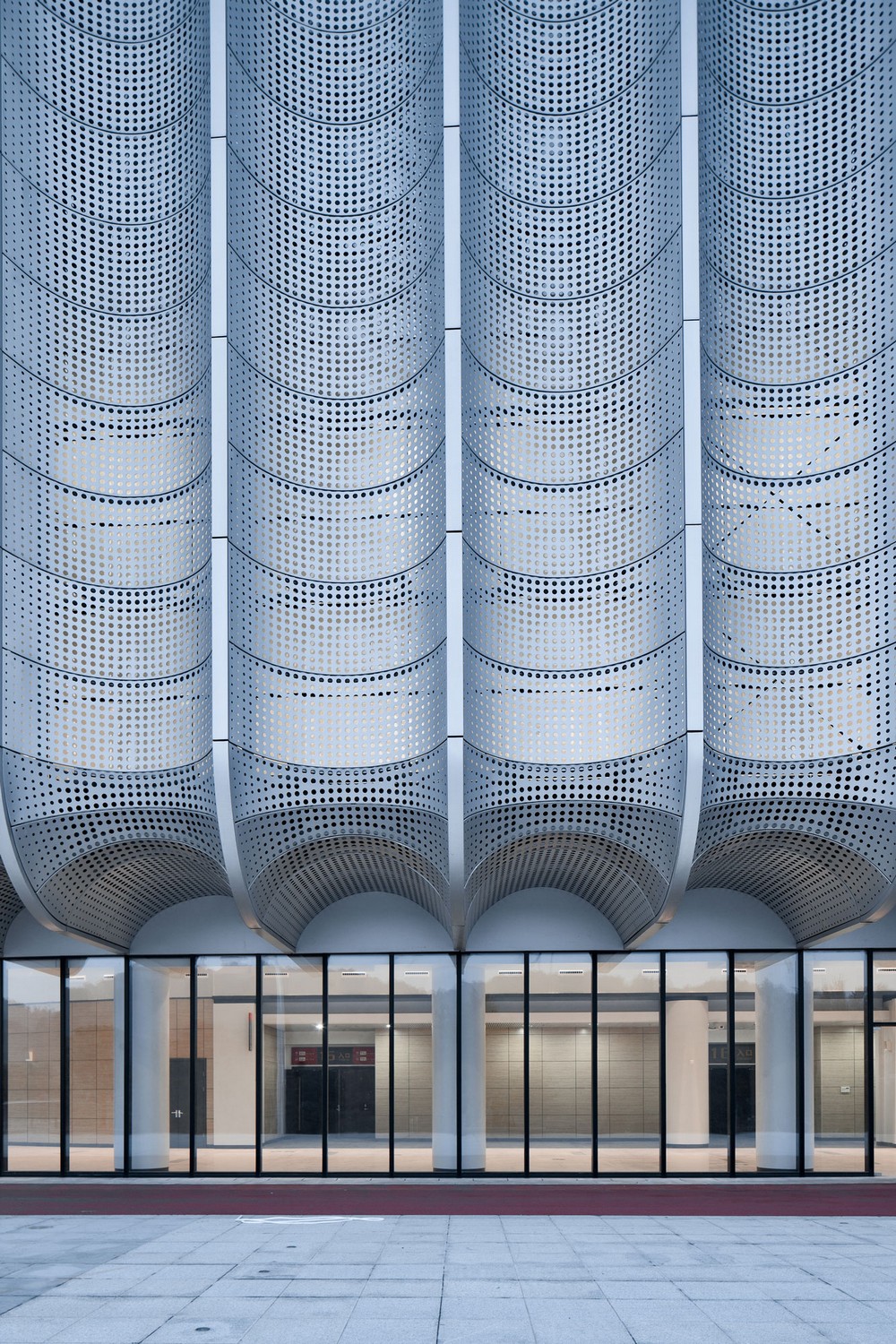

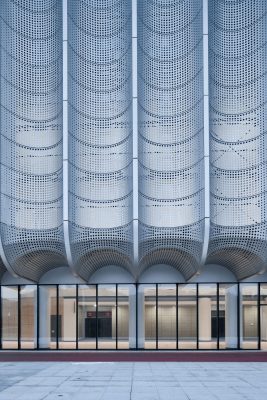

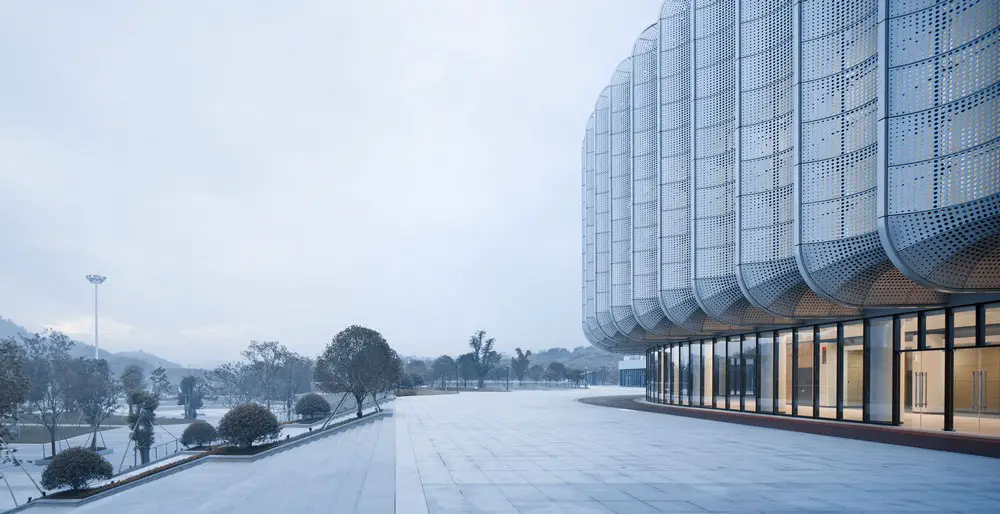

The plan takes the sports complex as the starting point. On the one hand, the body of the gymnasium is wrapped with the tapered and perforated plate of the double surface to create a translucent and light visual effect.

Lin'an Sports and Culture Center building

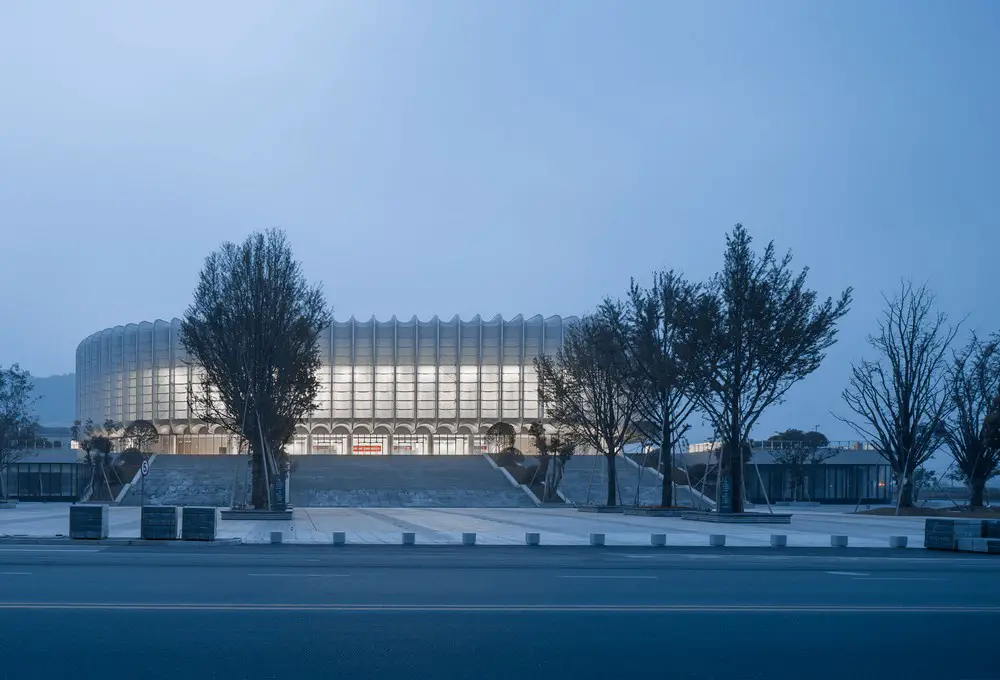

With the lantern, the site is made into a striking city landmark. On the other hand, the height difference of the site is fully utilized and the rest of the functions are integrated together. With the stacked terrace as the design intention, the landscape processing techniques help form a continuous platform model, coordinating with the surrounding mountain environment, and at the same time it can highlight the main image of the gymnasium.

Lin'an Sports and Culture Center building

The sports center with the most comprehensive benefits

As an important part of supporting the center by itself, the project includes a children’s park, a large supermarket, a fitness center, KTV and a variety of catering spaces, and a linear commercial belt along the sides of the road and the inner street can meet the complex appeal of fitness, leisure and entertainment for citizens.

Lin'an Sports and Culture Center building

Design processing

In the design, the site is firstly divided into three stations with a difference of five meters, and the internal road is introduced into the functional blocks. The corresponding building volume is placed in each functional block. The height of the floor is also set at five meters, so that the roof of each layer can be seamlessly connected with the above floor.

Lin'an Sports and Culture Center building Lin'an Sports and Culture Center building

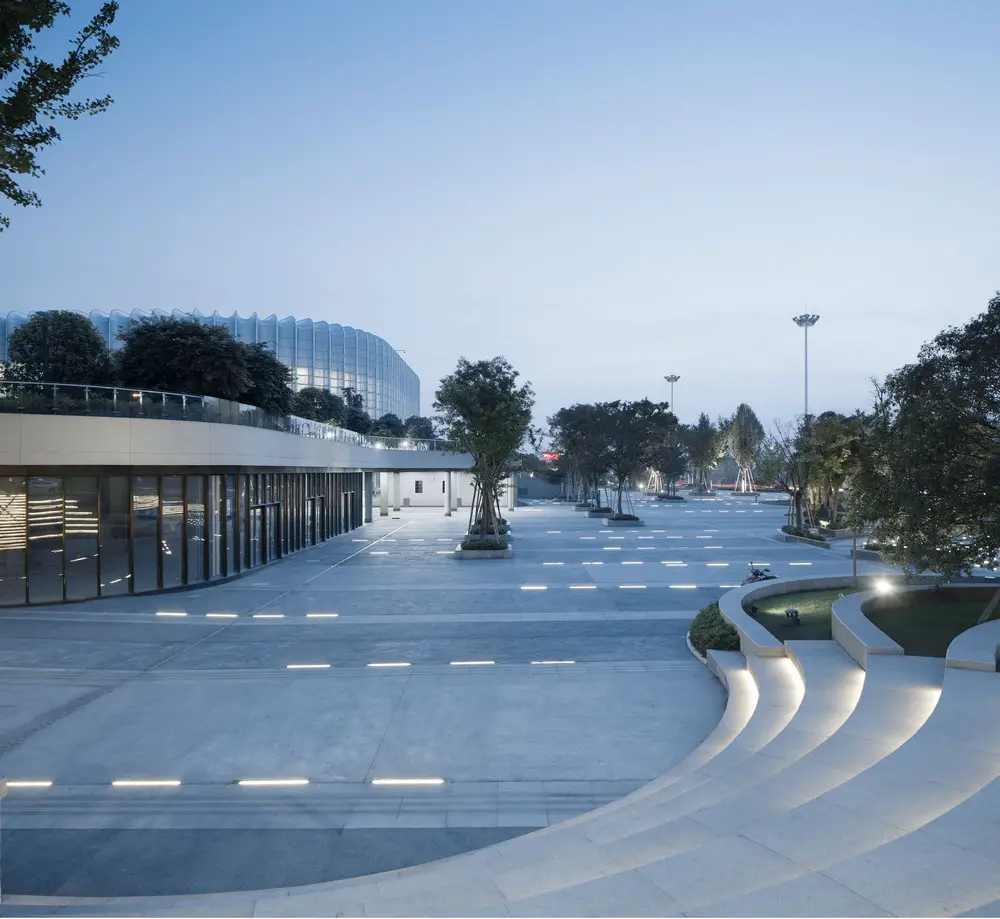

The main plaza along the main street leads the ordinary audience to the second floor by the platform, and the bottom is designed to be the passage for VIP, athletes, instruments and media to create a three-dimensional and stratified traffic organization manner.

Lin'an Sports and Culture Center building

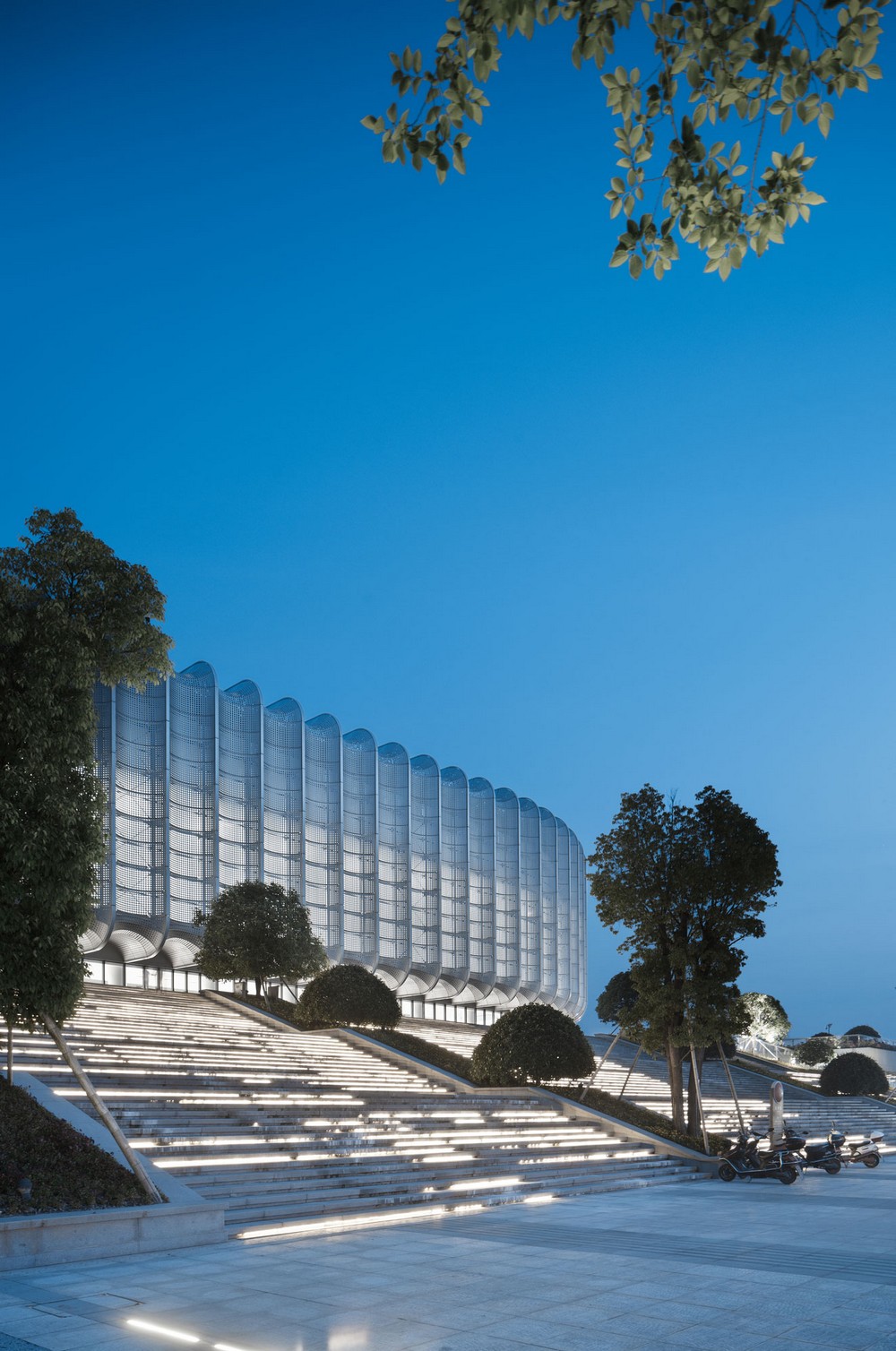

Along the road around, the gentle steps and grass slope are arranged to alleviate the road elevation, docked with landscape belt to form the simple and elegant space effect.

Lin'an Sports and Culture Center building

The whole sports center has designed several groups of landscape courtyards and transitional spaces around the courtyard to create rich spatial experience.

Lin'an Sports and Culture Center building

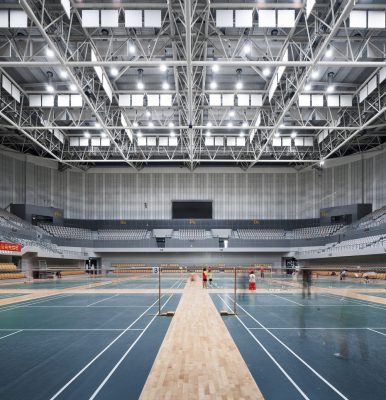

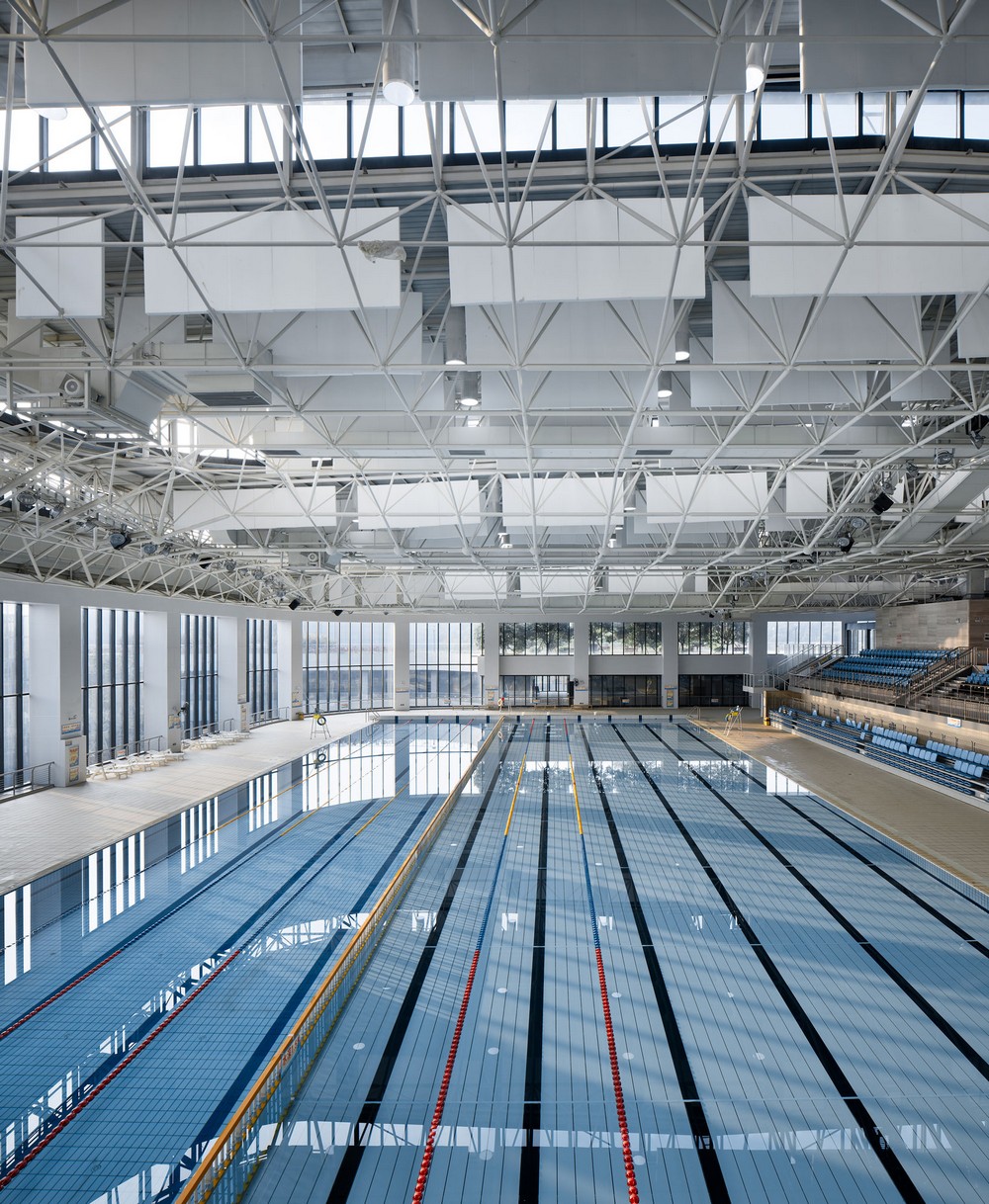

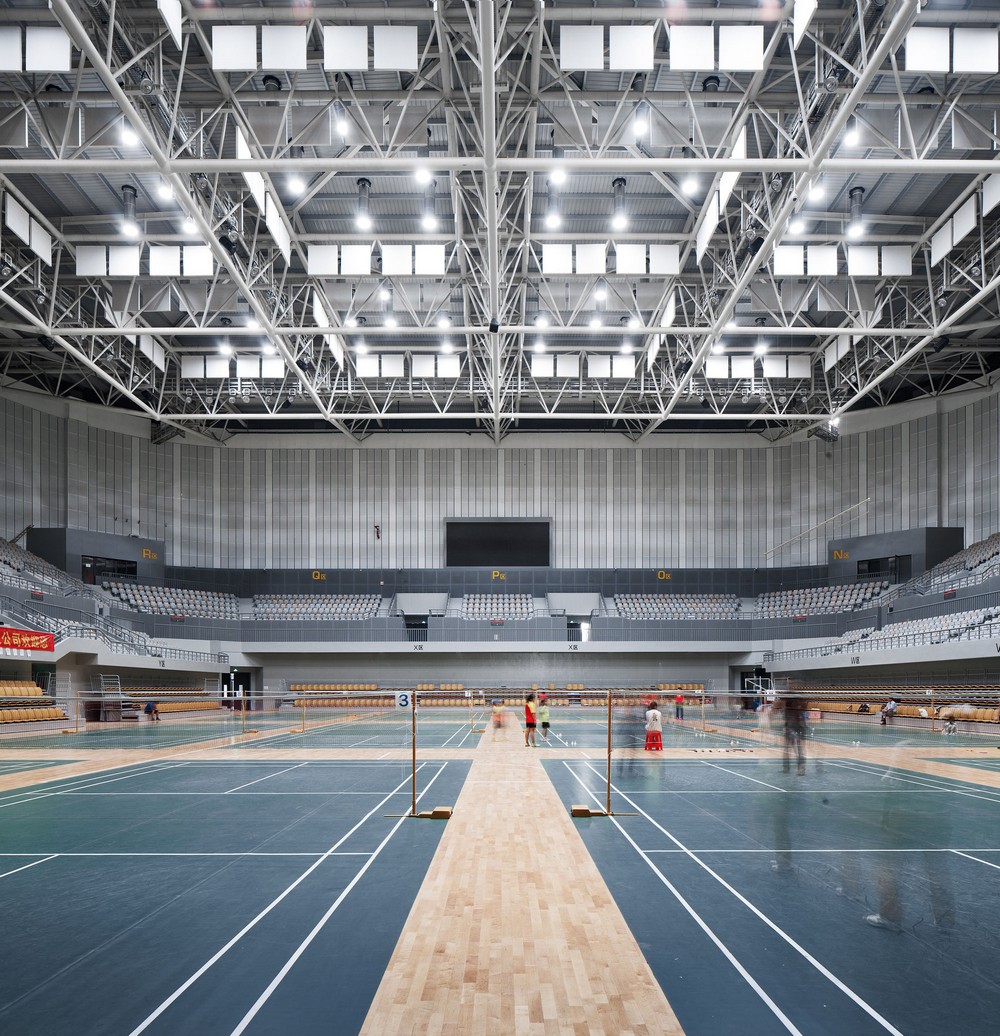

The gymnasium adopts the three-dimensional truss structure. The span of the upper competition hall is 74.4 meters, and the swimming training hall adopts space grid structure, with the length of the north and the south 110 meters, and the East and West span 58.8 meters.

Lin'an Sports and Culture Center building

Green energy saving

This project is 2-star green energy-saving building, and the main measures include:

1.Several venues are set up with roof light pipe, which do not need the indoor lighting during daytime, and can ensure the required brightness in daily use.
2.All platforms are rooftop greening, and the effect of heat insulation is remarkable.

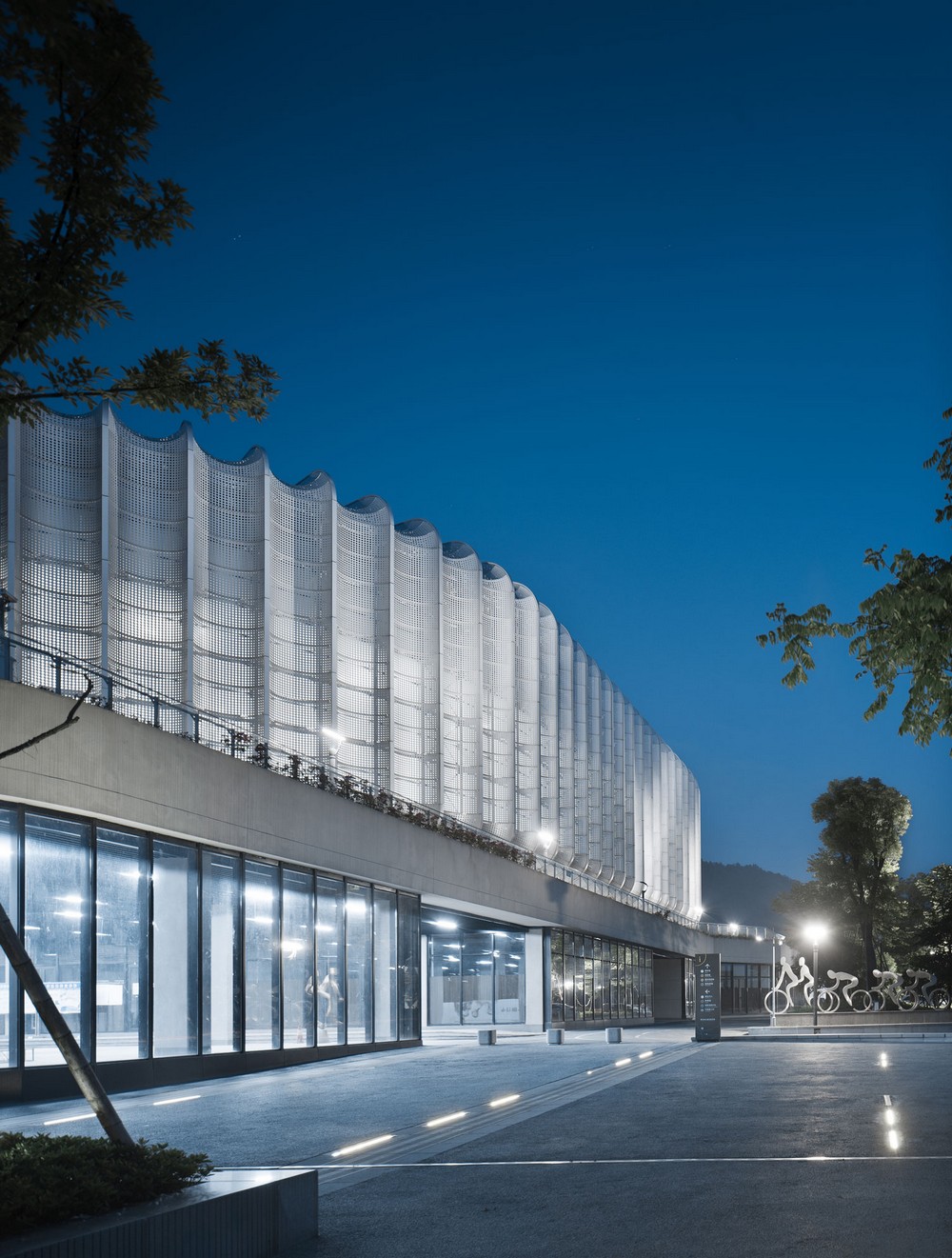

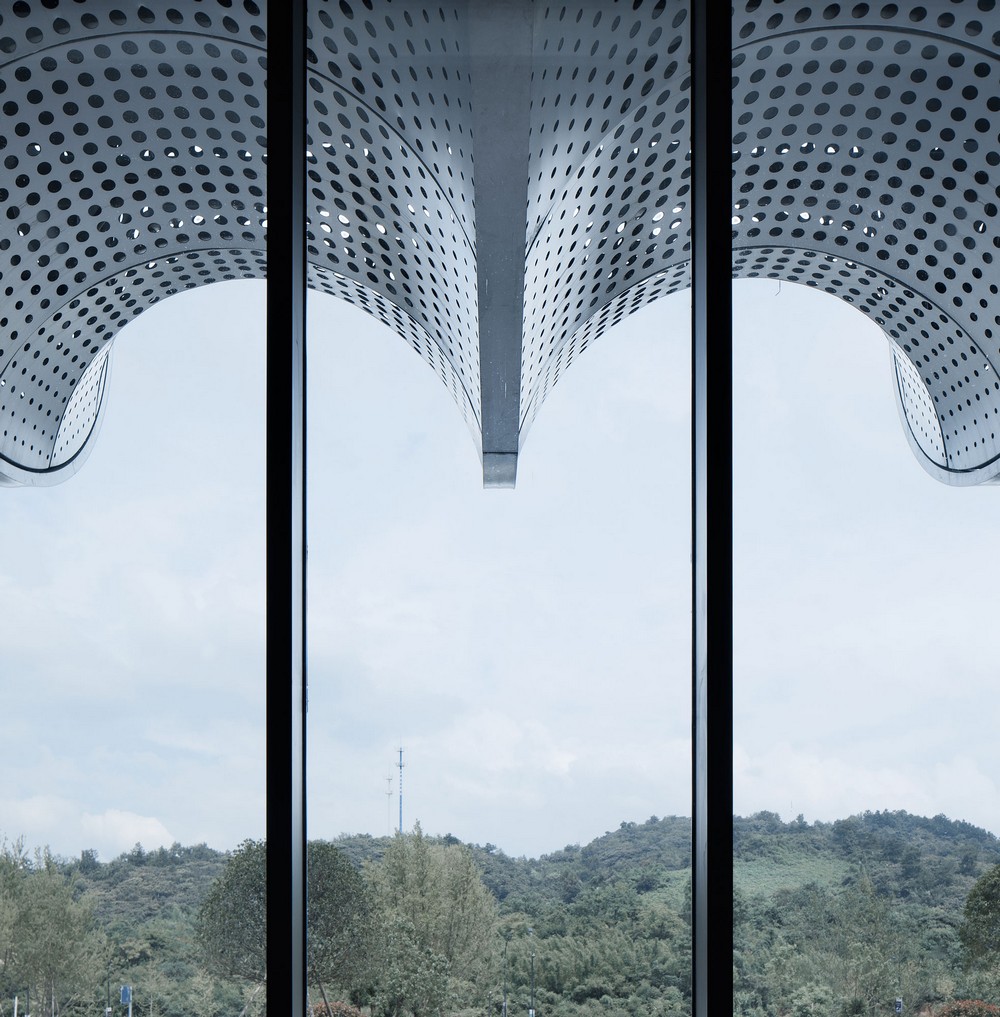

3.The gradual perforated panel curtain outside the gymnasium provides exterior shading for the building, forming the inner soft light.
4.We have utilized advanced heat pump, solar roofing, rainwater collection technology, LED lighting and other mature energy-saving means.

Lin'an Sports and Culture Center building

Lin’an Sports and Culture Center in Hangzhou – Building Information

Name of practice:The Architectural Design & Research Institute Of ZheJiang University Co,Ltd
Project name:Lin’an Sports and Culture Center
Project location:Crossroad Jiuzhou Streent and Jiquan Road, Linan District, Hangzhou City, China
Zip code: 311300
Design starting date:March 2011
Design finish date:February 2015
Construction starting date:November 2011
Construction finish date:September 2015
Site area:107333m2
Gross floor area:74986m2
FAR:0.78
Greening rate 17.7

Photographer:Qiang Zhao

Lin'an Sports and Culture Center Hangzhou building

Structural Engineer:Gang Gan, Jianlu Zhou, Jiepan Shen
MEP Consultant:Yi Yang, Ping Li, Nan Li, Bing Jiang
Quantity surveyor:Yunfeng Wang

Lin'an Sports and Culture Center building

Building materials & brand names:

glass curtain wall: China South Glass Holdings Ltd
perforated aluminum plate: Jiangsu Hengmei Curtain Wall Datum Co., LTD
aluminum alloy sections: Xingfa Aluminum Holdings Limited
cement pressure plate: Jiangsu Kanghui Calcium Silicate Board Co. LTD.

Lin’an Sports and Culture Center in Hangzhou images / information received from The Architectural Design & Research Institute Of ZheJiang University Co,Ltd 240518

Location: Lin’an, Hangzhou, Zhejiang Province, China
