The Couch, Tennisclub IJburg

Building Permit for The Couch, a Club House for Amsterdam’s Tennisclub IJburg

Architects: MVRDV

The Couch, Tennisclub IJburg Amsterdam
image by architects

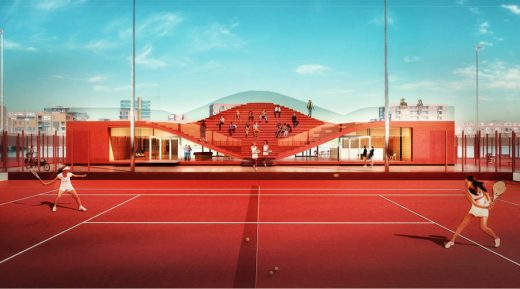

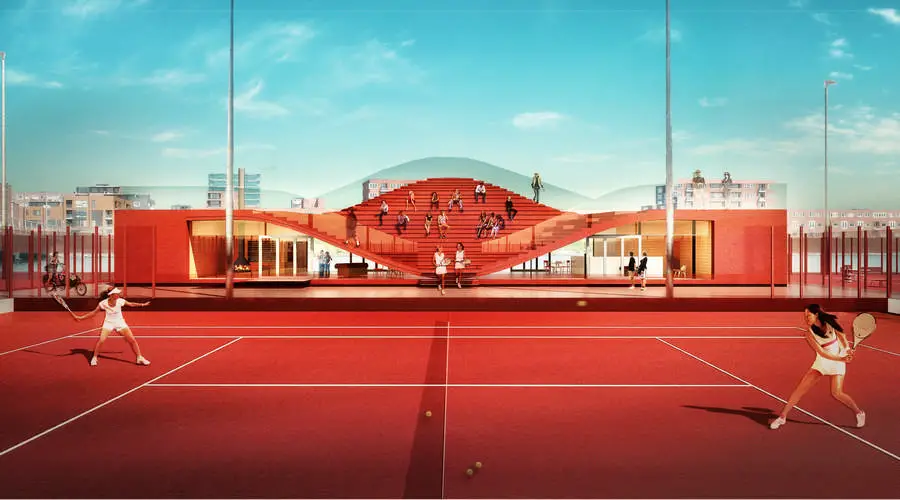

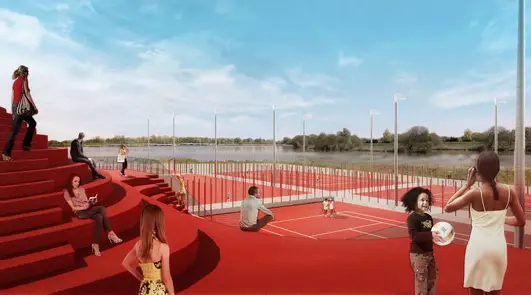

Tennisclub IJburg and MVRDV announce that permission has been granted to start construction of The Couch, a new club house for the young tennis club, which was founded in 2010 on a new artificial island in the east of Amsterdam. The roof of the 322m2 club house, designed by MVRDV, is folded upwards and downwards to act as an informal spectator tribune for the club. Construction will start this month, with completion expected before summer 2014.

Tennisclub IJburg Amsterdam
image by architects

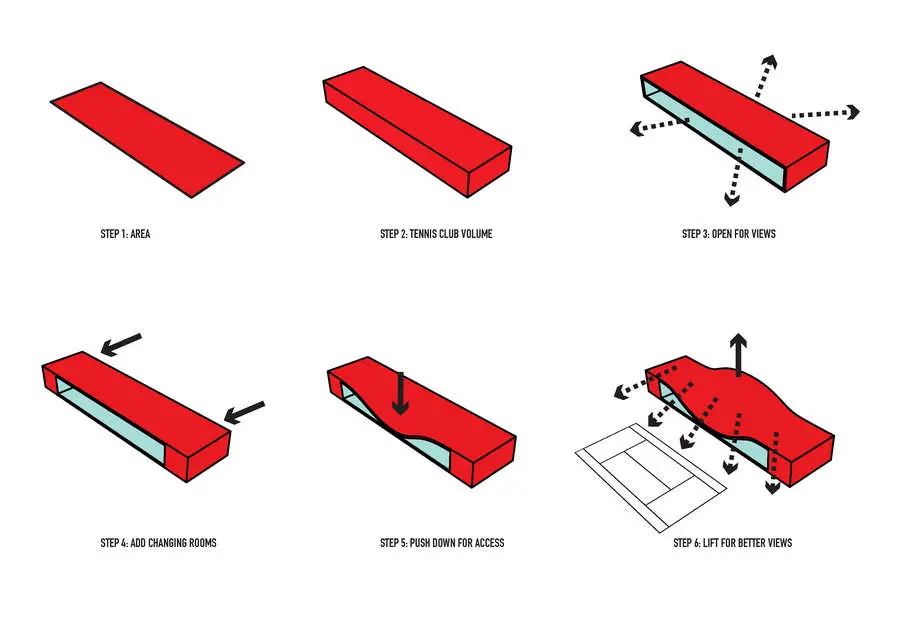

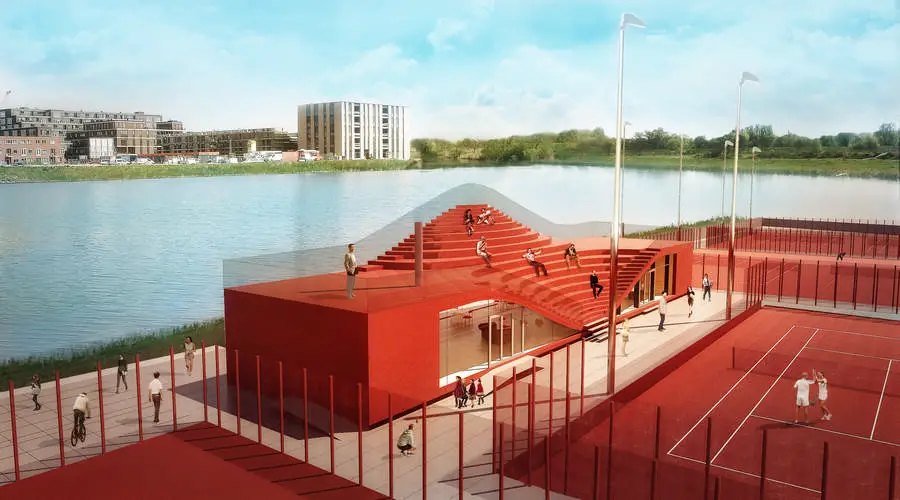

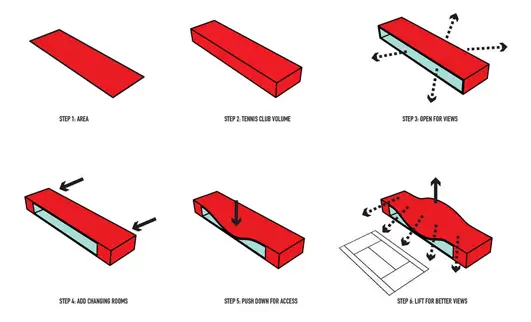

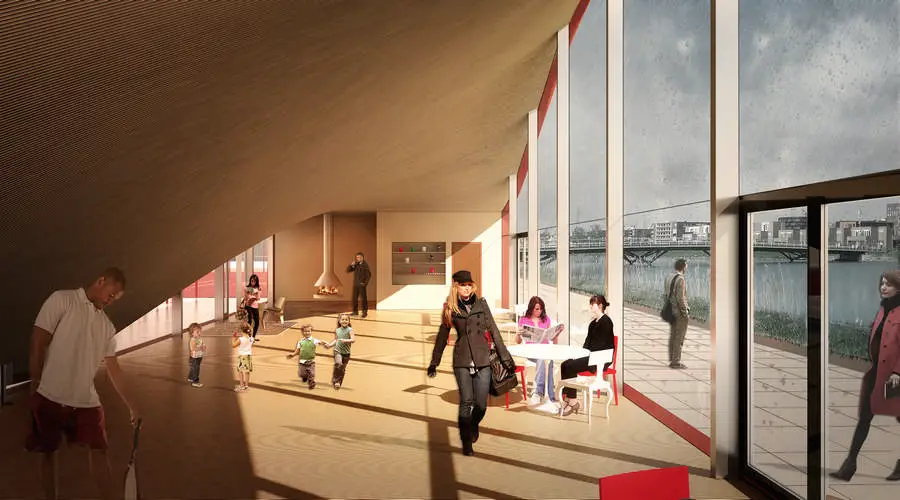

The club house is a long open volume with services on either side such as dressing rooms, a kitchen, storage and toilets. The main space is multifunctional, so it can be used for the club’s many events. The roof dips down towards the south side and is raised towards the north until a height of seven metres, creating an informal tribune for the club. This ‘Couch’ can seat up to 200 spectators. The wide glass front to the north side allows extensive natural lighting and provides a view out over the waters of the IJ-lake.

Tennisclub IJburg, Amsterdam
image by architects

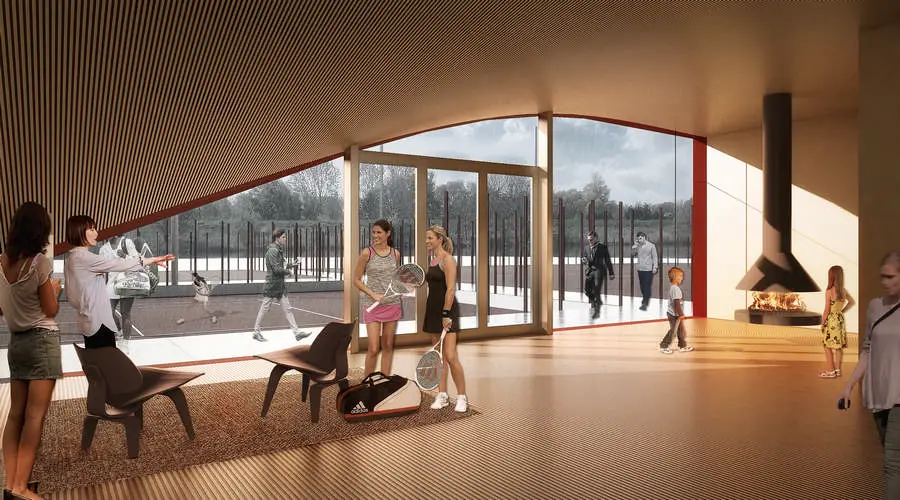

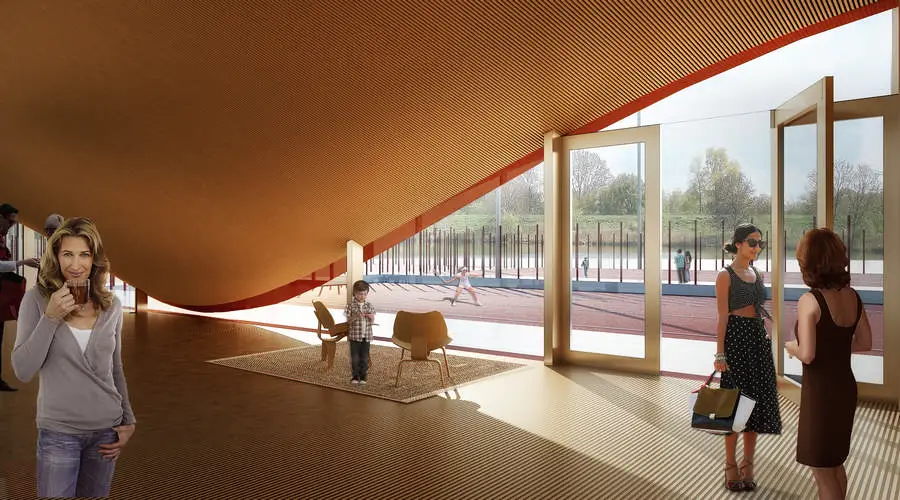

Inside the club house, the concrete construction is clad with fsc-certified wood, with the outside fully sealed with an epdm polymer hotspray in the same colour and texture as the clay tennis courts.

Tennisclub IJburg Amsterdam building
image by architects

The reduced glass surface to the south helps to cool the building. The thermal mass characteristics of the materialisation in concrete and wood are used to reach a high degree of energy efficiency. It will be heated with district heating made efficient by a heat exchange system. In summer there will be natural ventilation, adding to the ambitious sustainable profile of the structure.

Tennisclub IJburg Amsterdam
image by architects

Tennisclub IJburg is located on a manmade island in the East of Amsterdam and opened in 2010. The tennis club, currently with 1100 members, has 10 clay courts and a tennis school. The new club house will be the centre of the club’s activities.

Tennisclub IJburg Amsterdam by MVRDV
image by architects

MVRDV developed the clubhouse together with co-architect Studio Bouwkunde and structural engineer ABT. Contractor Ballast Nedam Bouw will realise the building, which will be MVRDV’s eighth building in Amsterdam.

Tennisclub IJburg building by MVRDV
image by architects

Tennisclub IJburg design by MVRDV width=
image by architects

The Couch, Tennisclub IJburg images / information from MVRDV

Tennisclub IJburg design : MVRDV

Location: IJburg, Amsterdam, The Netherlands, western Europe

Amsterdam Buildings

Amsterdam Architecture – contemporary building information
Anne Frank House Museum
picture © Adrian Welch

Amsterdam Buildings – historic building information
Amsterdam Buildings
photo © Adrian Welch

Amsterdam Architectural Walking Tours by e-architect

Jonas Kavel 42A IJburg Building
Design: Orange Architects
Jonas Plot 42A IJburg building design
image courtesy of architects
Jonas Kavel 42A IJburg Building

Also by MVRDV in Amsterdam:

“WoZoCo” Housing for Elderly
WoZoCo apartments
photo © Adrian Welch
Wozoco MVRDV

Westerdok Apartment Building

Tennisclub IJburg Amsterdam architect : MVRDV Architects

Tennis Buildings

Tennis Building Designs – selection from e-architect:

Wimbledon Masterplan at The All England Lawn Tennis Club
Design: Grimshaw
Wimbledon Tennis Club London
photo: Tom Lovelock / AELTC – All England Lawn Tennis Club
Wimbledon Tennis Club

Simonne-mathieu Tennis Court, Paris, France
Architect: Marc Mimram Architecture & Associés
Simonne Mathieu Tennis Court in Paris
photo © Camille Gharbi
Simonne-mathieu Tennis Court in Paris

Garden Tennis Club of Cabourg, Cabourg, France
Design: lemoal lemoal architectes
Garden Tennis Club Cabourg Normandy France
photo © Javier Callejas
Garden Tennis Club of Cabourg

Sydney Olympic Park Tennis Centre, New South Wales, Australia
Design: BVN Architecture

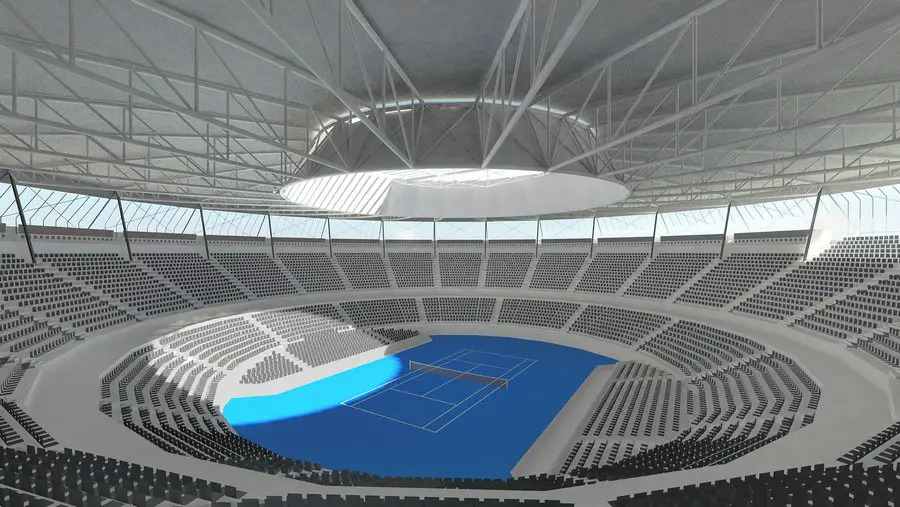

Sydney 2000 Olympic Games Tennis Venue
