Albina Yard Portland

Glue-laminated timber frame & CLT panels Development design by LEVER Architecture

Sep 3, 2018

Albina Yard in Portland

Design: LEVER Architecture

Location: North Portland, Oregon, USA

Albina Yard Building

Albina Yard is a new 16,000 sf speculative office building with ground floor retail located in North Portland. The building utilizes mass timber construction, with a glue-laminated timber frame and CLT panels manufactured and prefabricated in Riddle, Oregon.

The project’s primary goal was to utilize domestic CLT in a market-rate office building that would pave the way for broader market adoption of renewable mass timber construction technologies in Portland and the US. The design approach reflects a commitment to this sustainable technology by developing an architecture focused on economy and simplicity, material expression, and the careful resolution and integration of all M/E/P building systems to foreground the beauty of the exposed Douglas fir structural frame.

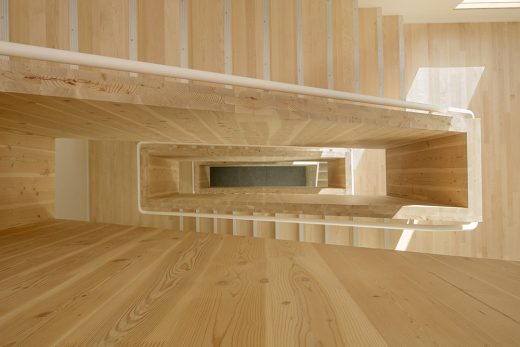

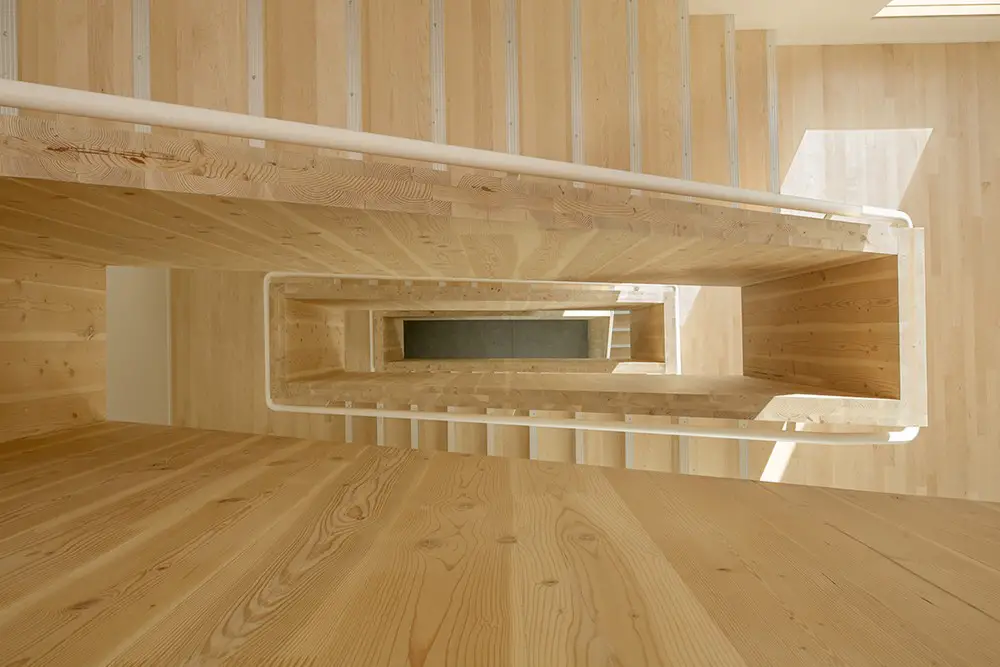

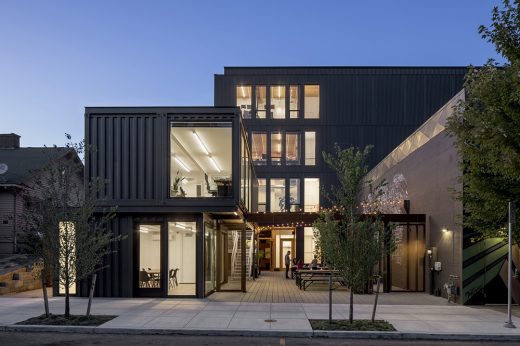

At the street level, the floor plan is organized around activating a small l-shaped infill site in a mixed residential/light industrial neighborhood. The side-loaded structural core connects the public entry to a day-lit CLT egress stair that opens onto a private south-facing courtyard. The retail space also connects to the street with a café/bar adjacent to the courtyard space. The upper floors have expansive views of Mt. Hood and downtown Portland, and are also divisible into four smaller units.

Two different structural systems were designed in parallel for pricing: one with standard tongue and groove wood decking and one with CLT. Working collaboratively with our engineers and fabricators, we optimized costs by simplifying our details and leveraging CLT’s superior two-way spanning capacity to utilize fewer glue-laminated beams.

The wood columns and beams were prefabricated offsite to 1/8-inch tolerances using a Hundegger K2-ROBOT six-axis joinery machine. The prefabrication allowed components to be assembled on site five times faster than a conventional wood decking system.

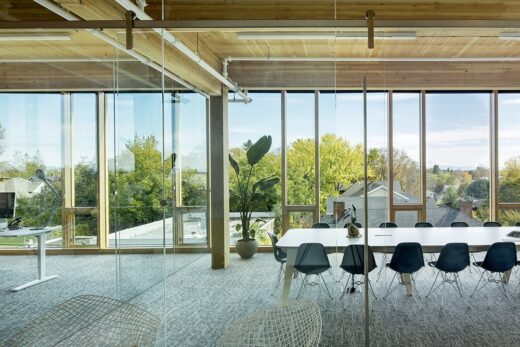

The dynamic form of the street-facing façade is a direct expression of the four-foot cantilevering capability of a four-inch thick three-ply CLT panel. Metal panels trim out the angled floor plates, framing four levels of a structural Douglas fir glue-laminated wood window wall system. Viewed from an oblique perspective, the window frames resemble a wall of wood.

Albina Yard Portland, OR – Building Information

Architects: LEVER Architecture
Client: Reworks Inc.
General Contractor: Corbett Construction Company, Inc.

Albina Yard in Portland, Oregon images / information courtesy of Chicago Athenaeum

Location: Albina Yard, Portland, OR, USA
