OVD 919 House, Bantry Bay

Bantry Bay Property: South African Residential Development design by SAOTA

post updated 6 September 2021 ; 26 May 2015

Design: SAOTA ; Interior Design: Studio Parkington Design Consult

Location: Bantry Bay, Cape Town, South Africa

OVD 919 House

Photos by Adam Letch

OVD 919 House in Bantry Bay

The Brief was to create a spectacular home which encapsulated the expansive 360 degree mountain and sea views. Though views out were paramount this needed to be carefully balanced with the required privacy from within. The living areas were to be open plan – enhancing everyday life. “The architecture needed focus on creating a contemporary, uncluttered and sculptural building,” said Tamaryn Fourie, senior associate and project team member.

The site is excellently positioned on the mountain ridge below Lions Head with views of Robben Island to the North and Camps Bay and the Twelve Apostles to the South.

OVD 919 House

Working with a relatively steep site and the fact that the Southern boundary is shared with a National Park, the design took on a sensitive approach. The secondary spaces were positioned at the lower levels with care taken to limit excavation. From the road these levels are concealed by a large North facing landscape wall – its customised angular design achieves a natural result. Strategically positioned penetrations within the landscape wall permit natural light and ventilation to the rooms beyond but glazing is set back and thereby concealed.

OVD 919 House

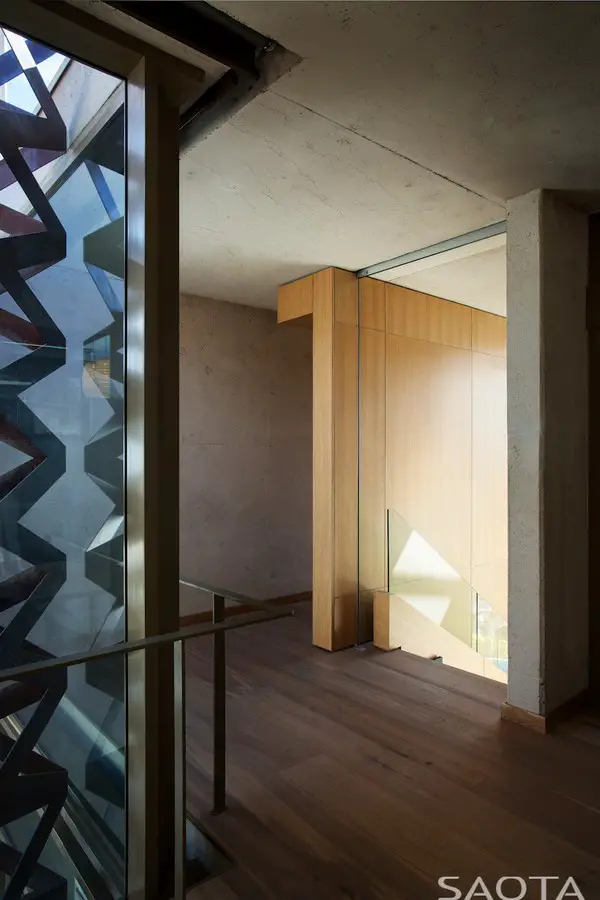

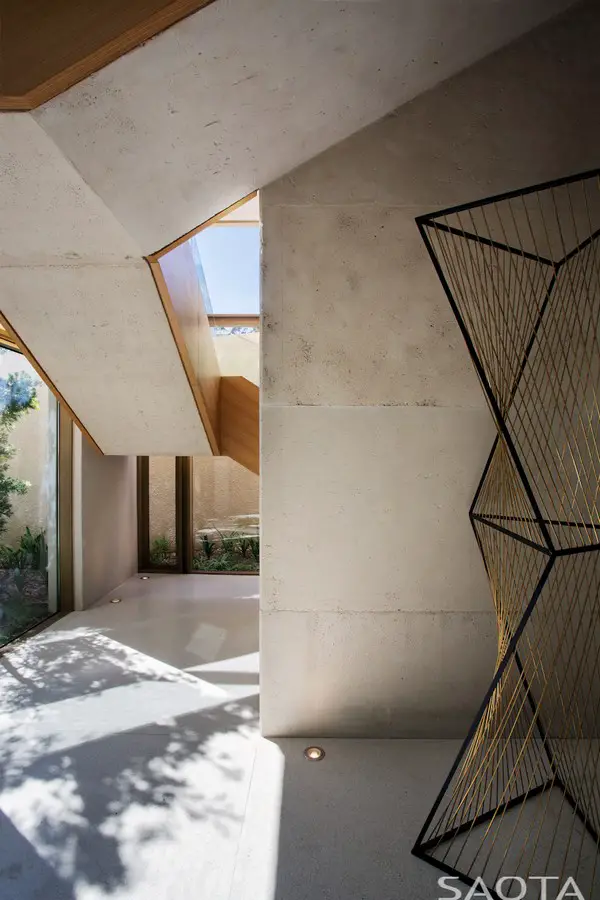

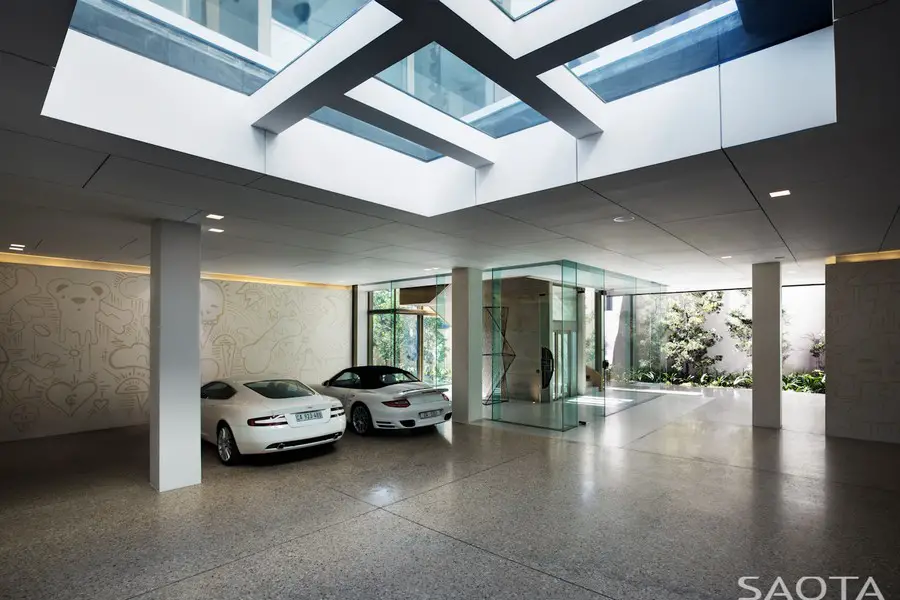

“On arrival at a mid-level one is lured through the main garage with its double volume and graffiti walls towards the shaft of light and splash of landscaping emanating from the glazed Entrance Area beyond. Sculptural timber clad stairs wrap themselves around a centrally positioned glass lift and take one to the upper levels of the house,” says Philip Olmesdahl, SAOTA director and project team member.

OVD 919 House

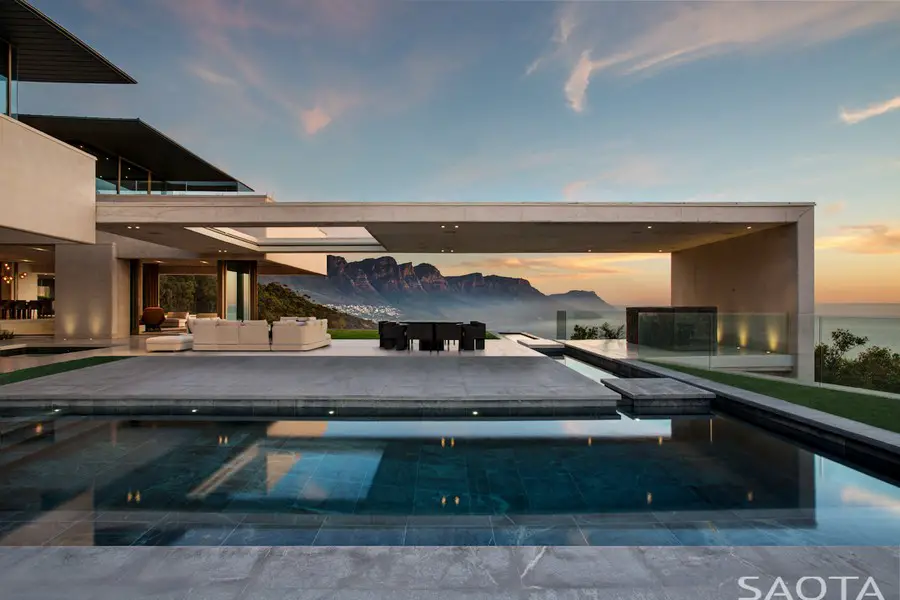

The building is limited to only two storeys above the ridge. The main living areas, pool terrace and garden are below with the family bedrooms strategically positioned at the uppermost level for privacy.

OVD 919 House

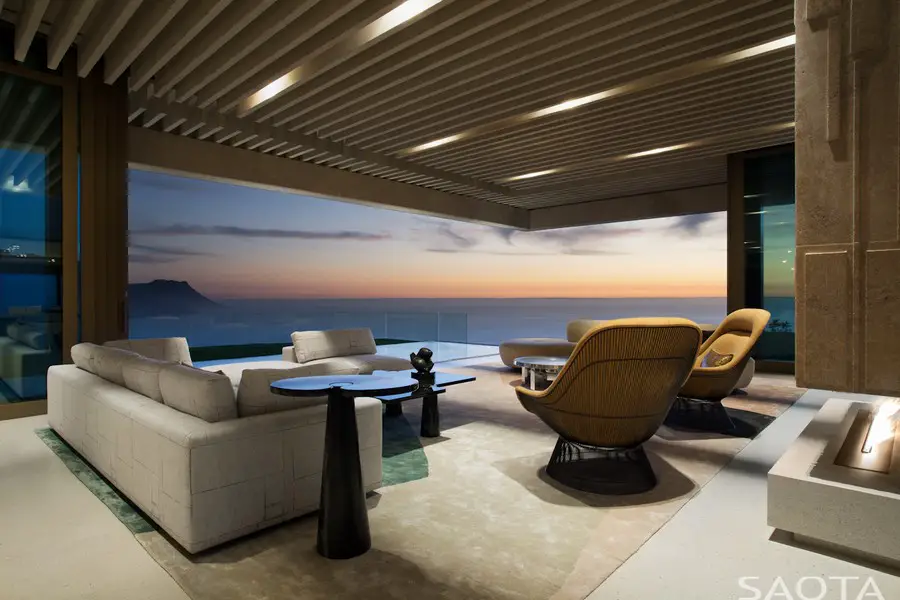

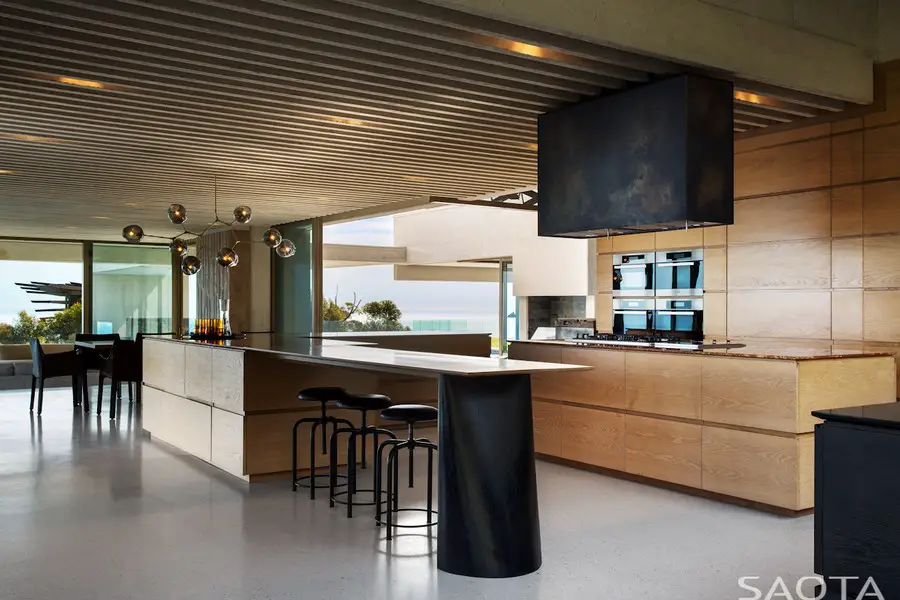

The ‘layering’ of the house permits different experiences in difference spaces. From the main stairs the linearity of the customised cast bronze coffee bar leads one into the ‘heart of the home’ – the Kitchen. The Kitchen in turn spills into the Dining Room and the Summer Lounge with its high ceiling of ribbed concrete. The Winter Lounge is also adjacent to the Kitchen but this time the ceiling is lower – framing the view – which together with the centrally positioned fireplace creates an intimate space for more informal gatherings.

OVD 919 House

“Throughout this level boundaries are blurred and there’s a wonderful continuity between internal and external living – it’s a house for all seasons and plays off the mood of the climate and surrounding landscape,” said Tamaryn Fourie. The large gallery type spaces emphasise the magnetism of the site and its ever present backdrop of the mountains and the sea.

OVD 919 House

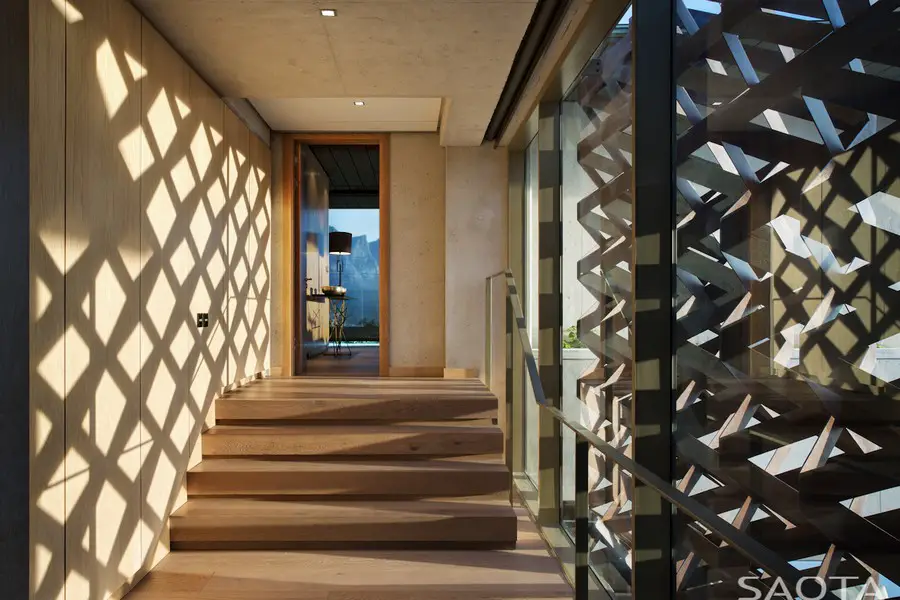

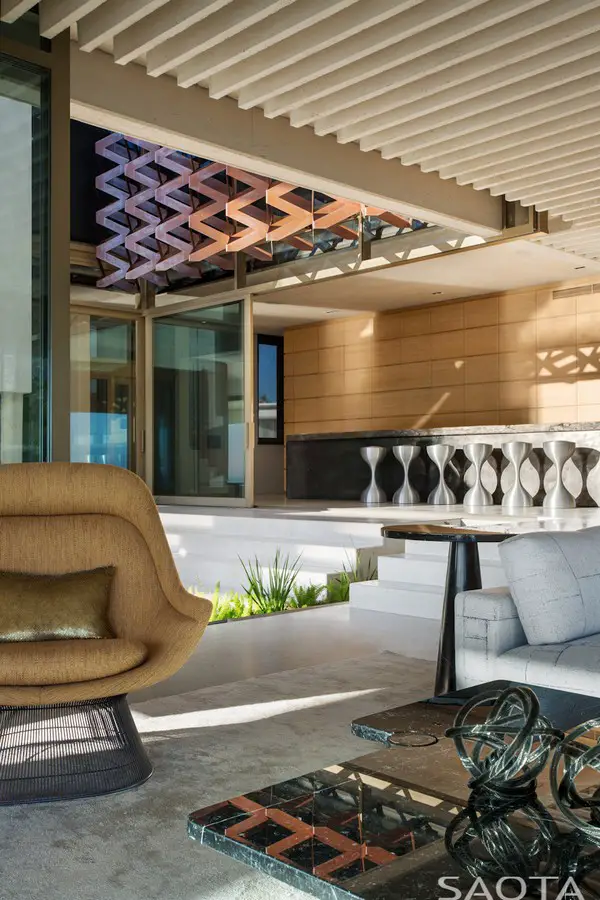

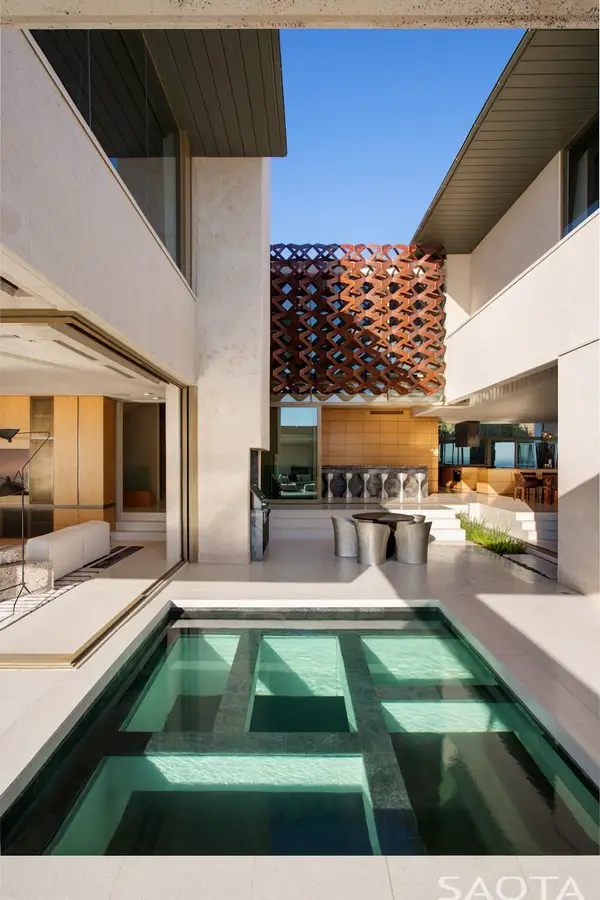

A courtyard ‘cuts’ into main living areas – its waterfeature and delicate weathered Cor-Ten screen ensures a tranquil and sheltered space. The base of the waterfeature is glazed to scoop refracted light into the main garage below. The ‘woven’ Cor-Ten screen playfully reflects light internally whilst also offering privacy to the bedroom level above.

OVD 919 House

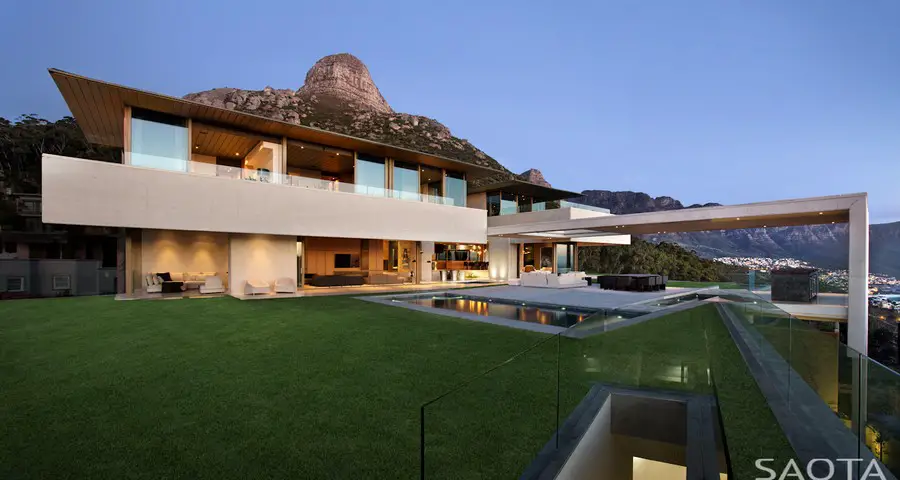

“The aesthetic of the top two storeys – when viewed externally – is of monolithic white concrete beams. Their weight is accentuated as they seem to ‘float’ on light glazed facades,” says Joe Schützer-Weissmann. With limited walls and columns this house is all about the view – even glazing has reduced mullions wherever possible.

OVD 919 House

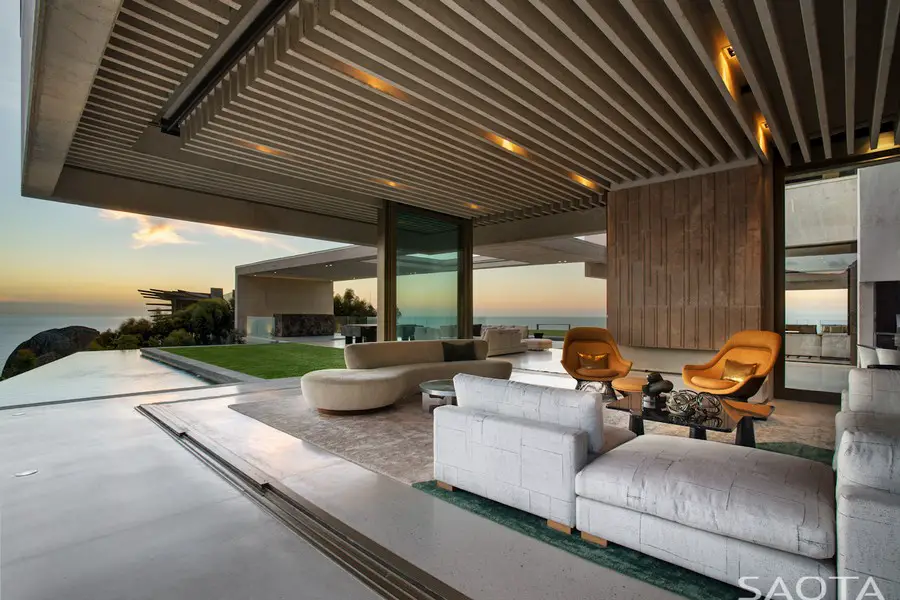

A ribbed pre-cast concrete soffit creates continuity between the living spaces with all services being carefully co-ordinated so as to disappear within recesses. All off-shutter concrete was cast using a customised white concrete mix. Once cured this was sandblasted to reveal a fine – carefully selected – aggregate resulting in a robust and unprecious look.

Contemporary Cape Town luxury home

The thin eaves of the zinc roof are also delicate in contrast to the massive beams below and appears to hover above the upper level.

Bantry Bay Property design by SAOTA

The polished concrete floors of both the internal and external living areas ensure their seamless continuity. The timelessness of natural oak is celebrated and combined with feature brass insets for bedroom floors and all internal joinery.

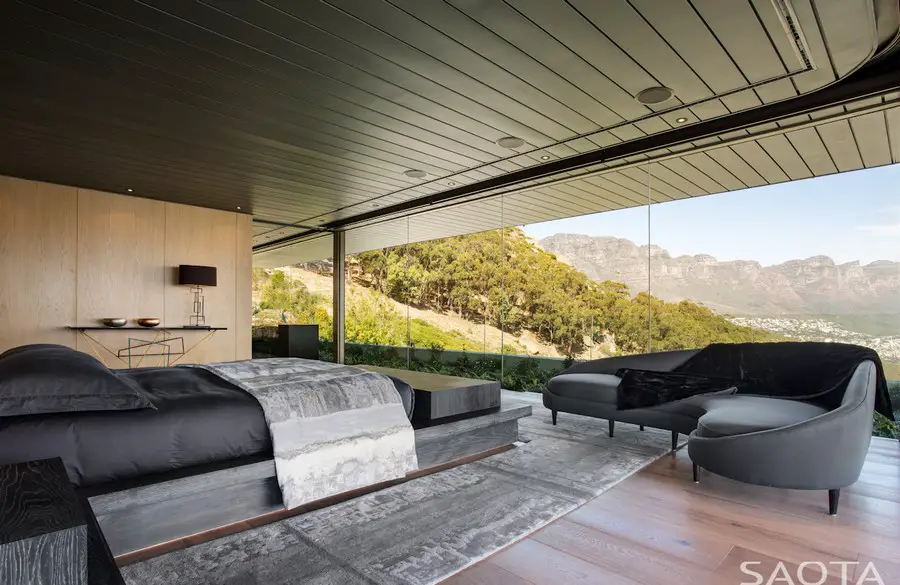

The master bedroom which is on the uppermost level is set back from the boundary line to increase privacy from the mountain paths. “An expansive planter off the main bedroom reiterates the importance of the natural surroundings and their connection with the sea views beyond,” noted Philip Olmesdahl.

Bantry Bay home design by SAOTA

Materials Used
Cor-Ten screen, white concrete mix, zinc, natural oak, timber cladding, brass, bush-hammered granite, cast bronze, polished concrete & in-situ concrete

Raw materials with varying textures were consciously selected to emphasise the uncluttered, sculptural and contemporary nature of the architecture.
• The custom designed ‘white’ concrete when sandblasted highlights the robust and understated nature of the architecture.
• In contract to the monolithic structure a lightweight zinc roof with the slimmest of eaves subtly hovers above.
• The polished concrete floors ensure seamless continuity between internal and external living areas.
• An external Cor-Ten screen is delicately suspended in a central courtyard to reflect dappled light into the adjacent living areas.
• For continuity all the built-in joinery was custom made from natural oak with brass detailing, sandblasting or staining being used to create unique features.
• Bush-hammered granite tiles can be found in all the bathrooms.

OVD 919 House Cape Town

OVD 919 House in Bantry Bay – Building Information

Project Name: OVD 919
Location: Bantry Bay, Cape Town, South Africa
Architects: Architects & Interior Architects: SAOTA
Project Team: Philip Olmesdahl, Tamaryn Fourie & Joe Schützer-Weissmann
Interior Designer: Studio Parkington Design Consult
Completion Date: 2014

Elements Used:
Glazed facades, shutters, Water-feature, landscape wall, pre-tensioned concrete slab, ceiling pond & post-tensioned beams

Winter Lounge TV unit
Designed by SAOTA, joinery manufactured by Ken Leiman Furniture

Designed by SAOTA, joinery manufactured by Ken Leiman Furniture

Family Room Entertainment Unit:
Designed by SAOTA, joinery manufactured by Ken Leiman Furniture

External ‘Cor-Ten’ Screen:
Designed by SAOTA, manufactured by Bad Machine

Outdoor ‘Timber’ Dining Table & Chairs:
Designed by Studio Parkington, manufactured by Ken Leiman Furniture

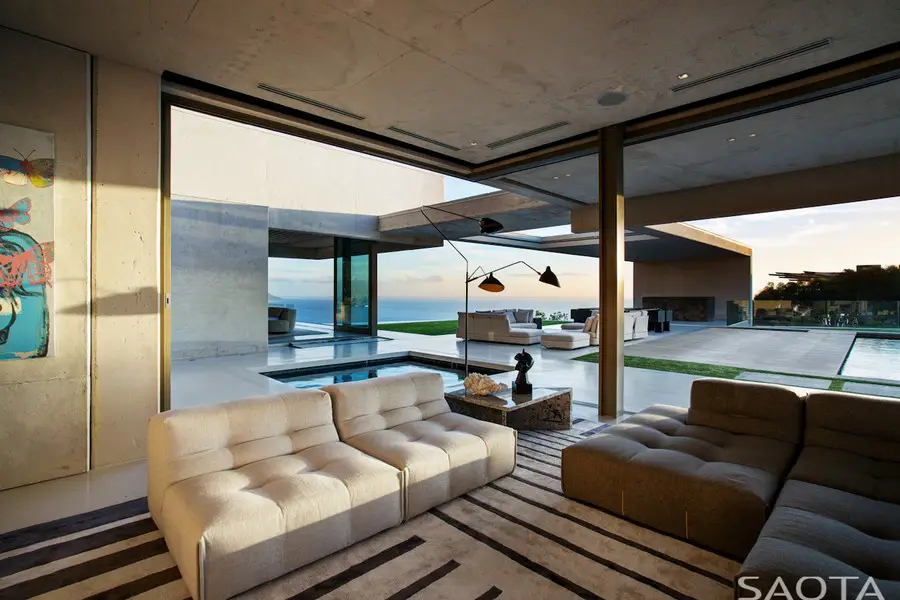

Family Room:
Couches: Tufty Too – B&B Italia
Art on wall: David Bromley
Leger Tables – Minotti
Standing lamp: 3am standing lamp – Serge Mouille
Marble table – Up & Up

Summer Lounge:
Small sofa: Serpentine sofa- Vladimir Kagan
Coffee table: Marble table – Angelo Mangiorotti
Chairs: Sculptural high back lounge chairs by Warren Platner for Knoll
Side Table: Eros by Angelo Mangiarotti for Skipper
Courtyard dining chairs: Moon Chairs – Tokujin Yoshioka
Outdoor seating couches: Cove Sofa & Ottoman – Pavlo Lenti

Winter Lounge:
Lounge suite: sectional seating B. Italia 1971 – Mario Bellini Camaleonda
Chairs: Le Bambole 2007- B&B Italia, Maria Bellini
Coffee table: Charlotte Perriand; Laquered wood – Accordo Coffee Table – Cassina

Photographer: Adam Letch

OVD 919 House

OVD 919 House in Bantry Bay images / information received from SAOTA Architects
