Shenzhen Bao’an International Airport Satellite Concourse

Shenzhen Bao’an International Airport Satellite Concourse, Terminal Design Images, News, Architect, Project

Shenzhen Bao’an International Airport Satellite Concourse Building

Updated 4 January 2024 + 24 February 2022

Design Architect: Guangdong Province Architectural Design and Research Institute (GDAD), Aedas, Landrum & Brown (USA)

A Triumphant Start for 2024: Shenzhen Bao’an International Airport Satellite Concourse Crowned World Prix Versailles, the Highest Pinnacle of Airport Design

Shenzhen Bao'an International Airport Satellite Concourse

We are thrilled to announce that the Aedas-designed Shenzhen Bao’an International Airport has soared to new heights, clinching the highest distinction title of the World Prix Versailles under the Airports category at the prestigious Prix Versailles. The award pays tribute to innovation, creativity, reflection of local heritage and ecological efficiency and the values of social interaction and participation, which the United Nations holds in high regard.

Shenzhen Bao'an International Airport Satellite Concourse

Jointly-designed by Aedas Executive Director Albert Tong, GDAD, and Landrum & Brown (USA), the Shenzhen Airport Satellite Concourse is a significant addition to China’s aviation landscape. It provides a capacity of 22 million passengers per year to the bustling hub airport.

Shenzhen Bao'an International Airport Satellite Concourse

As a remote gate concourse, the Satellite Concourse seamlessly accessed through the existing Terminal 3 via an underground automatic people mover (APM) system. This internal arrival experience played a key part in informing the design process and decisions which prioritises passenger satisfaction.

Shenzhen Bao'an International Airport Satellite Concourse

The passenger journey commences at the spacious underground APM station, featuring high headroom and interconnected platforms to create an airy atmosphere. Passengers ascending to departures concourse level, are greeted by a central atrium with natural daylight through skylights and perimeter glazing. Departing from conventional white and grey palette, warm-toned ceiling and landscaping contribute to a welcoming and humane interior ambiance.

Shenzhen Bao'an International Airport

Shenzhen Bao'an International Airport

At the Concourse’s Y-shaped nodal points, two event spaces both named Gemini Plaza provide dynamic venues for exhibitions and events, seamlessly integrating the city’s spirit into the airport. These spaces are illuminated by triangular Bougainvillea-themed skylights and animated by LED screens.

Shenzhen Bao'an International Airport

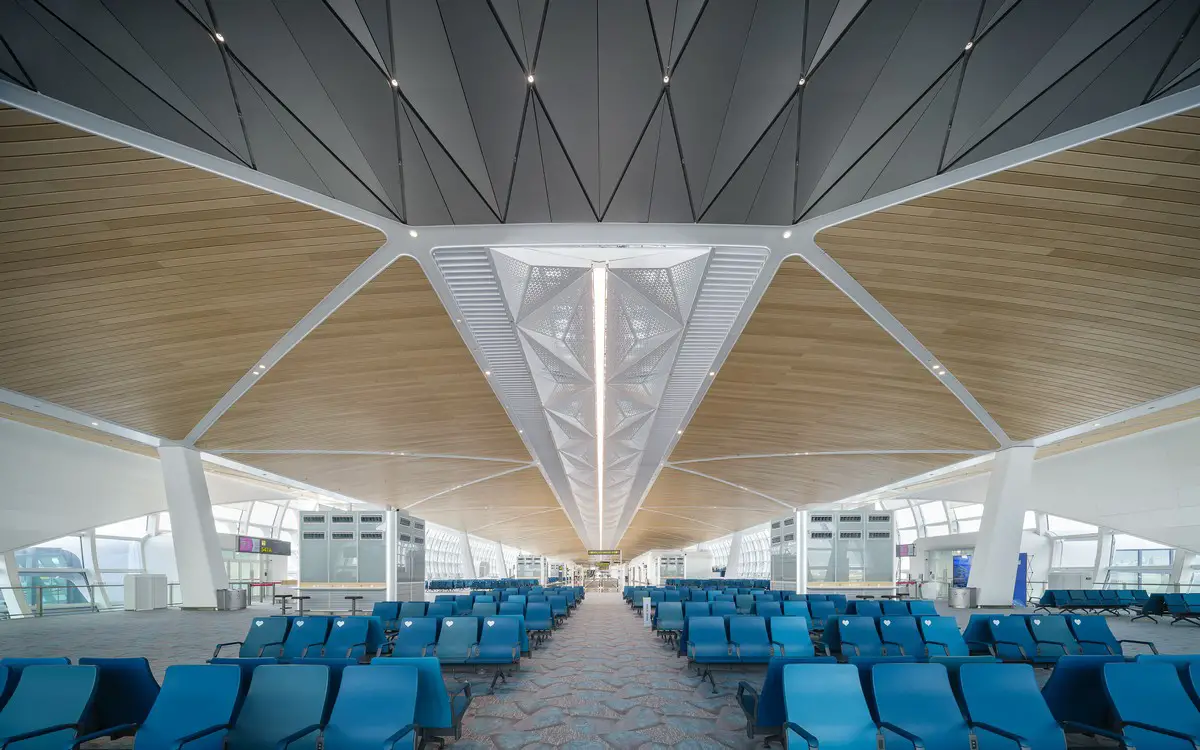

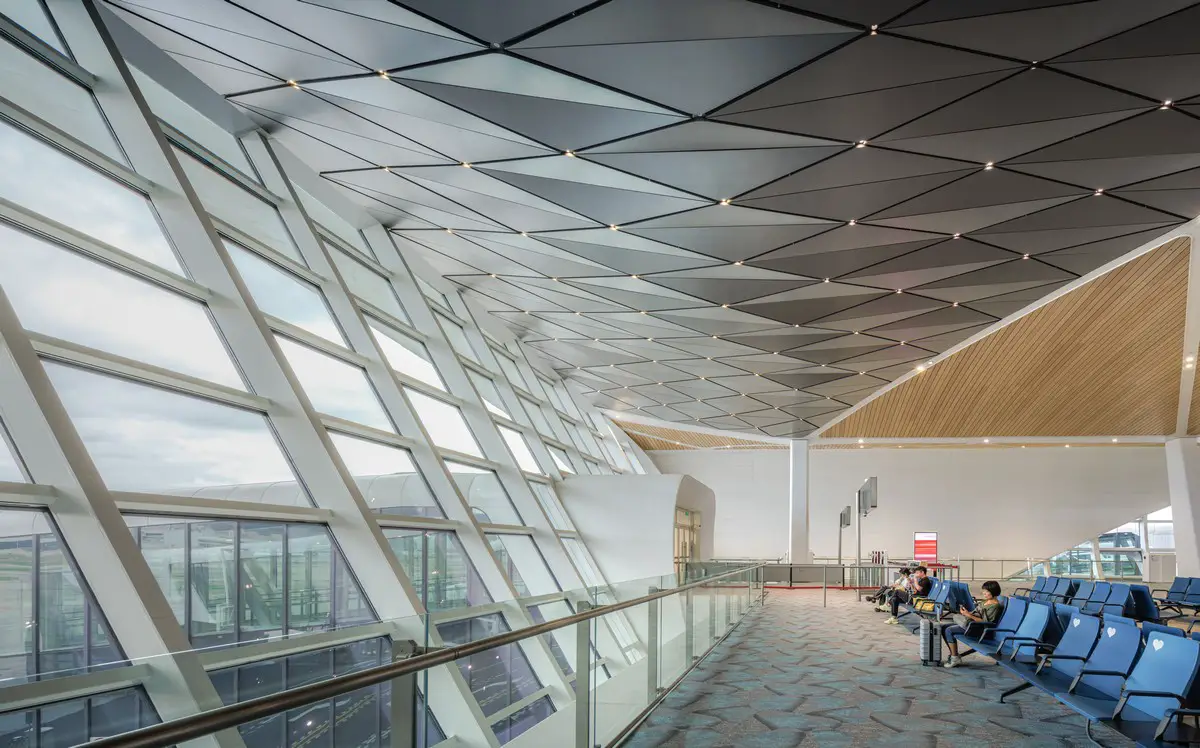

The gate lounges feature curved, double-height glass façades that harmonise with the form of Terminal 3, offering passengers breath-taking views of the airfield. The #façade incorporates individual shading devices optimised to the building’s orientation. Prioritising sustainability and passenger well-being, the concourse also boasts two of the largest airside landscaped external viewing platforms in China, providing passengers with an alternative to the interior spaces.

Shenzhen Bao'an International Airport

The Concourse received China Green Building Evaluation Label – 3-Star Certification. It combines functional efficiency, aesthetic appeal, and passenger-centric design principles to enhance the airport experience and reflect the vibrant spirit of Shenzhen.

Shenzhen Bao'an International Airport Satellite Concourse

Images by Terrence Zhang, Seilao Jiong and GDAD

GDAD, Aedas, Landrum & Brown Joint-Design Shenzhen Bao’an International Airport Satellite Concourse

Shenzhen Bao’an International Airport Satellite Concourse Design

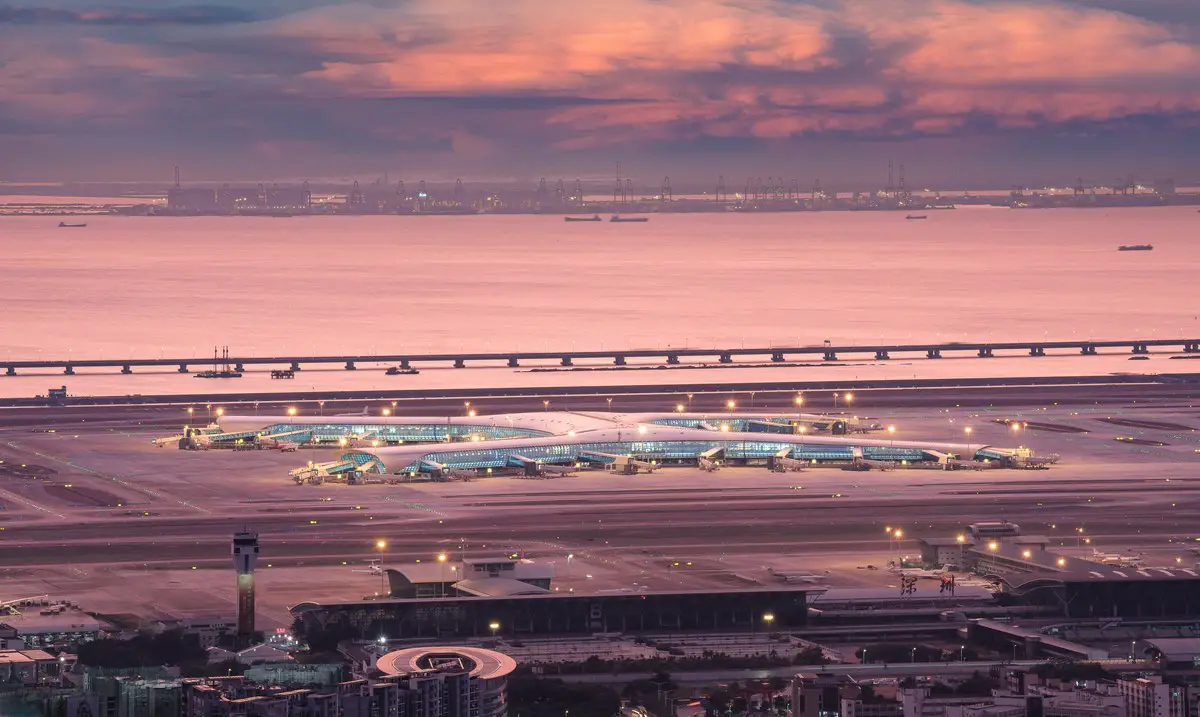

The Shenzhen Bao’an International Airport Satellite Concourse jointly designed by GDAD, Aedas, and Landrum & Brown, is officially in operation from December 2021. Set directly to the north of the existing Terminal 3 building, it is a key step in the expansion project of one of the most important aviation hubs in South China.

Shenzhen Bao'an International Airport Satellite Concourse Building

Photogs by Terrence Zhang

The 238,885 square meters Satellite Concourse will support the growing needs of the airport and serve up to 22 million passengers per annum. Arranged on the airport’s central axis with Terminal 3 and the future Terminal 2, the buildings are efficiently connected by the Automated People Mover (APM) system, as well as the baggage handling and goods delivery systems.

Shenzhen Bao'an International Airport Satellite Concourse Building

“The organising principles are functionality and flexibility, with an overarching goal to provide a seamless travelling experience that focuses on passengers’ wellbeing.” This vision, articulated by Aedas Executive Director Albert Tong, is illustrated by the comprehensive and well considered design.

Shenzhen Bao'an International Airport Satellite Concourse China

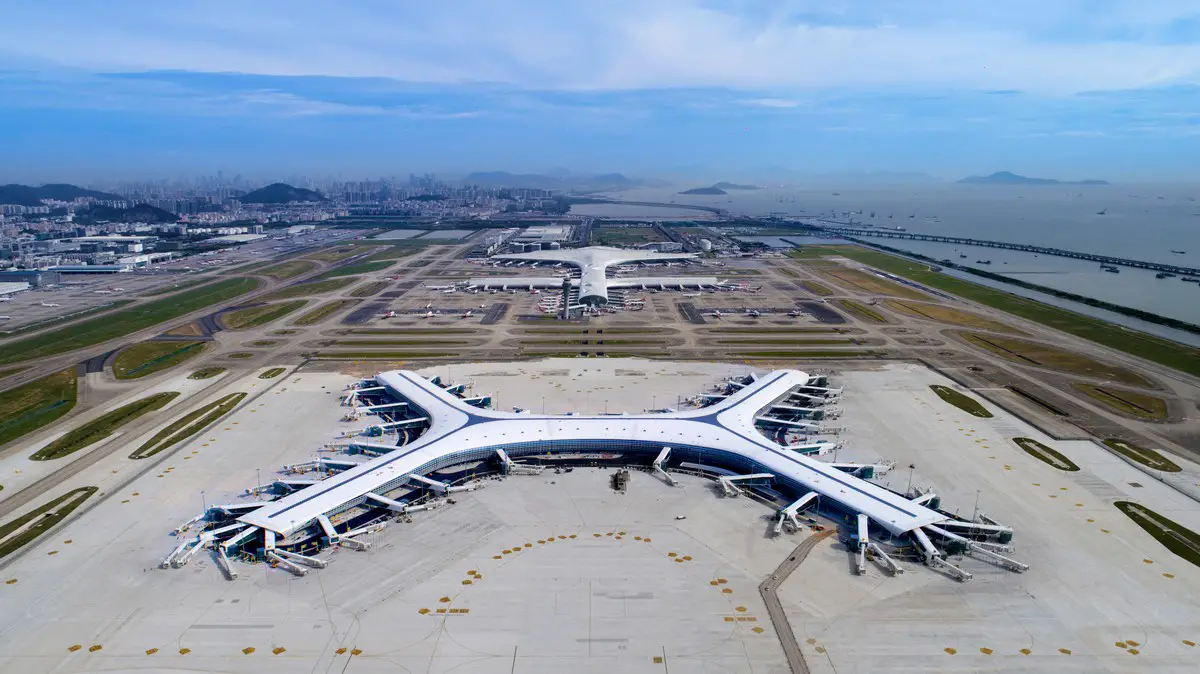

Based on the design brief and extensive research, the optimized X-shape plan configuration for the Satellite Concourse allows smooth and efficient airfield operations and creates a delightful travel experience for passengers by means of the short walking distance.

Shenzhen Bao'an International Airport Satellite Concourse China

A High Performance and Green Exterior

The signature streamlined elliptical section gives the concourse its unique apprerance and spatial character, whilst also acknowledging the form of existing Terminal 3. The layout of the roof skylights was inspired by the gently curving rivers of the region, and besides bringing natural light deep into the heart of the building, the pattern of daylight on the ceiling also serves as an intuitive wayfinding device for the passengers from inside the Concourse.

Shenzhen Bao'an International Airport Satellite Concourse China

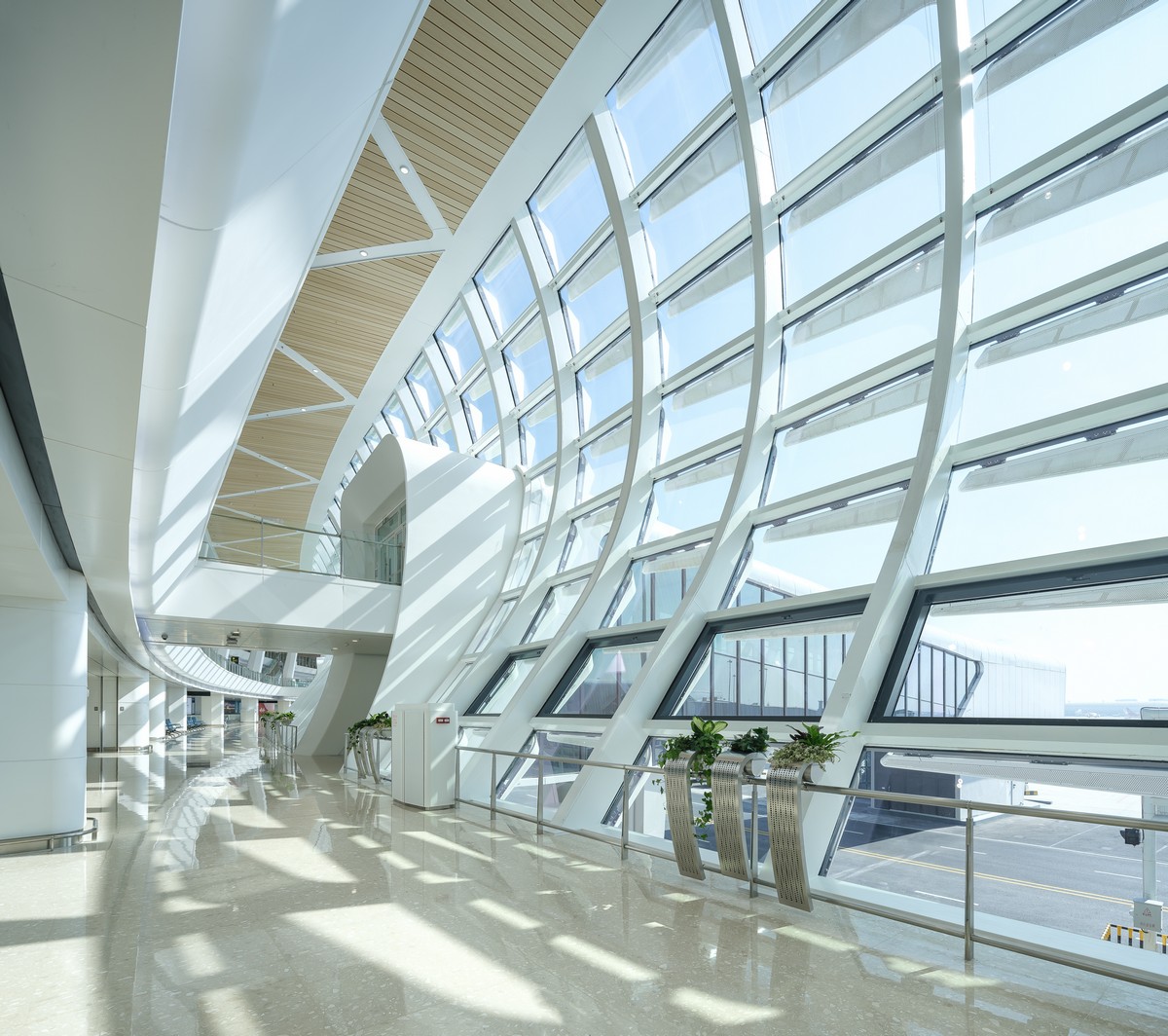

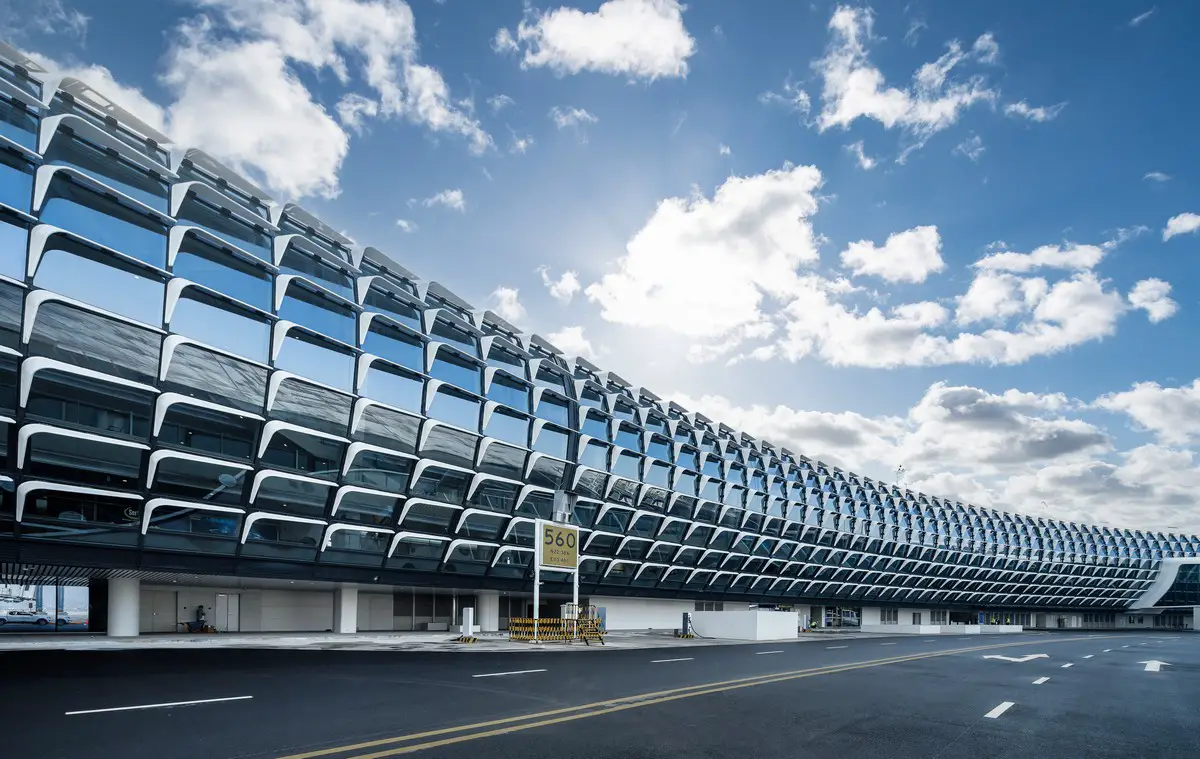

The dynamic external facade shading devices vastly reduce heat gain and, in tandem with internal shading systems, contribute significantly to energy saving. By employing advanced software optimization, the shading devices were organized into four modular types to save cost and allow rapid construction. The curved, lightweight double-storey curtain wall gives both departing and arriving passengers a spectacular, panoramic views of the airport.

Shenzhen Bao'an International Airport Satellite Concourse China

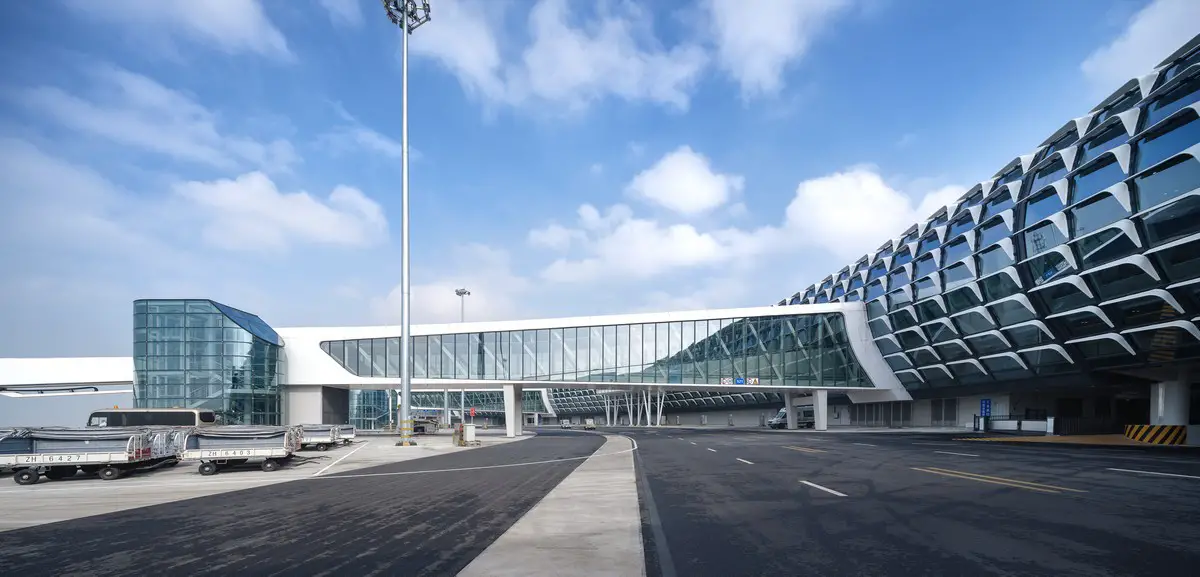

The form and design of the elegant fixed link bridges were considered holistically with the concourse building. The generous 5.4m internal width and airy feel enhances the bridges beyond their functional role as linkages and appreciably improves the passengers’ boarding experience.

Shenzhen Bao'an International Airport Satellite Concourse China

The satellite concourse also incorporates two outdoor landscaped viewing platforms, overlooking the Shenzhen cityscape and Pearl River estuary. This, along with the numerous innovative green features, has justly earned the Satellite Concourse its GBEL Three-Star Certification.

Shenzhen Bao'an International Airport Satellite Concourse China

A Calm and Humane Interior

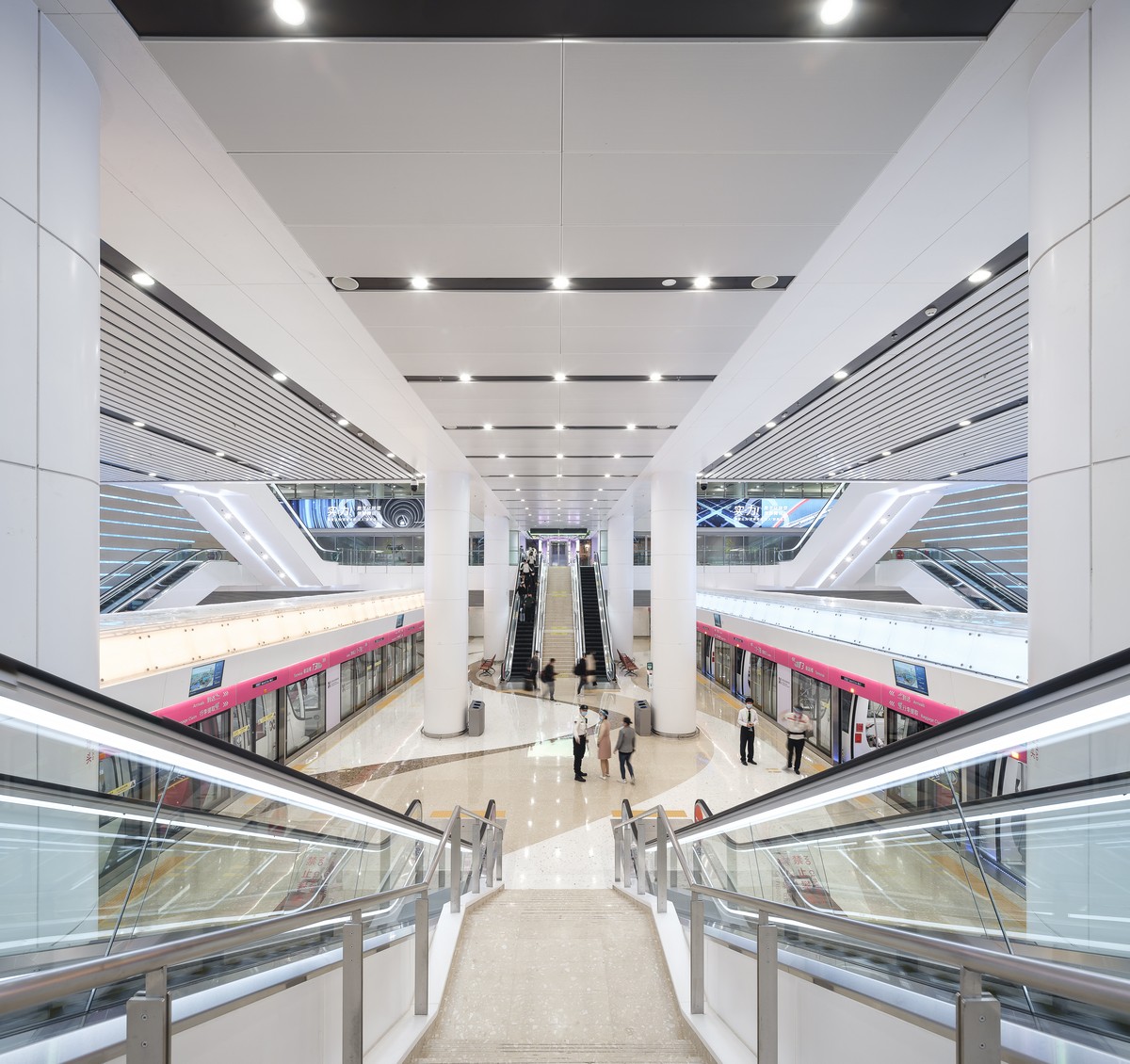

The design adopted people-oriented principles from the outset, starting with the must-ride APM system. The high-headroom APM platforms are finished with warm-toned stone wall cladding and floorings, with a bright white ceilings to further emphasize the height and airiness; the integrated “Wings” LED light installation on the walls of the departures platform further enlivens the space and serve as a wayfinding device leading passengers up the escalators. On the arrivals platform, back-lit glass panels above the platform screen doors changes colour as the next train arrives. These features aim to deliver a stress-free and seamless transit experience.

Shenzhen Bao'an International Airport Satellite Concourse Building

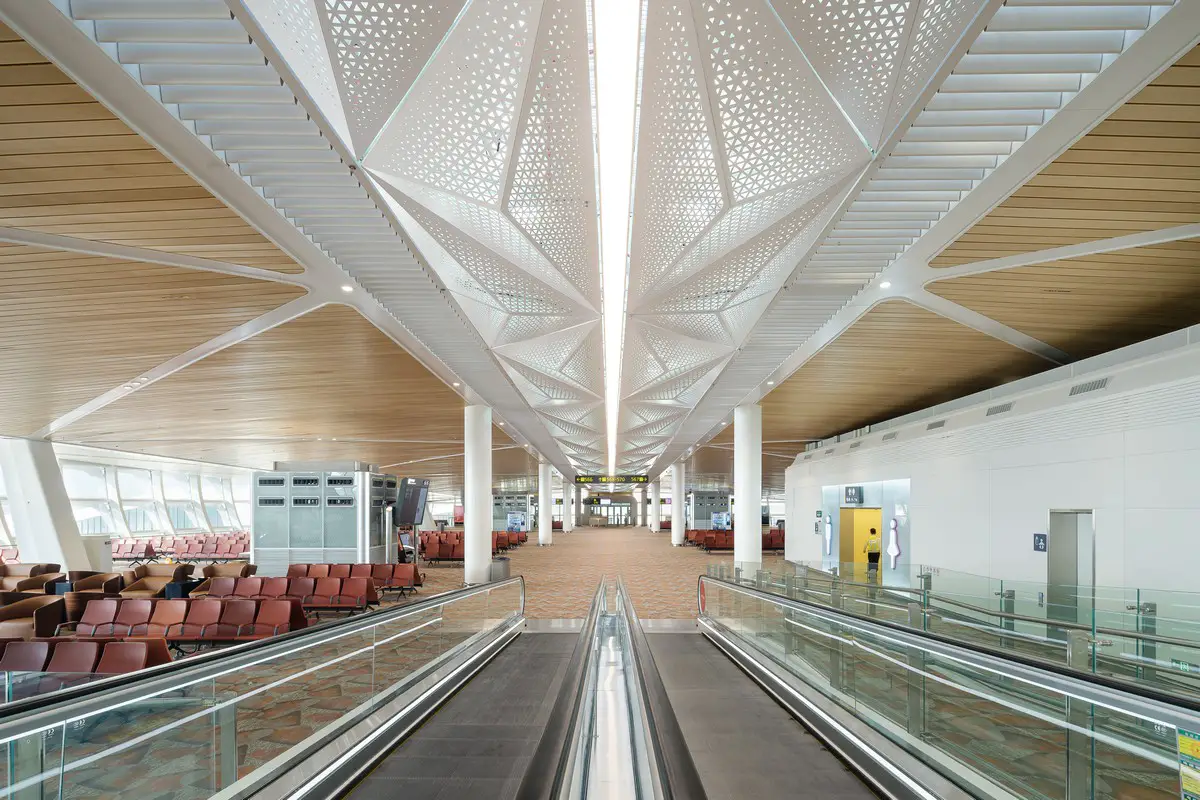

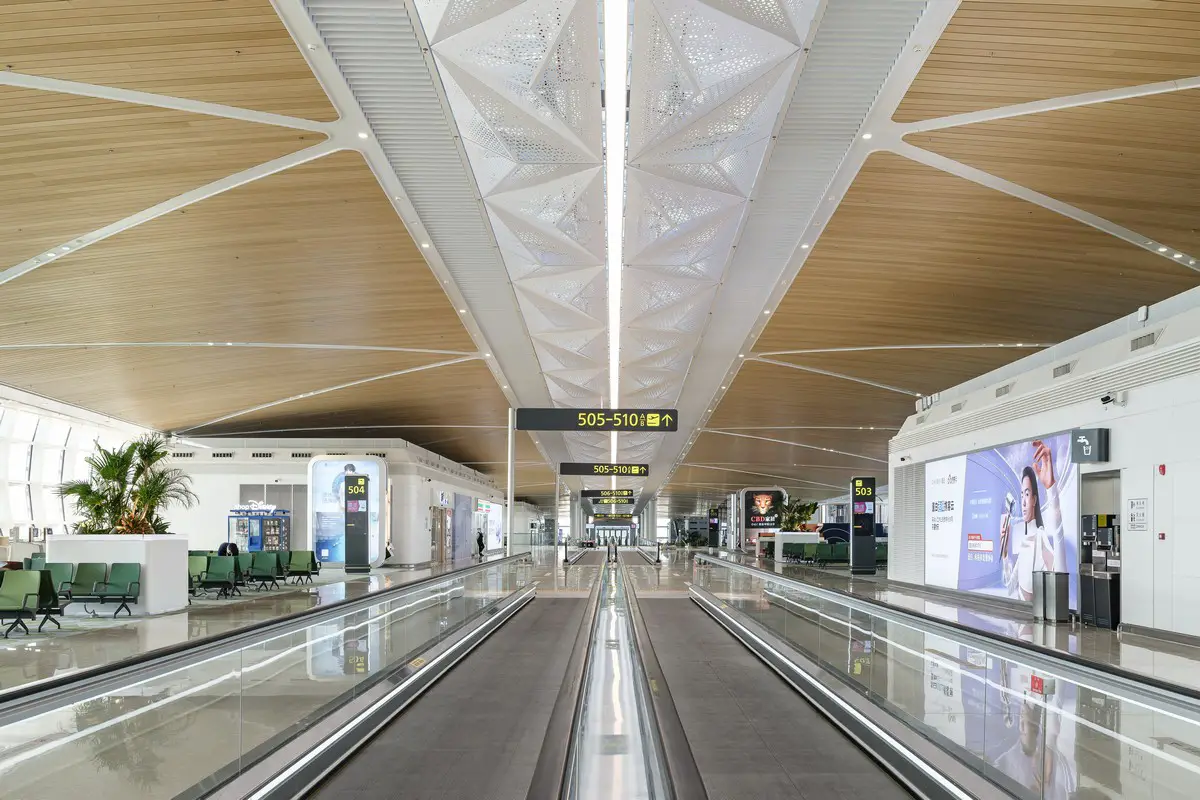

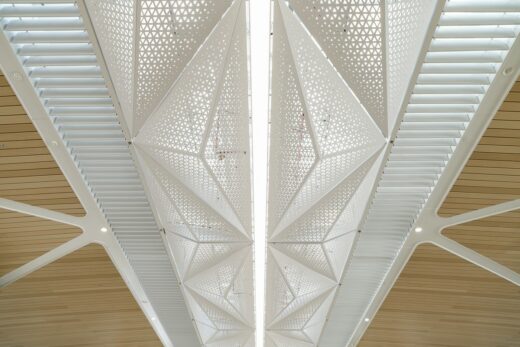

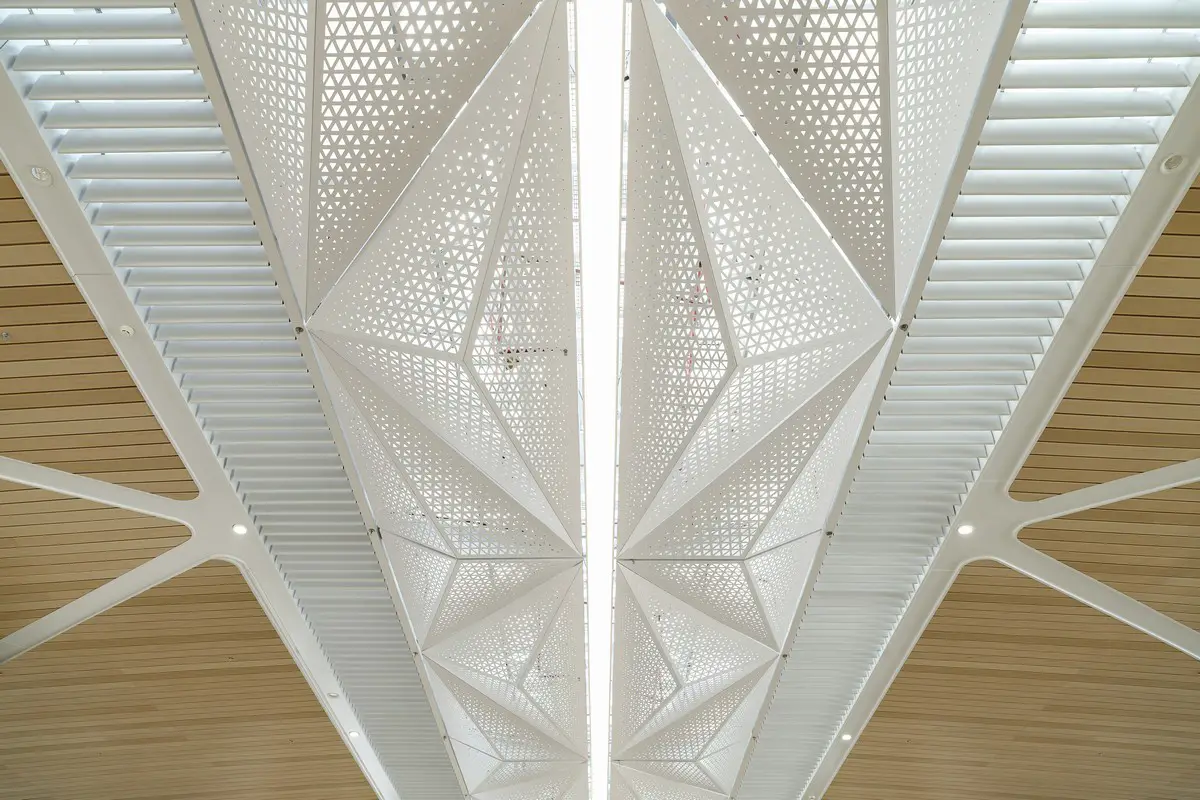

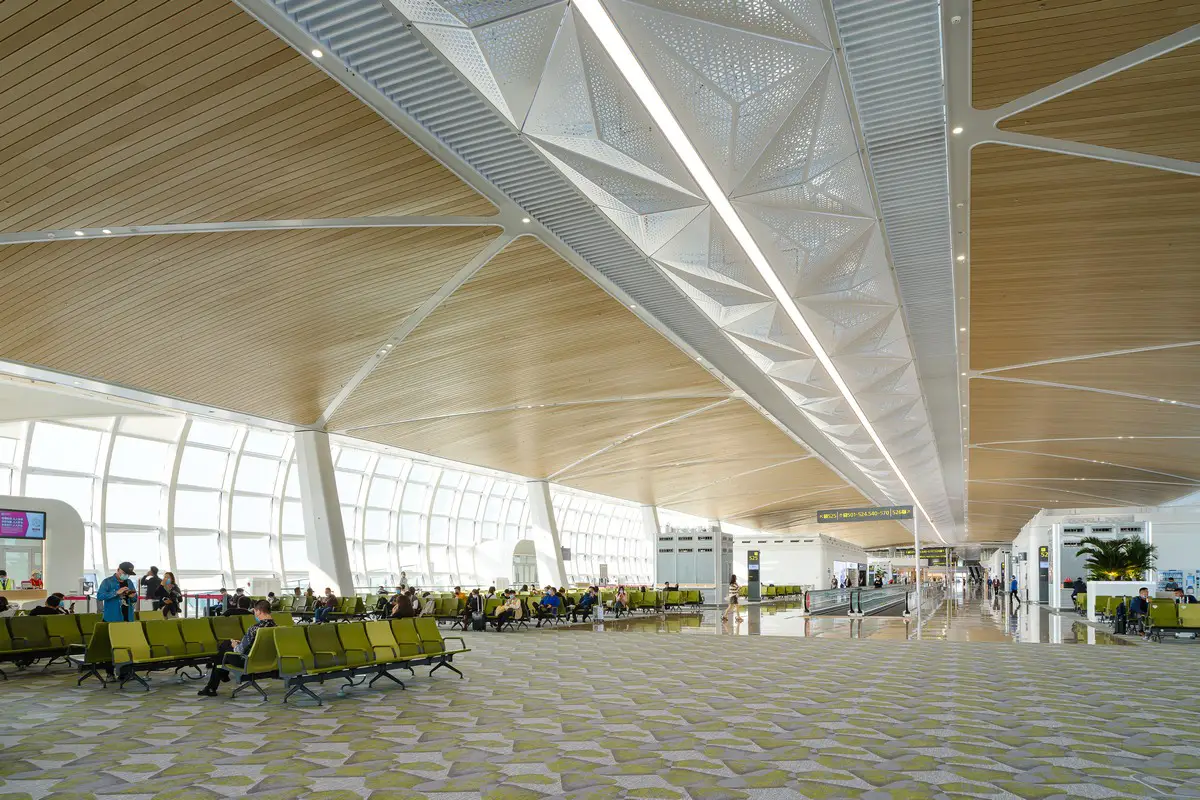

Leaving the APM station behind, passengers arrive in the light-filled, landscaped grand atrium space in heart of the Concourse. This space, and the rest of the concourse is lit by the 1.2km long skylight system, which brings in diffused natural daylight through the perforated diamond panels. Framed by the warm, triangular timber toned ceiling, the composition also provides a visual aid to guide passengers towards their gate.

Shenzhen Bao'an International Airport Satellite Concourse Building

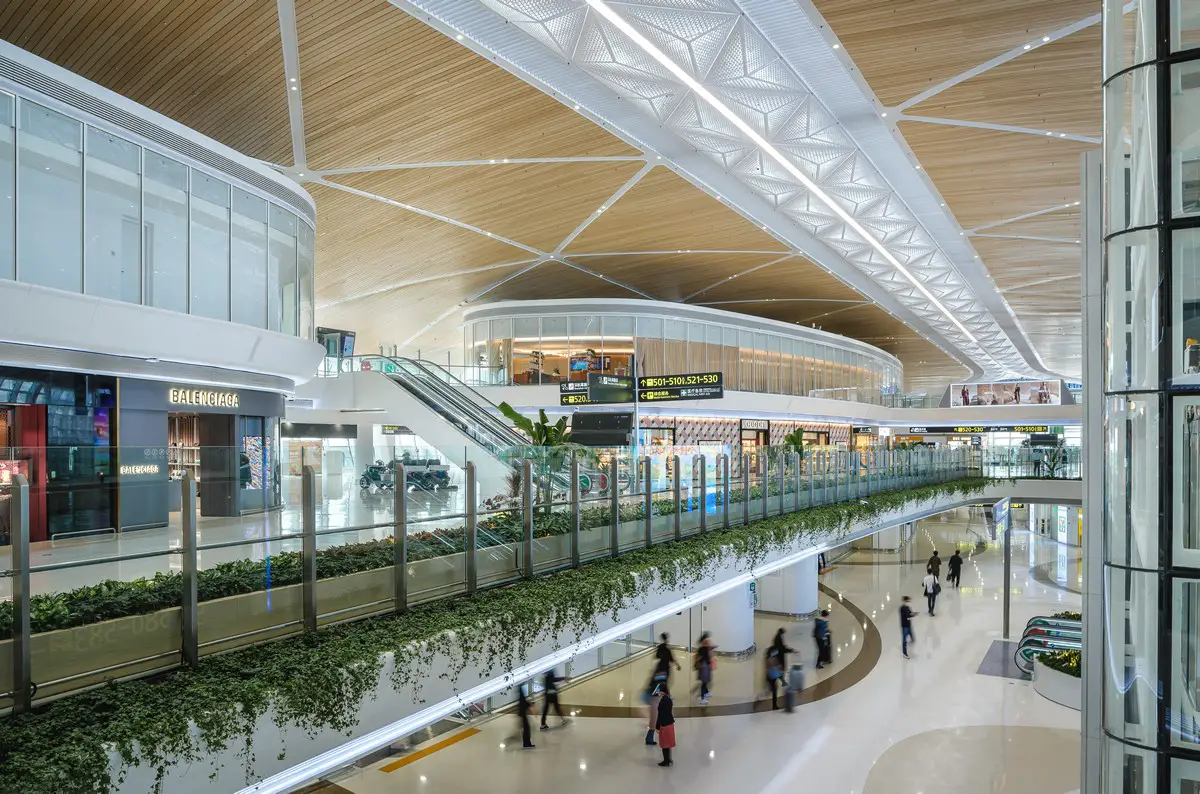

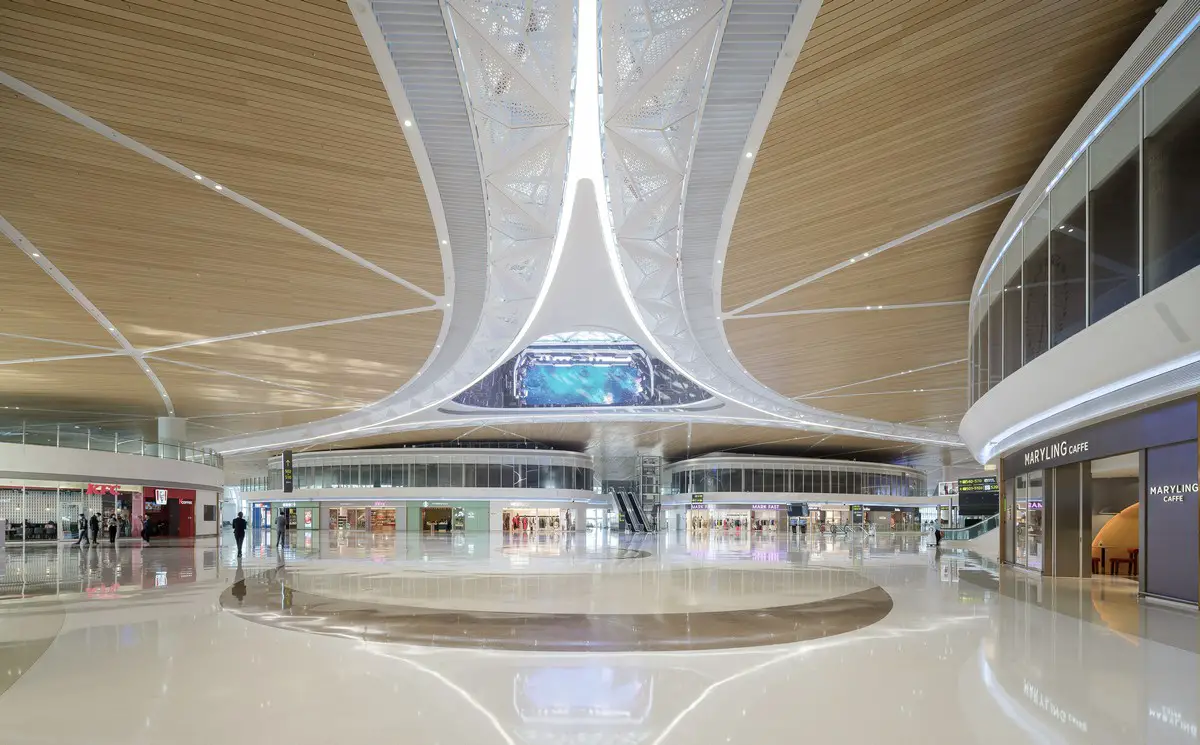

Around the atrium is the multi-level Shenzhen-themed retail and food & beverage experience. Here, the vibrant shopfronts are set against a backdrop with carefully orchestrated materials and delicate colour palette that contribute to the warm and welcoming ambience.

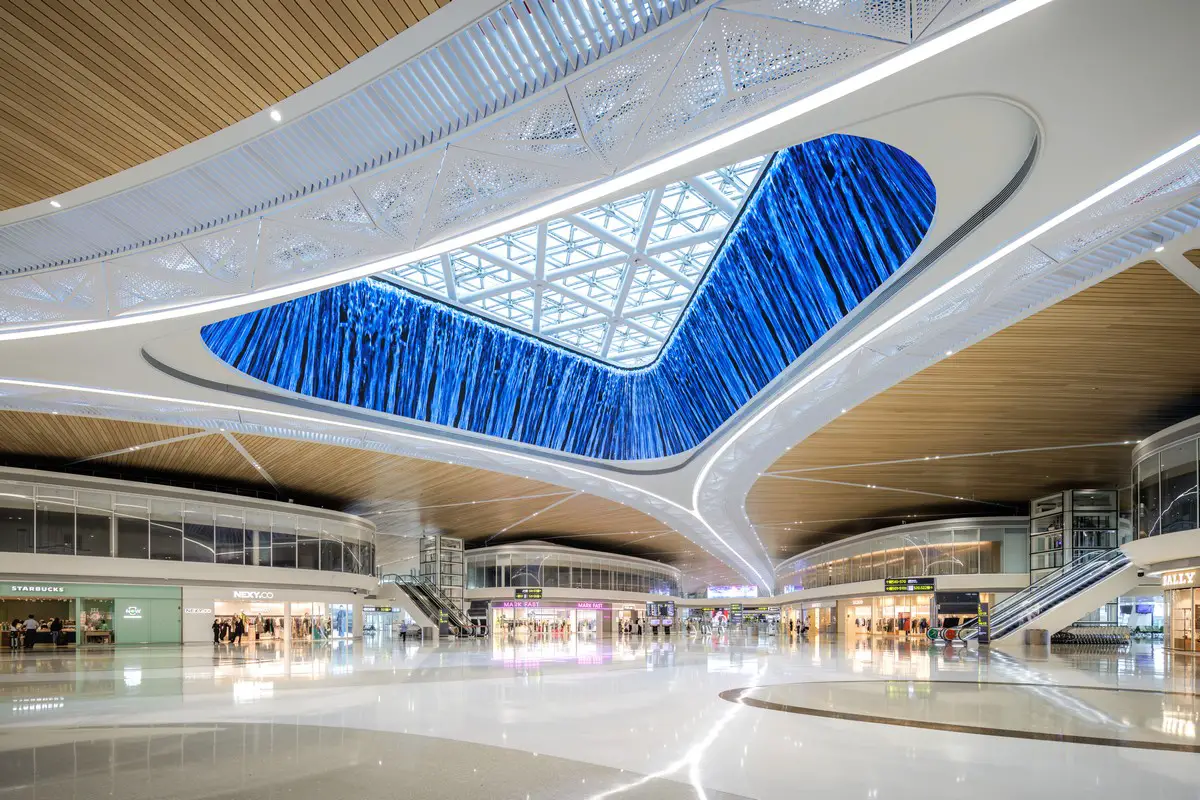

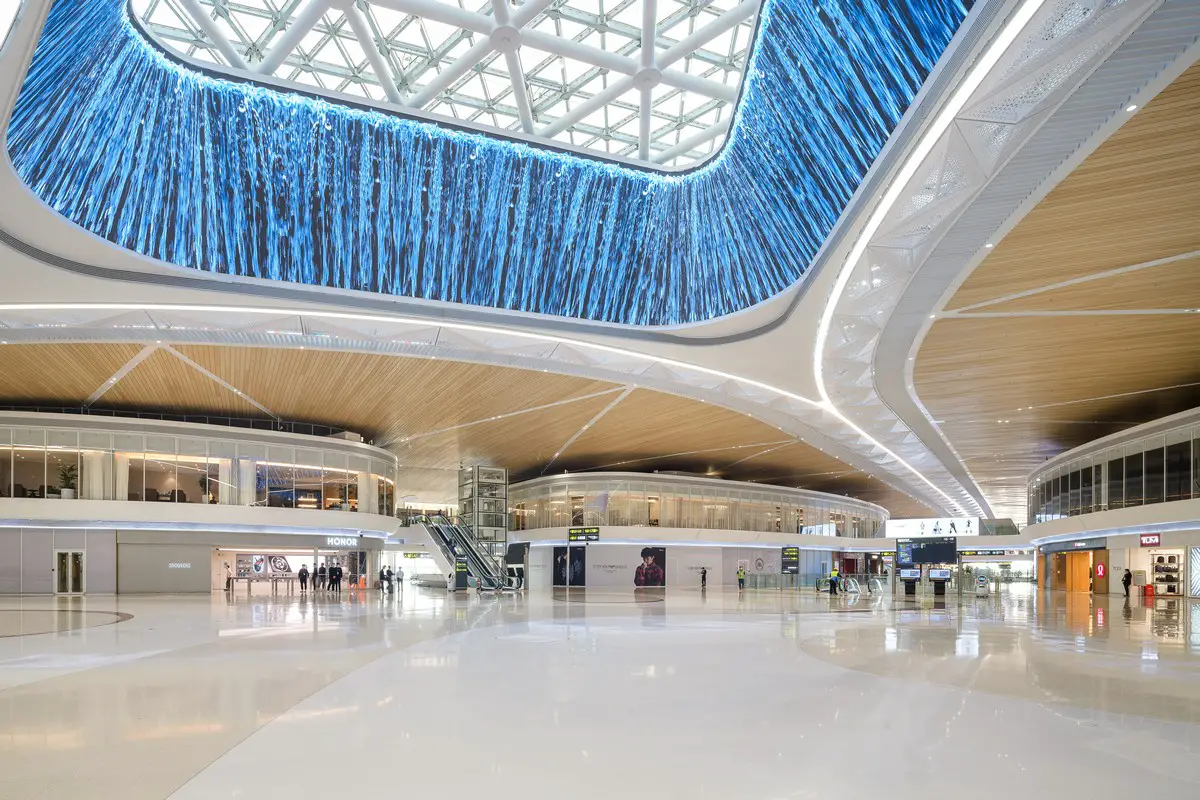

The “Gemini Plazas” at each end of the retail area has a stunning height of 17 meters. Animated by the LED screens that surround the triangular feature skylights, they can be used of events and exhibitions to create a truly immersive, Shenzhen experience.

Shenzhen Bao'an International Airport Satellite Concourse Building

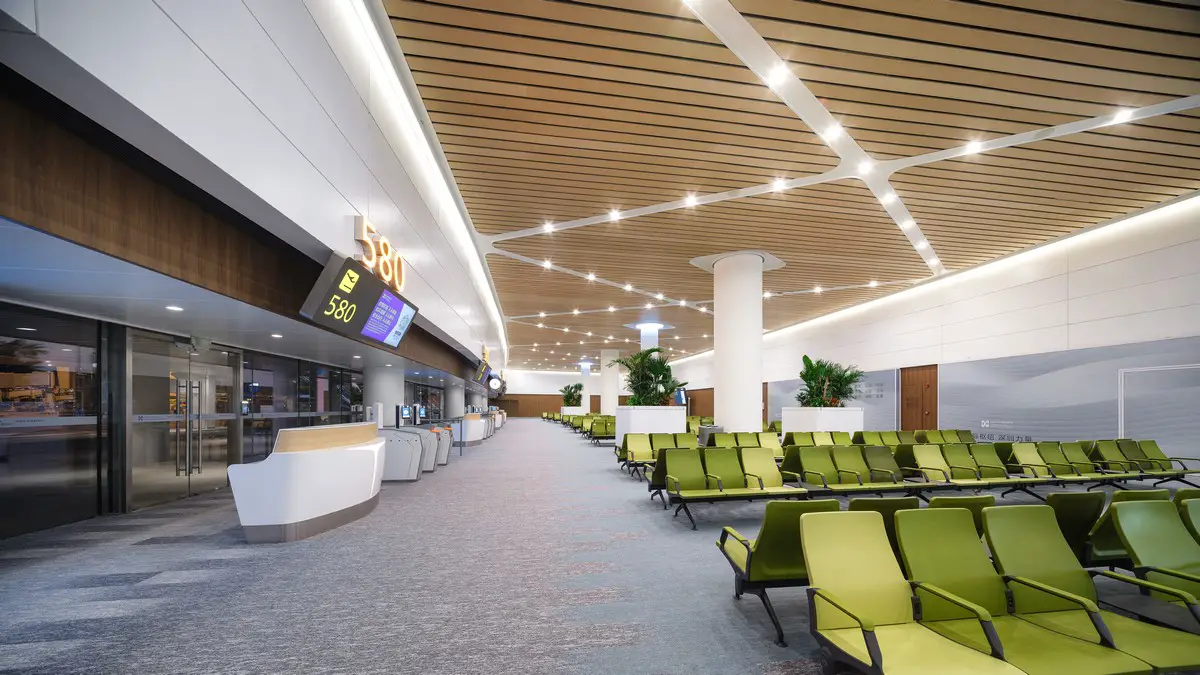

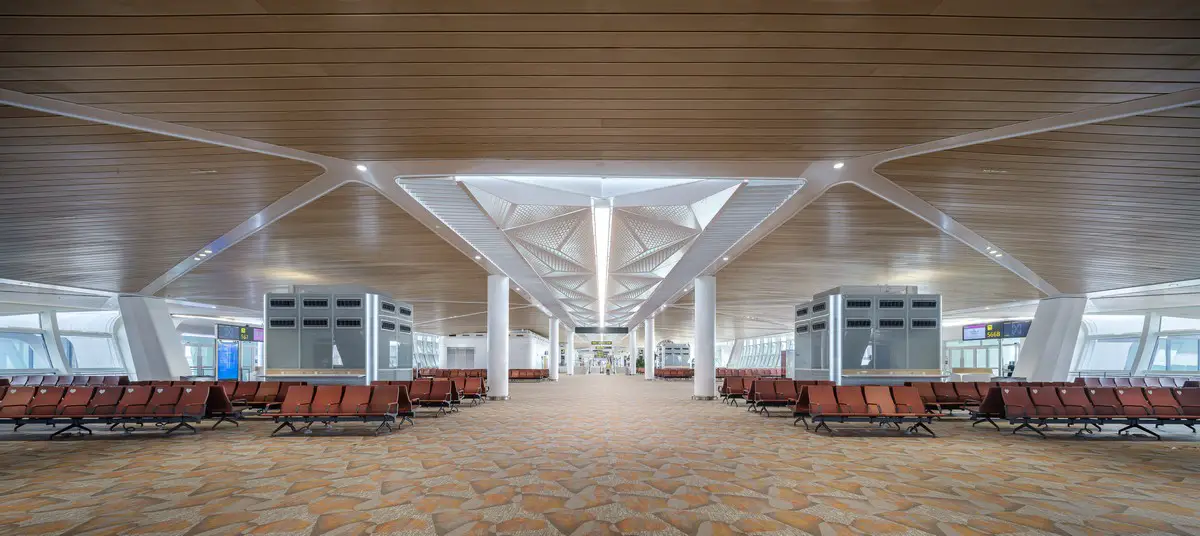

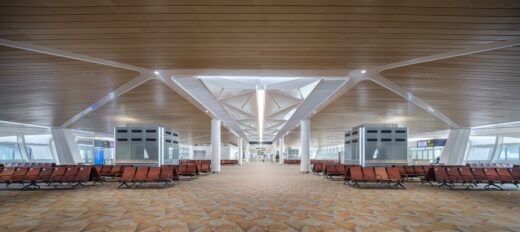

The concourse gate lounges are zoned and identified by four colors evocative of the seasons, adding a splash of vitality to the calm overall ambience.

“Besides seamless travelling, what we created in the Shenzhen Airport Satellite Concourse is an entertaining and delightful experience for passengers, a new benchmark and the future for aviation architecture.” — Aedas Executive Director Albert Tong.

Shenzhen Bao'an International Airport Satellite Concourse Building

Shenzhen Bao’an International Airport Satellite Concourse, China – Building Information

Project: Shenzhen Bao’an International Airport Satellite Concourse
Location: Shenzhen, China
Design Architect: Guangdong Province Architectural Design and Research Institute (GDAD), Aedas, Landrum & Brown (USA)
Client: Shenzhen Airport (Group) Co., Ltd.
GFA: 238,885.38sq m
Completion Year: 2021

Aedas Lead Designers: Max Connop, Global Design Principal; Albert Tong, Executive Director
GDAD Lead Designers: Chen Xiong, Zhou Chang, Luo Zhiwei, Chen Yiran, Lin Jiankang, Li Qizhen, Huang Yibin
Planning: Landrum & Brown (USA)
