Urban Planning Department and Museum

New Architectural Development in Nantong, China design by HENN, architects

24 Apr 2015

Urban Planning Department and Museum of Nantong

Design: HENN

Location: Nantong, Shanghai, China

As part of the master plan Sport Center Nantong, the new Nantong Urban Planning Museum is located prominently along the central river, whose course, together with existing cultural and commercial facilities, establish the primary East-West axis of Nantong.

Urban Planning Department and Museum of Nantong

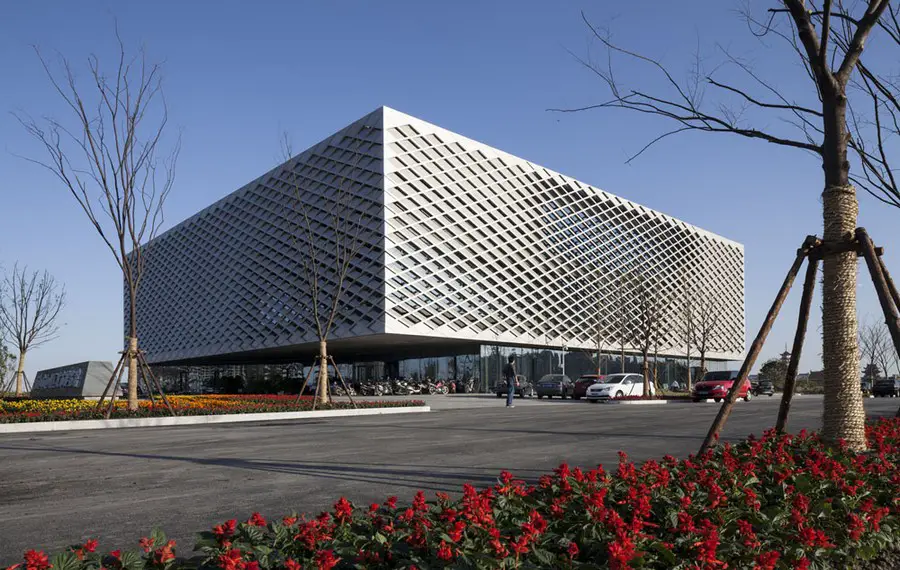

The museum is characterized as a 16 m floating volume, which rests on a offering space for special exhibitions, café and bookstore. The overall dominant form which cantilevers above the glass entry, contains the primary exhibition space, offices and conference rooms.

New Nantong Building Development

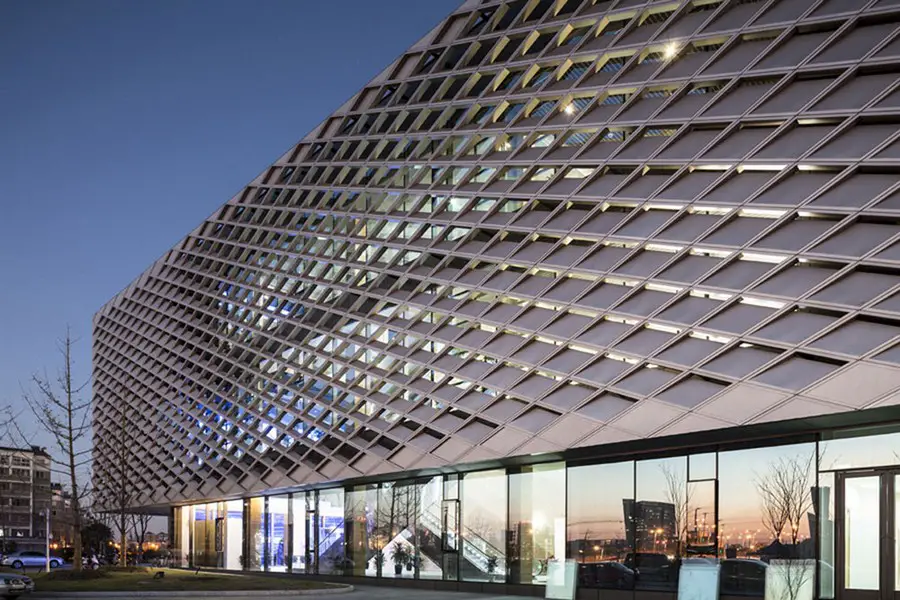

Its distinctive façade is composed of two layers: the inner which thermally seals the building envelope, and the outer, a reticulated metal structure with a gradient of varied panels.

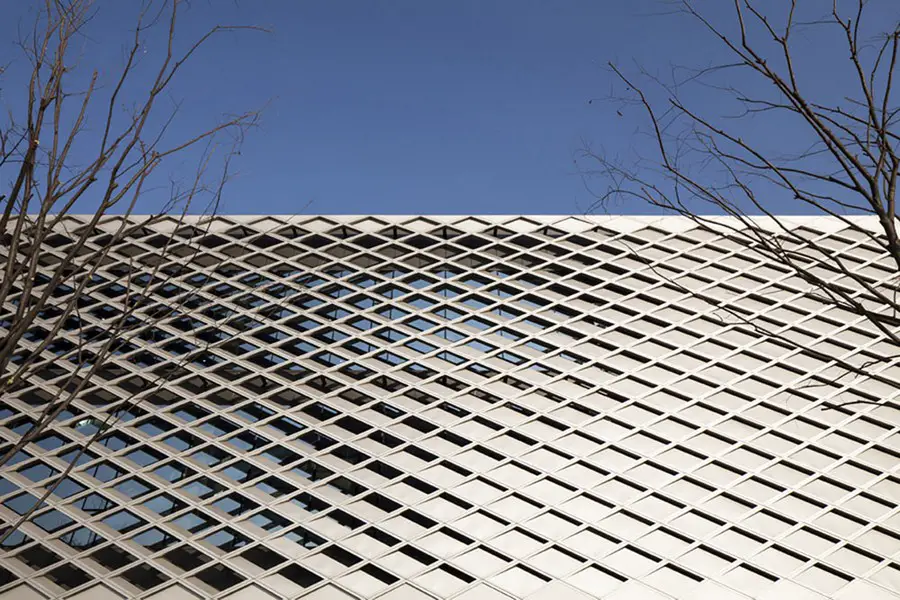

The façade’s diamond-shaped Diagrid is comprised of seven different panels that allow for varying degrees of opening from 9%-60%. This provides an opportunity for the controlled regulation of sunlight in fine increments, to accommodate the needs of the interior program.

The exhibition spaces are therefore, characterized by a predominantly closed façade with minimal openings, and the offices with maximum levels of natural daylight.

Architectural Development in Nantong, China, design by HENN architects

Urban Planning Department and Museum – Building Information

Client: Urban Planning Department of Nantong, Tongzhou
Area: Gross Floor area 8,100 sqm
Design period: 2011 – 2012
Construction period: 2012
Cost of construction: confidential
Scope: HOAI 1 – 8, executive architect
Competition 2011, 1. Prize

New Building in Nantong China by HENN architects

Photographs: Bartosz Kolonko

New Nantong Building images / information from HENN

Location: Nantong, near Shanghai, People’s Republic of China
