Moscow Polytechnic Museum Centre

Moscow Polytechnic Museum Development, Russian Educational Centre, Architecture, Architect, Image

Moscow Polytechnic Museum and Educational Centre

Sparrow Hills Development in Russia design by Massimiliano and Doriana Fuksas architects + Speech

29 Mar 2013

Design: Massimiliano and Doriana Fuksas architects + Speech

Location: Sparrow Hills, Moscow, Russia

Moscow Polytechnic Museum and Educational Centre Building

International competition for the “Moscow Polytechnic Museum and Educational Centre“, Russia, won by Massimiliano and Doriana Fuksas architects + Speech

March 2013

Massimiliano and Doriana Fuksas + Speech have won the prestigious international competition for the design of the “Moscow Polytechnic Museum and Educational Centre” in Moscow which should be realized by 2017. After the historic season of Italian architects, centuries later, an Italian architect returns to realize an important public work in Moscow.

“It’s one of my most beautiful projects and it is an Italian victory, the museum and educational center must become a milestone and reflect the image of the new generation.” Massimiliano Fuksas.

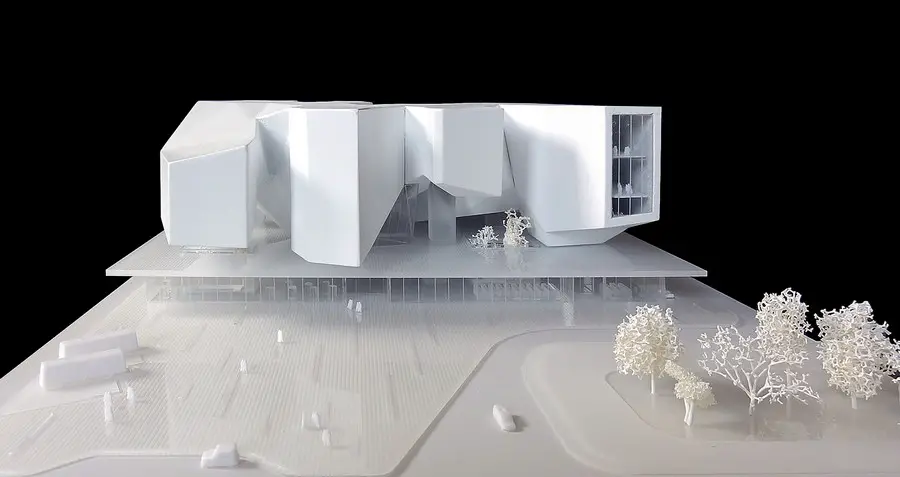

Moscow Polytechnic Museum and Educational Centre
image from architect

The “Moscow Polytechnic Museum and Educational Centre” in Moscow (about 31,403 square meters) will be located in the “Sparrow Hills”, about 10 km from the Red Square, at a cost of 180 million dollars.

Near the site there are several buildings built during the “socialist classicism”, monumental buildings, among which the library of Moscow State University.

The project is composed of four elements that make up a sculpture of irregular geometry, as cut by the wind, entirely covered by copper pre-oxidized that sends back streaks of green and blue.

The elements are connected to each other through the internal levels. They develop across and lay on a transparent case that looks at the city.

The project idea came from the desire to communicate with the architecture of the past and at the same time come into conflict with it. The monumental architecture of the surrounding buildings is in contrast with this new building that is imposing but expresses a formal complexity underlined by the color of copper pre-oxidized that covers it.

The volume of the case, having a regular layout, is functional for loading and unloading the artworks between the level -1, which include the parking, ground floor and upper levels of the four sculptural elements.

The transparent case consists of two levels. The area open to the public is situated on the ground floor and it includes the lobby that can accommodate several art installations, a cafe, a shop, two auditoriums of different sizes (between 500 and 800 seats) designed as parallelepiped made of red wood and three winter gardens with a sliding roof.

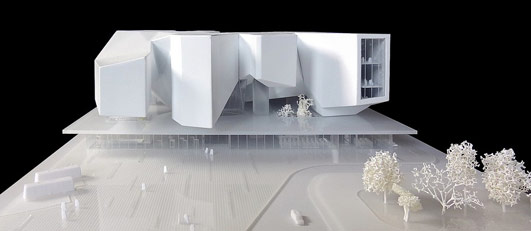

Moscow Polytechnic Museum and Educational Centre
image from architect

On the ground floor three structural volumes made of copper pre-oxidized stand out housing the vertical connections, in contrast with the formal geometry of the surrounding space.

At the top level, the mezzanine, there are the offices.

The cover made of stone of the case is conceived as a “square suspended” for the public. The sculptural part of the project is laid on it.

The sculptural elements made of copper pre-oxidized develop on three main levels. Each level corresponds to a function. Interior spaces are designed on the basis of functional flows, deliberately in contrast with the complexity of the geometry of the exterior.

The first level is dedicated to a space related to communication. There are mainly placed several conference / auditorium rooms and the Science and Technology Center with support services.

The second level is dedicated to the exhibition: exhibition halls, science / art gallery, exhibition area of the Museum’s collection, exhibition Maths, cinema / auditorium.

On the third level there are several laboratories, a library, a workshop, the exhibition area of the Science and Technology Museum Center.

Natural light enters the museum through three major cuts, two arranged vertically, one on the front side and another at the rear overlooking the near park, while a large skylight at the ceiling dominates all levels of the museum.

Moscow Polytechnic Museum and Educational Centre Project – Building Information

PROJECT: Moscow Polytechnic Museum and Educational Centre
SITE: Moscow, Russia
PERIOD: won competition March 2013
CLIENT: Polytechnic Museum Development Foundation
ARCHITECTS: Massimiliano and Doriana Fuksas
PARTNER: Speech
AREA: 31,403 sqm

PROGRAM

Primary Public Functions:
– Museum
Main functions:
Temporary Exhibition, Science&Art Gallery, Math Zone, Collection centre, 1Auditorium (1200 seats), 1Auditorium (800 seats), Cafe, Retail
8145 sqm

Secondary Public Functions:
– Science & Technology Communication Zone
Main functions:
1Small Conference Lecture Theatre (500seats), 1Medium Conference Lecture Theatre (800seats)

– Creative Labs;
– Collections Education Zone
9145 sqm

Back of the House Functions:
– Collections zone
– Public programmes zone
– Administration zone
4010 sqm

Underground parking area:
216 places
6976 sqm

External Landscaping:
2500 sqm

TEAM

Project leader: Kristian Sullivan ; Antonio Nardozzi
Project team: Eloisa Susanna Ludovica Reed Ilya Evstigneev Stefania Di Mauro Giuseppe Malfona Sek Lam Chow
Model: Nicola Cabiati Gianluca Brancaleone Marco Roma Wen Wei Cheng

ENGINEERING: Arup Moscow

COST : 180 million dollar

Moscow Polytechnic Museum and Educational Centre images / information from the Massimiliano and Doriana Fuksas architects

Moscow Polytechnic Museum design : Massimiliano and Doriana Fuksas architects
