Galleria Centercity, Cheonan Department Store

Galleria Centercity, Cheonan Store, South Korean Shopping Mall, Photos, Korea Store

Galleria Centercity in Cheonan : South Korea Department Store

Korean Shopping mall building – design by UNStudio Architects, NL

31 Mar 2011

Galleria Centercity in Cheonan

Design: UNStudio

New Shopping Mall in South Korea

Ben van Berkel / UNStudio’s Galleria Centercity in Cheonan “If museums are turning into supermarkets, why then should department stores not turn into museums?”

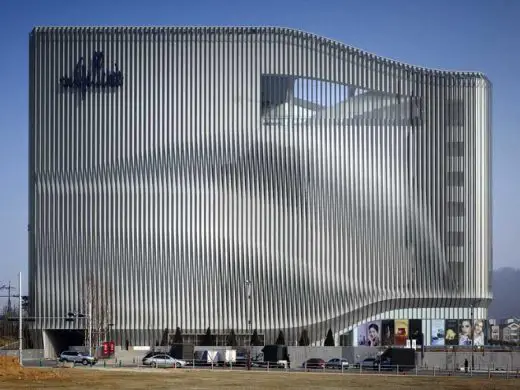

Galleria Centercity in Cheonan, South Korea building by UN Studio
Galleria Centercity in Cheonan, South Korea, UN Studio – photo by Christian Richters

“The Galleria Cheonan responds to the current retail climate in Asia, where department stores also operate as social and semi-cultural meeting places. Because of this, the quality of the public spaces within the building was treated as an integral aspect of the design.” Ben van Berkel.

Eye Shopping – Re-conquering the public domain within a commercial destination

UNStudio’s Galleria Centercity Department Store in the Korean city of Cheonan reclaims the social and cultural space within the private, commercial large scale department store.

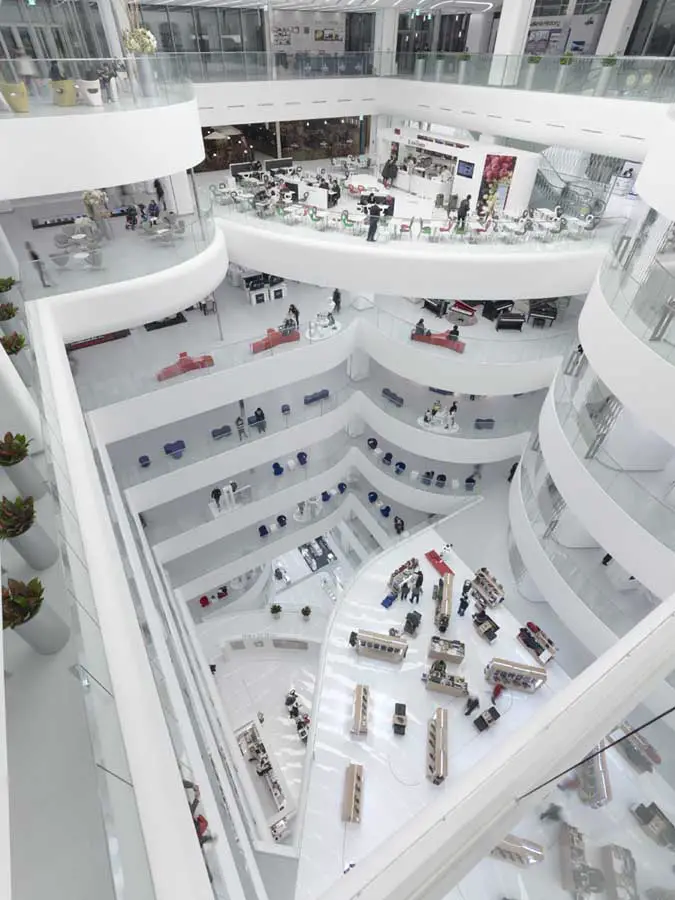

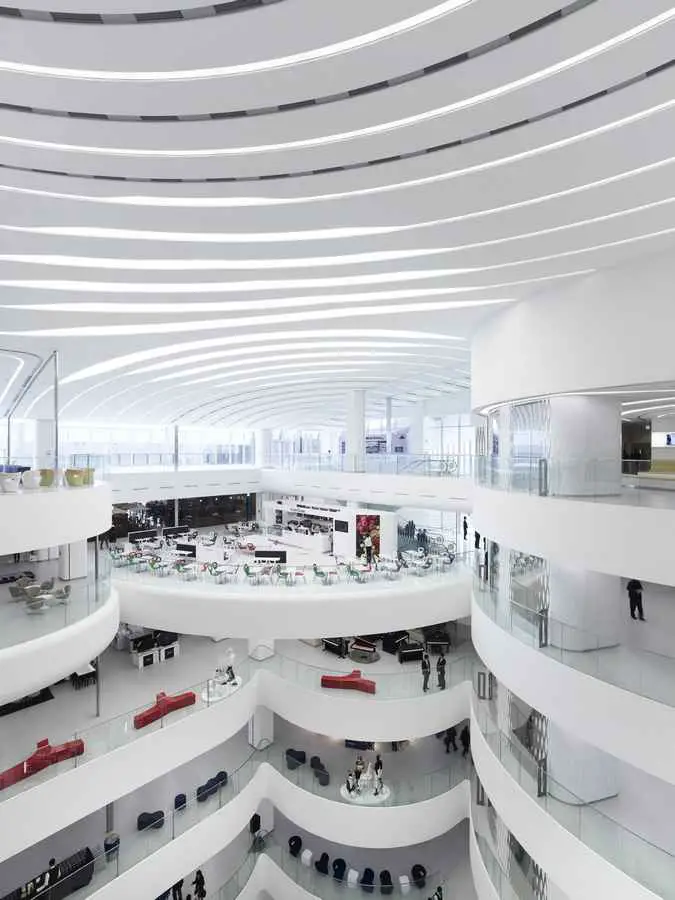

Galleria Centercity in Cheonan, South Korea department store atrium
Galleria Centercity in Cheonan, South Korea, UN Studio – photo by Christian Richters

Rather than being the outcome of a prescriptive, standard-critical approach, the design of the Galleria Centercity is based on observations of current behavioural tendencies in large commercial spaces. Particularly in Southeast Asia, department stores serve a highly social function; people meet, gather, eat, drink and both shop and window shop in these venues. The department store is no longer solely a commercial space, it now offers the architect the opportunity to build upon and expand the social and cultural experience of the visitor. If today we are seeing the museum as a supermarket, then we are also now seeing the department store as a museum.

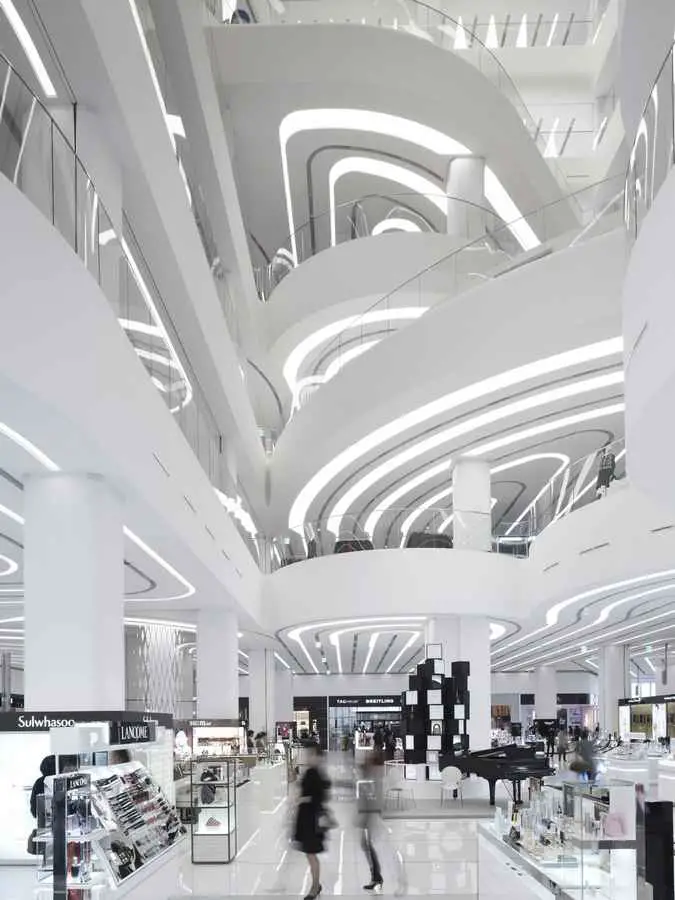

Galleria Centercity in Cheonan Galleria Centercity in Cheonan Galleria Centercity in Cheonan
Galleria Centercity in Cheonan, South Korea, UN Studio – photos by Christian Richters

An expanded interpretation of utility beyond efficiency and profitability is at the heart of the design. In view of this, along with a more varied programme, UNStudio’s design seeks to provide a stimulating experience for the visitor.

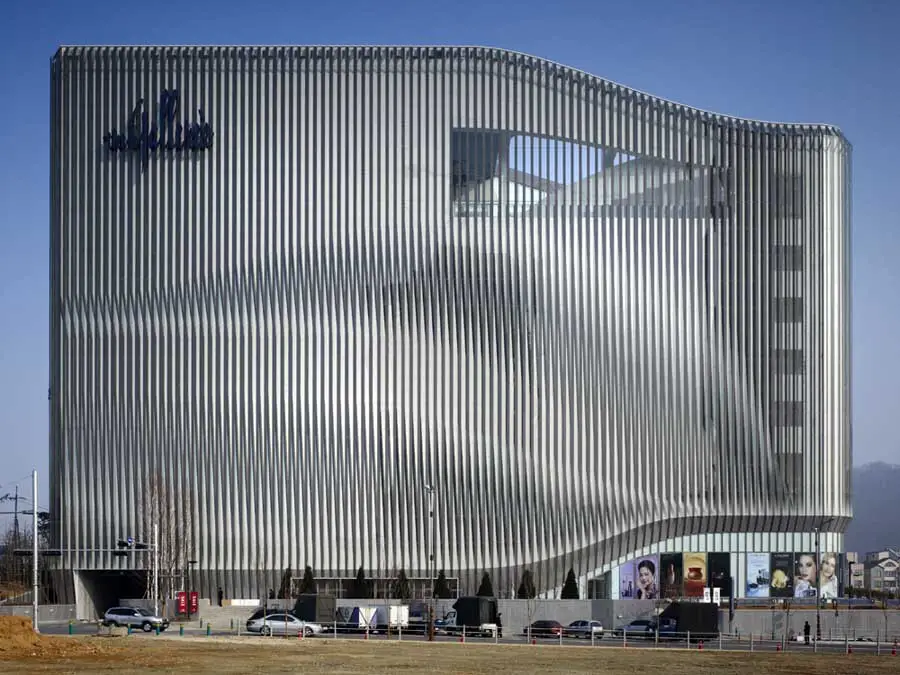

On the outside, this is translated into an appearance that is almost impossible to fix. The double layered facades are articulated in a trompe l’oeuil pattern of vertical mullions. The vertical lines on the façade make the scale of the building unreadable; does it contain three floor levels, or fifteen? On the inside, this play with scale and dimension is continued in a way that is at least as radical as the outside. Upon entering, the department store is revealed as a layered and varied space which encourages investigation and unfolds as you move through and up the building.

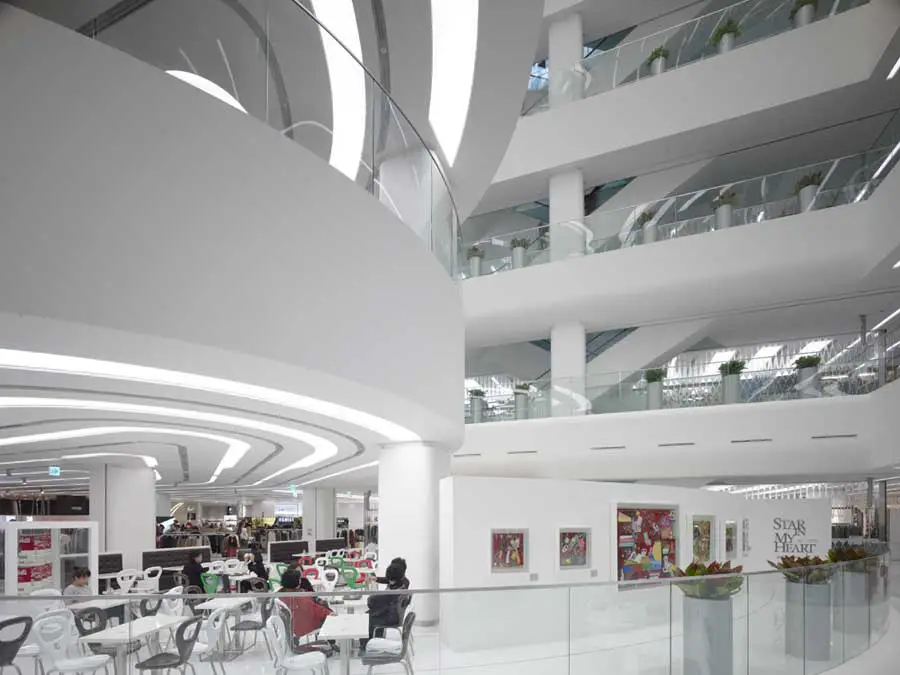

Galleria Centercity Galleria Centercity Galleria Centercity
Galleria Centercity in Cheonan, South Korea, UN Studio – photos by Christian Richters

Programmatically, the Galleria Cheonan incorporates a number of cultural and public spaces, including an art and cultural centre and a vip room. In the basement, a food court and specialty supermarket constitute another distinct destination within the building, which is simultaneously integrated with the overall design strategy.

Cheonan – New city development as platform for innovation
Situated some 80km south of Seoul, Cheonan is well connected to the capital by railway and road, with a new high speed rail link having recently been completed. The area around the new high speed terminal is under development and – prominently visible from the main road – the Galleria Centercity marks the entrance to this new development area.

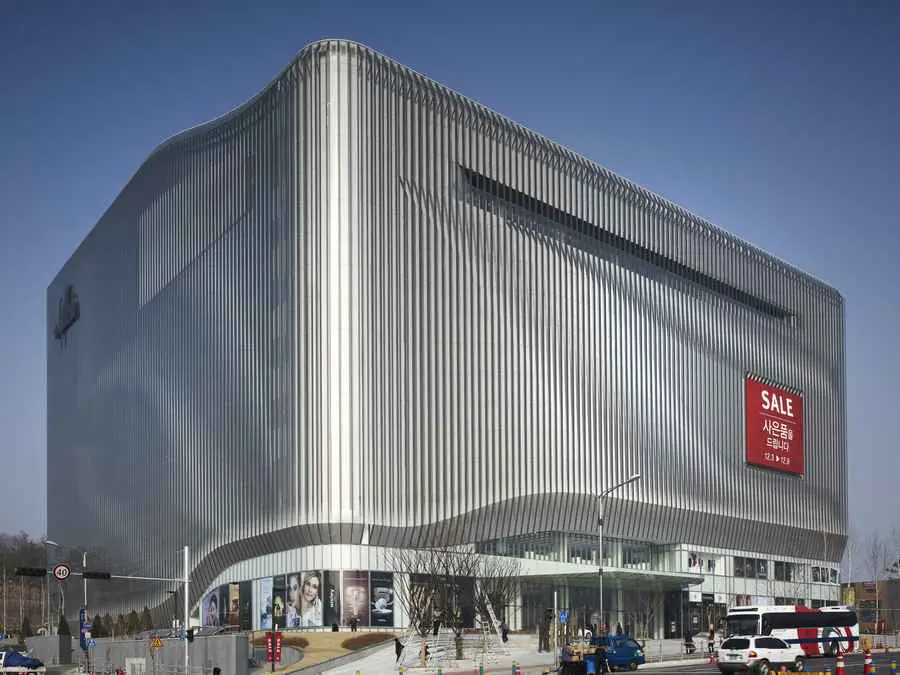

Galleria Centercity in Cheonan Galleria Centercity in Cheonan Galleria Centercity in Cheonan
Galleria Centercity in Cheonan, South Korea, UN Studio – photos by Kim Yong-kwan

“The most interesting thing to me about the effect of the Galleria Cheonan is that, because of the organisation of the atrium and the moiré treatment of the facade, Illusions are created which result in the seeming alteration of scales and the creation of double images. No image is permanent in this building.” Ben van Berkel

Dynamic Flow and optical illusion on a grand scale
The main architectural theme for the Galleria Cheonan is that of dynamic flow. This is found both inside and outside. The architecture of the 66,000 m ² building responds to its central position by presenting a deliberately changeable aspect all-around. Moiré effects, special lighting and animations ensure that the outside changes appearance constantly.

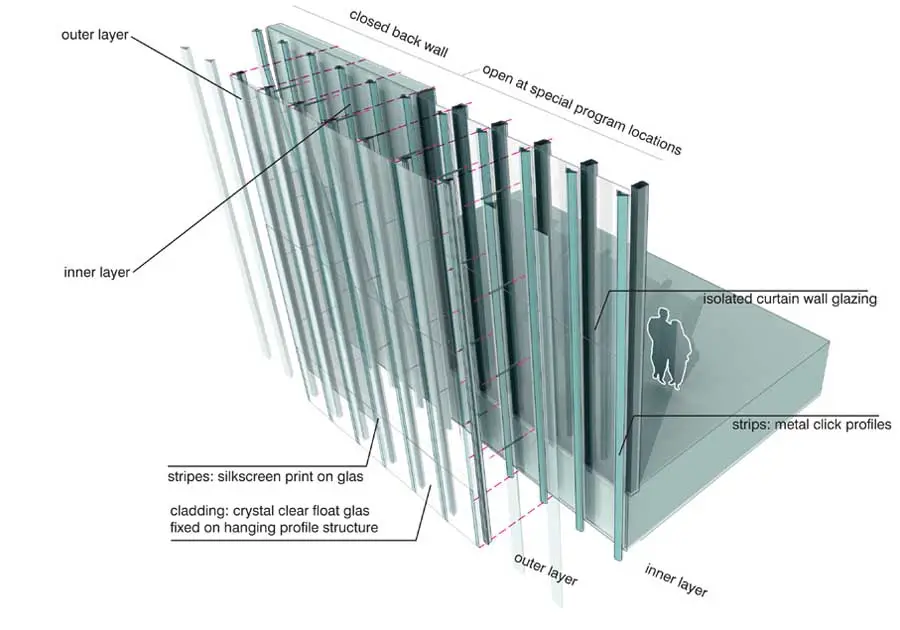

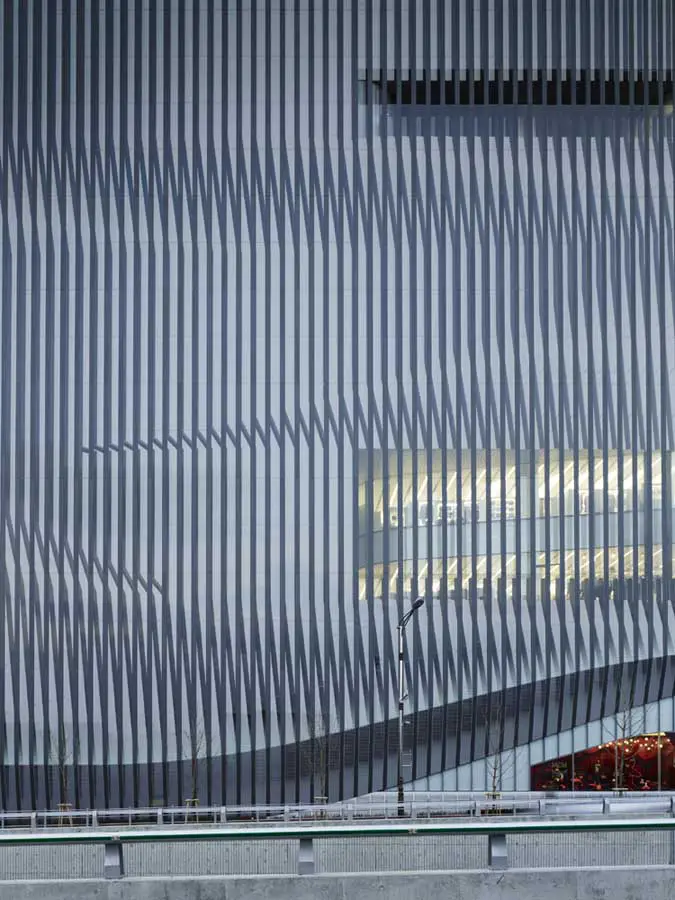

The double layered facade encloses the building, with a number of strategic openings incorporated into the inner facade layer.These openings provide daylight to the interior. At the same time, the lamellas of the outer façade prevent direct sunlight from entering the building, ensuring a cooler environment, while the use of white finishes throughout the interior minimises the need for artificial lighting.

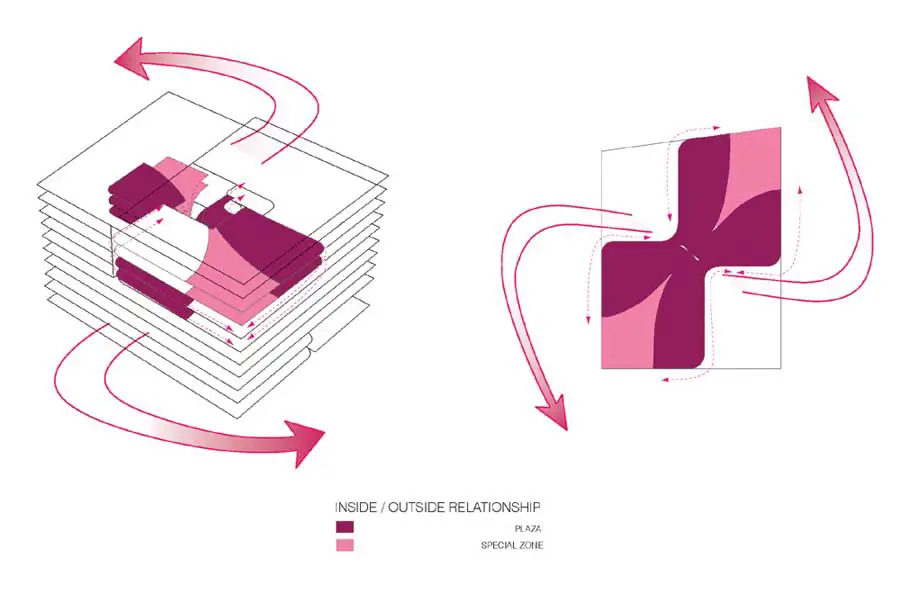

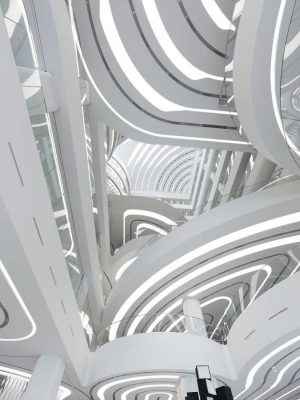

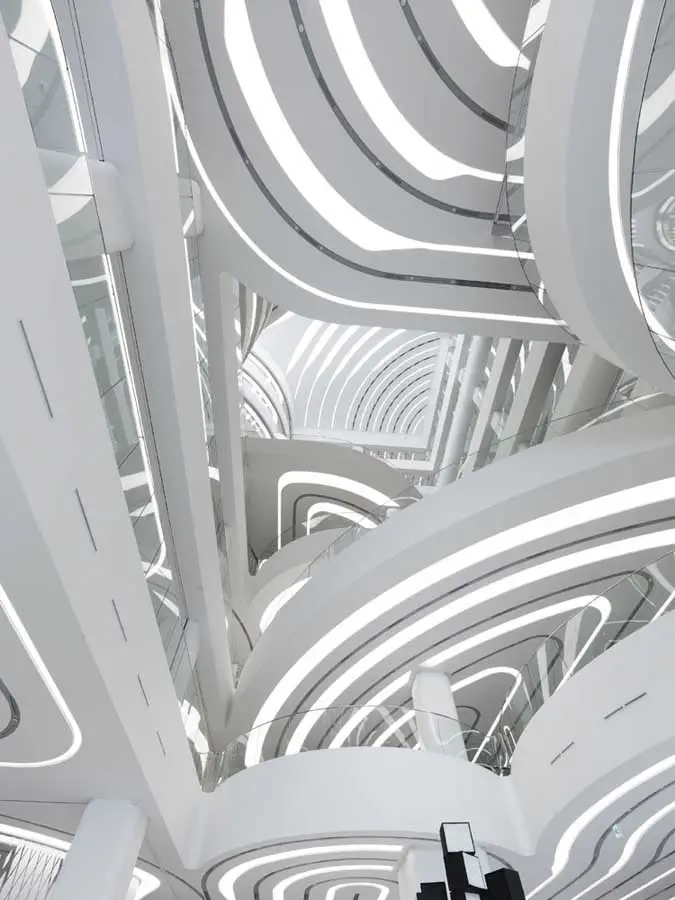

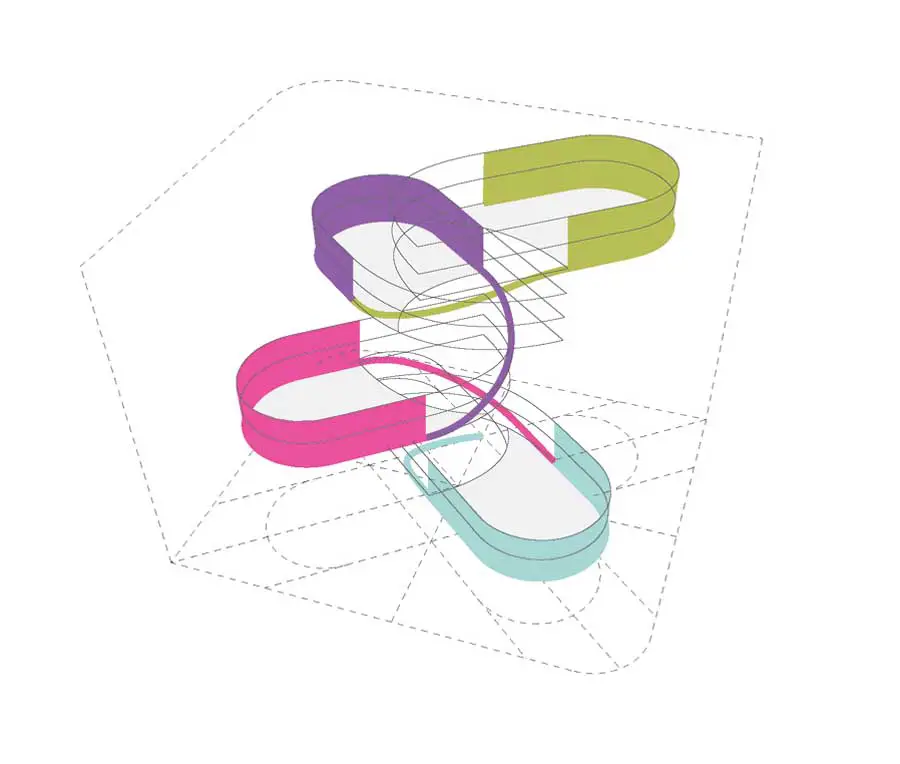

The interior derives its character from the accumulation of rounded plateaus on long columns. The repetition of curves, enhanced by coiled strip lighting in the ceilings of the platforms, gives the interior its distinctive character. Four stacked programme clusters, each encompassing three storeys and containing public plateaus, are linked to the central void. This organisation propels a fluent upstream flow of people through the building, from the ground floor atrium to the roof terrace. As the plateaus are positioned in a rotational manner in space, they enable the central space to encompass way finding, vertical circulation, orientation and act as main attractor of the department store. The spatial and visual connections within the space are designed to generate a lively and stimulating environment, in which the user is central.

Galleria Centercity in Cheonan Galleria Centercity in Cheonan Galleria Centercity in Cheonan
Galleria Centercity in Cheonan, South Korea, UN Studio – images by UNStudio

Media facade – The largest illuminated surface of its kind in the world

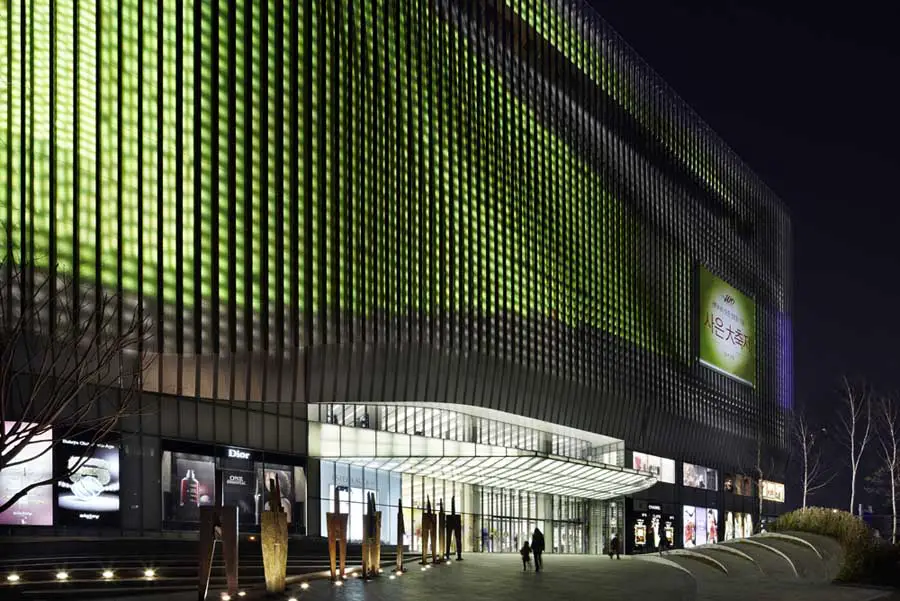

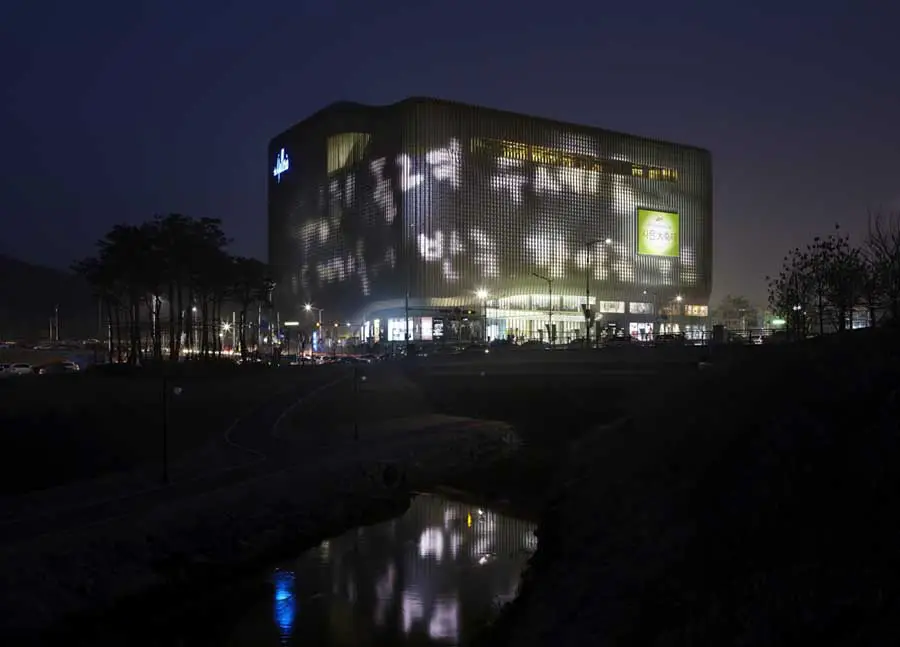

The strategy for the building enclosure consists of creating an optical illusion. During the day the building has a monochrome reflective appearance, whilst at night soft colours are used to generate waves of coloured light across the large scale illuminated surface. The lighting design was developed in parallel with the architecture and capitalises on the double layered facade structure. Computer generated animations specially designed by UNStudio are incorporated into the lighting design and refer to themes related to the department store, such as fashion, events, art and public life.

Place branding – not name branding
Rather than creating a platform for a multiple billboard effect made up of individual brand identities, the thematic animated content of the fully integrated media façade facilitates a more holistic and site-oriented urban approach to branding.

Galleria Centercity in Cheonan – Building Information

Location: 521-3 Buldang-dong, Seobuk-gu, Cheonan, Chungcheongnam-do, Korea
Program: Department Store with parking garage, supermarket and food court, restaurants, kids’ café, VIP lounge, art center and cultural center and roof top terraces
Site Area: 11,235 sqm
Building Area: 7090 sqm
Gross Floor Area: 110,530.73 sqm
Building Coverage: 63.30%
Floors: 6 below grade, 10 above grade

Structure: Steel-concrete composite columns, floor: steel structure with concrete slab.

Galleria Centercity in Cheonan – Deaign Team

Client: Hanwha Galleria Co. LTD

ARCHITECT
UNStudio, Amsterdam
Design team: Ben van Berkel, Astrid Piber with Ger Gijzen, Marc Herschel and Marianthi Tatari, Sander Versluis, Albert Gnodde, Jorg Lonkwitz, Tom Minderhoud, Lee Jae-young, Woo Jun-seung, Constantin Boincean, Yu-chen Lin
Interior: Ben van Berkel, Astrid Piber with Ger Gijzen, Cristina Bolis and Veronica Baraldi, Lee Jae-young, Felix Lohrmann, Kirsten Hollmann, Albert Gnodde, Martijn Prins, Joerg Lonkwitz, Malaica Cimenti, Florian Licht, William de Boer, Eelco Grootjes, Alexia Koch

EXECUTIVE ARCHITECT/ SITE SUPERVISION/ LANDSCAPE ARCHITECT GANSAM Architects & Partners, Seoul, Korea
Design team: Kim Tai-jip, Han Ki-young, Nam Myung-kwan, Yoon Chang-bae, Park Seong-beom, Kwon Na-young, Nam Young-ho
Interior: Lee Seung-youn, No Se-hyo, Ryu Hee-won, Na Min-hee

CONSULTANTS
Façade Consultant: KBM Co. LTD
Light Designer: a.g. Licht, Bonn, Germany
Content Programmer: Lightlife, Berlin/Cologne, Germany
Way-finding Designer: Geerdes Ontwerpen, Delft, Netherlands
Visuals: UNStudio, Amsterdam and rendertaxi, Aachen
Structural Engineer: Kopeg Engineering
Electrical Engineer: Ilshin E&C
Mechanical Engineer: Sahmwon MEC
Civil Engineer: CG E&C

CONTRACTORS
Main Contractor: Hanwha E&C Co. LTD
Façade contractor: ILJIN UNISCO, Korea
Interior: Joong Il, Won Intertech, Artifort, Gawon, Creid, Hanmi, Sangwon S&D, and Daehye

Galleria Centercity Cheonan photos by Christian Richters and Kim Yong-kwan

Galleria Centercity in Cheonan images / information from UNStudio
