School in Chiang Mai, Thailand Education Architecture, Project, Thai Building Design

Panyaden School, Thailand : Chiang Mai Building

Thai Education Project – design by 24H > architecture

31 Jan 2012

Panyaden School

Location: Chiang Mai, Thailand

Design: 24H > architecture

Panyaden School - Chiang Mai Building, Thailand

School Building in Chiang Mai

In the lush green surroundings of a former fruit orchard, where Thailand’s highest mountains meet the flat rice fields, Panyaden School contracted 24H to design its environmentally friendly school buildings.

Panyaden School Chiang Mai building in Thailand

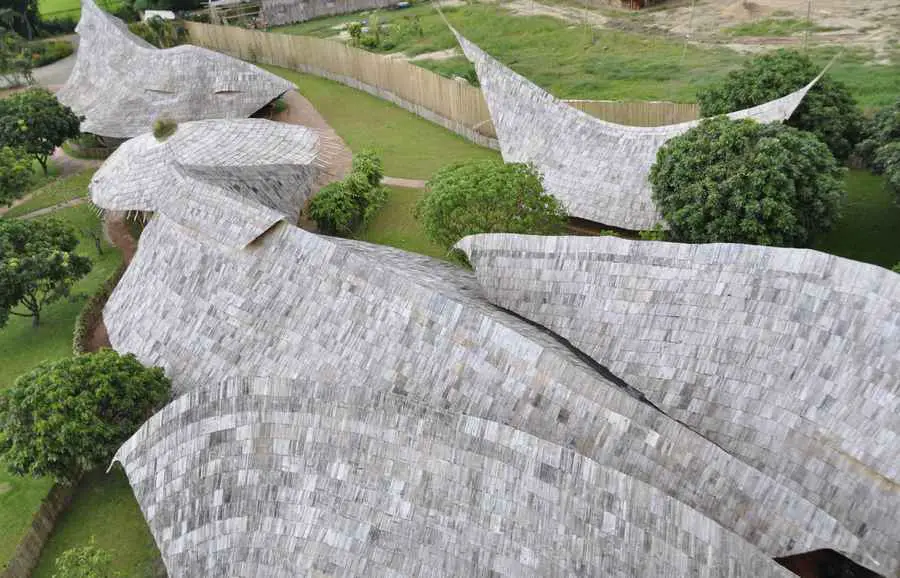

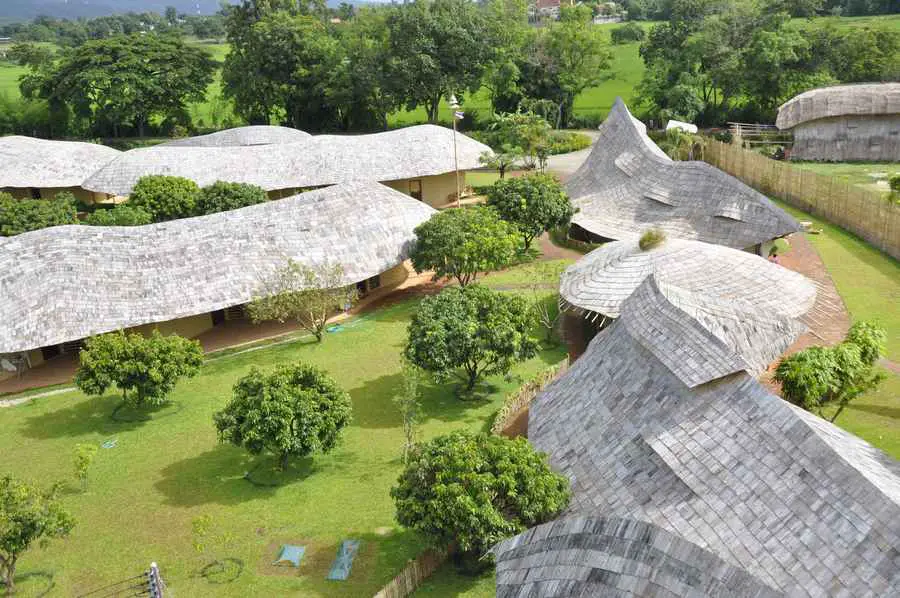

Located south of the city of Chiang Mai, this 5,000 m2 primary school consists of an informal arrangement of pavilions (salas), organized along pathways inspired by the shape of the tropical antler horn fern.

This original design has since evolved organically to its final form which is still in keeping with its original purpose of creating buildings from earth’s elements and shapes that are an ode to nature’s beauty.

Panyaden School Chiang Mai building in Thailand

There are two main types of buildings:

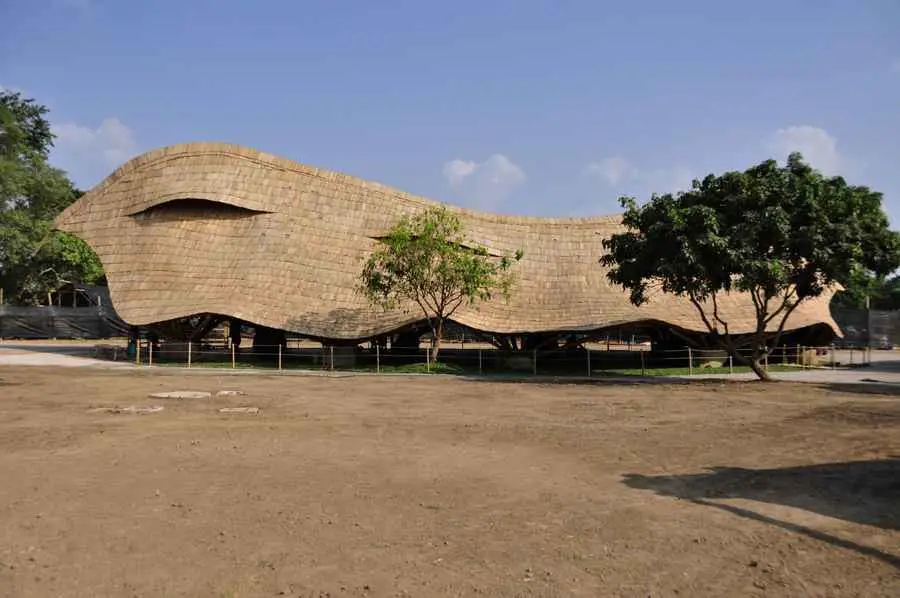

– The classroom pavilion type has load-bearing walls from rammed earth, dividing the building into 3 classrooms. The outer walls are made of adobe. Glass windows framed by recycled local hardwood, glass bottles and washing machine windows bring natural light into the classrooms.

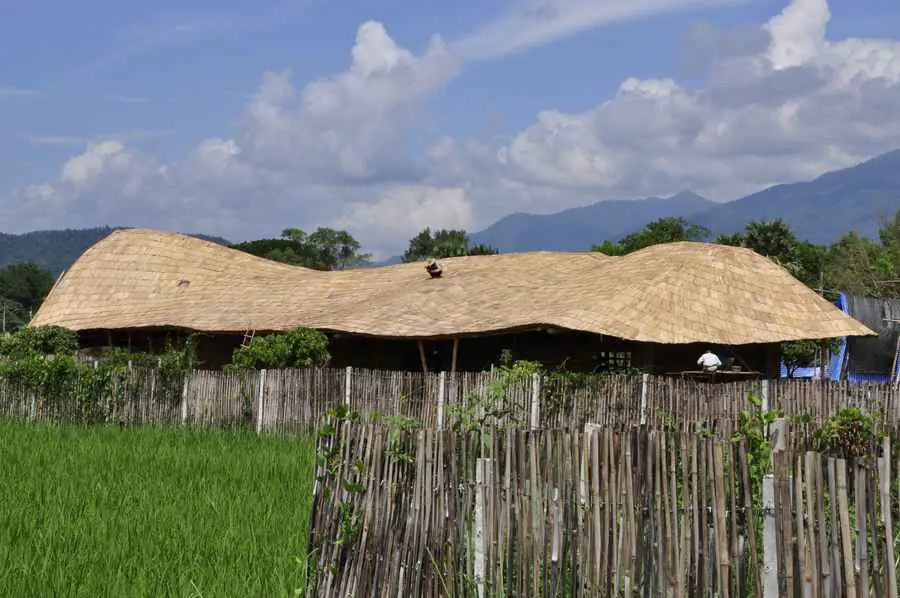

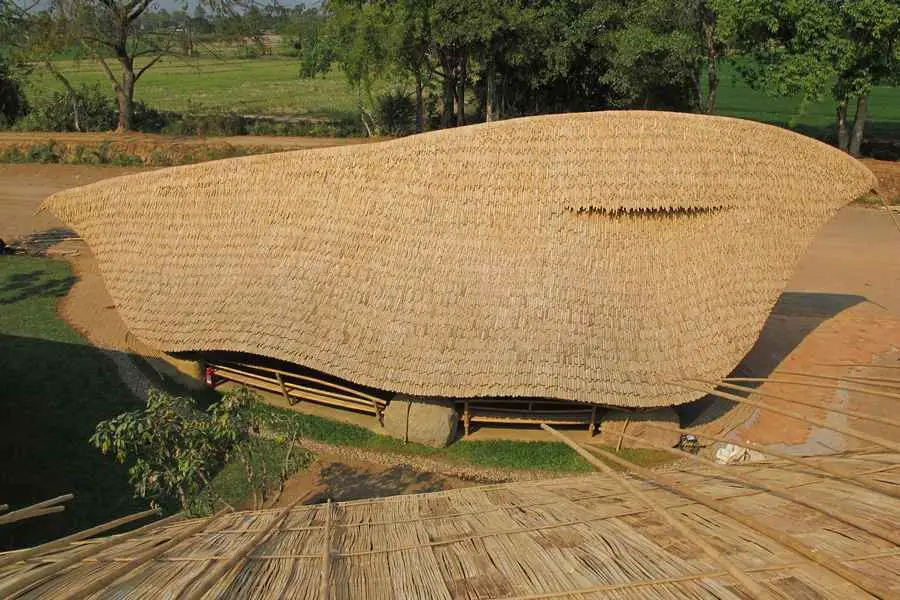

Cupboards and shelves are all integrated in an adobe wall curving around the sanitary block. The curved contours of the bamboo roof structure mirror the mountains at the horizon of the site.

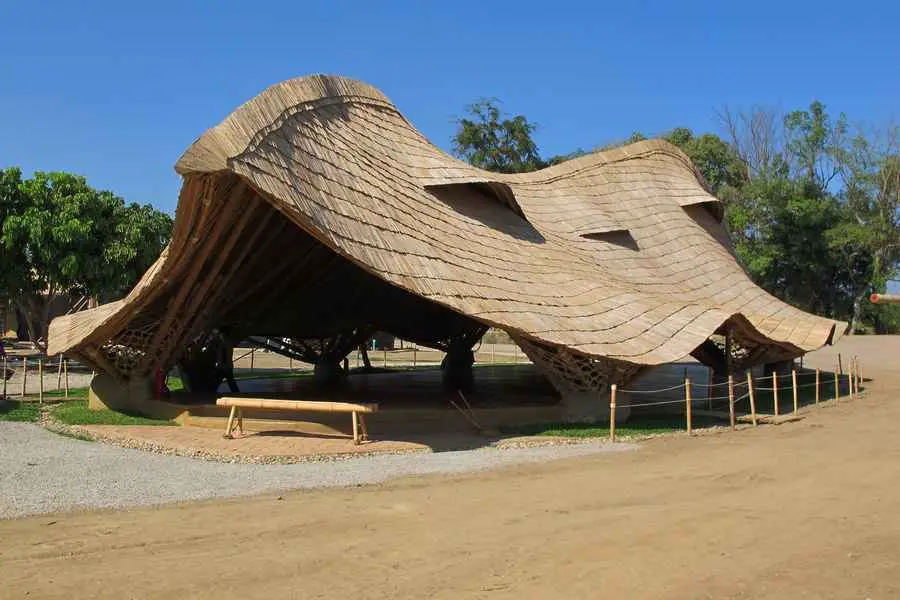

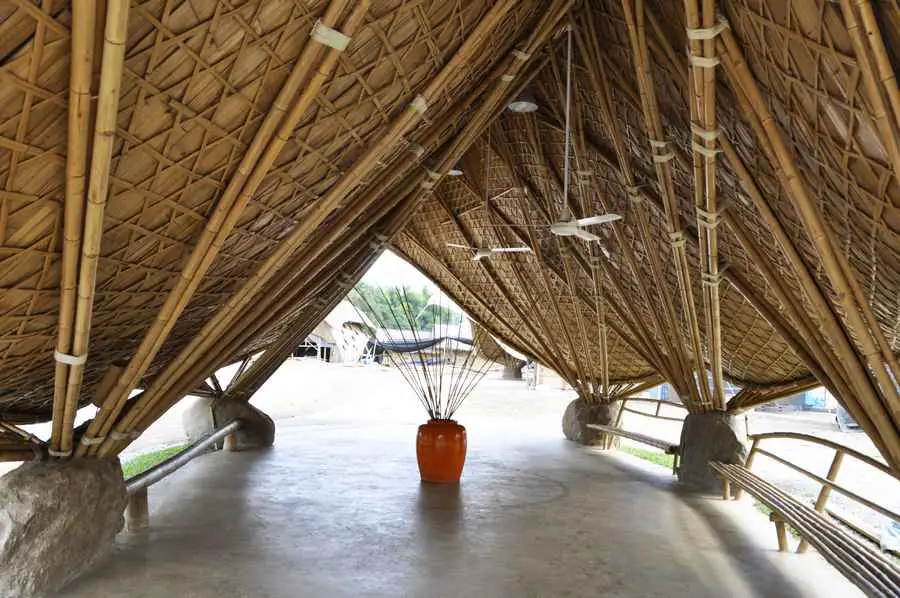

– The sala pavilion type is used for common functions such as the assembly hall and the canteen. Columns consist of bamboo bundles reaching up to the bamboo canopy from their stone foundations, giving a feeling of walking through a majestic bamboo forest.

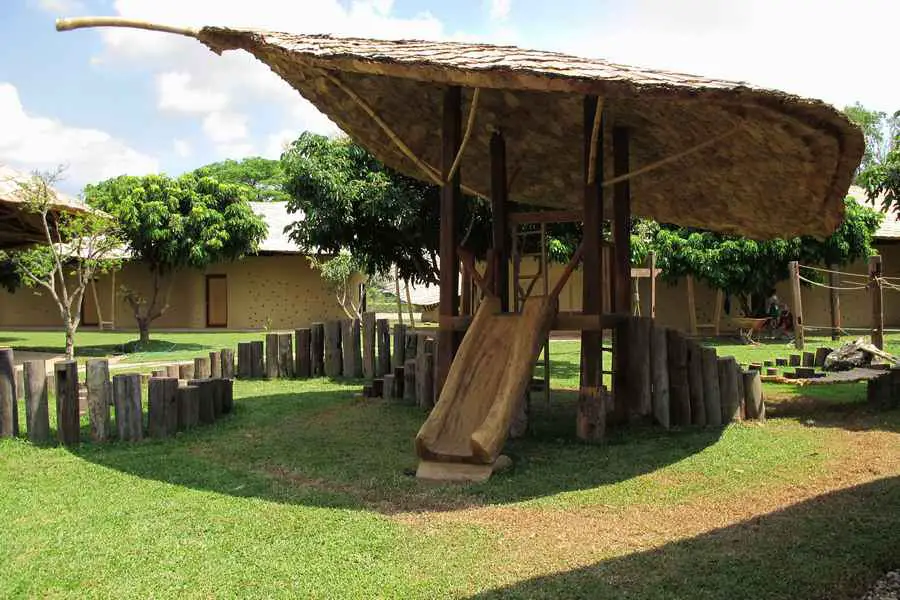

Other salas designed and created by the local team (playground, around the swimming pool, Buddha sala etc) resemble birds or leaves – elements found in nature and in daily Thai life (such as the paper umbrellas made in Chiang Mai).

Panyaden School Chiang Mai building in Thailand

The entire school has been built from local earth and local bamboo that has been naturally treated to withstand the elements. Organic vegetables and rice will be grown on school property. Environmentally friendly waste water treatment and food waste recycling producing organic fertilizers and biogas for cooking, round up the picture of an environmentally friendly school with a negligible carbon footprint.

Panyaden is a private bilingual school with a Buddhist approach that will accommodate 375 students. The students will be the ambassadors to introduce green living into the lives of their communities.

In addition to the Thai and native English speaking teachers, they will be supervised by experts in various arts, creativity as well as traditional wisdom such as local agricultural methods, specialists in tropical forest plants, cloth weaving and northern cuisine etc.

Panyaden School aims to deliver a holistic education that integrates Buddhist principles and green awareness with the highly regarded, International Primary Curriculum.

Panyaden School Chiang Mai Panyaden Building Thailand School Building Chiang Mai Building

Panyaden School Chiang Mai – Building Information

Project: Panyaden School, Chiang Mai, Thailand
Client: Mrs. Yodphet Sudsawad
Reference client: Markus Roselieb
Architect: 24H > architecture
Design: Boris Zeisser, Maartje Lammers, with: Olav Bruin, Andrew Duff
Local design team: Chiangmai Life Construction
Design: Markus Roselieb, Decha Tiengkate
Project Leader & Management: Chiangmai Life Construction – Markus Roselieb & Decha Tiengkate
Programme: Kindergarten and Grade school
Site address: 218 Moo 2, T.Namprae, A.Hang Dong, Chiang Mai, Thailand
Design: 2010
Construction: May 2010 – Apr 2011
Completion: Apr 30, 2011
Floor area: 5,000 sqm
Copyright photographs: Ally Taylor / Panyaden School

Persons and companies involved in the project:
– Local architect & structural engineer: Rajanakarn Design & Construction Co,.Ltd.
– Rammed Earth Floor Advisor: Martin Rauch
– Interior Design: Yodphet Sudsawad & Markus Roselieb
– Sitescaping & Landscaping: Markus Roselieb & Fon
– Playground Design: Ryan Parkes & Markus Roselieb
– Waste Water Consultants: Utility Business Alliances

Panyaden School images / information from 24H > architecture
