Tianjin Exhibition Centre Building, Development, Architect, China

National Convention and Exhibition Centre in Tianjin

Major New Chinese Building – design by gmp · Architekten von Gerkan, Marg und Partner

19 Mar 2013

National Convention and Exhibition Centre in Tianjin Building

Architect: gmp · Architekten von Gerkan, Marg und Partner

Competition winners commissioned

National Convention and Exhibition Centre, Tianjin, China

With their design for the Tianjin Exhibition Centre, the architects von Gerkan, Marg and Partners (gmp) won the 1st prize of an international design competition. To win the prize the practice had to prevail against competition from FUKSAS, HHP, NBBJ/BIAD and others.

National Convention and Exhibition Centre in Tianjin:

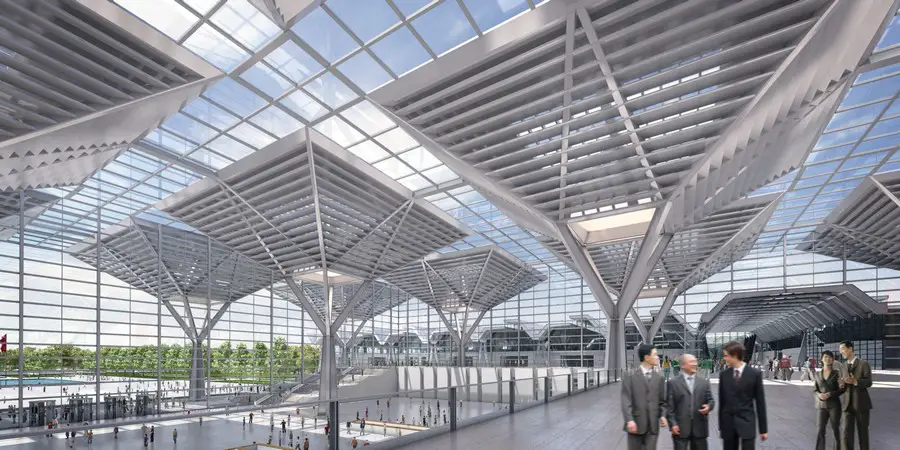

National Convention and Exhibition Centre in Tianjin Building
image from gmp · Architekten von Gerkan, Marg und Partner

In addition to Shanghai and Guangzhou, Tianjin is now the third city where an exhibition centre of international importance will be built. With a total square area of 1.2 million square metres and dedicated exhibition floor space of 400,000 square metres, one of the world’s largest exhibition centres will be created in the east of China over the next few years.

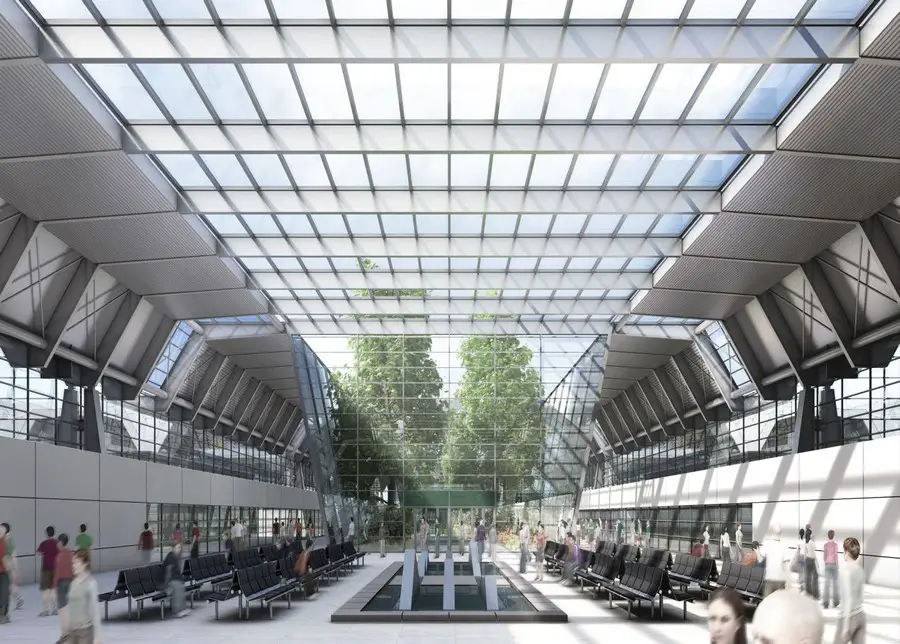

National Convention and Exhibition Centre Tianjin Building
image from gmp · Architekten von Gerkan, Marg und Partner

The site is located at Tianjin Avenue, the main traffic artery which links Tianjin’s historic centre with the so-called Binhai Development Area at the coast of the Yellow Sea. To the north, the site borders the river Haihe which is instrumental in shaping the character of the city. The exhibition ground’s central access avenue runs between these two poles and thus generates a spatial connection between the traffic artery and the waterway.

The design concept proposes two almost identical construction phases. They both consist of a central entrance hall roofed over by filigree canopies, 8 exhibition halls on both sides and a main central thoroughfare that connects the entrance halls with the exhibition halls. The functions of the exhibition centre are rounded off with open-air exhibition space, a congress centre, hotels, offices and administration facilities.

The entire exhibition floor space is located on one level. The central access avenue is elevated 9 m above the exhibition and road level. Access to the exhibition halls and the congress centre is from here. The exhibition halls, which are arranged in a linear layout with a floor space of 12,500 square metres each, can be used separately or combined with an adjoining hall to provide a total of 25,000 square metres of space.

The shed-type roof structure of the halls allows the ingress of daylight. With a display of gardens, open air areas and restaurants, the circulation areas provide a convivial atmosphere.

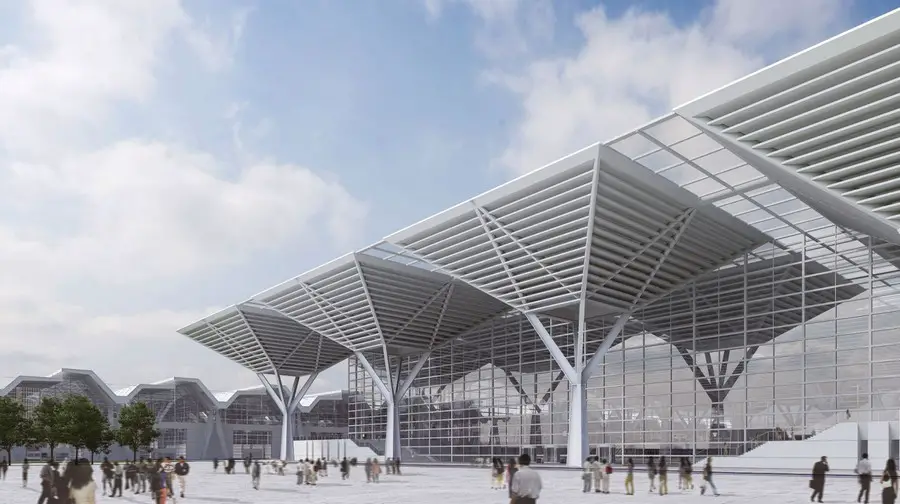

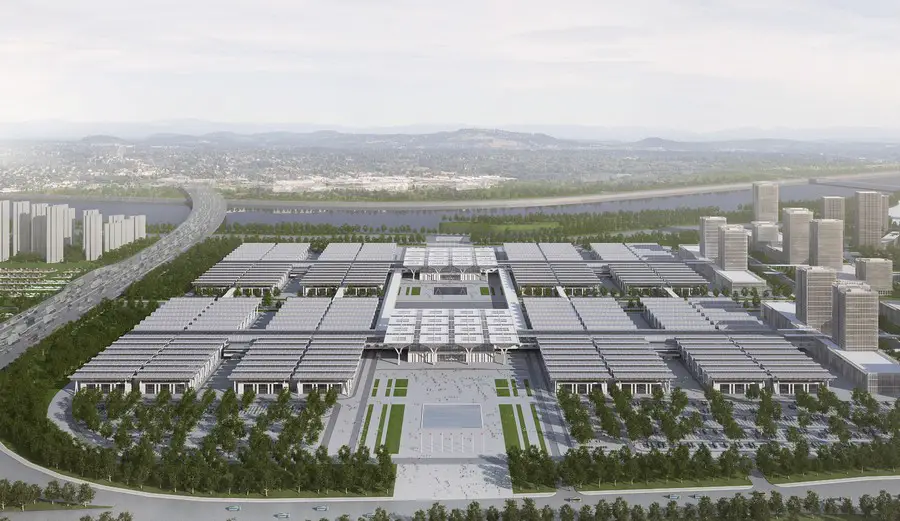

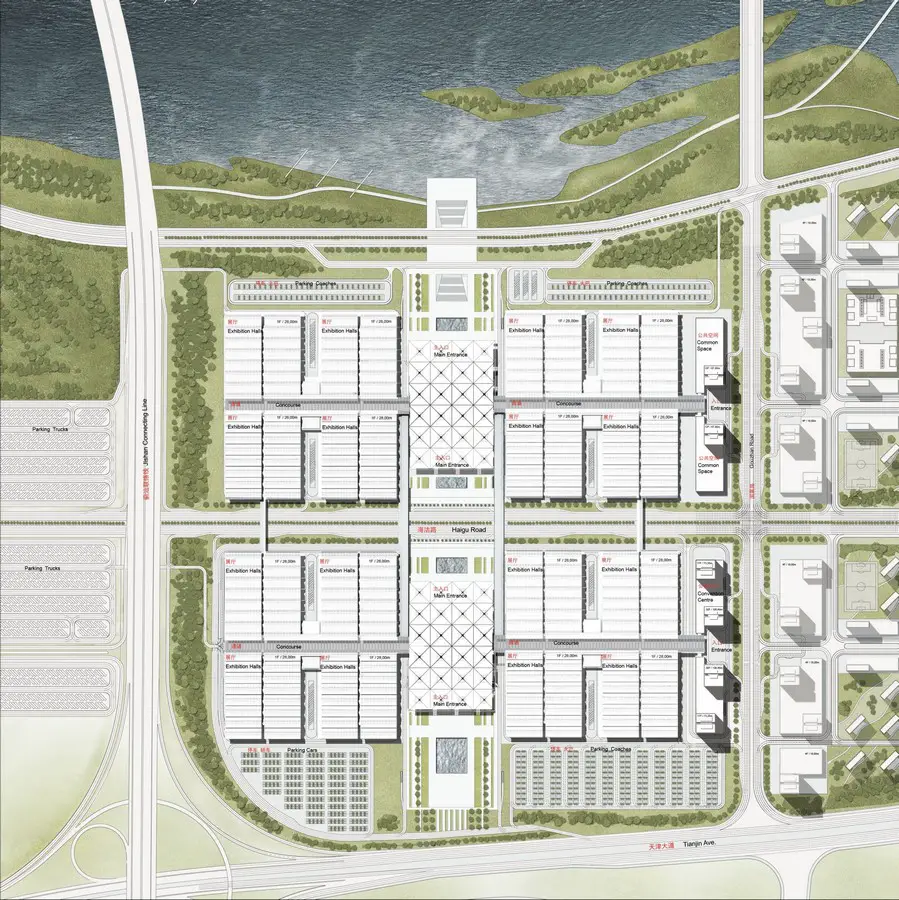

National Convention and Exhibition Centre Tianjin Building National Convention and Exhibition Centre Tianjin Building National Convention and Exhibition Centre Tianjin Building National Convention and Exhibition Centre Tianjin Building National Convention and Exhibition Centre Tianjin Building
images from gmp · Architekten von Gerkan, Marg und Partner

National Convention and Exhibition Centre Tianjin – Building Information

Location: Tianjin, north east China
Design: Meinhard von Gerkan and Stephan Schütz with Nicolas Pomränke
Project management, competition: Simon Schetter, Patrick Pfleiderer
Team, competition: Helene Käschel, Katja Pötzsch, Jens Förster, Keke Ye, Stefan Hornscheidt, Bernd Gotthardt, Ulrike Finkbeiner, Thilo Zehme, Jan Deml, Zhou Bin, George Liang, Christian Machnacki, Gai Xudong, Wu Di, Wang Jue, Lin Wei
Project management, planning: Stephan Rewolle, Matthias Wiegelmann, Bao Wei
Team, planning: Lin Wei, Tian Xueli, Mulyanto, Wu Di, Stefan Hornscheidt, Yulia Gandasari
Client: Tianjin Planning Bureau
Gross floor area: Messegelände: 1.200.000 sqm, additional space for urban design purposes: 2.150.000 sqm

National Convention and Exhibition Centre Tianjin Building images / information from gmp · Architekten von Gerkan, Marg und Partner
